Sida 1/3
Edge Connector Breakout Board for the BBC micro:bit
www.kitronik.co.uk/5601B
Introducon: This breakout board has been designed to oer an easy way to
connect additional circuits and hardware to the edge connector on the BBC
micro:bit. This edge connector oers access to a large number of the BBC
micro:bit processor pins. For details on these please refer to the next page.
To use the breakout board the BBC micro:bit should be inserted rmly into the
connector as shown below.
Layout:
BBC micro:bit compable connector
Pin headers connected through to the
BBC micro:bit pin numbers as
indicated
This area is ed with a 20x2 row of
pin headers. These can be used to
connect an IDC cable or jumper wires.
Prototyping area
This area has been designed to allow
you to prototype small circuits. There
is a 3V and 0V row, and three
addional connecng secons.
Solder pads connected to the BBC
micro:bit I2C pins
Examples of board in use: This breakout board is used in our ‘Inventors kit for
BBC micro:bit’. This kit is supplied with instructions detailing a number of uses
for the board. These can be found at www.kitronik.co.uk/microbitinvent
Name Descripon
22
0V
21
20
19
18
17
3V
16
15
14
13
12
2
11
10
9
8
7
1
6
5
4
3
0
0V 0V / ground
0V 0V / ground
0V 0V / ground
3V 3V / posive supply
3V 3V / posive supply
3V 3V / posive supply
SDA Serial data pin connected to the magnetometer & accelerometer
SCL Serial clock pin connected to the magnetometer & accelerometer
DIO General purpose digital IO (P16 in editors)
MOSI Serial connecon - Master Output / Slave Input
MISO Serial connecon - Master Input / Slave Output
SCK Serial connecon - Clock
PAD2 General purpose digital / analogue IO )(P2 in editors
DIO General purpose digital IO (P12 in editors)
BTN_B Buon B Normally high, going low on press –(Buon B in editors)
COL3 Column 3 on the LED matrix
COL7 Column 7 on the LED matrix
DIO General purpose digital IO (P8 in in editors)
PAD1 General purpose digital / analogue IO (P1 in editors)
COL8 Column on the LED matrix8
COL9 Column on the LED matrix9
BTN_A Buon A Normally high, going low on press –(Buon A in editors)
COL2 Column on the LED matrix2
PAD0 General purpose digital / analogue IO (P0 in editors)
COL1 Column 1 on the LED matrix
Edge Connector Pinout
Note: A number of these pins may not
be accessible in all editors.
0V
Special function pin
3V
Digital input / output
Analogue input / digital IO
Digital input (shared with a buon)
Digital output (shared with LED matrix)
Edge Connector Breakout Board for the BBC micro:bit
www.kitronik.co.uk/5601B
Breakout PCB Ref (if applicable)

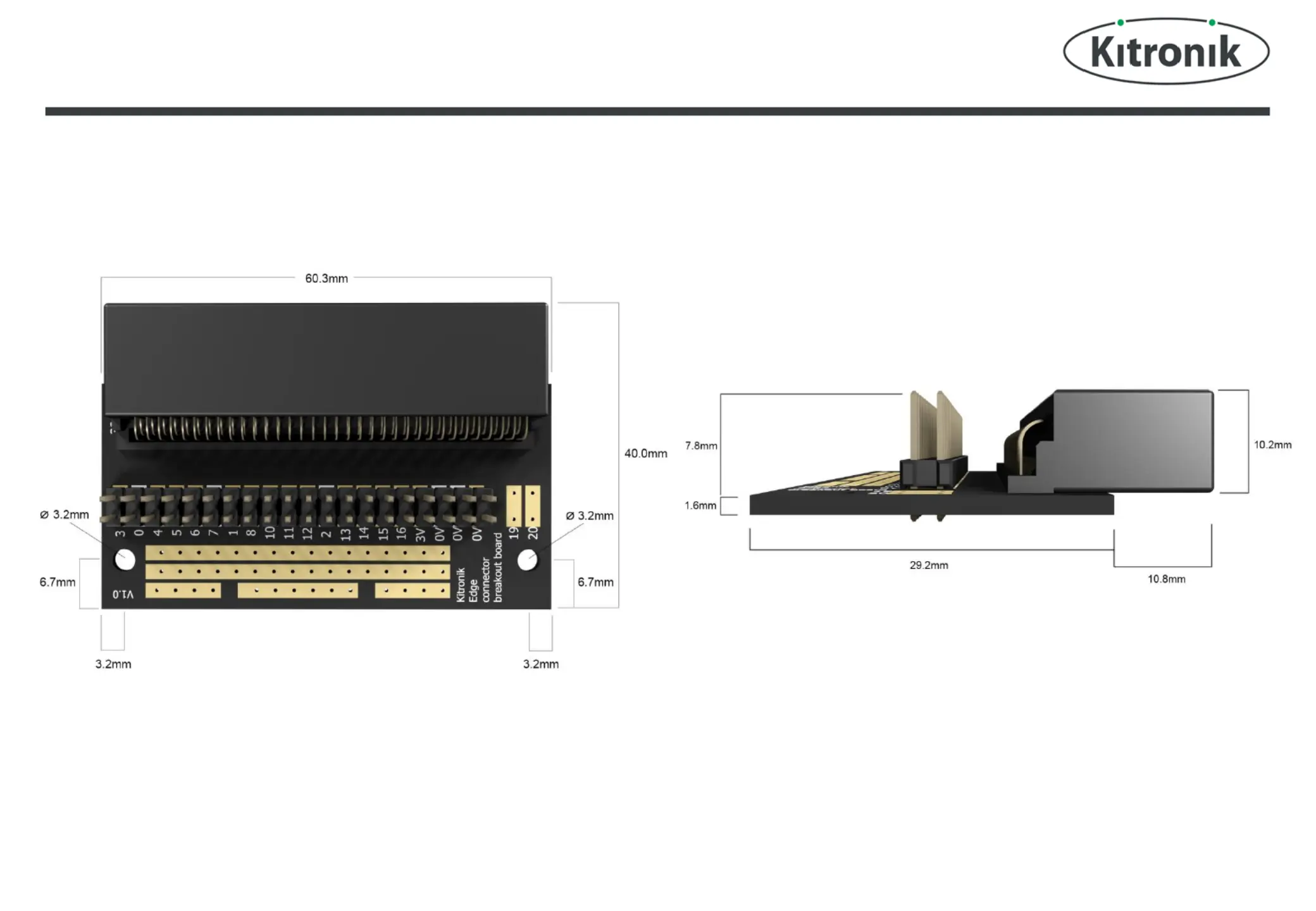

Dimensions
Edge Connector Breakout Board for the BBC micro:bit
www.kitronik.co.uk/5601B
(Dimensions +/- 0.8mm)
