Sida 1/3
SWT3-22-HU-WP-T-EU/UK Quick Start
P/N:
2900- 301854QS
Rev:
1
Scan for full manual
SWT3-22-HU-WP-T-EU/UK Quick Start Guide
This guide helps you install and use your SWT3-22-HU-WP-T-EU/UK for the first time.
Go to http://www.kramerav.com/downloads/SWT3-22-HU-WP-T-EU/UK to download the latest user manual
and check if firmware upgrades are available.
Step 1: Check what’s in the box
SWT3-22-HU-WP-T-EU/UK 2x2 4K60 USB-
C/HDMI Wall-plate Switcher Transmitter
1 Multi signal USB-C cable (1m)
Front panel
1 Power adapter and cord
1 Quick start guide
1 Screw set
Step 2: Get to know your SWT3-22-HU-WP-T-EU/UK
# Feature Function
1 IN 1 Button (USB-C) Press to select USB-C input port.
Button LED white when active signal is detected.
2 IN 2 Button (HDMI, USB-C Host) Press to select HDMI port. Press to toggle between the HDMI and Host ports. Button
LED lights white when active signal is detected.
3 STATUS LED Lights green when there is an HDBT link and active input signal.
4
DISPLAY ON
Button
Press to toggle the remote display on or off.
The button LED lights white when remote display power is on.
5 IN 1
USB-C Connector
Connect to USB-C Host (AV sources + USB + LAN):
• that supports DisplayPort Alternate Mode, (for example, a laptop) to share
content.
• to connect to the LAN, using your USB-C wired connection.
• to charge the connected sources (that supports USB Power Delivery 2.0).
While charging, the charging icon (to the right of the connector) becomes
visible and lights orange.
6
IN 2
HDMI Connector
Connect to a compatible HDMI display.
USB-C Host
Connect to a USB-C host (for example, a room PC).
7
USB DEVICE Connect to the USB local peripheral devices (for example, a USB camera, a soundbar,
microphone, keyboard & mouse).
HDBT O UT
# Feature Function
USB A 3.1 Connector 1 & 2
8 OUT HDMI
Connect to a compatible HDMI display.
9 HDBT OUT
RJ-45 Connector
Connect to the HDBT IN RJ-45 connector on a
receiver (for example, EXT3-POE-XR-R).
10 1G LAN RJ-45 Connector Connect to a LAN to provide Network and Internet to the source device that is
connected to the USB-C IN port, and/or Ethernet extension to the receiver.
11 GND Grounding Screw Ring Tongue
Terminal
Connected to grounding wire.
12 AUDIO OUT 5-pin Terminal Block
Connector
Connect to a balanced stereo analog audio acceptor.
13 I/O 2-pin Terminal Block Connect to:
• Input-triggering devices (for example, remote buttons or sensors), OR
• Output-triggered devices (for example, remote alarm LED indication).
These GPIO ports may be configured as a digital input, digital output, or analog input
ports.
14 RS-232 3-pin Terminal Block
Connector
Connect to an RS-232 controlled device (for example, the connected PTZ USB
camera) to be controlled via an IP-connected controller (for example, SL-240C).
15 19/20V DC Use the included 19V 6A power supply for powering the unit and charging the source
device connected to the USB-C port.
Step 3: Install the SWT3-22-HU-WP-T-EU/UK

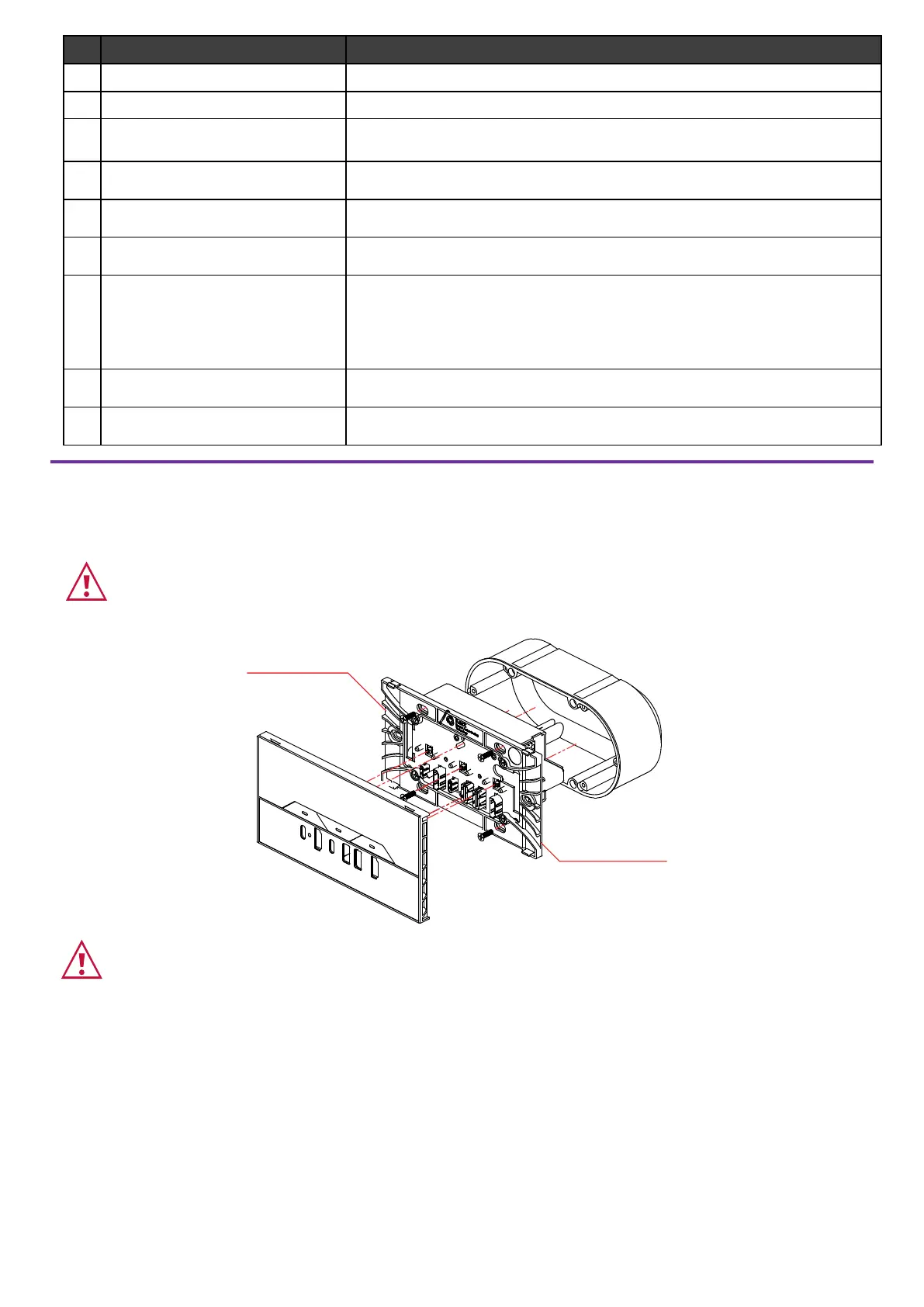

Insert the device into the in-wall box (note that first you need to connect the
HDBT cable and power) and connect the parts as shown in the illustration below:
When installing the device, take care not to obstruct the upper and lower ventilation holes.
• EU: 2 gang in-wall junction box, with a cut-hole diameter of 2x68mm and depth that can fit in both the device and the
connected cables (DIN 49073).
• UK: 2 gang in-wall junction box (BS 4662), 135x75mm (W, H) and depth that can fit in both the device and the
connected cables.
Ventilation Holes
Ventilation Holes
