INSTALLATION SHEET

PD70615

LED Pendant

START FROM HERE

Please Note:

•All Kuzco LED fixtures come with pre-wired LED module(s).

• Unless instructed to do so, please do not touch any part of the LED module(s) as any

unnecessary contact with the module could cause permanent damage.

• For dimming, an ELV (Electronic Low Voltage) type of dimmer is required.

• Make sure is POWERCOMPLETELY OFF at the fuse box

• Have your fixture installed by a qualified licensed electrician

• Prepare everything in a clear area

• Wear gloves at all time during this installation

• Read instructions carefully before you start assembly

• Keep this installation sheet for future reference

Technical Support: 1-855-855-8926

19054 28th Avenue Surrey, BC Canada V3S 6M3

T: 604 538 7162 TF: 1-855 85 KUZCO F: 604 538 7196

W

20190627

: kuzcolighting.com

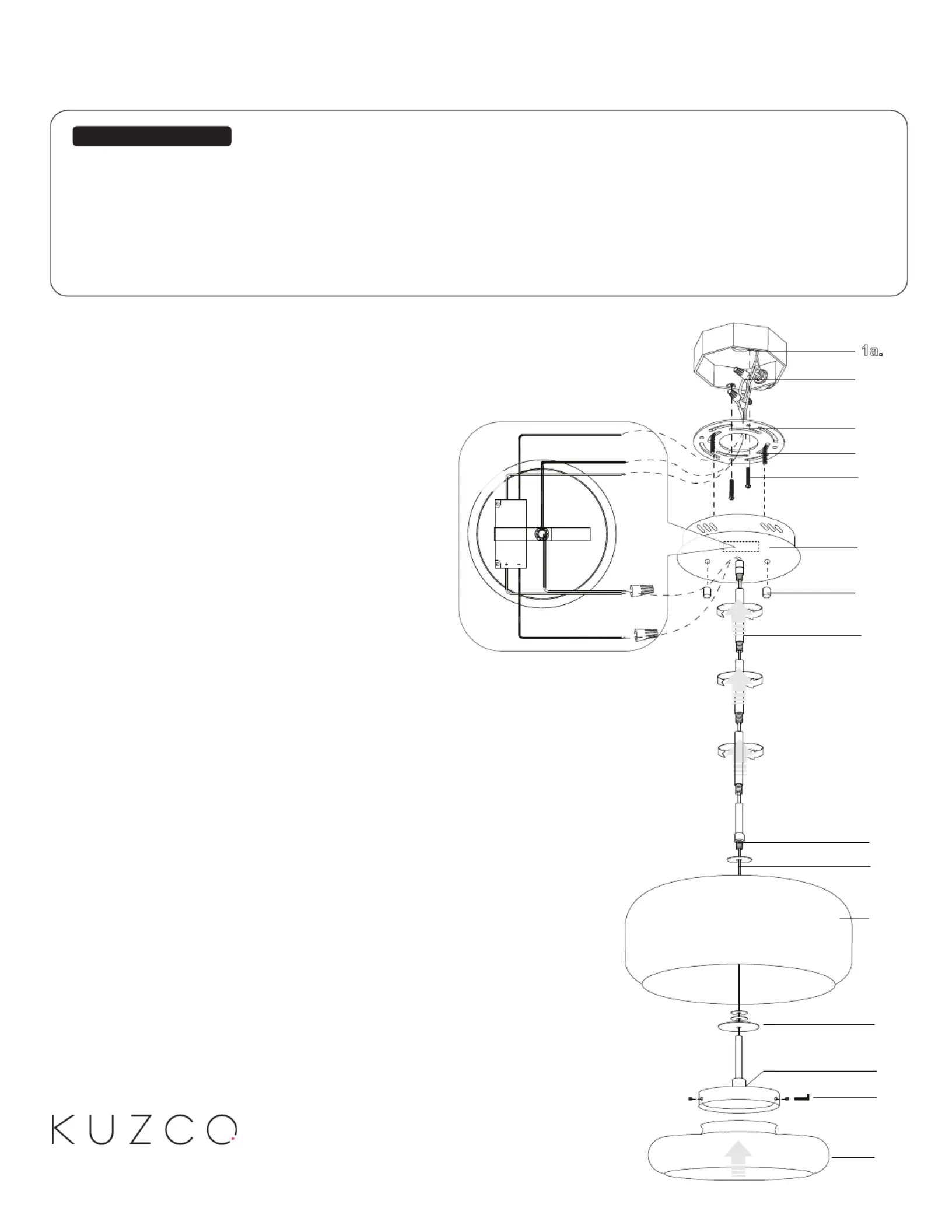

3a.

3b.

3c.

3d.

3e.

1a.

1b.

1e.

2b.

2a.

1c.

1d.

2c.

2d.

2e.

1. Remove fixture from its original packag.e

2. Remove the mounting plate from within the (1c)

canopy (2a)(2b). by unthreading the decorative nuts

3. Secure the mounting plate to the junction box (1c)

(1a) with screws provided in the hardware (1e)

package.

4. Connect the glass to the LED engine by (3e)(3c)

using the two set screws and allen key provided. (3d)

Run the wires through the shade and let the (2e) (3a)

shaderest on the glass (3e). Make sure that the metal

washers (3b) are aligned properly. Connect the stem

into the shade and LED engine by (2d) (3a)(3c)

threading clockwise.

5. Connect all the rods together by threading (2c)

clockwise starting from the stem up to the canopy (2d)

(2a) Make sure to run the wires through the rods (2e)

up to the canopy.

6. Connect the DC driver wires to the LED engine wires

by matching black driver wire to black LED wire, red

driver wire to red LED wire). Make proper electrical

connections (black to hot “L”, white to neutral “N”,

ground to “GND”) with wire nuts provided in (1b)

hardware package (Illustration 1).

7Align and insert mounting plate screws through (1d)

holes on canopy , secure with decorative nuts (2a)

(2b).

Illustration 1

Black Wire -

Red

Red Wire +

Black

(Hot)

N

L

V+

V-V-

G

White

(Neutral)
