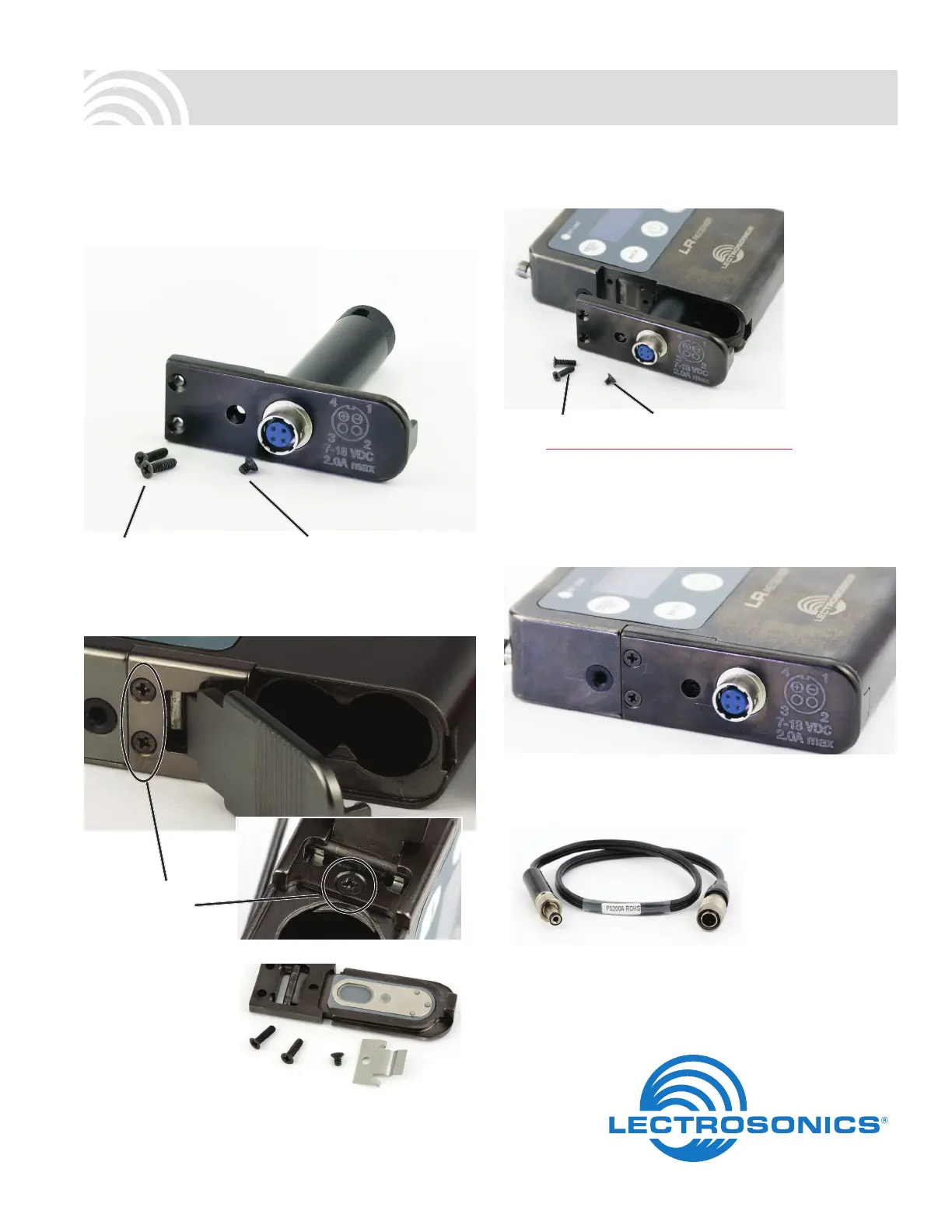

LRBATELIM-H
Battery Eliminator (only for LR receiver)
TECHNICAL DATA
Rio Rancho, NM, USA
www.lectrosonics.com
This battery eliminator replaces the batteries and door
on the LR receiver, allowing the unit to be powered from
an external DC source. The battery eliminator is sup-
plied in a kit including mounting screws.
P/N 28615 (2-56 1/8 FL100)P/N 28623 (2-56 5/16 FL100)
Removing the Battery Door
Save the door
assembly parts for
re-installation later
Remove
these
screws
Insert the battery eliminator as shown below and fasten
it with the supplied screws.
P/N 28623 (2-56 5/16
FL100) screws
P/N 28615 (2-56 1/8
FL100) screw
CAUTION: Use only the shorter screw
P/N 28615 (2-56 1/8 in.) in the hole near
the connector. The longer screws may
damage a circuit board component.
Tighten all three screws snugly, but be careful not to
overtighten them and damage the threads.
Optional power cable:
PS200A - 15” power cable, Hirose 4 to DC locking con-
nector with .365 in (9.3mm) plug.
5 Dec. 2024
581 Laser Road NE • Rio Rancho, NM 87124 USA • www.lectrosonics.com
(505) 892-4501 • (800) 821-1121 • fax (505) 892-6243 • sales@lectrosonics.co
m

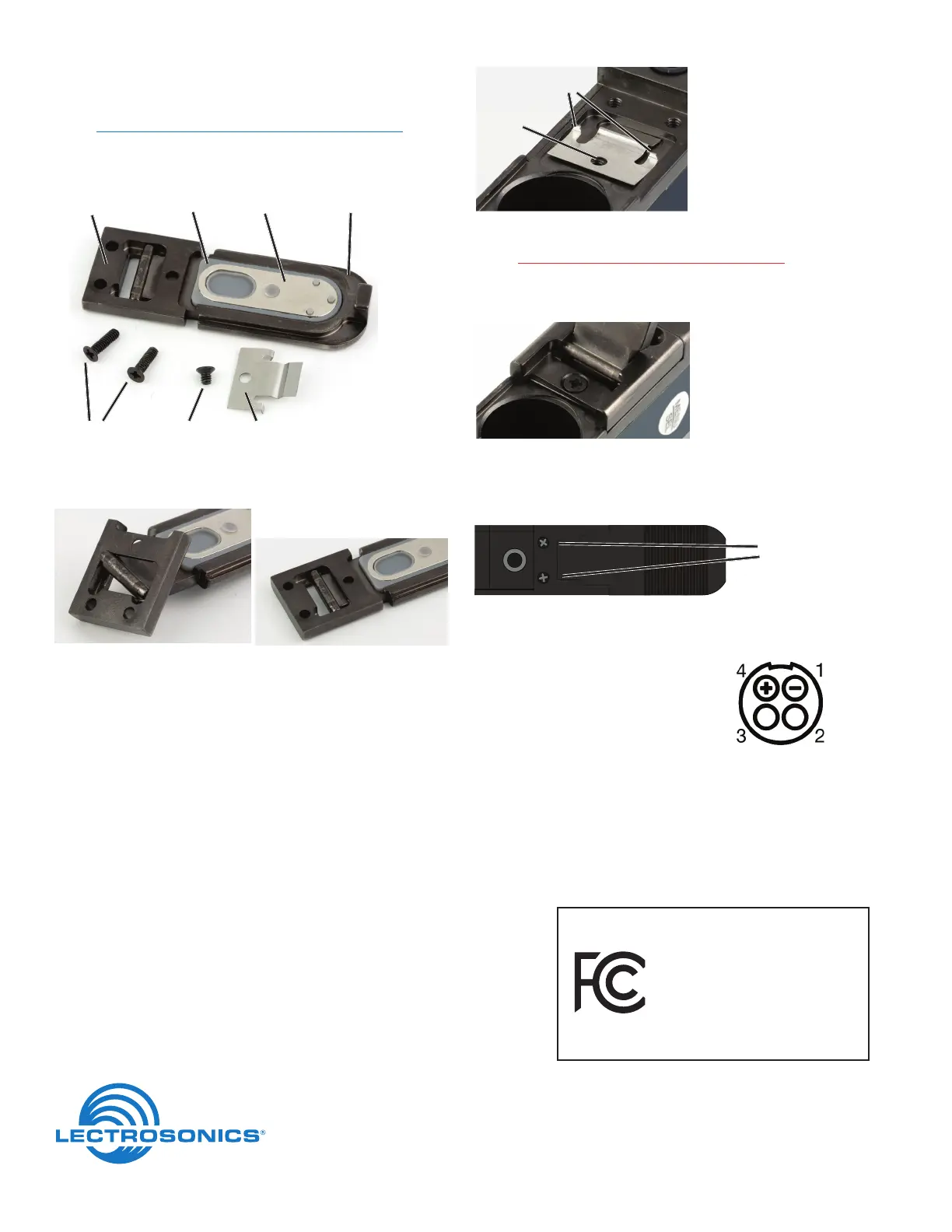

Replacing the Battery Door
Separate part numbers for the battery door assembly
are as follows.
NOTE: The insulator, shorting bar and batt door
are factory assembled with an adhesive.
P/N 28623
2-56 5/16”
P/N 27033
spring detent
P/N 28615
2-56 1/8”
P/N 26985
batt door
P/N 26896
shorting bar
P/N 26986
latch plate
P/N P1293
insulator
Assemble the battery door and latch plate.
Specications
Input voltage range: 5 to 25 VDC
Current consumption: 310mA @ 5V, 130mA @ 12V, 65mA @25V
Dimensions: 53 x 60 x 21 mm (2.09 x 2.38 x .84 inches)
Weight: 23 grams (0.81 ozs.)
Tabs
Align holes
Place the spring detent
clip on the housing with
the tabs facing upward
and the screw hole
aligned with the one in
the housing.
Mount the latch plate-
and door assembly on
top of the spring detent
and align the screw hole. Insert the shortest screw (P/N
28615 2-56 1/8”) into the hole and tighten.
CAUTION: Use only the 1/8” screw. The
longer ones may damage the circuit board
inside.
As you tighten the
screw, the latch plate
and door pivot will
align the spring detent.
Tighten the screw
snugly, but not so tight
it damages the threads.
Close the door and make sure it latches correctly. If so,
then insert and tighten the two screws on the outside of
the housing. Use the longest screws (P/N 28623 2-56
5/16”).
Tighten the two
screws on the
outside of the
housing.
FCC NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful in-
terference in a residential installation. The equipment generates, uses and can radiate radio frequency energy and, if
not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the equipment
o and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna
• Increase the separation between the equipment and receiver
• Connect the equipment into an outlet on a circuit dierent from
that which the receiver is connected
• Consult the dealer or an experienced radio/TV technician for help
Changes or modications to this equipment not expressly approved by
Lectrosonics, Inc. could void the user’s authority to operate it.
LRBATELIM
Tested to comply
With FCC Standards
FOR HOME OR OFFICE USE
External DC Power Supply
External power is required via
Hirose 4 locking connector wired
per the diagram.
