Stainless Steel 09/05 1831

Stainless Steel Sink Installation

Note:

During installation care should be taken to ensure the sink is protected from scuﬀ s and scratches.

Straining and over tightening of all plumbing ﬁ xtures connected to the sink should be avoided.

Installers should carefully check that the moulding and edges of the sink are dead level so that water will ﬂ ow oﬀ the

drainer.

Installation – General

• Fit the waste(s) to the sink, including any inter-connecting pipe work (supplied with multiple bowl sinks)

• Fit the tap(s) and plumb in any hoses or pipes.

Use either of the two methods of installation. Wooden battens are supplied with some models. The installer must supply

the battens if this method of installation is required for other models.

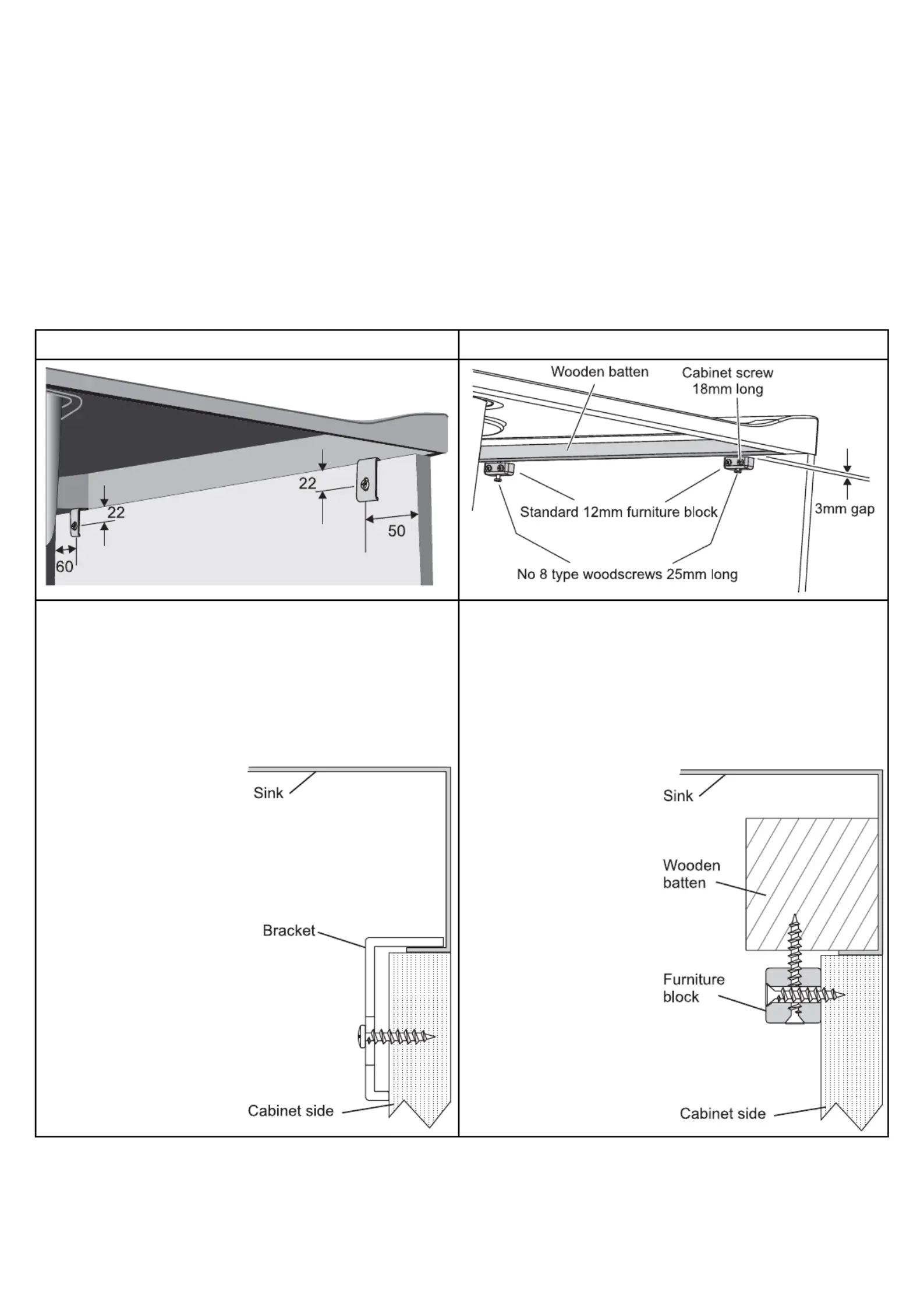

Installation without wooden batons Installation with wooden batons

1) Drill 2 pilot holes in either side of the base unit as

shown.

2) Fix the bracket with the long leg (18mm) clamping

down onto the rim of the inner rim.

3) Attach the brackets to the cabinet with the Cabinet

screws (screws are provided with some sink models).

Items required too secure the sink (not supplied)

4 oﬀ Standard 12mm furniture block

8 oﬀ Cabinet screw 18mm long

4 oﬀ No 8 type woodscrews 25mm long

1) Position the sink over the cabinet in the desired

location and mark the position of the screws, relative to

the inside of the cabinet, using a soft pencil.

2) Using the pencil marks

made previously as a

guide, screw the 12mm

furniture block to

the cabinet using the

Cabinet screws.

3) Put the No 8 type

woodscrew into the

furniture block and

tighten the screw into

the wooden baton.

Note: All dimensions shown are in millimetres and the sink is a typical installation
