2. Fitthexingclipstothe

sink using the screws 

provided,asshownin

g. 2 and hinge them  

back away from   the

sinkedge.

3. Atthispointtrythesink

in the cut-out, some   

localised enlargement 

of the hole may be    

necessaryaroundthe

clips.

4. Fit the tap to the   

sink.

5. Fit the wastes to the sink following the       instructions

packedwiththem.

6. Fitthefoamsealtotheedgeofthesink.Peeloffthepaper

backingstripandstickthesealtotherecessinthesink

asshowning.3.Ensurethataneatbuttjointisachieved

wheretheendsofthesealmeet.

FITTINGTHESINK

1. Positionthesinkinthecut

out.

2. Tensionthexingclipsas

showning.4.

 Ensurethatthefoamseal

is carefully  compressed

butdonotovertightenthe

clips.

3. Completetheplumbingof

thehotandcoldsupplyto

thetap.

ALTERNATIVEMETHODOFSEALING

1. Applysiliconesealant (notsupplied)totheundersideof

thesinkrim,asshowning.5.

2. Removesurplussealantfromaroundthesinkusing dampa 

cloth.

NOTE: During installation care should be taken to ensure

the sinkisprotectedfromscuffsandscratches.Strainingand

overtighteningofallplumbingxturesconnectedtothesink

shouldbeavoided.Installersshouldcarefullycheckthatthe

moulding andthe edgesof the sinkare deadlevel so that

waterwillow thedrainer.off

PLEASEREADTHOROUGHLYBEFOREATTEMPTINGTO

INSTALLSINK.

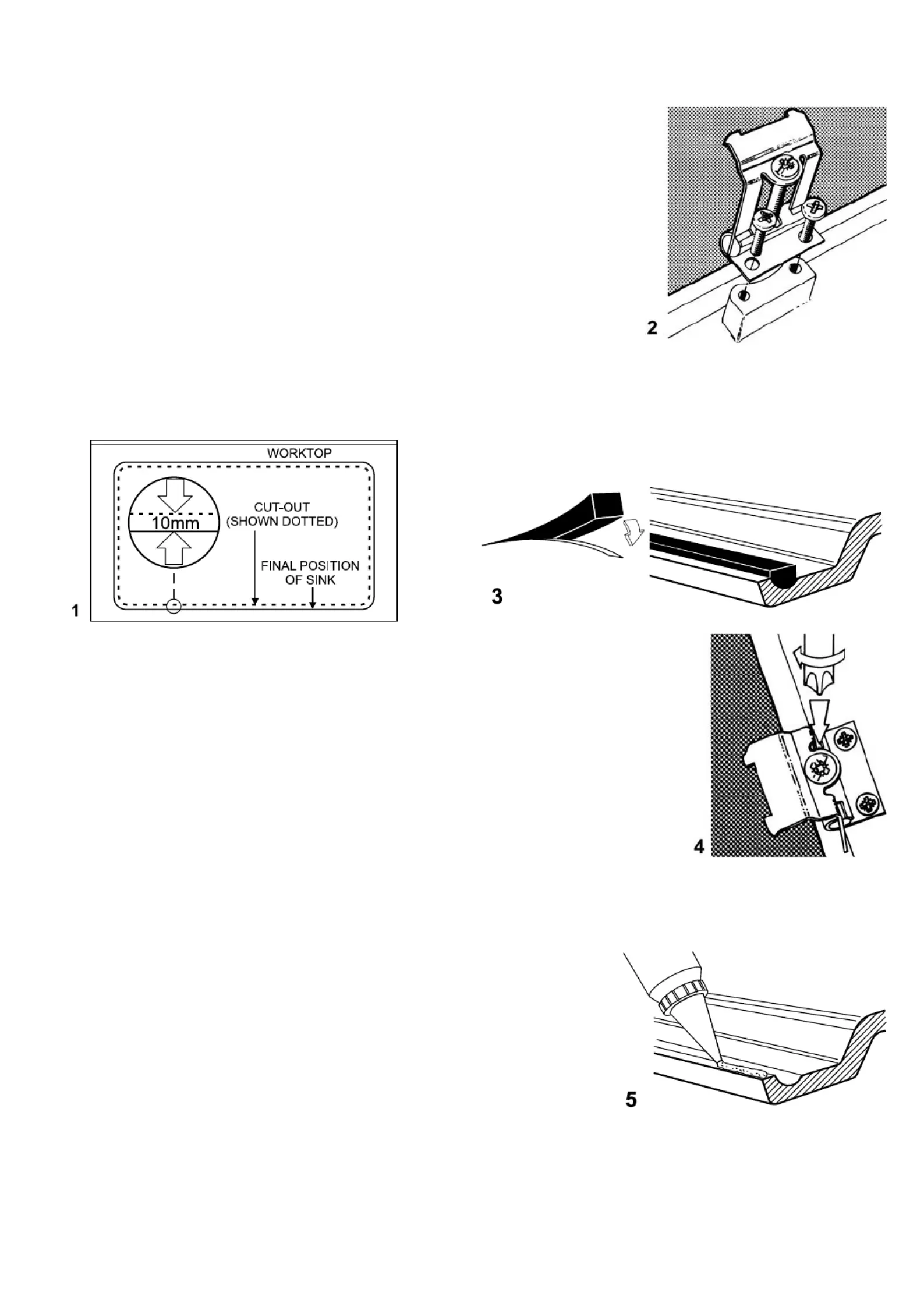

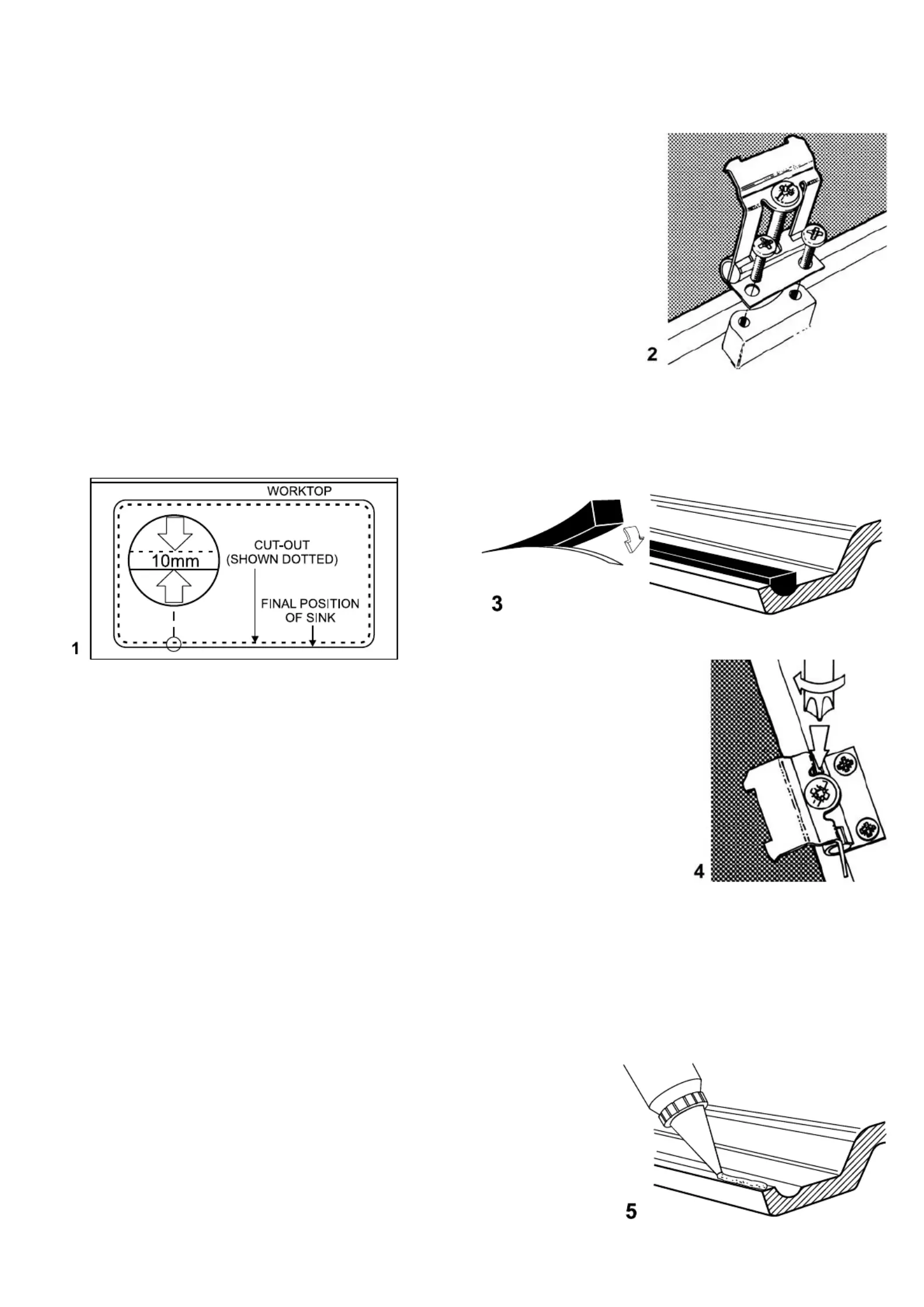

PREPARINGTHEWORKTOP

1. Itisrecommendedthattheinsetsinkisttedtotheworktop

beforebeingpermanentlyxedtothecabinet.

2. Placethesinkupsidedownonworktop.Positionthesink

relativetotheworktopasrequired,ensuringthatthecabinet

frameworkwillbeclearofallpartsofthesink.

 Withasharpsoftpencildrawroundsinkasaccuratelyas

possible.Seeg.1.

3. Remove the sink and draw another line 10mm inside        

theout-lineofthesinktop.Thisisthecuttinglineforthe

aperture.

4. Drillaslarge holea aspossibleinsidethecuttingline.Using

apadsaw,jigsaworsimilar,cutouttheaperture.Atthis

pointwewouldrecommendthattheworktopapertureis

sealed. dothispaintoverwithap.v.a.adhesive,paint,To

varnishorsmearwithsiliconesealant.

PREPARINGTHESINK

1. Ifatapholeisrequired,buthasnotbeensuppliedinthe

sink,proceedasfollows.

 Decidewhetherthebowlistobeontheleftorrighthand

when thesink is tted.Cut the appropriate tapholeinto

thesink.Todothisyouwillneedaholesawortankcutter

settocutouta35mmdiameterholeandapilotdrill.On

thereversesideofthesinkyouwillndalocationpoint

forthepilotdrillinthecentreofthetapcut-out.Drillout

thepilothole.TurnthesinkoverandcarefullydrilLcOt4he

tap-hole.

WARNING: Velstra&Neostoneproduc includeasilicaller.ts

Anymachiningoperationwillproduceneparticlesofdust.

Drillingorcuttingmustbecarriedoutinawell-ventilated

area.

INSTALLATIONDETAILSVELSTRA

&NEOSTONESINKS

Produktspecifikationer

Varumärke:	Leisure
Kategori:	Sjunka
Modell:	NHL2
Bredd:	980 mm
Djup:	508 mm
Produktens färg:	Svart
Typ av diskho:	Toppmonterat handfat
Diskhons form:	Rektangulär
Antal diskhoar:	2 hoar
Första diskhons form:	Rektangulär
Första skål mått (BxL):	350 x 433 mm
Första skål djup:	180 mm
Andra diskhons form:	Rektangulär
Andra skålen mått (BxL):	154 x 298 mm
Andra skålen djup:	114 mm
Hål för kran:	Ja
Antal hål för kranar:	2
Diskställ:	Ja
Tryck hålstorlek:	35 mm
