Luxe Inset Sinks Fitting Instructions

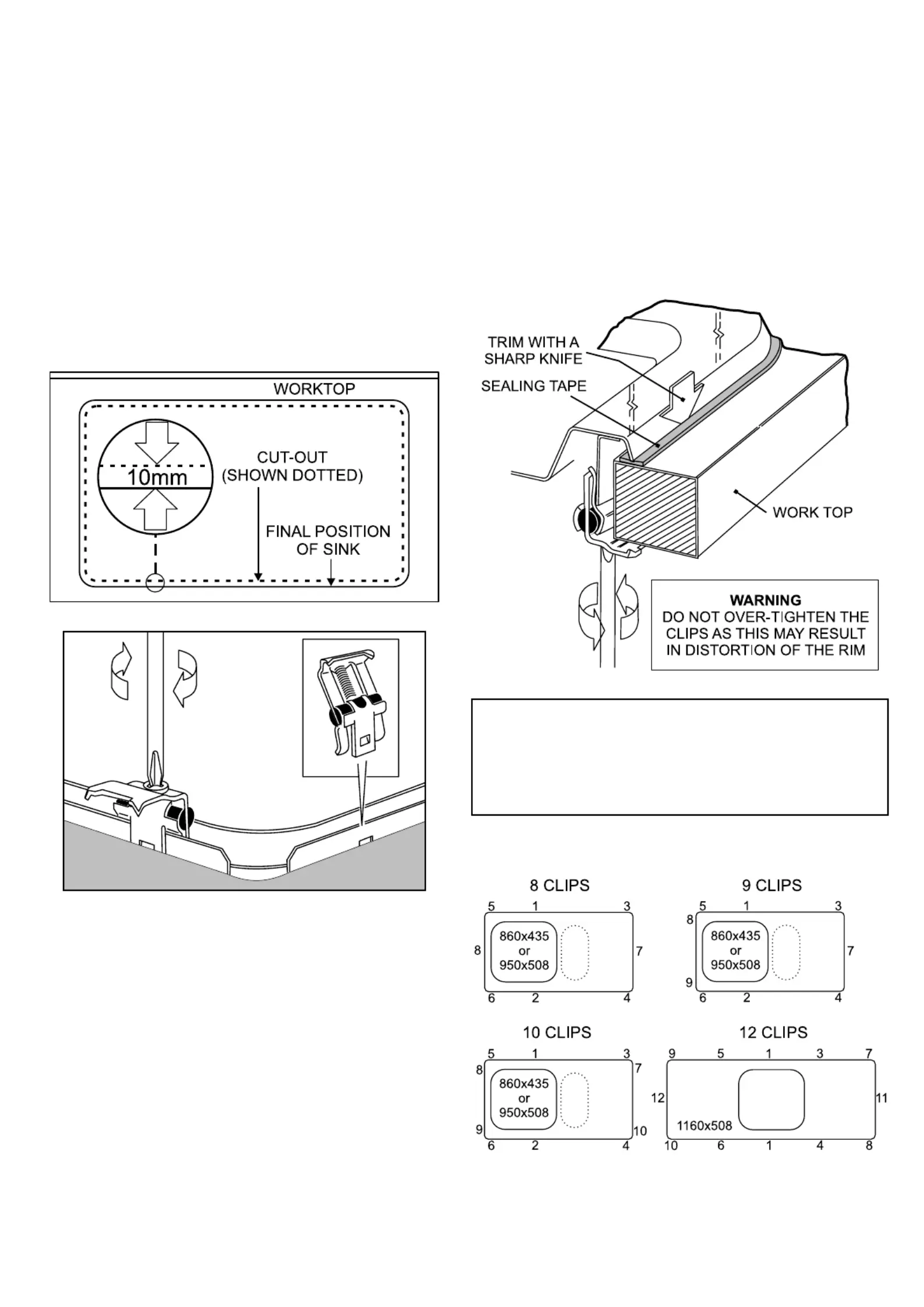

1. It is recommended that the Inset sink is tted to the

worktop before being permanently xed to the cabi-

net.

2. Place the sink upside down on worktop. Position the

sink relative to the worktop as required, ensuring that

the cabinet framework will be clear of all parts of the

sink.

With sharp soft pencil draw round sink as accurately

as possible. See g. 1.

3. Remove the sink and draw another line 10mm inside

the outline of the sink top following the corner radii

with care. This is the cutting line for the aperture.

Fig. 1

Fig. 3

4. Drill as large a hole as possible inside the cutting line.

Using a pad saw, jig saw or similar, cut out the aperture

to the cutting line.

5. Remove paper backing from the foam tape and stick

down to the worktop, lining up the inner edge of the

tape 3 to 4mm from the edge of the cut, see g. 2. A

neat butt joint of the two ends is desirable. The tape

may be stretched slightly to obtain this. The worktop

should be clean and dry before application.

6. Attach the xing clips to the sink rail as shown in

g. 3 ensuring that the two ‘prongs’ of the clip face

inwards.

Open the hinge on the clip.

7. Turn the sink upside down and lay the worktop over

the sink. Swing the clip into position. (This is the most

eective method although if the worktop has been

xed to the cabinet, the sink can be placed in the

aperture and the xing eected from underneath).

8. With the sink secured in position the excess sealing

tape should be cut o by carefully running a sharp

knife or razor blade round the periphery of the sink

and then lifting the excess tape away.

Fig. 2

NB The adjustment of the clamping bracket for U.K. mar-

ket suits worktops of thicknesses 27mm to 43mm.

Any variations from these thicknesses will either

require packing under the clips or for the worktops

to be rebated.

Recommended tightening sequence for sink xing

clips

Produktspecifikationer

Varumärke:	Leisure
Kategori:	Sjunka
Modell:	LX155
Bredd:	1500 mm
Djup:	508 mm
Produktens färg:	Rostfritt stål
Typ av diskho:	Toppmonterat handfat
Diskhons form:	Rektangulär
Diskhons material:	Rostfritt stål
Antal diskhoar:	1 hoar
Första diskhons form:	Rektangulär
Första skål mått (BxL):	420 x 350 mm
Första skål djup:	190 mm
Hål för kran:	Ja
Antal hål för kranar:	1
Diskställ:	Ja
Tryck hålstorlek:	35 mm
