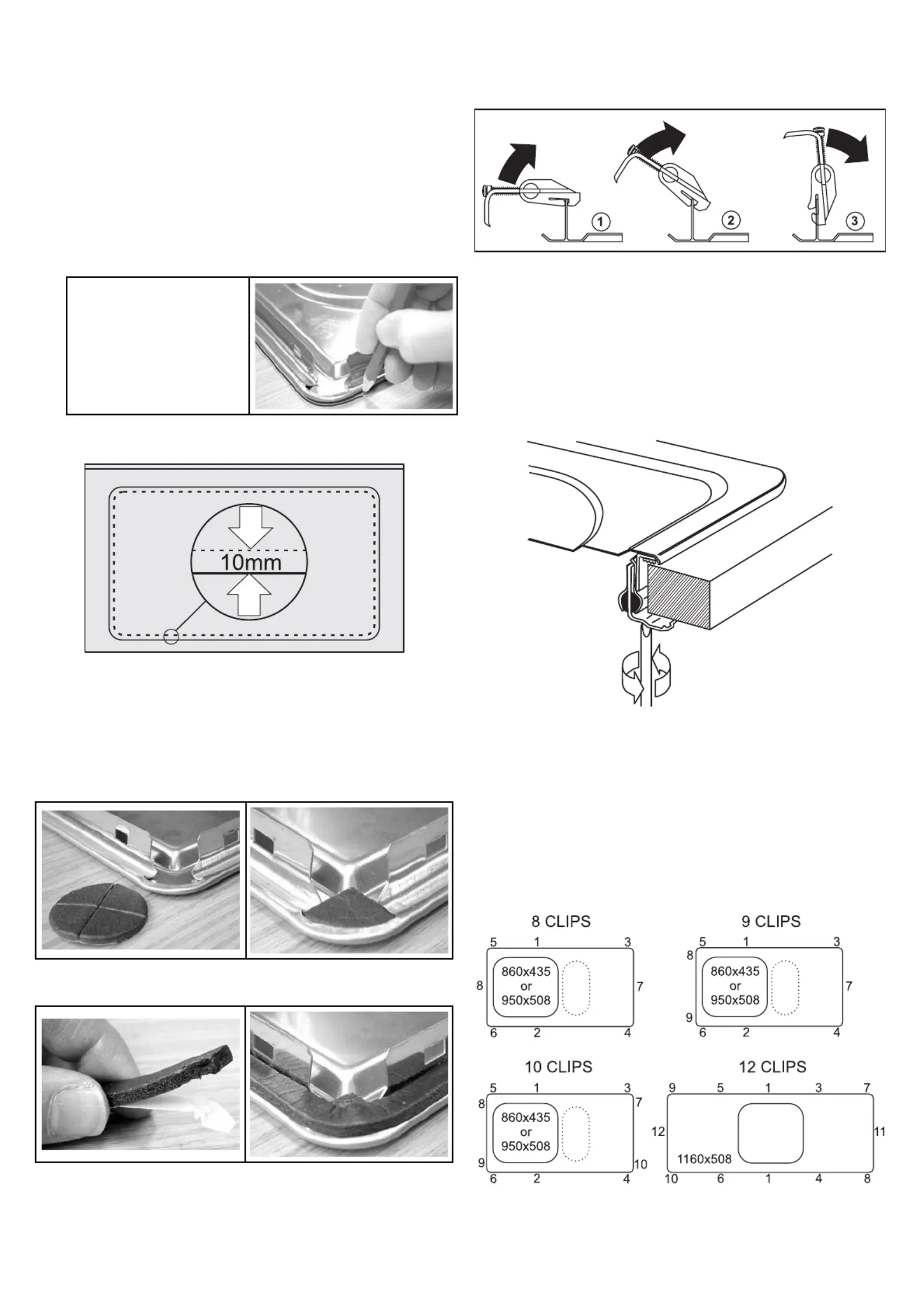

1. It is recommended that the inset sink is ﬁ tted to the

worktop before being permanently ﬁ xed to the cabi-

net.

2. Place the sink upside down on worktop. Position the

sink relative to the worktop as required, ensuring

that the cabinet framework will be clear of all parts of

the sink, or alternatively where provided use cut-out

template found on sink wrapper.

With sharp soft pencil

draw round sink as ac-

curately as possible.

3. Remove the sink and draw another line 10mm inside

the outline of the sink top.

This is the cutting line for the aperture.

4. Drill as large a hole as possible inside the cutting

line. Using a pad saw, jig saw or similar, cut out the

aperture to the cutting line.

5. Remove the paper backing from the quadrant section

and apply to all 4 corners of the sink.

Remove the protective back from the main seal and

stick to the underside of sink.

6. Attach the ﬁ xing clips to the sink rail ensuring that

the two ‘prongs’ of the clip face inwards. Open the

hinge on the clip.

Stainless Steel Inset Sinks with Fixed Position Clips

7. Turn the sink upside down and lay the worktop over

the sink. Swing the clip into position. (This is the most

effective method although if the worktop has been

ﬁ xed to the cabinet, the sink can be placed in the

aperture and the ﬁ xing effected from underneath).

8. Loosely tighten the corner ﬁ xing clips to centralise

the sink in the cut-out.

9. Tighten the ﬁ xing screws.

Do not overtighten the ﬁ xing clamps once the sink is

fully bedded in the sealing tape. Do not tighten fully

at the ﬁ rst attempt.

10. In certain circumstances it may not be possible to ﬁ t

a clip to all the ﬁ xed positions; provided a good seal

is achieved it is not detrimental to omit clips where

difﬁ culty arises.

Recommended tightening sequence for sink

ﬁ xing clips

Produktspecifikationer

Varumärke:	Leisure
Kategori:	Sjunka
Modell:	Seattle SE9502
Bredd:	950 mm
Djup:	508 mm
Kompatibla produkter:	KA12SS\r\nKA26SS\r\nKA10\r\nKA11\r\nTVR1CM\r\nTAD2CM\r\nTAM1CM
Produktens färg:	Rostfritt stål
Kranens material:	Metall
Typ av diskho:	Toppmonterat handfat
Diskhons form:	Rektangulär
Diskhons material:	Rostfritt stål
Antal diskhoar:	2 hoar
Första diskhons form:	Rektangulär
Första skål mått (BxL):	360 x 424 mm
Första skål djup:	155 mm
Andra diskhons form:	Oval
Andra skålen mått (BxL):	156 x 300 mm
Andra skålen djup:	125 mm
Hål för kran:	Ja
Antal hål för kranar:	2
Diskställ:	Ja
Faucet ingår:	Ja
Vattenflödesstyrning:	Roterande kranvred
Antal ventiler/spakar:	Dubbel
Tryck hålstorlek:	35 mm
Kranens färg:	Krom
