Any machining operation will produce ﬁ ne particles of dust.

Drilling or cutting must be carried out in a well-ventilated

area.

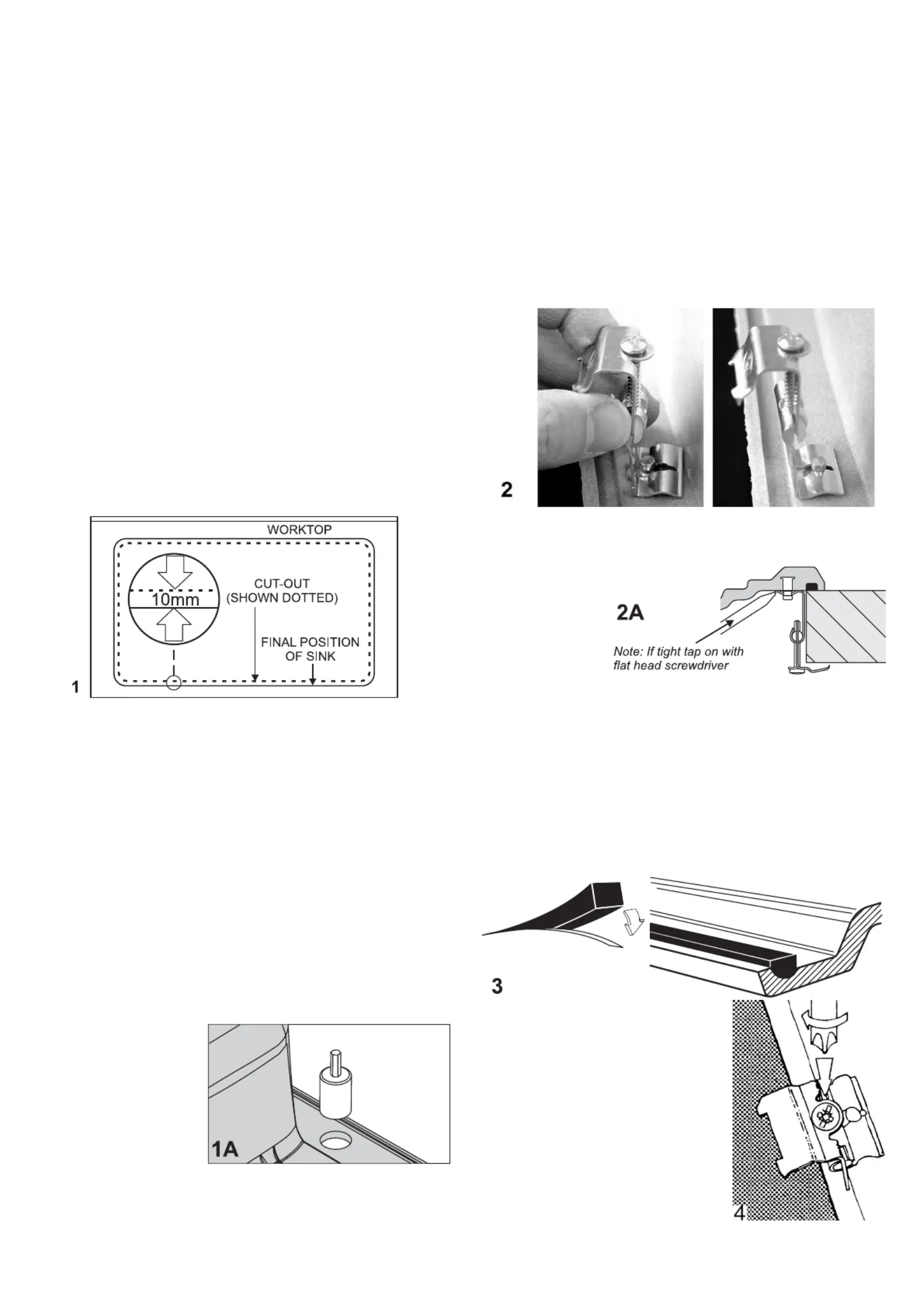

2. Position clips over pins moulded in sink. The clips are pulled

& twisted towards the edge of the sink as shown in ﬁ g. 2.

If a clip is tight tap on with ﬂ at head screwdriver as shown in

ﬁ g. 2A and hinge

them back away

from sink edge.

3. At this point

try the sink in

t h e c u t - o u t ,

some localised

enlargement of the hole may be necessary around the

clips.

4. Fit the tap to the sink.

5. Fit the wastes to the sink following the instructions packed

with them.

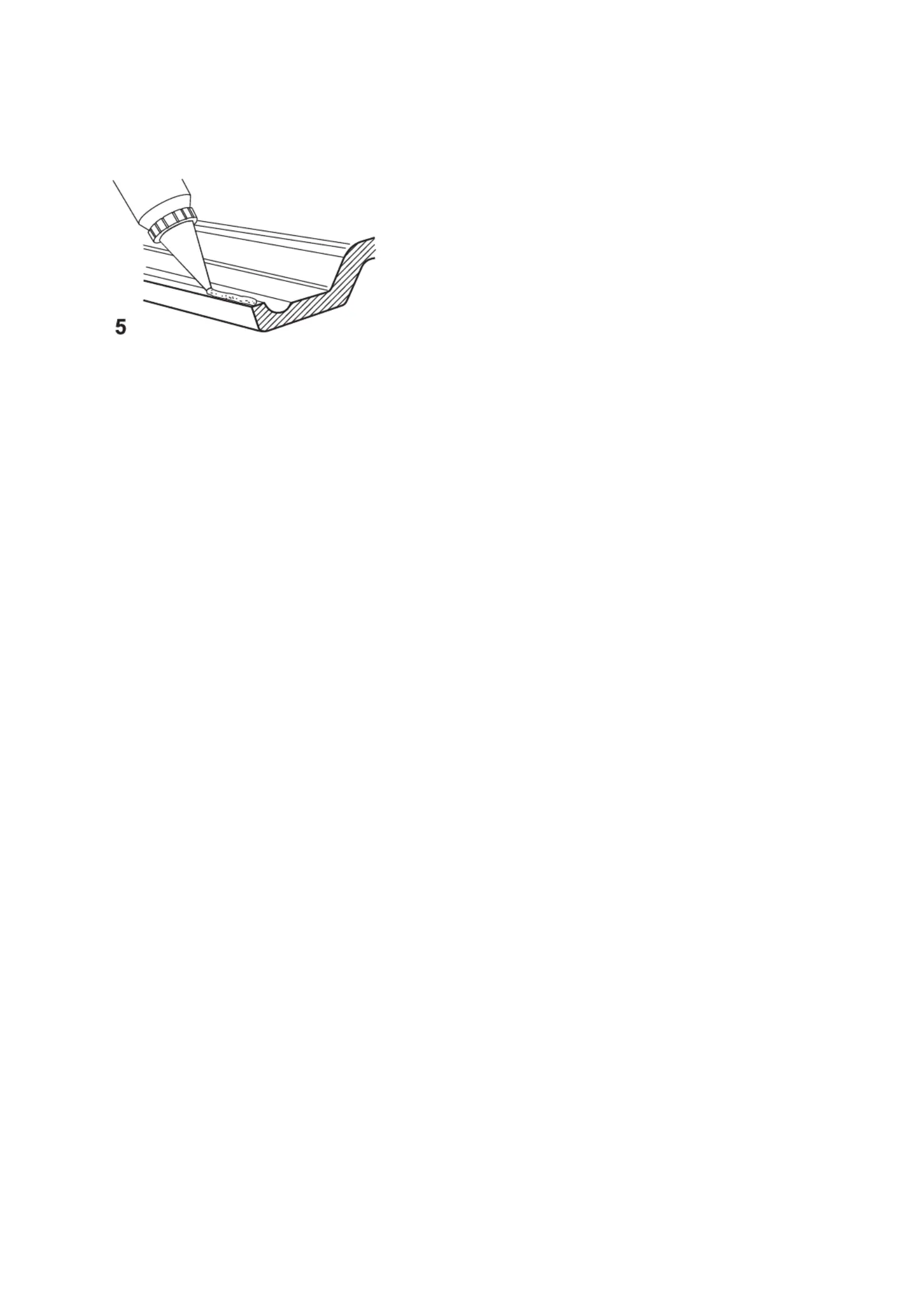

6. Fit the foam seal to the edge of the sink. Peel off the paper

backing strip and stick the seal to the recess in the sink as

shown in ﬁ g. 3. Ensure that a neat butt joint is achieved

where the ends of the seal meet.

FITTING THE SINK

1. Position the sink in the cut out.

2. Tension the ﬁ xing clips as shown

in ﬁ g. 4. Ensure that the foam

seal is carefully compressed but

do not overtighten the clips.

3. Complete the plumbing of the

hot and cold supply to the tap.

IMPORTANT

This sink has been coated with

a thin layer of protective ﬁ lm.

It is essential that the sink be

cleaned with cream cleaner (i.e. Cif Cleaner) before use.

INSTALLATION DETAILS FOR SNAP ON FIXING SYSTEM

VELSTRA & NEOSTONE SINKS

NOTE: During installation care should be taken to ensure

the sink is protected from scuffs and scratches. Straining and

overtightening of all plumbing ﬁ xtures connected to the sink

should be avoided. Installers should carefully check that the

moulding and the edges of the sink are dead level so that

water will ﬂ ow off the drainer.

PLEASE READ THOROUGHLY BEFORE

ATTEMPTING TO INSTALL SINK.

PREPARING THE WORKTOP

1. It is recommended that the inset sink is ﬁ tted to the worktop

before being permanently ﬁ xed to the cabinet.

2. Place the sink upside down on worktop. Position the sink

relative to the worktop as required, ensuring that the cabinet

framework will be clear of all parts of the sink.

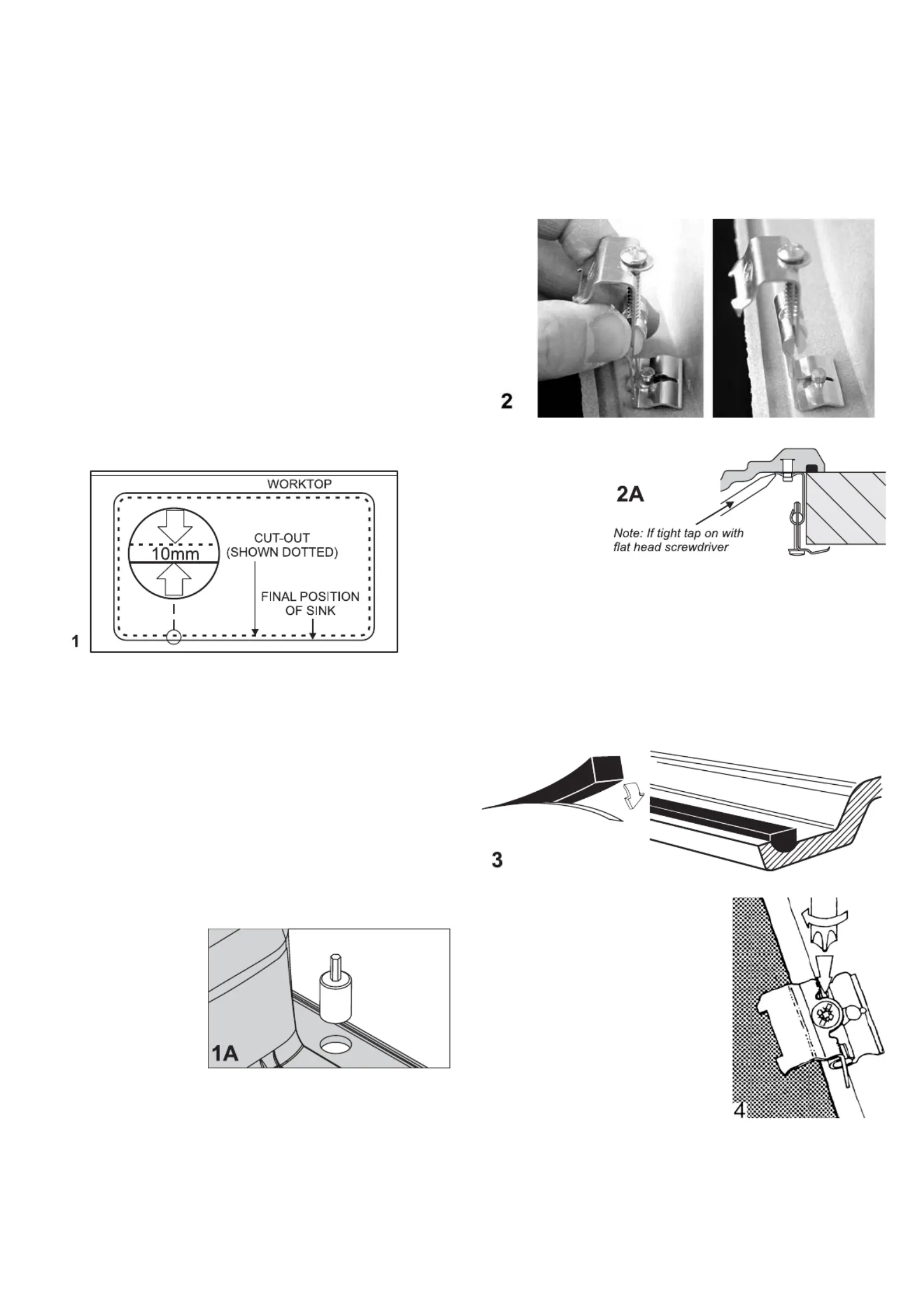

With a sharp soft pencil draw round sink as accurately as

possible. See ﬁ g. 1.

3. Remove the sink and draw another line 10mm inside

the out-line of the sink top. This is the cutting line for the

aperture.

4. Drill as large a hole as possible inside the cutting line. Using

a pad saw, jigsaw or similar, cut out the aperture. At this

point we would recommend that the worktop aperture is

sealed. To do this paint over with a p.v.a. adhesive, paint,

varnish or smear with silicone sealant.

PREPARING THE SINK

1. If a taphole is required, but has not been supplied in the

sink, proceed as follows:

Decide whether the bowl is to be left or right hand when

sink is ﬁ tted. Cut the appropriate taphole into the sink

using a 35mm hole

saw (supplied with

selected product).

On the reverse side

of the sink there

is a location hole

this is to be used

for positioning the

hole saw as shown

in ﬁ g. 1A.

Before drilling please read safety instructions supplied

with hole saw.

Front face must be fully supported to prevent cracking

carefully drill out taphole.

Warning: Velstra & Neostone products include a silica ﬁ ller.

Produktspecifikationer

Varumärke:	Leisure
Kategori:	Sjunka
Modell:	Uniline NUN9502
Bredd:	950 mm
Djup:	508 mm
Kompatibla produkter:	KA02WH\r\nKA26SS\r\nKA10
Produktens färg:	Svart
Diskhons form:	Rektangulär
Diskhons material:	Neostone
Antal diskhoar:	2 hoar
Första diskhons form:	Rektangulär
Första skål mått (BxL):	370 x 424 mm
Första skål djup:	180 mm
Andra diskhons form:	Oval
Andra skålen mått (BxL):	156 x 300 mm
Andra skålen djup:	123 mm
Hål för kran:	Ja
Antal hål för kranar:	1
Diskställ:	Ja
Faucet ingår:	Nej
Tryck hålstorlek:	35 mm
