IGP-0401

4-Port Gigabit PoE

Industrial Switch

User Manual

Introduction

This IGP- Industrial port Gigabit Ethernet Switch is equipped with two PoE ports. The PSE ports are 0401 4

critical for your PD environment. They will not only perform your network job, but also provide PSE power

to your PD WiFi or IP CAM applications. This product has been rigorously tested in harsh environment.

These PSE ports can be powered by -56 VDC input voltage. The additional Gigabit TX port and Gigabit 48

SFP port can be easily cascaded to extend your existing networks. With its multi- purpose design, it can

also be Din-Rail or wall-mounted. It is an ideal unit for Mobile Base Station (BTS) IP surveillance, trafc ,

monitoring and security application in critical environment. It can tolerate -40°C to 75°C in harsh

environment to perform reliable network. a

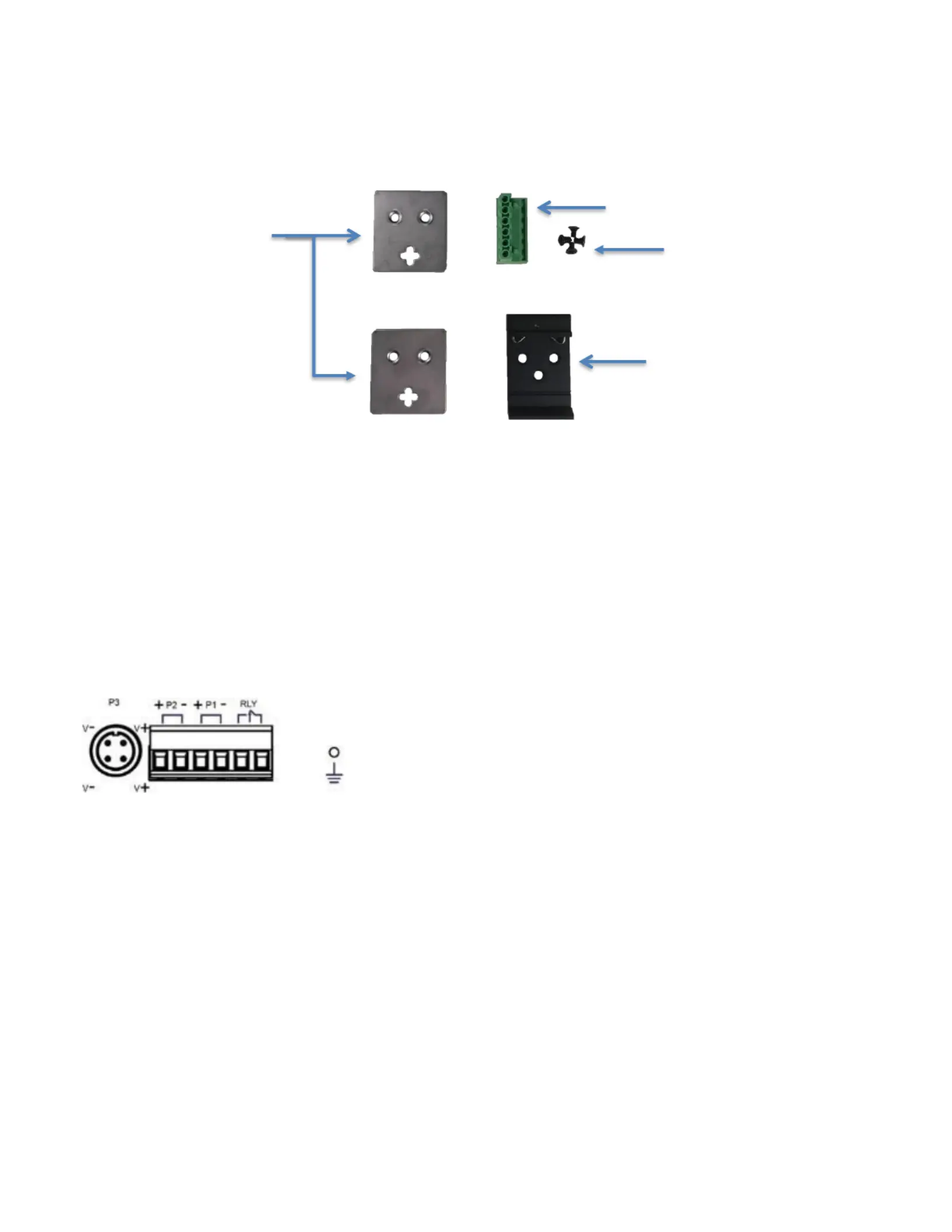

Installation package

This unit can be din-rail mounted or wall-mounted. Din-rail brackets and wall-mounted brackets are included.

Power connection

Wall mount bracket x 2

Din Rail Bracket x 1

This unit provides 6 pin terminal block. The PoE port can be operated from 48-56VDC power source input.

Always make sure your input voltage is within this supported voltage range .

WARNING any exceeded input voltage will not make this unit function and may damage this unit. –

This unit comes with 3 power input sources. P1, P2, and P3

To make power connection Follow the printed polarity for P1+, P1-, P2+, P2-, and ground. Connect positive –

wire to P1+ or P2+, connect negative wire to P1- or P2-, also connect

neutral wire to the ground screw as shown.

Relay You may use 24V@1A relay connection to your external --

device for special purpose. When 2 powers are connected, the relay

is in OPEN mode. If only one of the power source is connected, the

relay change to SHORT mode. This Relay will only work with andP1

P2. It is independent to P3

Power connecting procedure:

STEP 1 Pull out 6 pin terminal block. –

STEP 2 Connect wire to P1+, P1-, or P2+, P2-, and Ground the neutral wire to the ground screw. –

STEP 3 Plug back 6 pin terminal block to its place. –

Or, Connect the P3 power DIN from external power adopter.

WARNING –

Always ground the power source to maintain a clean power input. Due to too many cheap made power

supplies, it creates too much noise, and it will cause the power input uctuates when connect to this unit.

To avoid this, always ground the power source to gain a clean power input.

6 pin Terminal Block p2-x

Philips Head Screw x 4

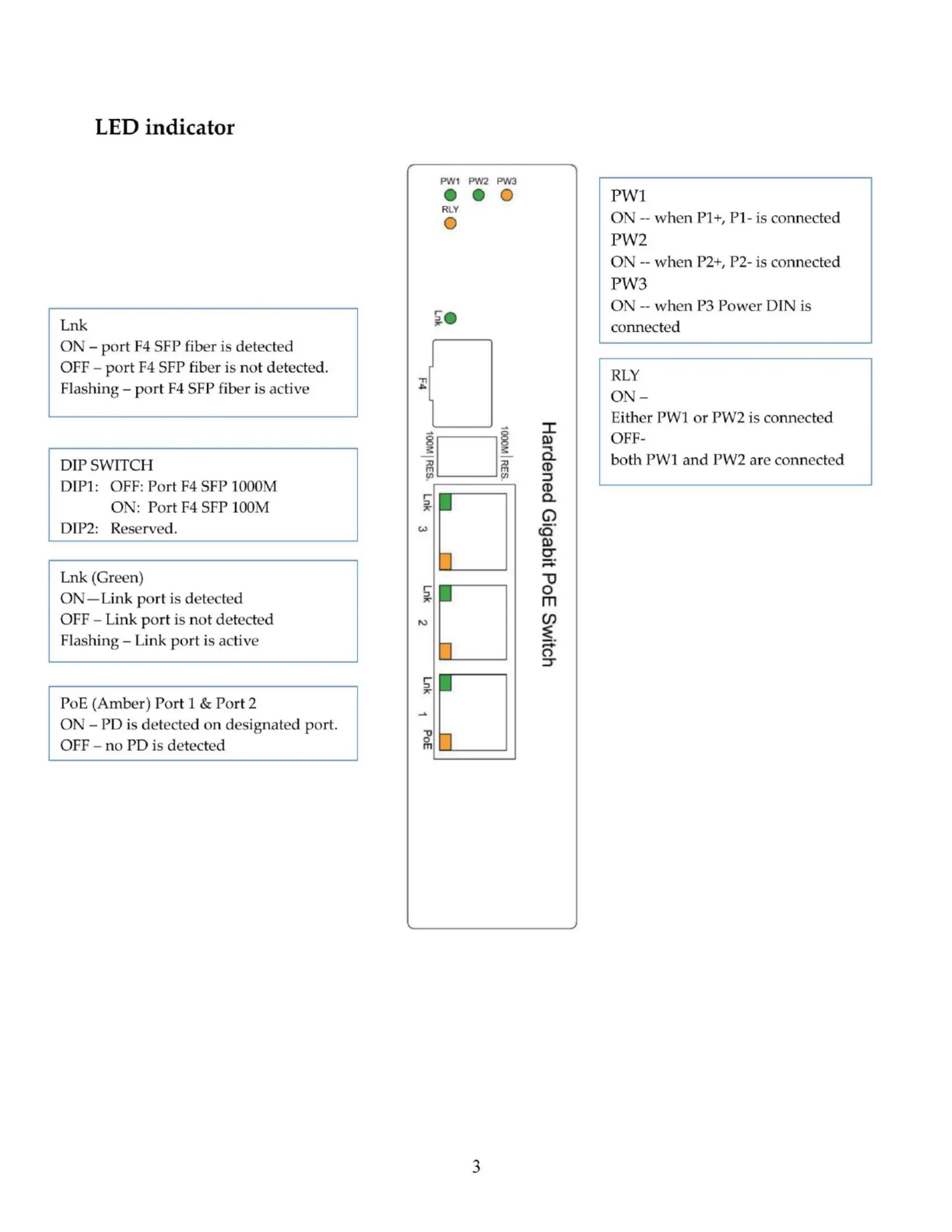

Produktspecifikationer

Varumärke:	LevelOne
Kategori:	Växla
Modell:	IGP-0401
Vikt:	520 g
Bredd:	36 mm
Djup:	105 mm
Höjd:	142 mm
Förpackningens bredd:	165 mm
LED-indikatorer:	Link, Power
Ursprungsland:	Taiwan
Certifiering:	CE, FCC, VCCI, FCC Part 15 Subpart B Class A, CE EN, 55022 Class A
Säkerhet:	IEC EN60950-1
Medeltid mellan fel (MTBF):	500000 h
Spänning:	48 - 56 V
Full duplex:	Ja
Produktens färg:	Svart
bruksanvisning:	Ja
Förpackningstyp:	Låda
Låddjup:	65 mm
Vikt inkl. förpackning:	735 g
Ytterförpackningens bruttovikt:	12760 g
Ytterförpackningens höjd:	560 mm
Produkter per ytterförpackning:	16 styck
Ytterförpackningens längd:	240 mm
Ytterförpackningens bredd:	350 mm
Strömförsörjning via Ethernet (PoE) stöd:	Ja
Strömförbrukning (vanlig):	4 W
Total Power over Ethernet (PoE)-budget:	65 W
Power over Ethernet (PoE)-effekt per port:	30 W
Temperatur vid drift:	-40 - 75 ° C
Intervall för relativ operativ luftfuktighet:	5 - 95 %
Kommunikationsstandarder:	IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Plug & Play-kompatibel:	Ja
Harmonized System (HS)-kod:	85176990
Adresstabellstorlek:	8000 poster
Jumboramar:	10000
Jumbo Frames stöd:	Ja
Switch kapacitet:	8 Gbit/s
10G stöd:	Nej
Antal grundläggande RJ-45 Ethernet-portar:	3
Typ av grundläggande RJ-45 Ethernet-portar:	Gigabit Ethernet (10/100/1000)
Antal SFP-modulplatser:	1
Autonegotiation:	Ja
Power over Ethernet (PoE)-portar kvantitet:	2
Auto MDI / MDI-X:	Ja
Koppar Ethernet-kablar teknik:	10BASE-T, 100BASE-TX, 1000BASE-T
DIN-skena:	Ja
DIN-skena inkluderat:	Ja
