IFS-0503

Fast Ethernet Industrial Switch,

rt SC Single

-Mode Fiber, 30km

Installation Guid





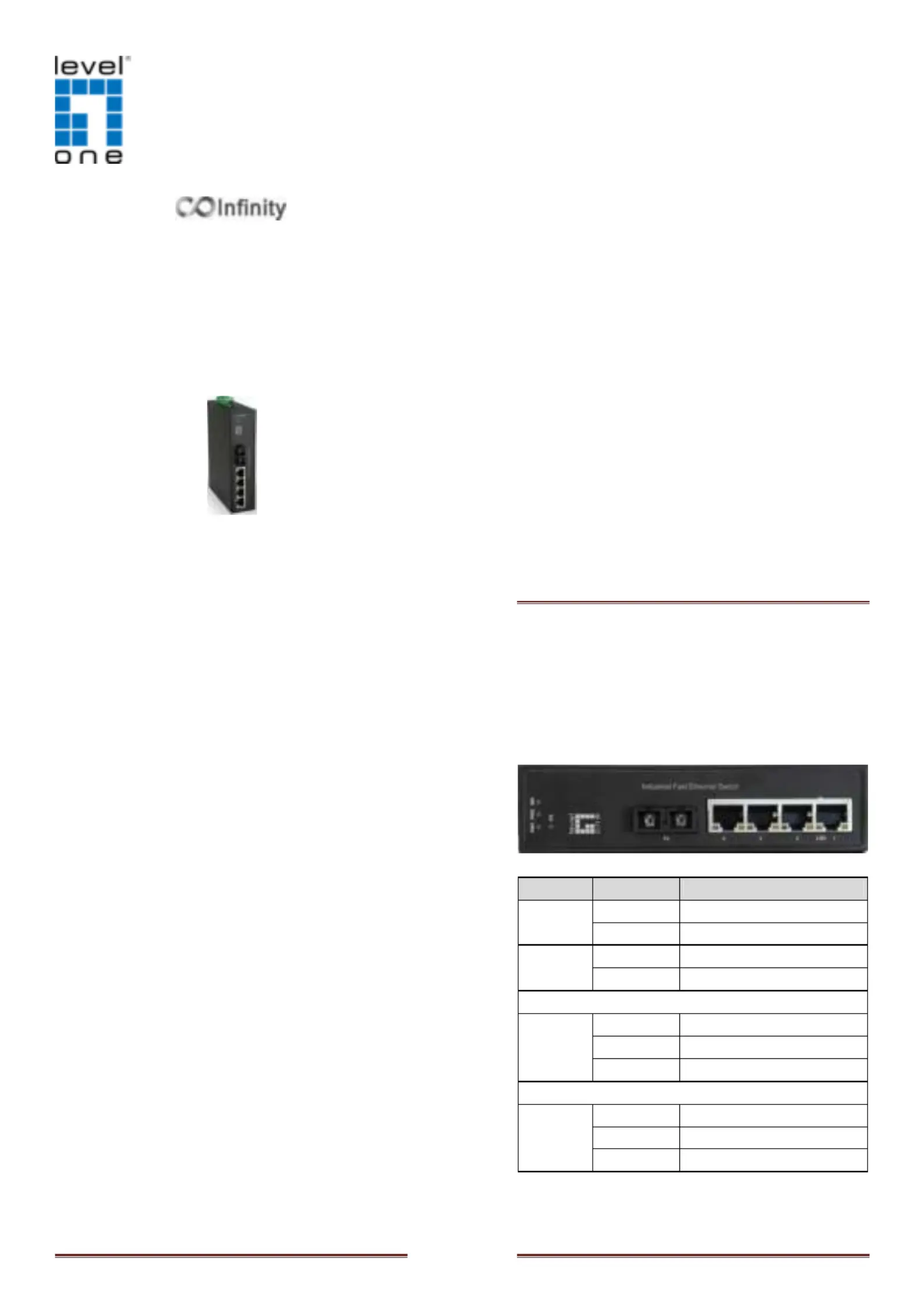

IFS-0503 Page 1

Overview

The LevelOne IFS-0503 Industrial Fast Ethernet Switch

provides four ports at 10/100M TX and one single-mode ber

port at 100M FX SC to enable high speed networks in mission-

critical environments. With an industrial standard DIN-rail

mount, this switch can be installed in a cabinet, and clearly

visible status LEDs provide simple monitoring of port link

activity. The single-mode ber port allows for large-scale

connections of up to 30km. The switch is housed in a solid

metal case rated at IP30, keeping it safe from dust, vibration,

heat and humidity, while an operational temperature range of -

40°C to +75°C makes it suitable for deployment in a lmost any

environment.

High Reliability

All components are built to withstand harsh environment

applications without compromise where humidity, temperature

variation and even shock vibration are concerns, including

Electric & Utility, Critical Infrastructure, Transportation and

Surveillance Security. This device operates under -40 to 75

Celsius (-40 to 167 Fahrenheit) temperature.

Plug & Play

This unmanaged Industrial Ethernet Switch is designed for the

demanding industrial environments at businesses in need of

instant connectivity with no setup or congure required, truly

plug and play.

IFS-0503 Page 2

Features

• Meets NEMA TS1/TS2 Environmental requirements such as temperature,

shock, and vibration for trac control equipment

• Meets EN61000-6-2 & EN61000-6-4 EMC Generic Standard Immunity for

industrial environment

• Supports 1024 MAC addresses. Provides 1M bits memory buer

• Provides one Port SC Single-Mode Fiber with a maximum networking

range of 30km.

• Store-and-forward mechanism. Full wire-speed forwarding rate.

• Power Supply: 9~56VDC Terminal Block power input.

• 3.76W power consumption 48VDC full load

• -40 to 75 (-40 to 167 ) operating temperature range. ℃ ℃ ℉ ℉

• Tested for functional operation @ -40 to 85 (-40 to 185 ). ℃ ℃ ℉ ℉

• Metal case design and compliant with IP30 standard

Package Contents

 IFS-0503

 Din rail*1, wall mount*2, terminal block*1, screw*4

 Quick Installation Guide

IFS-0503 Page 3

LED Status

LED

Status

Description

PWR 1, 2

ON Power On

OFF Power O

SW (relay)

ON both PW1 and PW2 are connected

OFF only PW1 or PW2 is connected

10/100

Base

LNK(1 ~ 4)

ON TX link is detected

OFF TX port is not detected

Flashing TX port is active

Fiber

ON FX ber is detected

OFF FX ber is not detected

Flashing FX ber is active

Produktspecifikationer

Varumärke:	LevelOne
Kategori:	Växla
Modell:	IFS-0503
Vikt:	470 g
Bredd:	36 mm
Djup:	105 mm
Höjd:	142 mm
Förpackningens bredd:	65 mm
LED-indikatorer:	Länk
Snabbstartsguide:	Ja
Certifiering:	FCC, CE, VCCI\nEN55022/24 \nEN55011\nEN50121-3-2\nEN50121-4 (pending)\nEN50155 (pending)\nEN60068-2-6\nEN60068-2-27\nEN60068-2-32
Internminne:	1 MB
Uteffekt:	1 A
Rackmontering:	Nej
Säkerhet:	EN60950-1
Paketbuffertminne:	1 MB
Full duplex:	Ja
Väggmonteringssats:	Ja
Produktens färg:	Svart
Monteringsbar på väggen:	Ja
Låddjup:	165 mm
Vikt inkl. förpackning:	180 g
Strömförsörjning via Ethernet (PoE) stöd:	Nej
Strömförbrukning (vanlig):	3.76 W
Temperatur vid drift:	-40 - 75 ° C
Temperaturintervall (förvaring):	-40 - 85 ° C
Intervall för relativ operativ luftfuktighet:	5 - 95 %
Fuktighet (förvaring):	5 - 95 %
Utgångsspänning:	24 V
Internationellt skydd (IP) kod:	IP30
Material, hölje:	Metall
Kommunikationsstandarder:	IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Harmonized System (HS)-kod:	85176990
Adresstabellstorlek:	1024 poster
Switch kapacitet:	1 Gbit/s
10G stöd:	Nej
Flödeskontroll:	Ja
Antal grundläggande RJ-45 Ethernet-portar:	4
Typ av grundläggande RJ-45 Ethernet-portar:	Fast Ethernet (10/100)
Switch typ:	Ohanterad
Lagra-och-vidarebefordra:	Ja
Autonegotiation:	Ja
Fiberoptiska kontakten:	SC
Fiberportar kvantitet:	1
Fiber Ethernet-kablar teknik:	100BASE-FX
Auto MDI / MDI-X:	Ja
Koppar Ethernet-kablar teknik:	100BASE-TX, 10BASE-T
Överföringsavstånd (max):	30 km
Kopplingsplint ingår:	Ja
Paketförmedlingshastighet (10 Mbps):	14880 pps
Paketförmedlingshastighet (100 Mbps):	148000 pps
Fibertyp:	Enkelläge
