IPS-1201

12-Outlet Intelligent Power Distribution Unit

Quick Installation Guide

Windows Users

Revision: A

May, 1820

- -1

Getting Started

The following procedure describes the

basic

steps

needed to set

up the PDU I: II

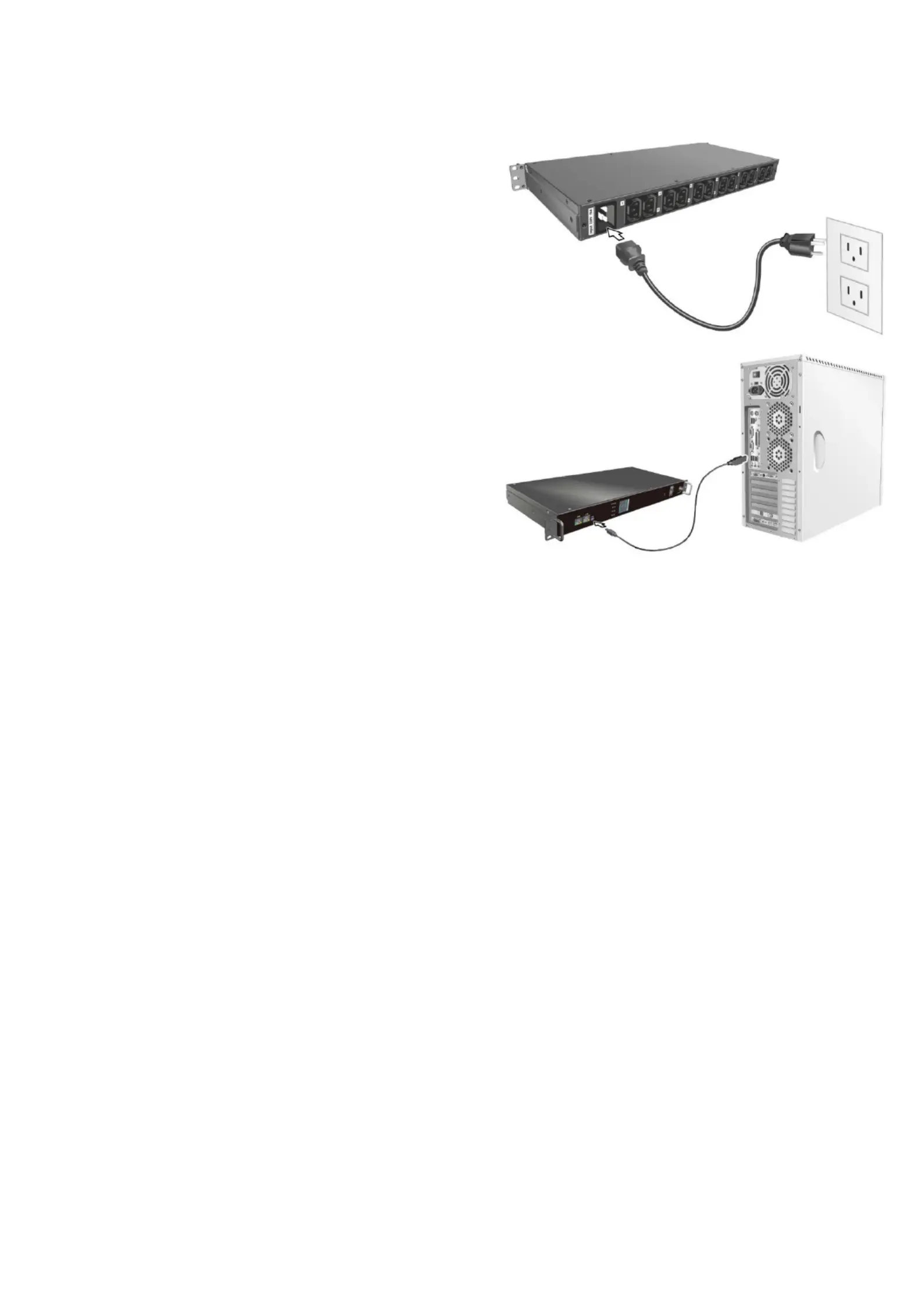

To set up the hardware, connect power to the

power inlet and output devices to the power

outlets. Connect to an EMD to the EMD port.

To configure the , users can use the consolPDU III e

(mini USB Port) LAN port. Connect the PDU III to a or

console and a LAN to enable its configuration through

the console or browser menu.

After connecting to a console (mini USB port), use a console application such as PuTTY to access

the console menu. Please set up the PuTTY configuration as shown firstly. After PuTTY configuration

and please enter default user name and password (admin/admin). Select the IP, Time and System

Group PDU Configuration Settings submenu under the to set up the related IP address and the

system date/time. This IP address will be used while accessing the web interface to configure the PDU

III parameters.

a. To configure the related Serial line and Speed (115200) of the PuTTY. Regarding to Serial line, please

check in the Window system.Connection Port (COM) of Device Manger

- -2

b. To enter the username and password (default username and password: admin).

c. To select .PDU Configuration Setting

d. To Select IP, Time and System Group.
