Sida 1/34

Ver. 1.0.1-0804

WAP-3000 / WAP-3100

11g Wireless AP

LevelOne

User Manual

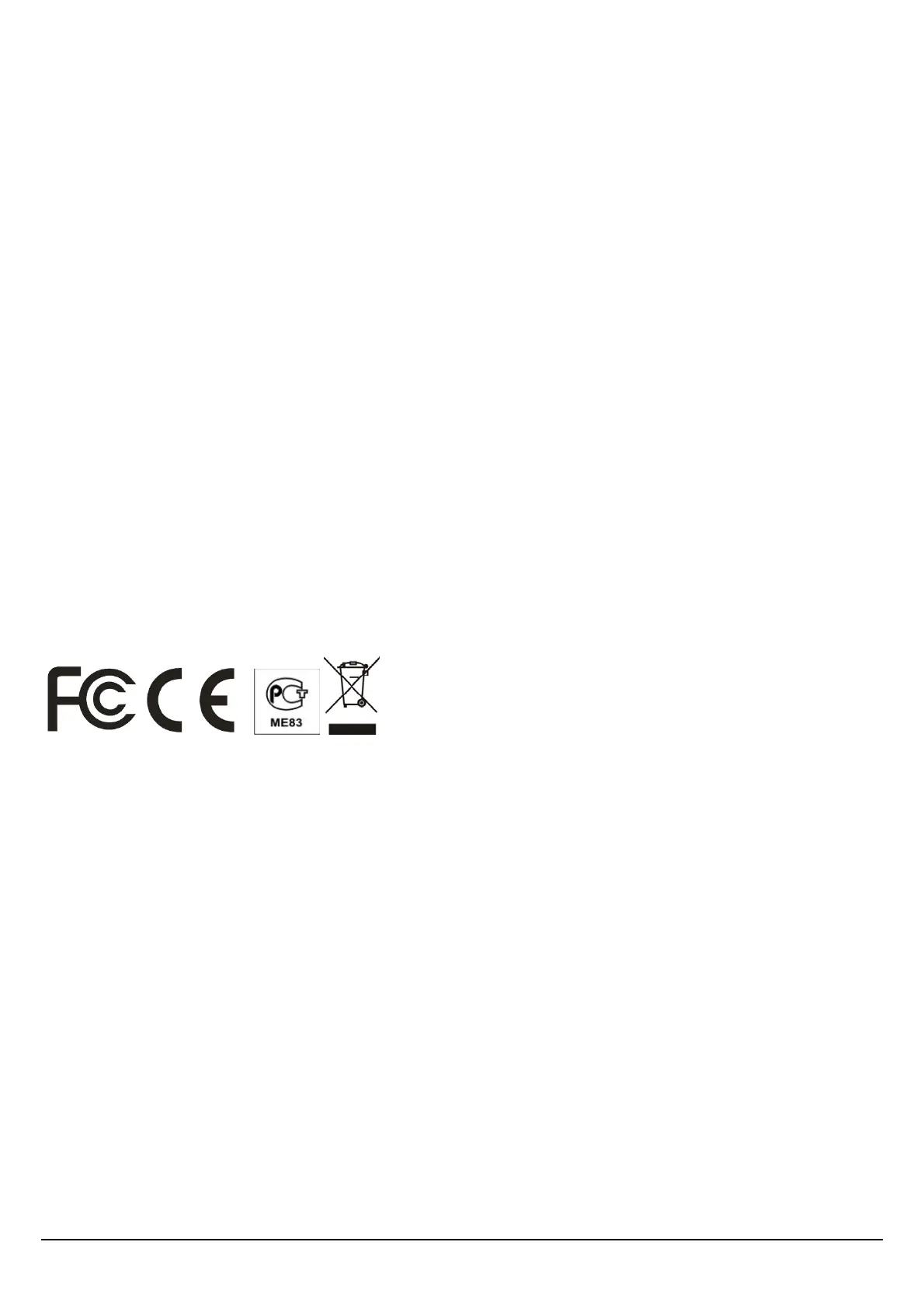

Safety

FCC WARNING

This equipment may generate or use radio frequency energy. Changes or modifications to this equipment may cause harmful interference unless the

modifications are expressly approved in the instruction manual. The user could lose the authority to operate this equipment if an unauthorized change or

modification is made.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are

designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate

radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or

more of the following measures:

1) Reorient or relocate the receiving antenna.

2) Increase the separation between the equipment and receiver.

3) Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

4) Consult the dealer or an experienced radio/TV technician for help.

CE Declaration of conformity

This equipment complies with the requirements relating to electromagnetic compatibility, EN 55022 class B for ITE, the essential protection requirement

of Council Directive 89/336/EEC on the approximation of the laws of the Member States relating to electromagnetic compatibility.

CE Marking Warning

Hereby, Digital Data Communications, declares that this (Model-no. WAP-3000/3100) is in compliance with the essential requirements and other

relevant provisions of Directive 1999/5/EC.

The CE-Declaration of Conformity can be downloaded at:

http://www.levelone.eu/support.php

Produktspecifikationer

Varumärke:	LevelOne
Kategori:	accesspunkt
Modell:	WAP-3000
Strömförsörjning:	DC 7.5V, 1A
LED-indikatorer:	LAN, Power, WLAN
Frekvensband:	2.4 - 2.4835 GHz
Certifiering:	CE, FCC
Kompatibla operativsystem:	Windows 2000/XP/Vista
MAC-adressfiltrering:	Ja
Maximal dataöverföringshastighet:	54 Mbit/s
2,4 GHz:	Ja
Antal kanaler:	13 kanaler
Nätverksegenskaper:	Ethernet, Fast Ethernet
Antal LAN (RJ-45) anslutningar:	1
Produktstorlek (BxDxH):	113 x 146 x 32 mm
Temperatur vid drift:	0 - 40 ° C
Temperaturintervall (förvaring):	-25 - 70 ° C
Kryptering/säkerhet:	SSID, WPA-PSK, WPA2, WPA2-PSK
Likströmsingång:	Ja
Mottagningskänslighet:	802.11g: 10% PER, -68 dBm @ 54Mbps\n802.11b: 8% PER, -81 dBm @ 11Mbps
Modulator:	BPSK, QPSK
Webbaserad adminstraion:	Ja
Antenn ökningsnivå (max):	2 dBi
Trådlös kommunikationsteknologi:	Wi-Fi
Efterlever industristandard:	IEEE 802.11g, IEEE 802.11b
Tillgängliga dataöverföringshastigheter:	54/11 Mbps
Maximal sträcka inomhus:	50 m
Icke-fungerande relativ luftfuktighet (icke kondenserande):	10 - 95 %
Media anslutningsprotokoll:	CSMA/CA (ACK)
Maximal räckvidd på öppen plats:	100 m
