4K30 HDMI & USB over IP Controller

User Manual English

No. 38395

lindy.com

User Manual English

Safety Instructions

! WARNING !

Please read the following safety information carefully and always keep this document with

the product.

Failure to follow these precautions can result in serious injuries or death from electric

shock, fire or damage to the product.

Touching the internal components or a damaged cable may cause electric shock, which

may result in death.

This device is a switching type power supply and can work with supply voltages in the range 100 40 - 2

VAC For worldwide usability four different AC adapters are enclosed: Euro type, UK type, US/Japan type

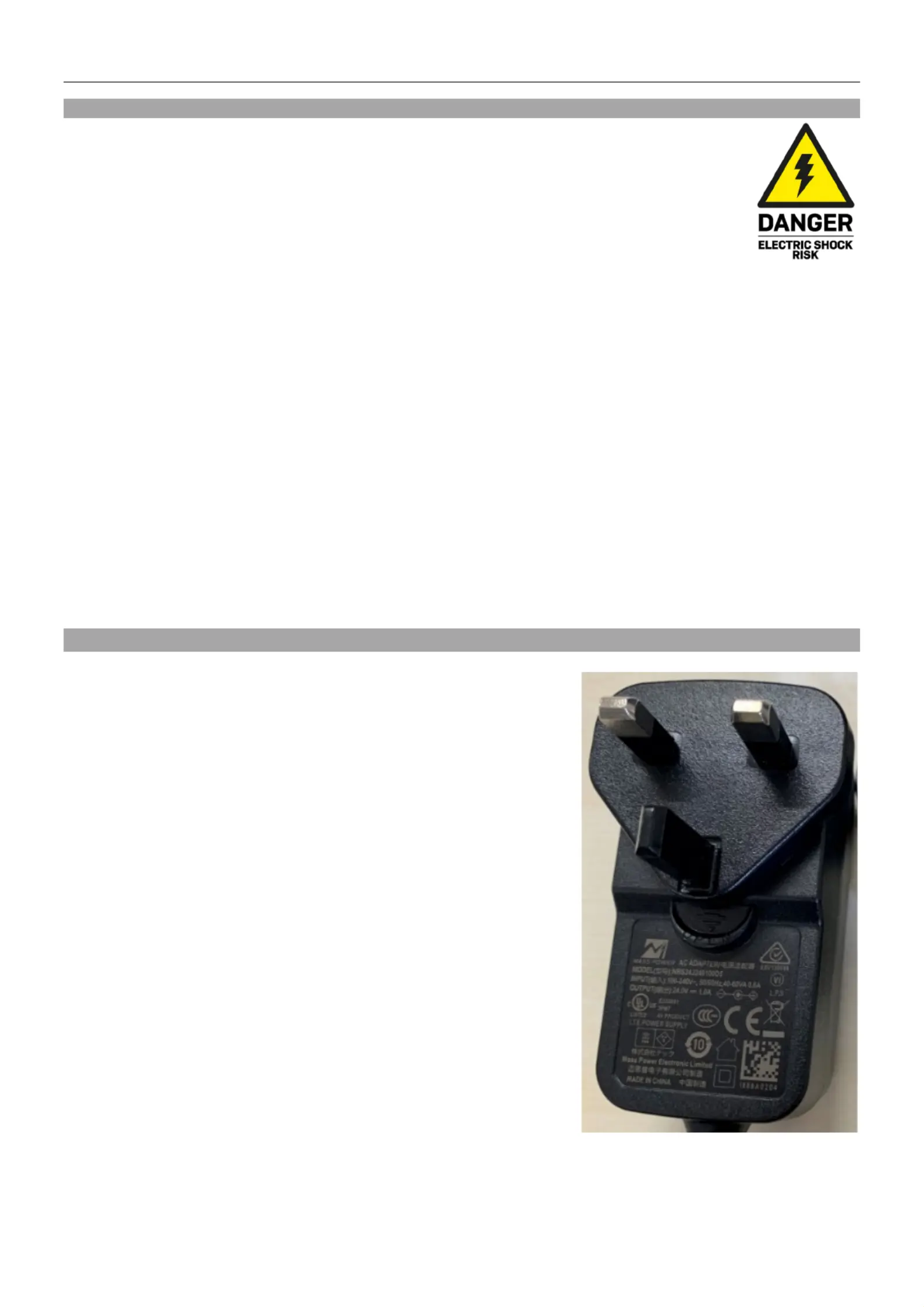

and Australia/New Zealand type. Use the appropriate AC adapter as shown in the picture and ensure it

is firmly secured in place and does not by pulling before installing into a power socdetach ket.

To reduce risk of fire, electric shocks or damage:

 Do not open the product nor its power supply. There are no user serviceable parts inside.

 Only qualified servicing personnel may carry out any repairs or maintenance.

 Never use damaged cables.

 Do not expose the product to water or places of moisture.

 Do not use this product outdoors it is intended for indoor use only.

 Do not place the product near direct heat sources. Always place it in a well ventilated place.-

 Do not place heavy items on the product or the cables.

 Please ensure any adapters are firmly secured and locked in place before inserting into a wall socket

Instructions for Use of Power Supply

To connect the adapter

Slide the desired plug adapter into the power supply until it locks

into place.

To remove the adapter

Press the push button latch.

While pressed, remove the adapter.

User Manual English

Introduction

Thank you for purchasing the 4K30 HDMI & USB over IP Controller. This product has been designed to

provide trouble free, reliable operation. It benefits from both a LINDY 2-year warranty and free lifetime

technical support. To ensure correct use, please read this manual carefully and retain it for future

reference.

Th 38397is Controller can be used to manage the Lindy Encoder 38396 and Decoder that features HDMI,

USB, IR, RS-232 and Audio signals; it’s possible to distribute all the signals through a 1G managed

network switch and to set up many configurations and layouts such as Video Wall, matrix, drag & drop

operations and image preview. It supports dual network ports, one for network control and one for multicast

video distribution.

It has dual network ports, one for network control and one for multicast video distribution, and provides

control via Web GUI, TCP, RS-232, IR & GPIO.

Package Contents

 Controller

 IR Receiver Cable, 1.5m

 2 x Mounting Ears & 4 x Screws

 3- Pin Terminal Block

 6- Pin Terminal Block

 12VDC 1 -A Multi country Power Supply (UK, EU, US & AUS), Screw Type DC Jack: 5.5/2.1mm

 Lindy Manual

Features

 Supports video, audio, RS-232, IR, KVM control and management of the distributed system

 Maximum point- -to point Distance: 100m (328.08ft)

 PoE (Power over ) supportEthernet on Video LAN port

 Built-in Web GUI control interface, supporting Drag & Drop operations and image preview

 Dual network ports to isolate Controls and Multicast networks

 Support LAN/RS- - 232 port control and third party central control

 Support (20 IR Control – 60KHz) on IR IN 3.5mm port (12V)

 4 channel GPIO control ports (5V/12V optional level)

 HTTPS, SSH, SFTP security compatible

 Screw Type DC Jack for a secure power connection

Specification

 Transmission distance: 100m

 Network Video Bandwidth: 1G

 Po E Standard: 802.3at

 Operating Temperature: 0°C - - 40°C (32°F 104°F)

 Storage Temperature: - - - - 20°C 60°C ( 4°F 140°F)

 Relative Humidity: 20 - - 90% RH (Non condensing)

 Metal Housing

 Colour: Black

 Power Requirements: AC100-240V 50/60Hz

 Power Consumption: 4.5W

Produktspecifikationer

Varumärke:	Lindy
Kategori:	AV förlängare
Modell:	38395
Vikt:	740 g
Bredd:	204 mm
Djup:	98.5 mm
Höjd:	77 mm
Förpackningens bredd:	255 mm
Maximal upplösning:	3840 x 2160 pixlar
Modell:	Repeater för AV-utrustning
Uteffekt:	1 A
RJ-45 utgångsportar:	1
RJ-45 ingångsportar:	1
Driftspänning:	12 V
Kabeltyper som stöds:	Cat6
Seriellt gränssnitt:	RS-232
Infrarött (IR) frekvensområde:	20 - 60 kHz
Produktens färg:	Svart
bruksanvisning:	Ja
Monteringssats:	Ja
Förpackningstyp:	Låda
Låddjup:	157 mm
Vikt inkl. förpackning:	950 g
Antal per förpackning:	1 styck
Strömförsörjning via Ethernet (PoE) stöd:	Ja
Temperatur vid drift:	0 - 40 ° C
Temperaturintervall (förvaring):	-20 - 60 ° C
Intervall för relativ operativ luftfuktighet:	20 - 90 %
Fuktighet (förvaring):	20 - 90 %
Seriella portar:	1
Hållbarhetscertifiering:	CE, Federal Communications Commission (FCC), REACH, RoHS, UKCA
Kabel inkluderad:	IR
Anslutningsteknologi:	Kabel
Nätverksansluten (Ethernet):	Ja
Stöd för nätverksprotokoll:	IP
Likströmsingång:	Ja
Strömkälla av typen:	DC
AC-adapter inkluderad:	Ja
Max uppdateringsfrekvens:	30 hz
Maximal överföringshastighet avstånd:	100 m
Uppfyller hållbarhetskrav:	Ja
Typer av nätkontakter som ingår:	AU, EU, UK, US
