Sida 1/23

SDVoE Controller

User Manual English

No. 3836 4

lindy.com

User Manual English

Safety Instructions

! WARNING !

Please read the following safety information carefully and always keep this document with

the product.

Failure to follow these precautions can result in serious injuries or death from electric

shock, fire or damage to the product.

Touching the internal components or a damaged cable may cause electric shock, which

may result in death.

This device is a switching type power supply and can work with supply voltages in the range 100 - 240

VAC For worldwide usability four different AC adapters are enclosed: Euro type, UK type, US/Japan type

and Australia/New Zealand type. Use the appropriate AC adapter as shown in the picture and ensure it

is firmly secured in place and does not by pulling before installing into a power socket.detach

To reduce risk of fire, electric shocks or damage:

 Do not open the product nor its power supply. There are no user serviceable parts inside.

 Only qualified servicing personnel may carry out any repairs or maintenance.

 Never use damaged cables.

 Do not expose the product to water or places of moisture.

 Do not use this product outdoors it is intended for indoor use only.

 Do not place the product near direct heat sources. Always place it in a well ventilated place.-

 Do not place heavy items on the product or the cables.

 Please ensure any adapters are firmly secured and locked in place before inserting into a wall socket

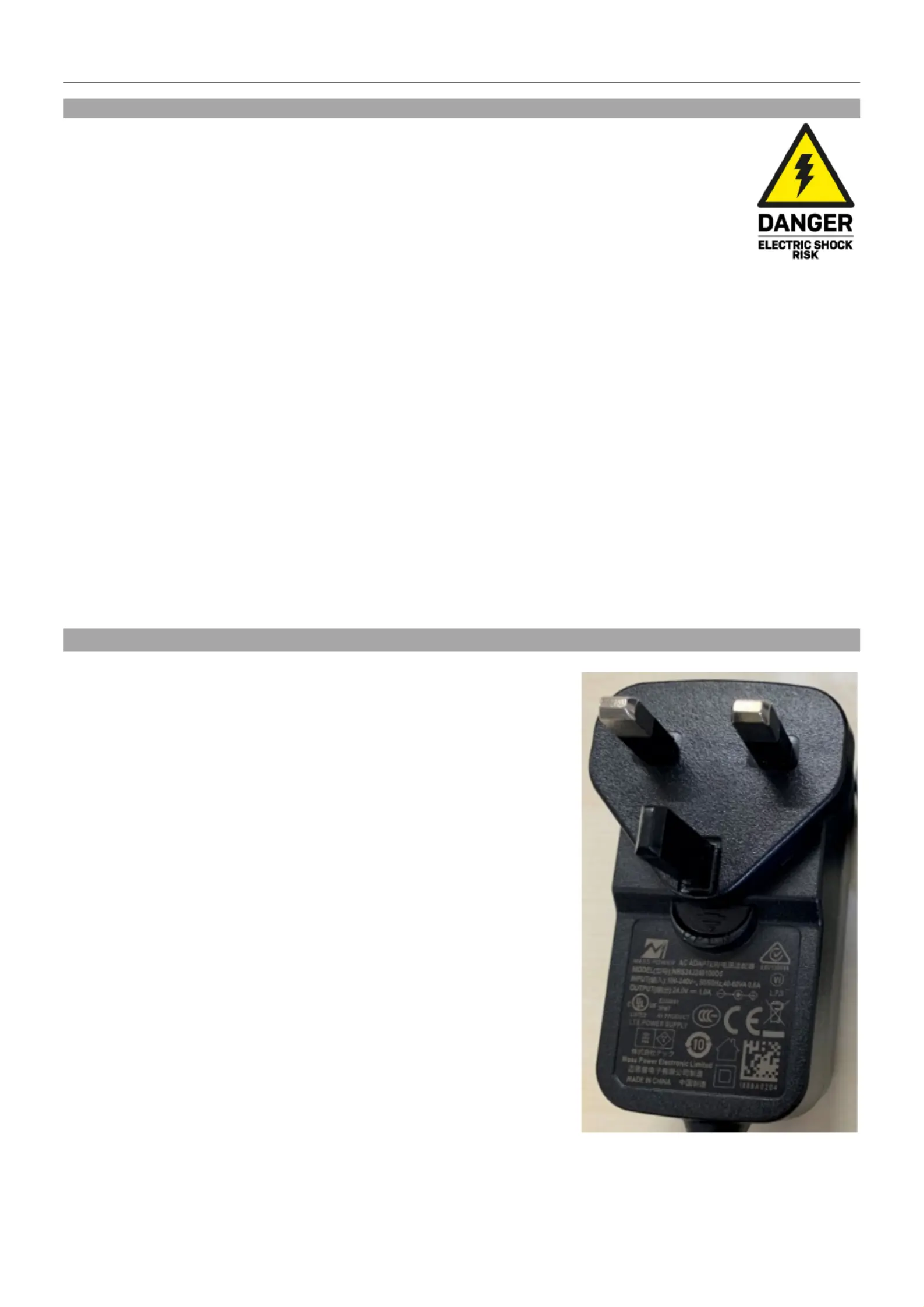

Instructions for Use of Power Supply

To connect the adapter

Slide the desired plug adapter into the power supply until it locks

into place.

To remove the adapter

Press the push button latch.

While pressed, remove the adapter.

User Manual English

Introduction

Thank you for purchasing the . This product has been designed to provide trouble free, SDVoE Controller

reliable operation. It benefits from both a LINDY year warranty and free lifetime technical support. To 2-

ensure correct use, please read this manual carefully and retain it for future reference.

SDVoE is a globally recognised standard for high quality distribution of AV content with other features,

including control, matrix, video wall and multi view over longer distances via 10G Network with no

compressions and latency.

This Controller can be used to manage the Lindy SDVoE 38365 that Transceiver features HDMI, USB, IR,

RS-232 and Audio signals to distribute all the signals through a 10G managed network switch and to set

up many configurations and layouts It supports dual network ports, one for network control and one for .

multicast video distribution.

It provides control via Web GUI, TCP, RS- 232, IR & GPIO.

SDVoE Alliance® is a registered trademark and SDVoE™ and SDVoE API™ are trademarks of the SDVoE

Alliance.

Package Contents

 SDVoE Controller

 IR Emitter Cable, 1.5m

 IR Receiver Cable, 1.5m

 2 x Mounting Ears & 4 x Screws

 2 x 3- Pin Terminal Block

 6- Pin Terminal Block

 12VDC 1 -A Multi country Power Supply (UK, EU, US & AUS), Screw Type DC Jack: 5.5/2.1mm

 Lindy Manual

Features

 Supports video, audio, RS-232, IR, KVM control and management of the distributed system

 Maximum point- -to point Distance: 100m (328.08ft)

 PoE (Power over ) supportEthernet on Video LAN port

 Built-in Web GUI control interface, supporting Drag & Drop operations and image preview

 Dual network ports to isolate Controls and Multicast networks

 Support LAN/RS- -232 port control and third party central control (API commands available on request)

 Support (20 IR Control – 60KHz) on IR IN 3.5mm port (12V)

 4 channel GPIO control ports (5V/12V optional level)

 HTTPS, SSH, SFTP security compatible

 Screw Type DC Jack for a secure power connection

Specification

 Transmission distance: 100m

 Network Video Bandwidth: 1G

 Po E Standard: 802.3at

 Operating Temperature: 0°C - - 40°C (32°F 104°F)

 Storage Temperature: - - - - 20°C 60°C ( 4°F 140°F)

 Relative Humidity: 20 - - 90% RH (Non condensing)

 Metal Housing

 Colour: Black

 Power Requirements: AC100-240V 50/60Hz

 Power Consumption: 8.4W

Produktspecifikationer

Varumärke:	Lindy
Kategori:	AV förlängare
Modell:	38364
Vikt:	760 g
Bredd:	204 mm
Djup:	98.5 mm
Höjd:	77 mm
Förpackningens bredd:	255 mm
Maximal upplösning:	3840 x 2160 pixlar
Snabbstartsguide:	Ja
Material:	Metall
Modell:	Repeater för AV-utrustning
Uteffekt:	1 A
USB-anslutning:	Micro-USB
RJ-45 utgångsportar:	1
RJ-45 ingångsportar:	1
Driftspänning:	12 V
Kabeltyper som stöds:	Cat6
3,5 mm in:	Ja
Produktens färg:	Svart
Antal USB-portar:	1
Monteringssats:	Ja
Förpackningstyp:	Låda
Låddjup:	157 mm
Vikt inkl. förpackning:	960 g
Antal per förpackning:	1 styck
Temperatur vid drift:	0 - 40 ° C
Temperaturintervall (förvaring):	-20 - 60 ° C
Intervall för relativ operativ luftfuktighet:	20 - 90 %
Fuktighet (förvaring):	20 - 90 %
Hållbarhetscertifiering:	CE, Federal Communications Commission (FCC), REACH, RoHS, UKCA
Kabel inkluderad:	IR
Anslutningsteknologi:	Kabel
Nätverksansluten (Ethernet):	Ja
Stöd för nätverksprotokoll:	IP
Likströmsingång:	Ja
Strömkälla av typen:	DC
AC-adapter inkluderad:	Ja
Max uppdateringsfrekvens:	60 hz
Maximal överföringshastighet avstånd:	100 m
Uppfyller hållbarhetskrav:	Ja
Fjärrstyrd IR-utgång:	1
3,5 mm-utgång:	Ja
Fjärrstyrd (IR) ingång:	1
RS-232-ingångar:	2
