READ ME FIRST
QUICK INSTALL GUIDE

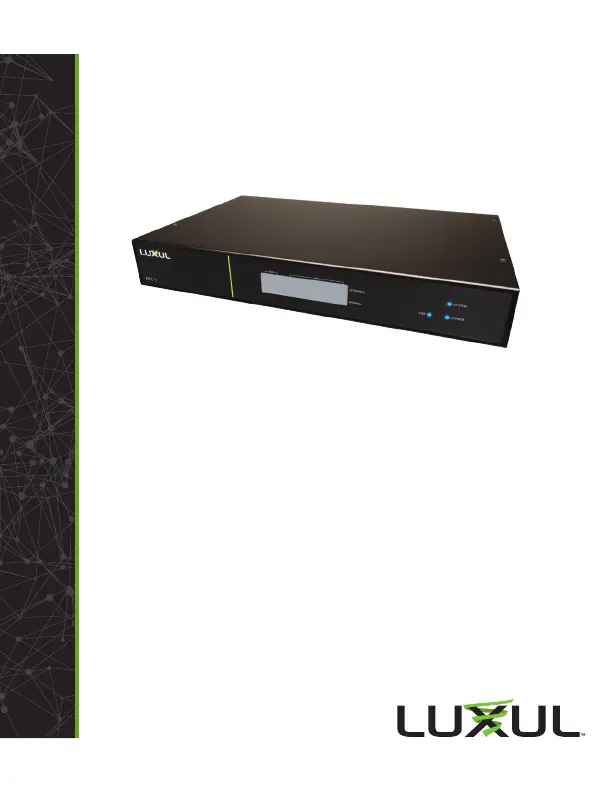

Epic 5
High-Performance Gigabit Router
ABR-5000
Includes:
High-Performance Gigabit Router
Rack Mount Kit
Rubber Feet
Power Cord
SETUP AND CONFIGURATION
1
Physical Installation
The Epic 5 can be rack-mounted or used as a desktop router. Install the
router in a stable/safe place to avoid any possible damage. Make sure there is
adequate space around the router for ventilation and proper heat dissipation.
Avoid placement in direct sunlight. Do not place heavy articles on the router
and verify the ground connection of the outlet is functioning properly.
Desktop/Shelf Installation
For desktop/shelf installation, attach the four rubber feet to the corner
indentations on the bottom of the router, then place the router on
a solid, level platform.
Rack Installation
Use the included L brackets for convenient installation in a 19-inch server or AV
rack. As shown below, use four screws to attach the L-shaped brackets on both
sides of the router then mount it horizontally in the rack. Use your desired
hardware to ax the router supports to the rack.

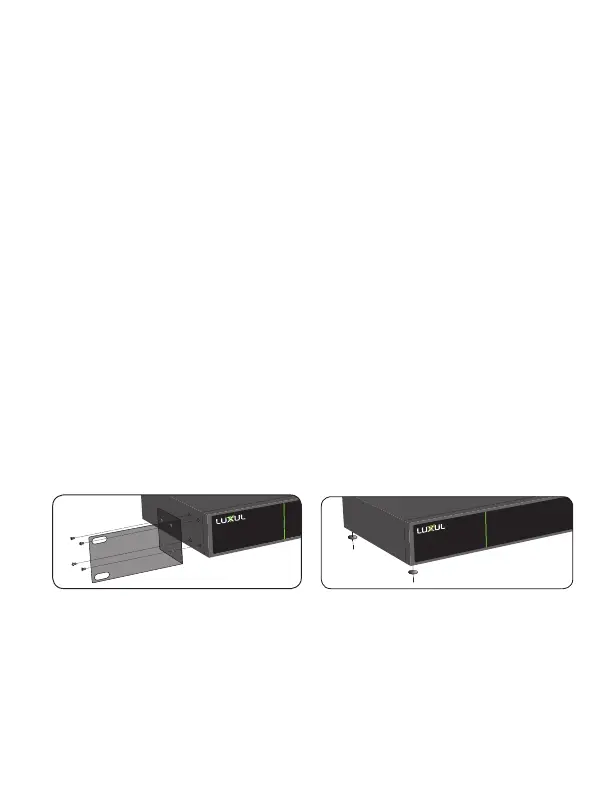

Install Brackets for Rack-Mounting Attach Feet for Desktop Installation
2
Connecting Ethernet and Power
Before you attempt to configure the router, test the Internet connection to
verify that it is functioning properly. Once Internet access is confirmed to
be working, follow the steps below for installation and configuration.
Connecting Ethernet
Luxul recommends at least Cat-5e unshielded twisted pair (CAT5e UTP)
cabling. To ensure best performance and stable data transmission at 1000
Mbps, use Category-6 unshielded twisted pair (CAT6 UTP).
1. Connect the WAN: Connect the Internet cable from a telco/ISP
modem/router to the dedicated WAN 1 port on the Epic 5.
2. Connect the LAN: Connect a cable from the dedicated LAN 1 port on
the Epic 5 to a switch, access point, or computer.
For best performance, and to maximize available ports, Luxul recommends
connecting all LAN devices to a Luxul switch, then connecting that switch
to the Epic 5 LAN port via a single Ethernet cable.
n NOTE: Connect all LAN devices to a Luxul switch, then connect that
switch to the router for best results.
Connecting Power
Use the included power cable to connect the router to a surge-protected
outlet. The AC input socket and power switch are on the rear panel. The
built-in power supply supports 100~240VAC at 50/60Hz.
Sales
801-822-5450
sales@luxul.com
Technical Support
801-822-5450
support@luxul.com
LUX-QIG-ABR-5000-v7
Copyright and Trademark Notices
No part of this document may be modified or adapted in any way, for any purposes without permission in
writing from Luxul. The material in this document is subject to change without notice. Luxul reserves the
right to make changes to any product to improve reliability, function, or design. No license is granted, either
expressly or by implication or otherwise under any Luxul intellectual property rights. An implied license
only exists for equipment, circuits and subsystems contained in this or any Luxul product.
© Copyright 2016 Luxul. All rights reserved. The name Luxul, the Luxul logo, the Luxul logo mark and Simply
Connected are all trademarks and or registered trademarks of Luxul Wireless, Inc. All other trademarks and
registered trademarks are property of their respective holders.
Fo ld Fo ld Fo ld
READ ME FIRST
QUICK INSTALL GUIDE
Epic 5
High-Performance Gigabit Router
ABR-5000
Includes:
High-Performance Gigabit Router
Rack Mount Kit
Rubber Feet
Power Cord
SETUP AND CONFIGURATION
1
Physical Installation
The Epic 5 can be rack-mounted or used as a desktop router. Install the
router in a stable/safe place to avoid any possible damage. Make sure there is
adequate space around the router for ventilation and proper heat dissipation.
Avoid placement in direct sunlight. Do not place heavy articles on the router
and verify the ground connection of the outlet is functioning properly.
Desktop/Shelf Installation
For desktop/shelf installation, attach the four rubber feet to the corner
indentations on the bottom of the router, then place the router on
a solid, level platform.
Rack Installation
Use the included L brackets for convenient installation in a 19-inch server or AV
rack. As shown below, use four screws to attach the L-shaped brackets on both
sides of the router then mount it horizontally in the rack. Use your desired
hardware to ax the router supports to the rack.
Install Brackets for Rack-Mounting Attach Feet for Desktop Installation
2
Connecting Ethernet and Power
Before you attempt to configure the router, test the Internet connection to
verify that it is functioning properly. Once Internet access is confirmed to
be working, follow the steps below for installation and configuration.
Connecting Ethernet
Luxul recommends at least Cat-5e unshielded twisted pair (CAT5e UTP)
cabling. To ensure best performance and stable data transmission at 1000
Mbps, use Category-6 unshielded twisted pair (CAT6 UTP).
1. Connect the WAN: Connect the Internet cable from a telco/ISP
modem/router to the dedicated WAN 1 port on the Epic 5.
2. Connect the LAN: Connect a cable from the dedicated LAN 1 port on
the Epic 5 to a switch, access point, or computer.
For best performance, and to maximize available ports, Luxul recommends
connecting all LAN devices to a Luxul switch, then connecting that switch
to the Epic 5 LAN port via a single Ethernet cable.
n NOTE: Connect all LAN devices to a Luxul switch, then connect that
switch to the router for best results.
Connecting Power
Use the included power cable to connect the router to a surge-protected
outlet. The AC input socket and power switch are on the rear panel. The
built-in power supply supports 100~240VAC at 50/60Hz.
Sales
801-822-5450
sales@luxul.com
Technical Support
801-822-5450
support@luxul.com
LUX-QIG-ABR-5000-v7
Copyright and Trademark Notices
No part of this document may be modified or adapted in any way, for any purposes without permission in
writing from Luxul. The material in this document is subject to change without notice. Luxul reserves the
right to make changes to any product to improve reliability, function, or design. No license is granted, either
expressly or by implication or otherwise under any Luxul intellectual property rights. An implied license
only exists for equipment, circuits and subsystems contained in this or any Luxul product.
© Copyright 2016 Luxul. All rights reserved. The name Luxul, the Luxul logo, the Luxul logo mark and Simply
Connected are all trademarks and or registered trademarks of Luxul Wireless, Inc. All other trademarks and
registered trademarks are property of their respective holders.
Produktspecifikationer
| Varumärke: | Luxul |
| Kategori: | Router |
| Modell: | Epic 5 ABR-5000 |
| Vikt: | 1720 g |
| Bredd: | 305 mm |
| Djup: | 186.5 mm |
| Höjd: | 44.5 mm |
| LED-indikatorer: | LAN, Power, System, USB, WAN |
| Intern lagringskapacitet: | 8 GB |
| Certifiering: | CE, FCC |
| USB-version: | 3.2 Gen 1 (3.1 Gen 1) |
| Internminne: | 2000 MB |
| SIM-kortplats: | Nej |
| Kabelteknik: | 10/100/1000Base-T(X) |
| Återställningsknapp: | Ja |
| Rackmontering: | Ja |
| Ethernet WAN: | Ja |
| Brandvägg: | Nej |
| Snabbinstallationsguide: | Ja |
| DHCP-server: | Ja |
| DHCP-klient: | Ja |
| DSL WAN: | Nej |
| Rackkapacitet: | 1U |
| Produktens färg: | Svart |
| Antal USB-portar: | 1 |
| Inbyggd processor: | Ja |
| Typ av ethernet-gränssnitt: | Fast Ethernet, Gigabit Ethernet |
| Datahastighet för Ethernet-LAN: | 10,100,1000 Mbit/s |
| Antal LAN (RJ-45) anslutningar: | 8 |
| VLAN-stöd: | Ja |
| Hållbarhetscertifiering: | RoHS |
| Typ av internminne: | DDR3 |
| AC-inspänning: | 110 - 220 V |
| Material, hölje: | Metall |
| Kabel inkluderad: | AC |
| Firmware kan uppgraderas: | Ja |
| Strömkälla av typen: | AC |
| Växelström Frekvens: | 50 - 60 hz |
| På / av-knapp: | Ja |
| Webbaserad adminstraion: | Ja |
| Stöd för garanterad tjänstekvalitet (QoS): | Ja |
| Ingående ström: | 0.3 A |
| Värmeavgivning: | 46.4 BTU/h |
| Antal Gigabit Ethernet (koppar)-portar: | 7 |
| Kompatibelt med 3G/4G USB-modem: | Nej |
| Portvidarebefordran: | Ja |
| Auto MDI / MDI-X: | Ja |
| Lagringsmedia: | Flash |
| Gästanvändare: | Ja |
| VPN-stöd: | PPTP, L2TP, IPsec |
| Trafikledning: | Ja |
