AMF42AU QUICK REFERENCE GUIDE

Contact: support@blustream.com.au | support@blustream-us.com | support@blustream.co.uk

AMF42AU

Quick Reference Guide

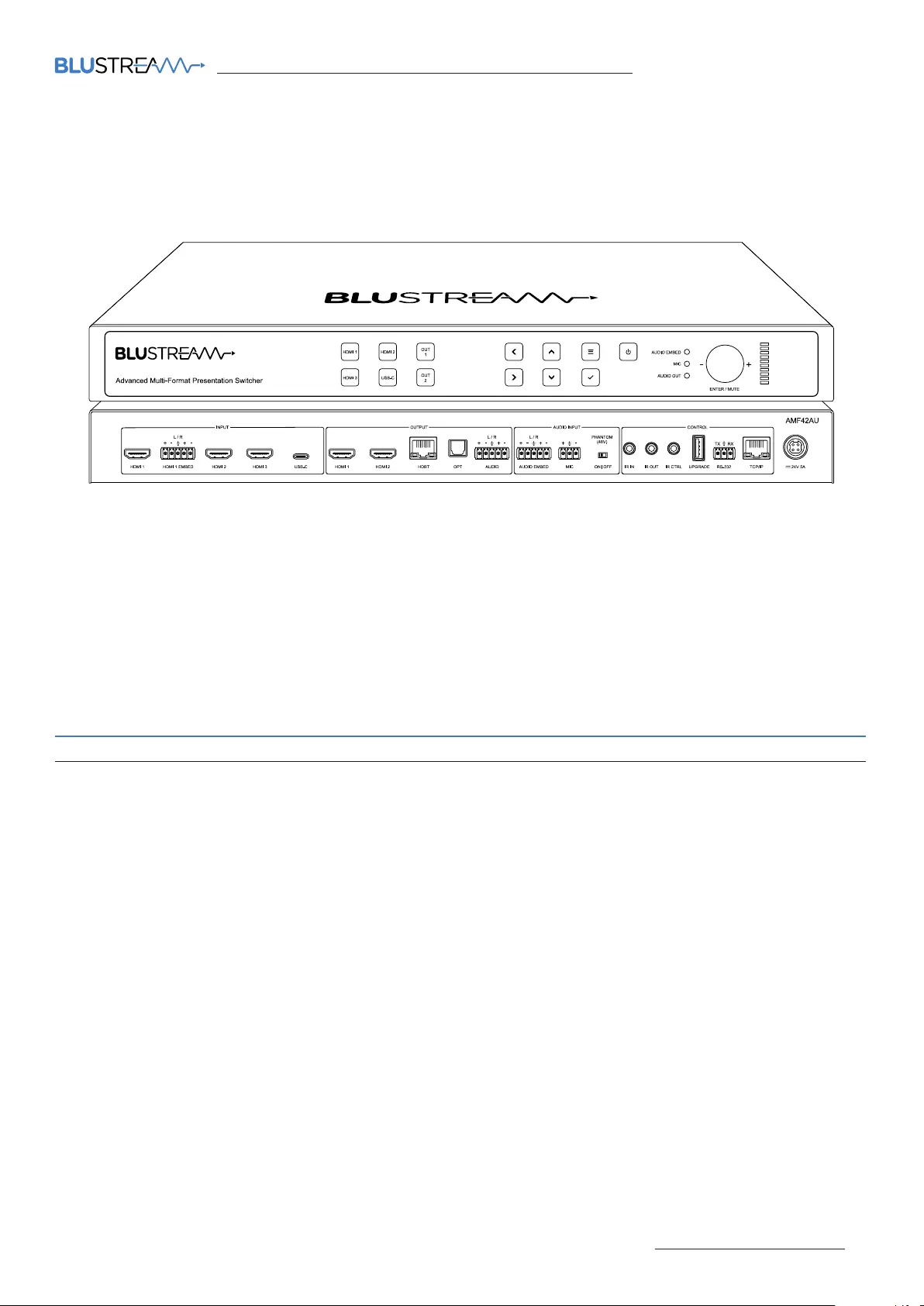

Our AMF42AU is an advanced 4K 4x2 multi-format presentation switcher featuring

3 x HDMI and 1 x USB-C input to 2 x HDMI / 1 x HDBaseT™ output. The AMF42AU

provides enhanced features including seamless switching, independent video

scaling on outputs, MIC input with phantom power, audio mixing and PoC to

power a Blustream compatible HDBaseT™ receiver. The AMF42AU also features

a Web GUI for control and configuration, source and display control via: RS-232,

CEC, manual or automated source selection, IR pass-through and control via front

panel, IR, RS-232 and TCP/IP. The AMF42AU is an ideal product for your boardroom,

classroom or lecture theatre.

Introduction

FEATURES:

• Features 3 x HDMI and 1x USB-C inputs which can be independently routed to 2 x HDMI / HDBaseT™ outputs

• Seamless source switching with manual or auto source selection

• Independent video scaling on dual outputs

• Supports HDMI 2.0 18Gbps specification

• Supports resolutions up to 4K UHD 60Hz 4:4:4

• Dual HDMI / HDBaseT™ on output 2. HDBaseT™ output supports distribution of video sources up to 70m 1080p (4K

60Hz 4:4:4 up to 40m) to the Blustream RX70CS receiver

• Supports USB Type C up to 4K UHD 60Hz 4:4:4, DP1.2 with 40W charging capability

• Audio breakout to analogue L/R audio and Toslink (S/PDIF) digital outputs concurrently

• Audio mixing capabilities with independent level adjustment

• Analogue audio inputs support both balanced and unbalanced audio

• MIC input supports line level or 48V phantom power

• Configurable source and display control via RS-232, IR and CEC

• Web interface module for control and configuration of matrix

• Control via TCP/IP, RS-232, IR and front panel

• Open control API (IP / RS-232) for integration with 3rd party control platforms

• HDCP 2.2 compliant with advanced EDID management

AMF42AU QUICK REFERENCE GUIDE

www.blustream.com.au | www.blustream-us.com | www.blustream.co.uk02

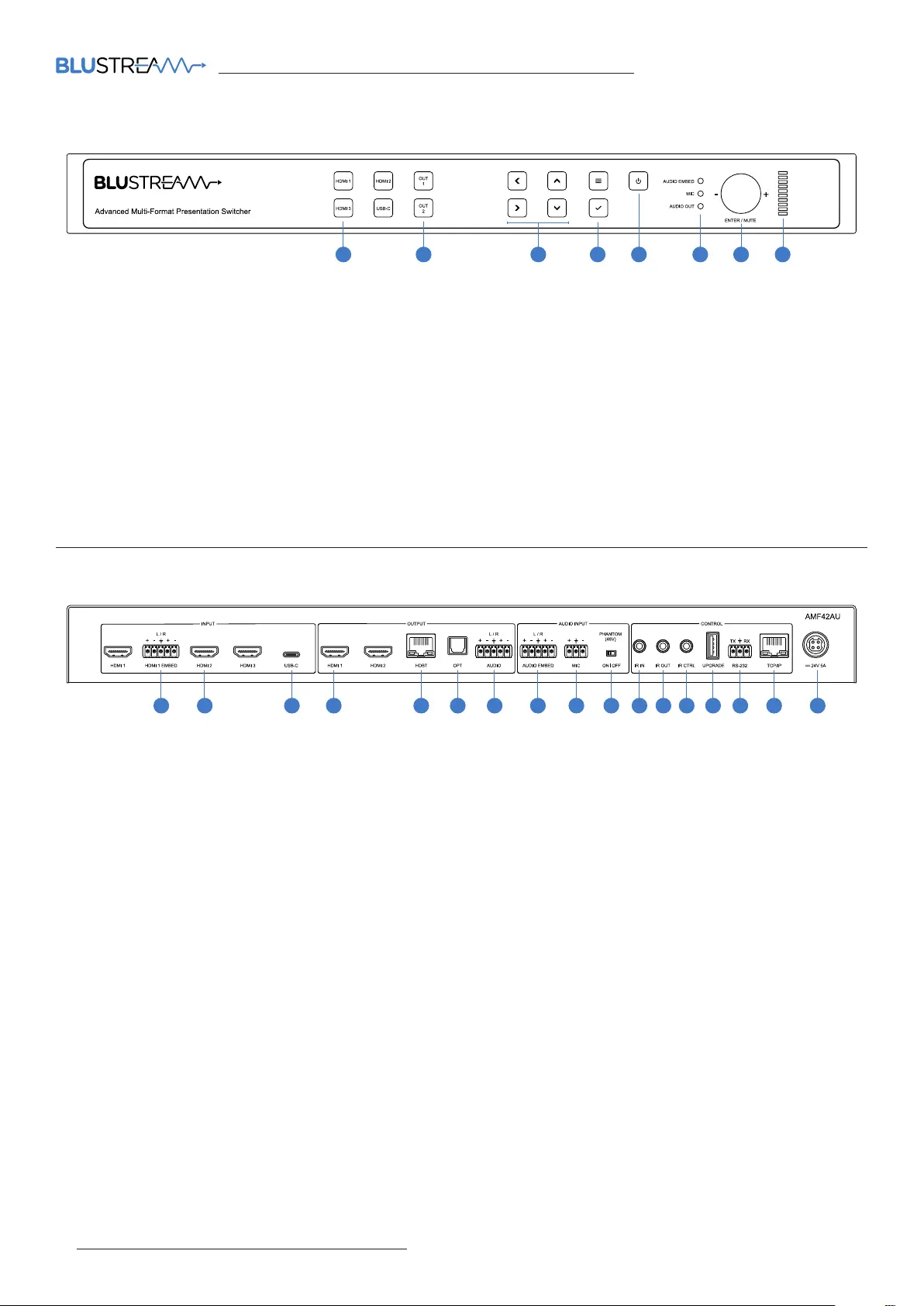

Front Panel Description

1 Input Selection Buttons - Press to select the input signal between HDMI 1 to 3 and USB-C

2 Output Selection Buttons - Press to select the output port between outputs 1 and 2

3 Menu Up / Down / Le / Right Buttons - Press to navigate through the on-screen menu system

4 Menu and Select Buttons - Press the menu button to bring up the on-screen menu, and the select button to select

items within the on-screen menu system

5 Power Button - Press and hold to power the switcher on or o

6 Audio Embed / Mic / Audio Out LED Indicator - Indicates the currently selected audio source for volume adjustment

7 Enter / Mute Rotary Dial Button - Press to adjust the currently selected audio source, rotate to adjust the volume

level up or down

8 LED Level Indicator - Indicates the volume level of the currently selected audio source

1 HDMI Audio Embed Input - Supports balanced or unbalanced analogue audio to be embedded over HDMI input 1

2 HDMI Inputs 1-3 - Connect to HDMI source equipment

3 USB-C Input - Connect to USB-C source equipment - please ensure that a USB-C cable is used that is capable of

carrying video

4 HDMI Outputs 1-2 - Connect to HDMI display equipment

5 HDBaseT™ Output - Output for remote display. Connect to compatible Blustream HDBaseT™ receiver

6 Optical Audio Output - Toslink connector to connect to external audio distribution equipment or amplifier

7 Analogue Audio Output - Supports balanced or unbalanced analogue audio output to connect to external audio

distribution equipment or amplifier

8 Audio Embed Input - Supports balanced or unbalanced audio to be embedded over the input signal

9 Mic Audio Input - Supports balanced and unbalanced microphones

q Phantom Power On / O Switch - Enables or disables 48V phantom power for the microphone input

w IR Input - 3.5mm stereo jack. Sends 5V IR to a compatible Blustream HDBaseT™ receiver

e IR Output - 3.5mm mono jack. Receives 5V IR from a compatible Blustream HDBaseT™ receiver

r IR Control Input - 3.5mm stereo jack. 5V input to connect an IR receiver or control processor to control AMF42AU

t USB Upgrade Port - Used for firmware udpate

y RS-232 Port - 3-pin Phoenix connector for control of the Matrix from PC or 3rd party control processor

u TCP/IP Port - RJ45 connector to connect to LAN for TCP/IP control of matrix and to access web GUI

i Power Port – Use included 24V/5A DC adaptor

1 4 5

Rear Panel Description

2 4 9

7 82

1 5 6 7 8 10 11 12 13 14 15 16 173
