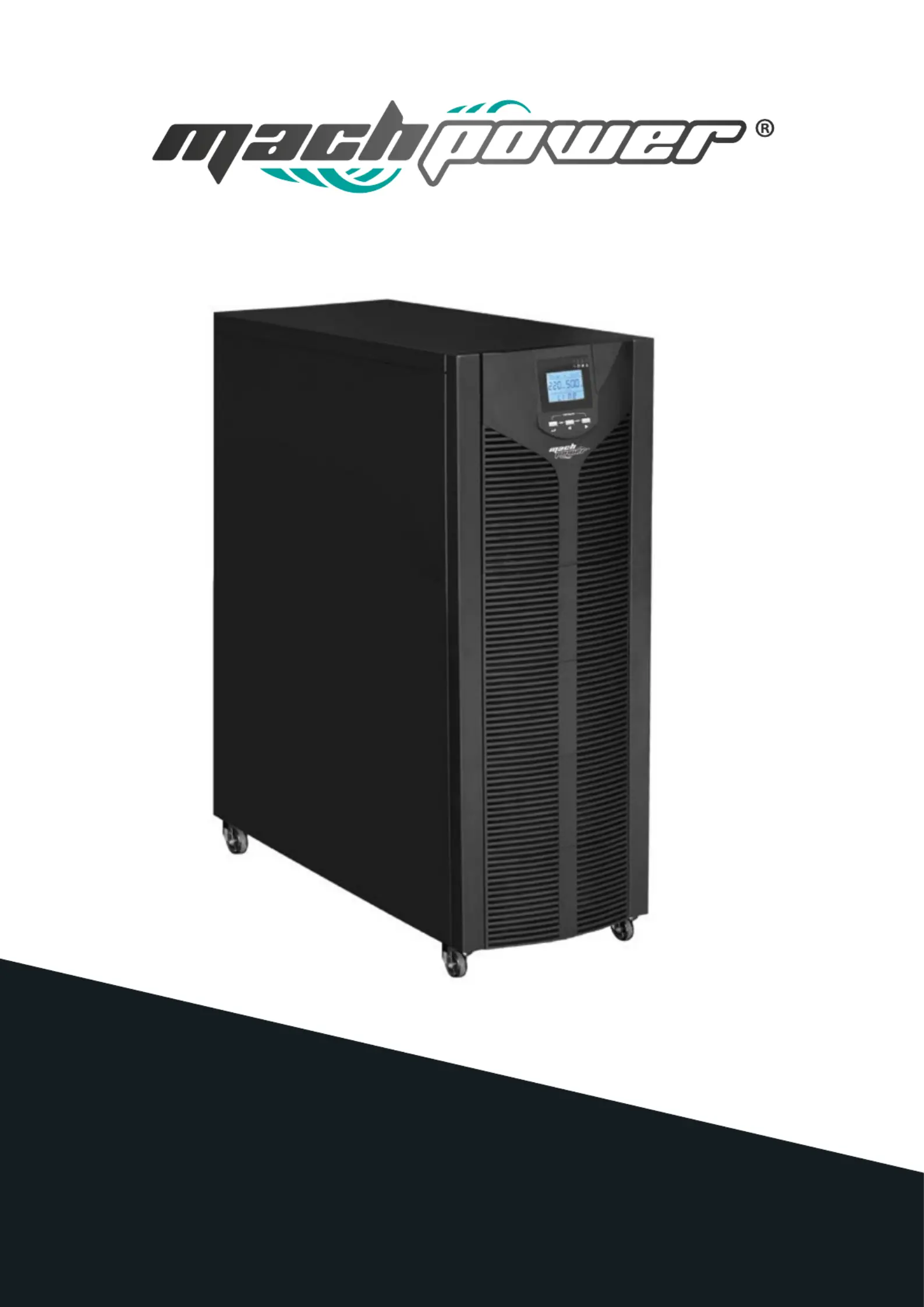

UPS ONLINE THREE PHASE

10KVA ~ 30KVA

DATASHEET

MOELLO: UPS-TRI10K / UPS-TRI20K / UPS-TRI30K

FEATURES

• High frequency and true online double-conversion

• DSP digitai contrai technology

• Input power factor correction (PFC)

• Wide input voltage range (190V - 485V)

• Output power factor 0.9

• Excellent load-carrying capability, linear derating between 50% and 100% load at 190 - 277 Vac

• Optimized battery configuration: 192V / 240V

• Cold start

• Auto sensing frequency

• ECO mode operation for energy saving

• 50 / 60Hz frequency conversion mode

• Selectable output voltage via LCD

• Selectable battery shutdown voltage (EOD) via LCD

• Power-on self test

• Advanced battery management (ABM)

• Short circuit and overload protection

• Automatic charging in OFF mode

• Auto control fan speed when loads varies

• Dual input

• Advanced quick charge technology, charging speed is increased double

• Configurable transfer time from battery to mains power, reducing the impact on grid or generator

• Automatic startup/shutdown function (optional), automatic transfer to bypass at light load, automatic

restart at acting load; energy-saving and enviranment-friendly

• Standard USB communication port

• Standard emergency power off (EPO)

• Standard maintenance bypass

• Optional extension battery bank

• Optional RS465 I SNMP I AS400 communication port

• Optional N+X redundancy parallel up to 6 units

• Optional battery temperature compensation

| DATASHEET

MAINS INPUT

DC INPUT

OUTPUT

FAN

INTELLIGENT SLOT 2

(SNMP / AS400 / RS485 OPTIONAL)

INTELLIGENT SLOT 1

(SNMP / AS400 / RS485 OPTIONAL)

BYPASS INPUT

MAINTENANCE

BYPASS

MAINS INPUT

BYPASS

BYPASS INPUT

BREAKER

PARALLEL CARD

(OPTIONAL)

USB EPO

BATTERY

TEMPERATURE

COMPENSATION

SPECIFICATION

UPS-TRI10K

10KVA / 9KW

40 x 9Ah

MODEL

Capacity

INPUT

Rated voltage

Voltage range

Rated frequency

Frequency range

Power factor

Total harmonic distortion THDI

Bypass voltage range

OUTPUT

Voltage

Voltage regulation

Frequency

Waveform

Crest factor

Total harmonic distortion THDV

Transfer time

lnverter overload capability

Bypass overload capability

BATTERIES

DC voltage

lnbuilt battery space *

Typical recharge time

SYSTEM

Efficiency

Display

Alarm

UPS-TRI20K

20KVA / 18KW

360 V /380V /400 V/ 415 Vac

277 - 485 Vac (no derating)

190 - 277Vac (linear derating between 50% and 100% load)

50 / 60 Hz (auto-sense)

40 ~ 70 Hz

≥ 0.99

≤5%

-40% - + 15% (settable)

360 V/ 360 V/ 400 V/ 415 Vac (settable)

±1%

Synchronized with utility in mains mode; 50 / 60 ± 0.1Hz in battery mode

Sinusoidal

3:1

≤ 2% (linear load); ≤ 5% (non-linear load)

Mains mode to battery mode: 0ms; lnverter mode to bypass mode: 0ms

102% - 125%: transfer to bypass in 10 mins;

125% - 150%: transfer to bypass in 1 min;

> 150%: transfer to bypass in 0.5 s

240 Vdc; Long time model: 192 Vdc

40 x 7/9Ah

4 Hours

≥ 93%, ECO mode 96%

LCD+ LED

Battery mode, low battery, fans fault etc.

UPS-TRI30K

30KVA / 27KW

60 x 7/9Ah

* battery not included

| DATASHEET

Produktspecifikationer

Varumärke:	Mach Power
Kategori:	ej kategoriserat
Modell:	UPS-TRI10K
Vikt:	115000 g
Bredd:	350 mm
Djup:	785 mm
Höjd:	868 mm
Förpackningens bredd:	472 mm
Laddningstid:	4 h
Batterikapacitet:	9 Ah
Inbyggd fläkt:	Ja
Certifiering:	IEC I EN62040-2, IEC61000-4-2 (ESD), IEC61000-4-3 (RS), IEC61000-4-4 (EFT), IEC61000-4-5 (surge)
Uteffekt:	9000 W
Effektfaktor:	0.99
Effektivitet:	93 %
UPS-topologi:	Dubbelkonvertering (Online)
Utspänning THD:	5 %
Vågform:	Sinus
Effektivitet (ECO-läge):	96 %
Automatiskt batteritest:	Ja
Antal batterier:	40
Produktens färg:	Svart
Skärmtyp:	LCD + LED
Låddjup:	910 mm
Vikt inkl. förpackning:	125000 g
Eco-läge:	Ja
Formfaktor:	Tower
Ingångsfrekvens:	50/60 hz
Effekt skyddsfunktioner:	Overload, Short circuit
Temperatur vid drift:	0 - 40 ° C
Intervall för relativ operativ luftfuktighet:	20 - 90 %
Ljudnivå Lc IEC:	60 dB
USB-port:	Ja
Kylning typ:	Aktiv
Uteffekt kapacitet (VA):	10 kVA
Inmatning spänning (min):	277 V
Inmatning spänning (max):	485 V
Utgång, driftspänning (min):	360 V
Utgång, driftspänning (max):	400 V
Utfrekvens:	50/60 hz
Crestfaktor:	3:1
Hörbara alarmlägen:	Alarm when on battery, Fault, Low battery alarm
Kallstart:	Ja
Utgångsspänningsreglering:	1 %
