INSTALLATION INSTRUCTIONS
95-6560B
Attention! With the key out of the ignition,
disconnect the negative battery terminal
before installing this product. Ensure that all
installation connections are secure before
cycling the ignition to test this product.
KIT COMPONENTS
• A) Radio trim panel • B) OLED display and buttons • C) Radio brackets • D) Panel clip brackets (4) • E) #4 x 3/8” Phillips screws (12) • F) Panel clips (4)
• G) Separate interface buttons: blanks (5) and with graphics (5) (not shown) • H) Interface, harnessing and antenna adapter (not shown)
A CB D E
F
Fits Dodge Durango
(With factory 8.4” screen)
2014-2020
Visit MetraOnline.com for more detailed information about the product and up-to-date vehicle
specific applications
KIT FEATURES
TOOLS REQUIRED
• Panel removal tool • Phillips screwdriver
• Socket wrench
TABLE OF CONTENTS
Dash Disassembly .................................................. 2
Kit Preparation ................................................... 3-5
Dash Preparation ...................................................6
Kit Assembly ..........................................................7
Axxess Interface Installation ...........................8-18
WIRING & ANTENNA CONNECTIONS
Wiring Harness:
Included
Antenna Adapter:
Included
• Retains factory climate control
buttons and adds factory-style hard
buttons with laser etched graphics
to retain and control functions
• Built-in OLED screen displays the
visual status of climate functions
such as temperature, fan speed, and
vent mode that were displayed on
the factory screen
• Retains steering wheel functionality
• Painted to scratch-resistant matte
black with chrome accents
• ISO DIN radio provision with pocket
sold separately
386.257.1187
|
MetraOnline.com
2
Note: Before removing the factory radio,
check for features such as heated seat,
vented seat and heated steering wheel.
Buttons have been included for vehicles with
those options, and blank buttons have been
included for vehicles without those options.
See installation section of this manual for
more information.
1. Using the panel removal tool, gently
unclip, unplug, and remove the climate
control panel. (Figure A)
2. Remove (4) 9/32" screws securing the
radio/display screen, and then unplug
and remove. (Figure B)
3. Remove (3) 5.5mm screws securing the
black control module in the sub-dash,
and then relocate lower to allow
clearance for the aftermarket radio.
(Figure C)
Continue to Kit Preparation

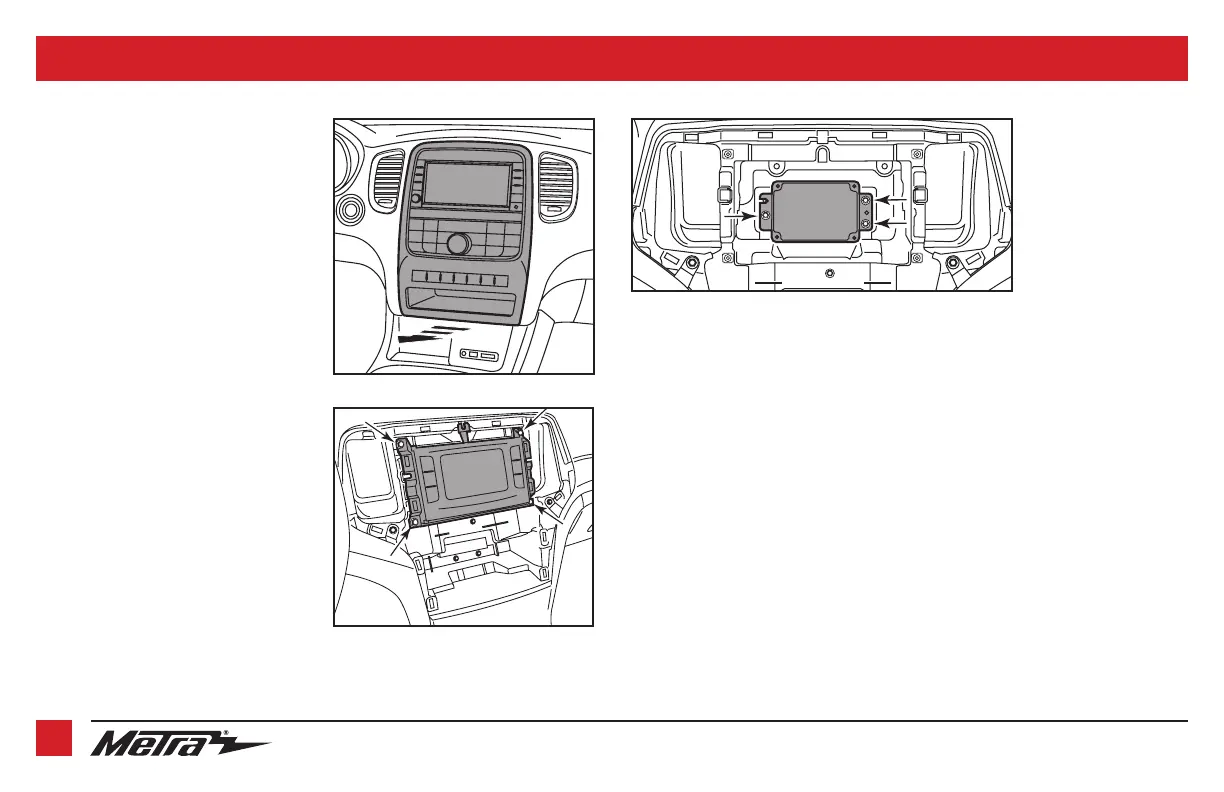

(Figure A)
(Figure B)
(Figure C)
DASH DISASSEMBLY
