INSTALLATION INSTRUCTIONS
108-FD4CH
Metra. The World’s Best Kits.
®
MetraOnline.com © COPYRIGHT 2019 METRA ELECTRONICS CORPORATION REV. 12/8/22 INST108-FD4CH
Patent # 10,579,232
Attention!With the key out of the ignition,
disconnect the negative battery terminal
before installing this product. Ensure that all
installation connections are secure before
cycling the ignition to test this product.
KIT FEATURES
• Designed specifically for the Pioneer DMH-C5500NEX 8-inch radio
• Included interface for climate and steering wheel functions
• Touchscreen interface for climate, audio interfacing, and personalization features
• Painted charcoal to match the factory finish
KIT COMPONENTS

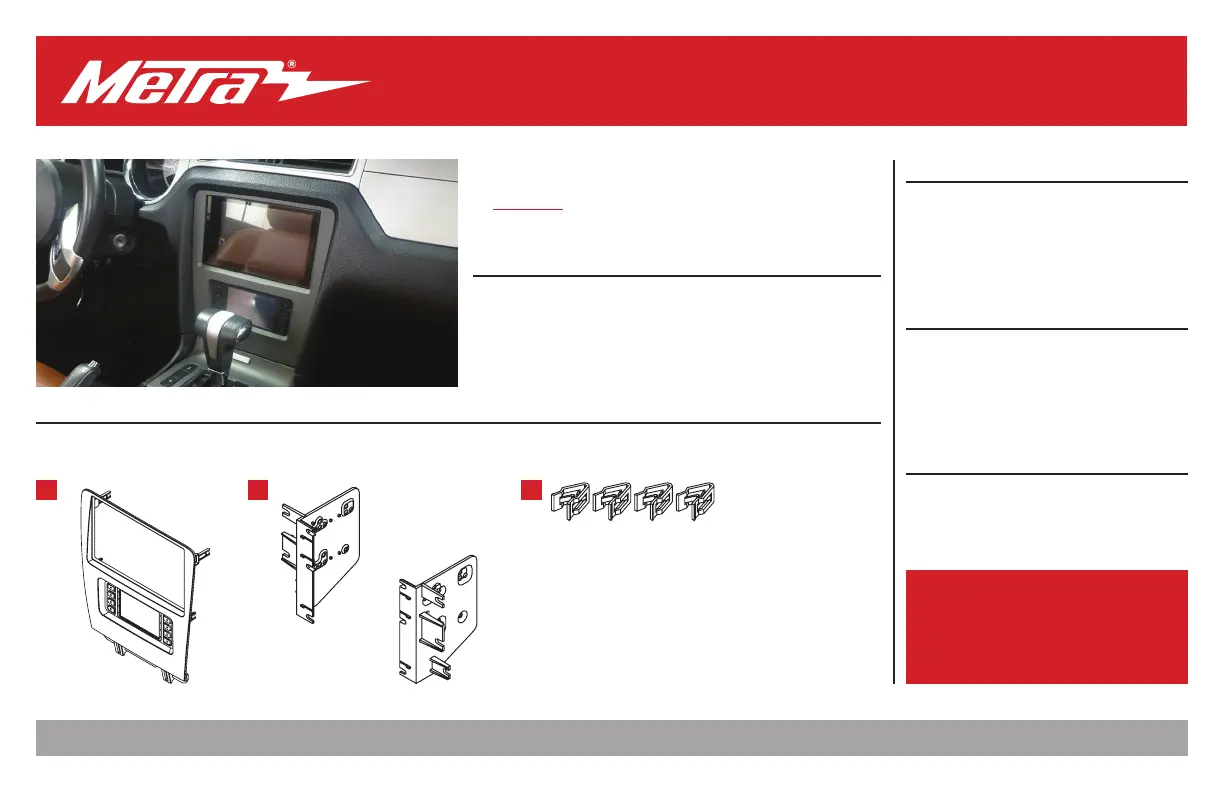

• A) Radio trim panel with touchscreen display • B) Radio brackets
• C) Panel clips (4) • D) Antenna adapter (not shown)
TOOLS REQUIRED
• Panel removal tool • Phillips screwdriver
• 9/32” socket wrench
TABLE OF CONTENTS

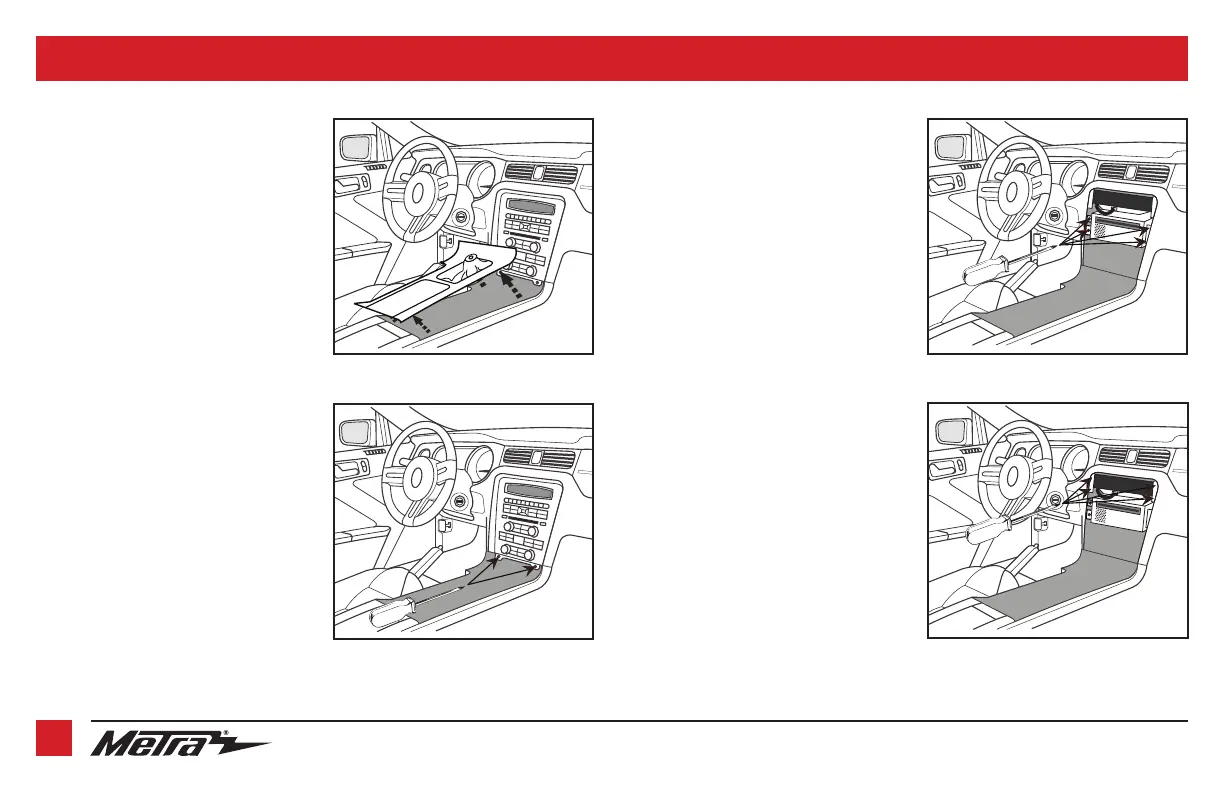

Dash Disassembly ..................................................2
Kit Assembly ..........................................................3
Axxess Interface Installation ............................4-13
Final Assembly .......................................................8
WIRING & ANTENNA CONNECTIONS
Wiring Harness: Axxess interface built
into touchscreen
Antenna Adapter: Included with kit
Steering wheel control interface: Included with kit
ABC
Ford Mustang 2010-2014
Visit MetraOnline.com for more detailed information about the product and up-to-date vehicle
specific applications
