INSTALLATION INSTRUCTIONS
99-5862CH
Metra. The World’s Best Kits.
®
MetraOnline.com © COPYRIGHT 2024 METRA ELECTRONICS CORPORATION REV. 12/13/24 INST99-5862CH
Attention! With the key out of the ignition,
disconnect the negative battery terminal
before installing this product. Ensure that all
installation connections are secure before
cycling the ignition to test this product.
KIT FEATURES
• ISO DIN radio provision with pocket
• ISO DDIN radio provision
• Included interface for climate and steering wheel functions
• Retains factory USB and back-up camera (if equipped)
• Painted to match the factory finish
KIT COMPONENTS
• A) Radio trim panel • B) Radio brackets • C) Pocket • D) Buttons: Vented seats, (L & R), Heated steering wheel, Backup camera, Parking assist, Blanks (5) • E) (2) Panel
clips • F) (2) #4 x 1/2” Phillips pan-head screws • G) (4) #8 x 3/8” Phillips truss-head screws • H) Wiring harness (not shown) • I) Antenna adapter (not shown)
TOOLS REQUIRED
• Panel removal tool • Phillips screwdriver
• 9/32” socket wrench • Torx screwdriver
TABLE OF CONTENTS
Dash Disassembly .................................................. 2
Kit Preparation ...................................................3-4
Kit Assembly
–ISO DIN radio provision with pocket ..................5
–ISO DDIN radio provision ....................................5
Axxess Interface Installation ...........................6-18
Final Assembly ..................................................... 10
WIRING & ANTENNA CONNECTIONS
Wiring Harness: Axxess interface built into kit
Antenna Adapter: Included with kit
USB retention sold seperatly. AX-FDUSBAUX for
2015-2019, AXFD-USB3 for 2011-2014.
A B C E
Ford Explorer
(with dual zone auto climate controls and without factory Sony system)
2011-2019
Visit MetraOnline.com for more detailed information about the product and up-to-date vehicle
specific applications
F
G
D
2
386.257.1187
|
MetraOnline.com

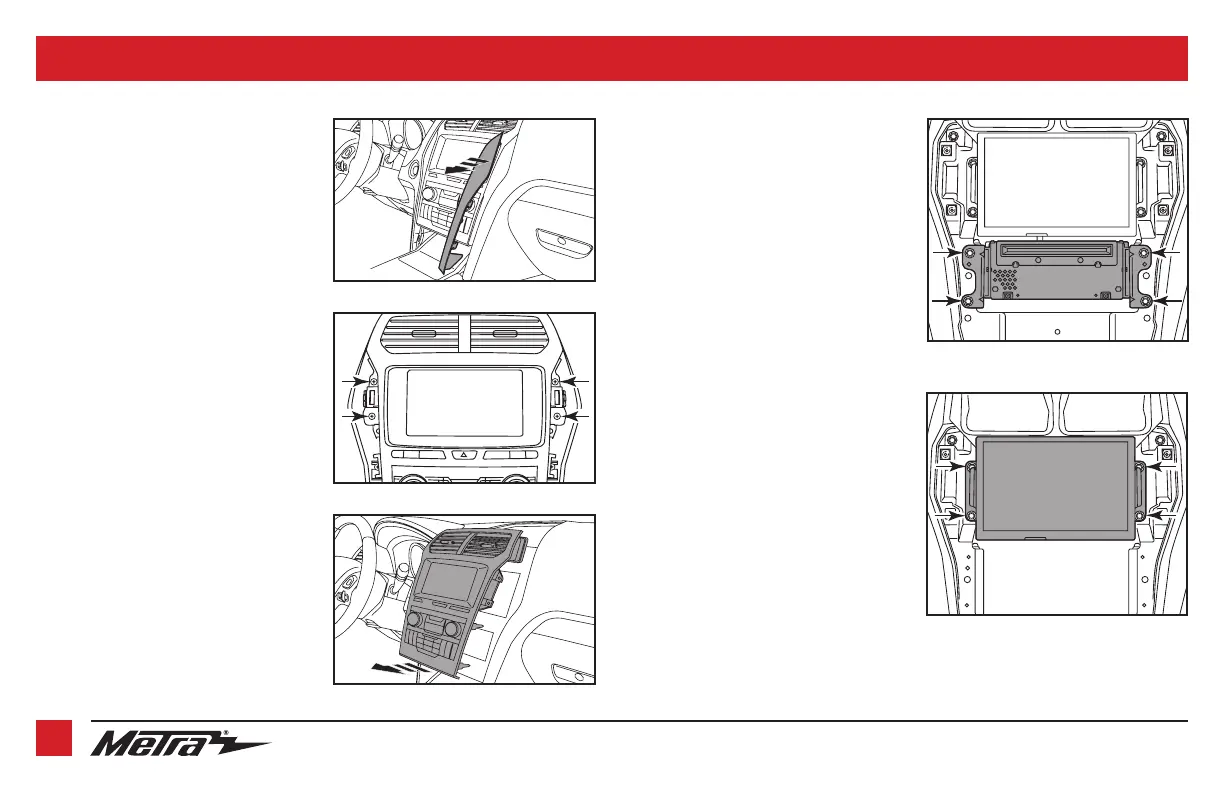

DASH DISASSEMBLY
1. Unclip and remove the trim panels to
the left and right of the climate & radio
control panel. (Figure A)
2. Remove (4) 9/32” screws securing the
climate & radio control panel, then
remove. (Figure B)
3. Unclip, unplug, and remove the climate
& radio control panel. (Figure C)
(Figure E)
(Figure D)
(Figure A)
(Figure B)
(Figure C)
4. Remove (4) 9/32” screws securing the
radio chassis. Slide the chassis out, then
unplug and remove. (Figure D)
5. Remove (4) 9/32” screws securing the
radio display, then unplug and remove.
(Figure E)
Continue to Kit Preparation
