INSTALLATION INSTRUCTIONS
99-3028S
Metra. The World’s Best Kits.
®
MetraOnline.com © COPYRIGHT 2024 METRA ELECTRONICS CORPORATION REV. 12/18/24 INST99-3028S

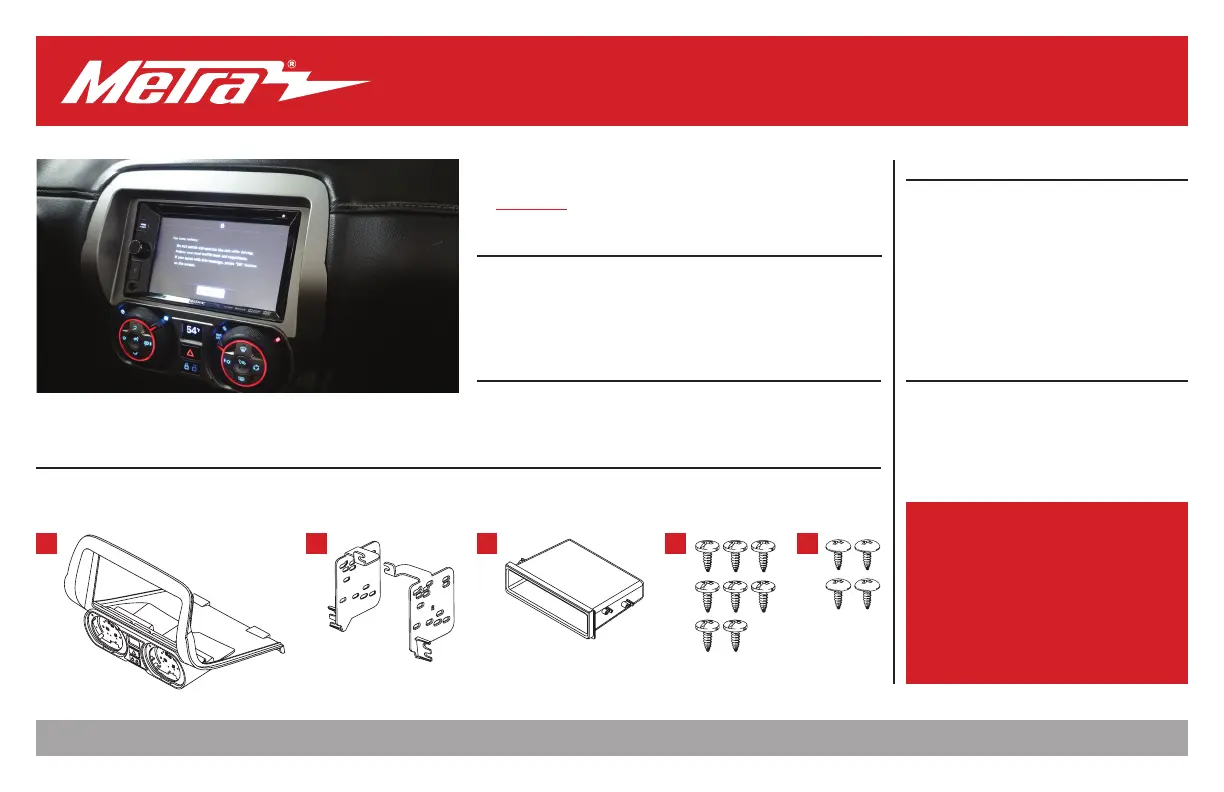

KIT FEATURES
• ISO DIN radio provision with pocket • ISO DDIN radio provision
• Painted silver to match the factory finish
• Repurposes the factory climate knobs for a factory look and feel
• Includes an Axxess interface, wiring harness, and antenna adapter
KIT COMPONENTS
• A) Radio trim panel (with preassembled circuit board) • B) Radio brackets
• C) Pocket • D) #4 x 3/8” Phillips pan-head screws (8)
• E) #8 x 3/8” Phillips truss-head screws (4) • Not shown: Axxess interface and wiring, Antenna adapter
TOOLS REQUIRED
• Panel removal tool • Phillips #1 screwdriver
• Phillips #2 screwdriver • 9/32” socket wrench
• T-20 Torx screwdriver • Cutting tool
TABLE OF CONTENTS
Dash Disassembly .............................................. 2-3
Kit Preparation ................................................... 4-7
Kit Assembly
–ISO DIN radio provision with pocket ..................8
–ISO DDIN radio provision ....................................8
Axxess Interface Installation ...........................9-19
Final Assembly ......................................................15
WIRING & ANTENNA CONNECTIONS
Wiring Harness: Axxess interface included
Antenna Adapter: Included with kit
Steering wheel control interface: Included with kit
Backup camera retention: BACKUPCAM-2 (sold sep.)
Personalization Menu LCD: AX-LCD (sold sep.)
A B C D E
Fits Chevrolet Camaro 2010-2015
Visit MetraOnline.com for more detailed information about the product and up-to-date vehicle
specific applications
ATTENTION: With the key out of the
ignition, disconnect the negative battery
terminal before installing this product.
Ensure that all installation connections,
especially the air bag indicator lights, are
plugged in before reconnecting the battery
or cycling the ignition to test this product.
NOTE: Refer also to the instructions included
with the aftermarket accessory before
installing this device.
386.257.1187
|
MetraOnline.com
2
For vehicles without UMQ gauge panel,
unsnap and remove shifter trim panel
and skip to step 8.

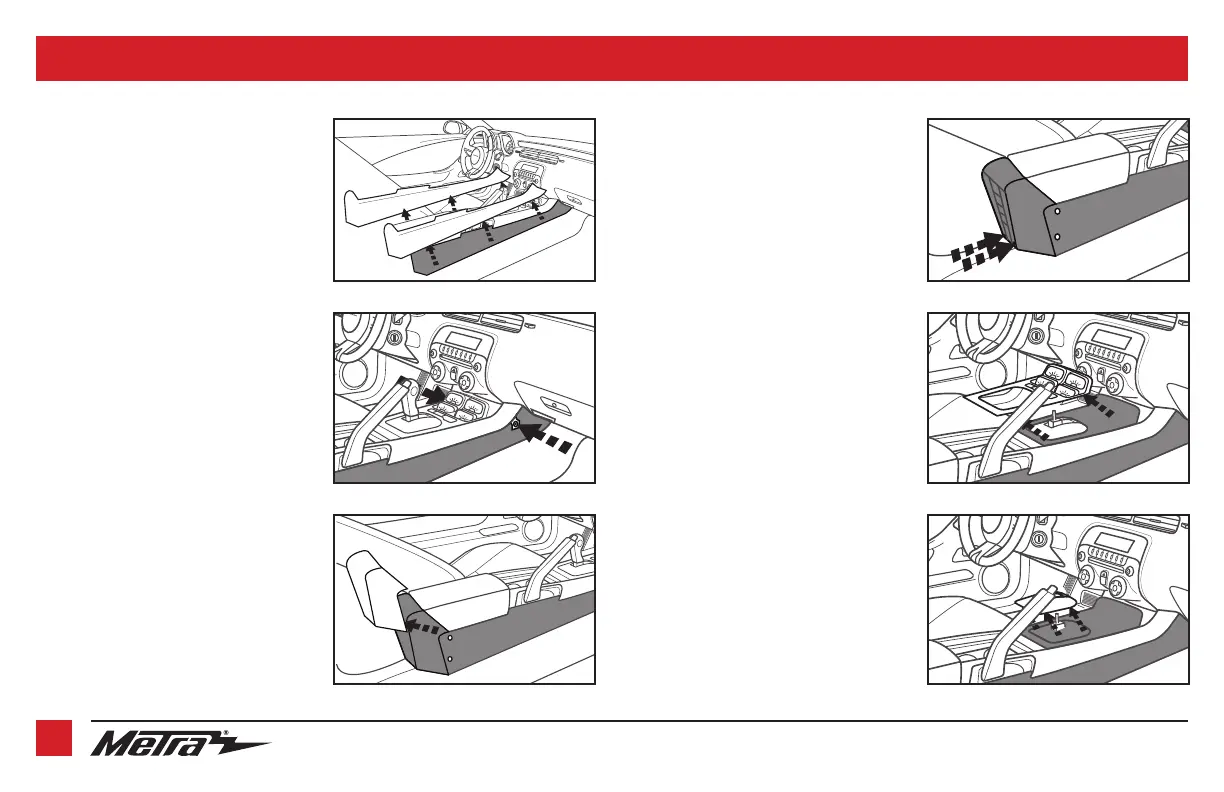

1. Unclip and remove the (2) side trim
panels running the length of the center
console. (Figure A)
2. Remove (1) Phillips screw from each
side of the front of the center console.
(Figure B)
3. Remove (2) Phillips screws per side
from the cover on the back of the center
console then unclip and remove the
cover. (Figure C)
(Figure D)(Figure A)
(Figure E)(Figure B)
(Figure F)(Figure C)
0
30
70
9
12
19
180
200
320
300
30
100
0
30
70
9
12
19
180
200
320
300
30
100
0
30
70
9
12
19
180
200
320
300
30
100
0
30
70
9
12
19
180
200
320
300
30
100
DASH DISASSEMBLY
4. Remove (2) Phillips screws exposed
under the cover on the back of console.
(Figure D)
5. Remove gauge cluster/trim panel
around shifter. (Figure E)
6. Auto transmission vehicles only:
Remove one T-20 Torx screw from the
front of the shifter, and then remove
the knob and shifter surround panel.
(Figure F)
Continue onto next page
