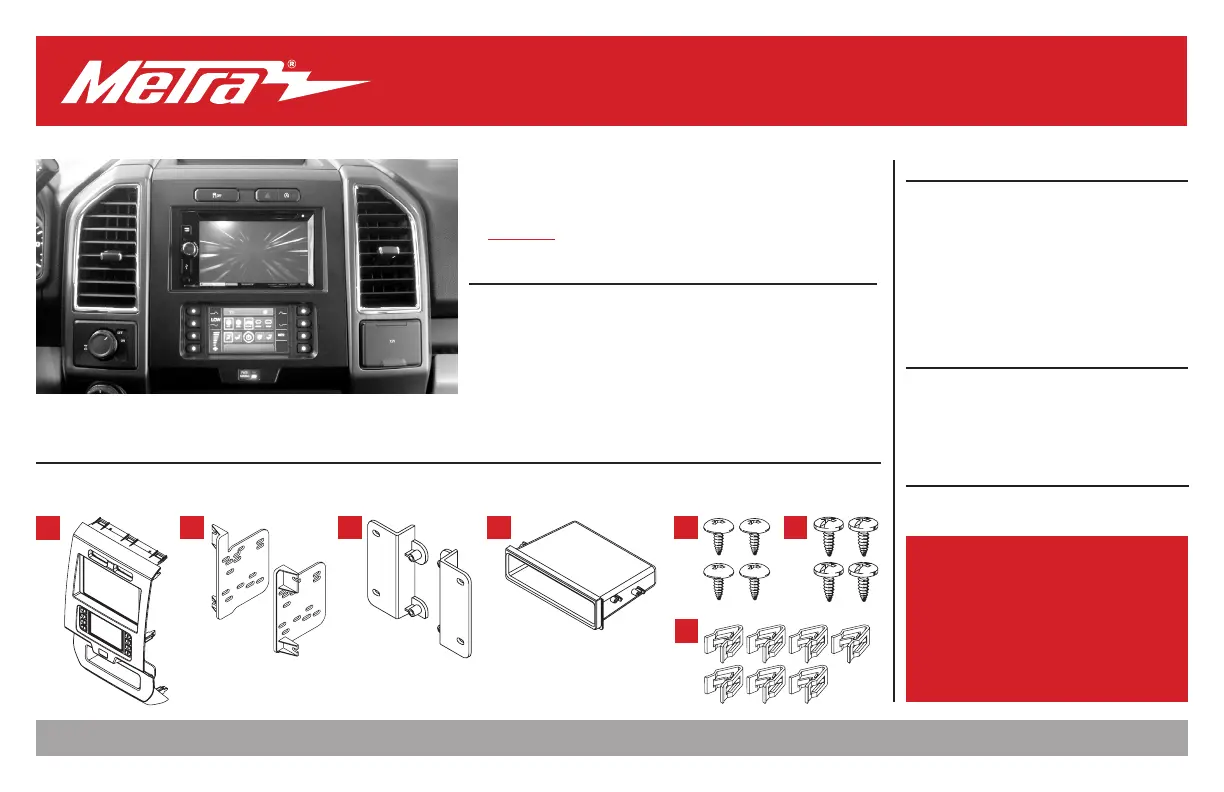

INSTALLATION INSTRUCTIONS
99-5 834CH
The World’s best kits.
®
MetraOnline.com © COPYRIGHT 2023 METRA ELECTRONICS CORPORATION REV. 9/21/23 INST99-5834CH
Patent # 10,579,232
ATTENTION: With the key out of the
ignition, disconnect the negative battery
terminal before installing this product.
Ensure that all installation connections,
especially the air bag indicator lights, are
plugged in before reconnecting the battery
or cycling the ignition to test this product.
NOTE: Refer also to the instructions
included with the aftermarket radio.
KIT FEATURES
• ISO DDIN radio provision • ISO DIN radio provision w/pocket
• Touchscreen display for climate and personalization features
• Included interface for climate and steering wheel functions
• Painted charcoal • Integrated passenger airbag indicator
Note: This kit will not support the Pro Trailer Backup Assist™ feature, nor the
massaging seats.
Note: Factory B&O amplified sound systems require an additional interface,
sold separately. Part # AXA2B-FD1.
KIT COMPONENTS
• A) Radio trim panel with touchscreen display • B) Radio brackets • C) SYNC
®
module brackets • D) Pocket • E) (4) #8 x 3/8” Phillips truss-head screws
• F) (4) #4 x 1/2” Phillips pan-head screws • G) (7) Panel clips • H) HVAC interface and wiring harness (not shown) • I) Antenna adapter (not shown)
TOOLS REQUIRED
• Panel removal tool • Phillips screwdriver
• 9/32” socket wrench • Cutting tool
TABLE OF CONTENTS
Dash Disassembly .............................................. 2-3
Kit Preparation ....................................................... 4
Kit Assembly
– ISO DIN radio provision with pocket .................5
– ISO DDIN radio provision ...................................5
Axxess Interface Installation ...........................6-16
Final Assembly ...................................................... 11
WIRING & ANTENNA CONNECTIONS
Wiring Harness: Axxess interface built into touchscreen
Antenna Adapter: Included with kit
USB Replacement Hubs: #AXFD-USB or #AXFD-USB2
(sold separately)
A
B C D E F
G
Ford F-150 2015-2020*
Ford F250/350/450/550 2017-2022*
Visit MetraOnline.com for more detailed information about
the product and up-to-date vehicle specific applications
* With factory 4.2" screen or 8" screen.
Excluding any model with a 3 window
button setup at the top of the dash.
