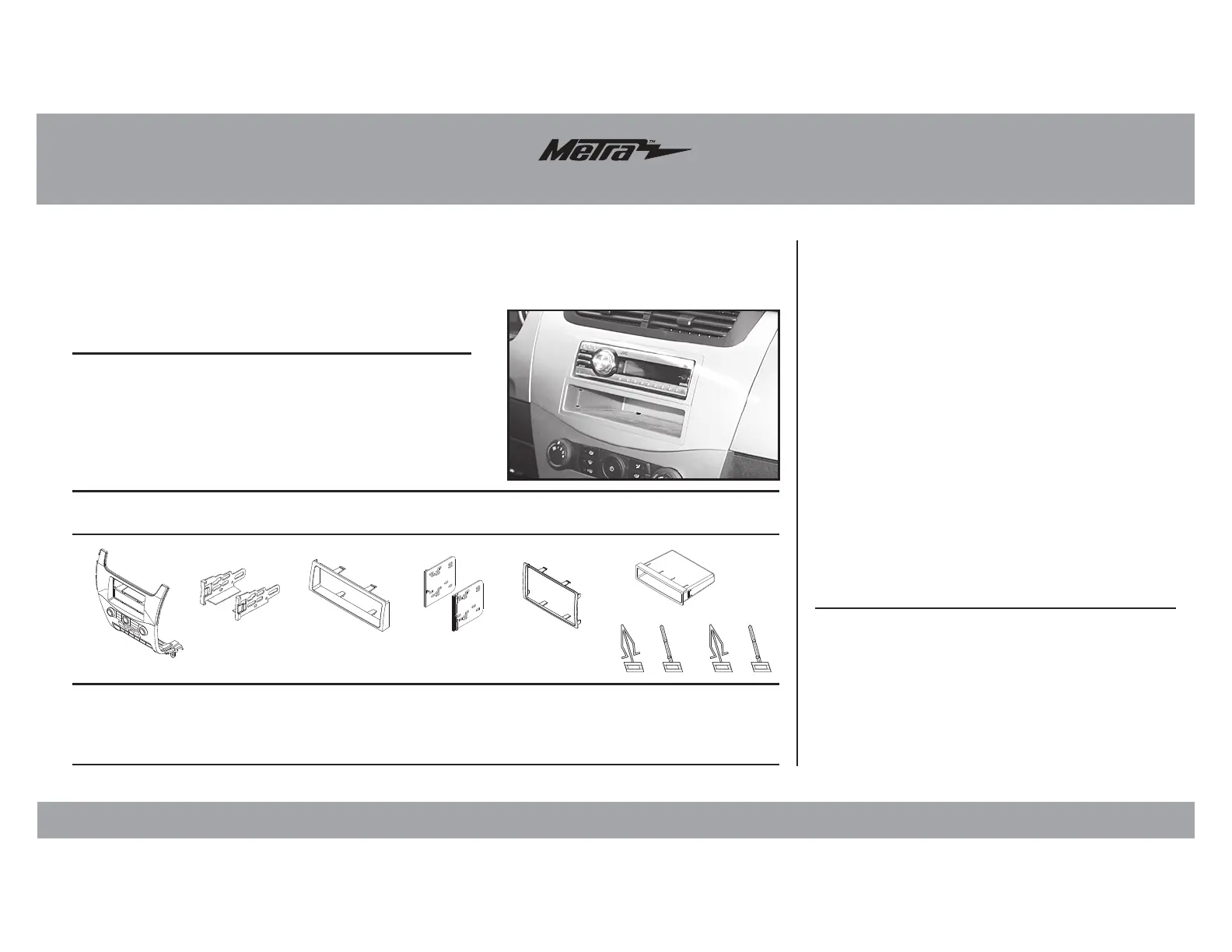

Installation instructions for part 99-5816
CAUTION!
Metra recommends disconnecting the negative bat
-
tery terminal before beginning any installation, unless the vehicle
manufacturer recommends against so. Please check with your local
Dealership for more information. All accessories, switches, climate
controls panels, and especially air bag indicator lights must be con-
nected before reconnecting the battery or cycling the ignition. Also,
do not remove the factory radio with the key in the on position, or the
vehicle running. It would be best to remove the key from the ignition
and then wait a few seconds before removing the factory radio.
• DIN radio provision with pocket
• ISO DIN radio provision with pocket
• ISO DDIN radio provision
• Painted to match factory dash
• A) Radio housing trim panel • B) ISO brackets • C) ISO trim plate • D) ISO DDIN brackets
• E) ISO DDIN trim plate • F) Pocket • G) (2) Top clips • H) (4) Middle radio housing clips
20;-,(;<9,:
20;*64765,5;:
>0905.(5;,55(*655,*;065: (sold separately)
Wiring Harness: • XSVI-5520-NAV • XSVI-5521-NAV • AX-ADBOX2 & AX-ADFD01
Antenna Adapter: • Not required
• Panel removal tool • Phillips screwdriver • Socket set • Cutting tool • T-20 Torx driver
;663:9,8<09,+
Ford Focus 2008-2011
99-5816 Dash Disassembly ..............................................2-3
Kit Preparation ....................................................... 4
Kit Assembly
– DIN radio provision with pocket ............................ 5
– ISO DIN radio provision with pocket ...................... 6
– ISO DDIN radio provision ...................................... 7
Table of Contents
B CA D F
G H
E
99-5816
2
1.
Unclip and remove the trim panel surrounding
the shifter, including the cup holders. (Figure A)
2.
Remove (2) 9/32” screws from the bottom
edge of the factory radio trim panel. (Figure B)
3.
Remove (2) 9/32” screws above the gauge
cluster (facing up), then unclip and remove
the trim panel surrounding the gauge cluster.
(Figure C)
4. Unclip and remove the trim panel above the
glove box. (Figure D)
Continued on the next page
Dash Disassembly
P ASS
AIR
BAG
O F F
(Figure B)
P AS S
AIRBAG
OF F
(Figure D)
(Figure C)
P ASS
AIRBAG
O F F
(Figure A)
99-5816
3
Dash Disassembly
PA SS
AI RBA
G
(Figure E) (Figure G)
1234 5
7 8 9 0
6
(Figure F)
5. Unclip and remove the vent panel
at the top of the factory radio trim
panel. (Figure E)
6. Remove (2) 9/32” screws behind
the vent panel previously removed.
(Figure F)
7. Unclip the factory radio trim panel
assembly. Unplug and remove
the assembly.
Note: Some early models had a
ground strap attached to the radio
chassis and the sub dash with an
8mm bolt. You will need to unbolt
this strap to remove the factory
radio trim panel assembly.
8. Remove (4) T-20 Torx screws
securing the climate controls to the
factory radio trim panel assembly,
and then remove the controls from
the assembly. Retain the screws
and climate controls for re-use
during kit preparation. (Figure G)
9. Remove (4) T-20 Torx screws
securing the accessory socket
panel to the factory radio trim
panel assembly and remove the
socket panel from the assembly.
Retain the screws and accessory
socket panel for re-use during kit
preparation. (Figure G)
10. Unclip and remove the passenger
air bag light and the switch panel
blank plates. Retain the air bag
light and blank plates for re-use
during kit preparation.
Continue to kit preparation
