Receiver Wiring Adaptor
120 70-7991
Revision 04/07/14
STEP 1 -- MATCH & CONNECT WIRES
*120707991
IMPORTANT
Before starting, compare items on your invoice with items
received. Thoroughly check packing materials. If an item
is missing, please call
Crutchfield at 1-888-955-6000.

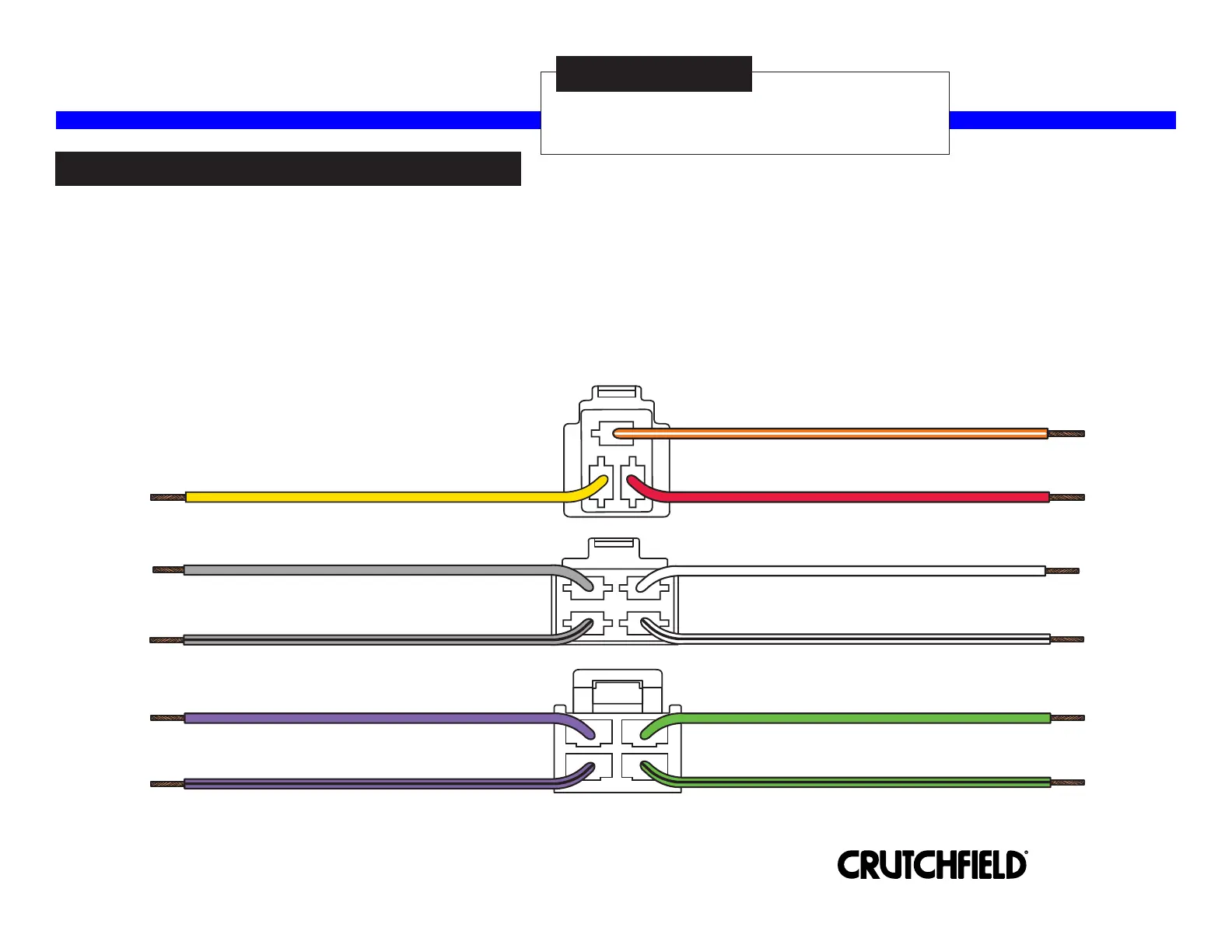

Match wires below to the matching function of each wire on your receiver (refer to instructions supplied with receiver). The wire colors of your
new receiver may, or may not, match the wire colors of the adaptor. Match adaptor and receiver wires by function, disregarding color.
If your receiver does not have a Dimmer wire, tape off the Orange/White wire. If you receiver has an Orange wire, do not connect it to the
Orange/White wire of this harness.
Individually tape off any unused wires.
Make final wiring connections following instructions on the next page.
A.
B.
C.
D.
Copyright 2014 Crutchfield Corporation
Orange/White - Dimmer
Yellow - 12 Volts Constant Power
Red - 12 Volts Switched Power
Gray - Right Front Speaker Positive
White - Left Front Speaker Positive
Green - Left Rear Speaker Positive
Violet - Right Rear Speaker Positive
Gray/Black - Right Front Speaker Negative
White/Black - Left Front Speaker Negative
Green/Black - Left Rear Speaker Negative
Violet/Black - Right Rear Speaker Negative
