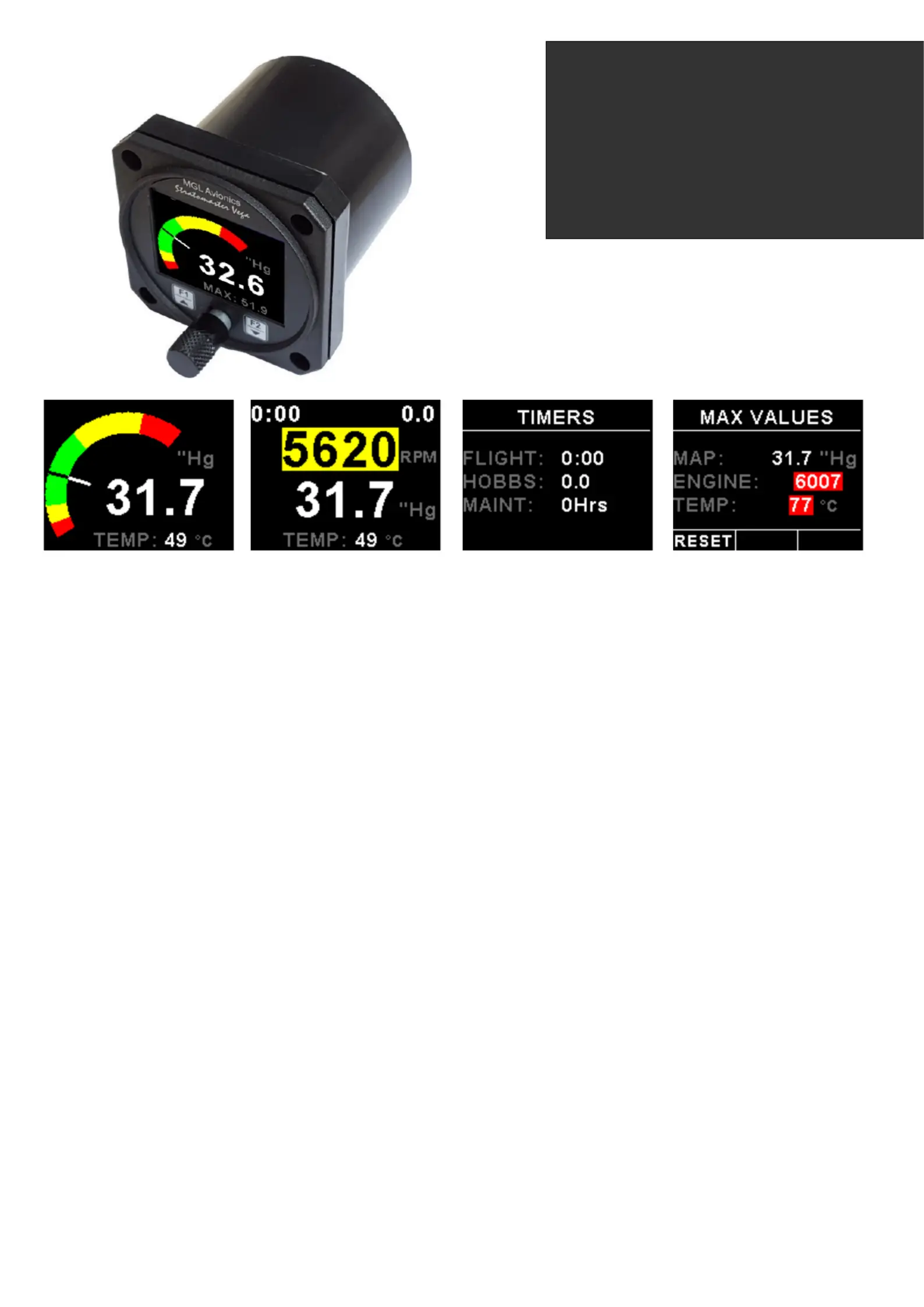

Introduction
The MAP-3 is a 2 1/4” sunlight readable Manifold pressure indicator which can simultaneously display RPM and
temperature from a universal RPM and temperature input.
The manifold pressure display is also available in the form of a scalable analog bar graph, if the RPM input is not
displayed.
The MAP-3 also has a Hobbs meter (can be set to the current engine time) which is password protected, an engine
running timer / flight timer and a programmable maintenance timer to schedule routine engine maintenance.
The MAP-3 also features a programmable low/high alarm for manifold pressure, RPM and temperature. A handy magneto
check function is also available to easy diagnose magneto problems. The MAP-3 also records the maximum manifold
pressure, RPM and temperature reached in permanent memory.
The MAP-3 can also be interfaced via the CAN bus to an external RDAC unit (Remote Data Acquisition Computer). This
allows for easier installation as the RDAC unit is normally mounted in the engine compartment.
1 Features
•Large 1.8” high resolution 160x128, sunlight readable, wide viewing angle, 1000 cd/m2 TFT LCD display
• Manifold pressure, RPM and Temperature indicator
• Manifold pressure can be displayed in millibar (mB) or in inches of Mercury (“Hg”)
• Scalable analog manifold pressure bar graph
• Temperature can be displayed in degrees Celsius or in degrees Fahrenheit
• Includes a settable Hobbs meter which is password protected
• Includes an engine running and flight timer
• Includes a programmable maintenance timer for scheduled routine engine maintenance
• Includes a magneto check function
• Records maximum MAP, RPM and temperature reached in permanent memory
• A programmable low/high alarm for manifold pressure, RPM and temperature
• External RDAC (Remote Data Acquisition Computer) interfacing via the CAN bus
• Standard 2 1/4” aircraft enclosure (can be front or rear mounted)
• Rotary control plus 2 independent buttons for easy menu navigation and user input
• Wide input supply voltage range of 8 to 30V DC with built in voltage reversal and over voltage protection
for harsh electrical environments
• 1 year limited warranty
Vega MAP-3
Manifold Pressure, RPM and
Temperature Indicator
Operating Manual – English 1.00
