Sida 1/6

CRS328-4C-20S-4S+RM

Quick start

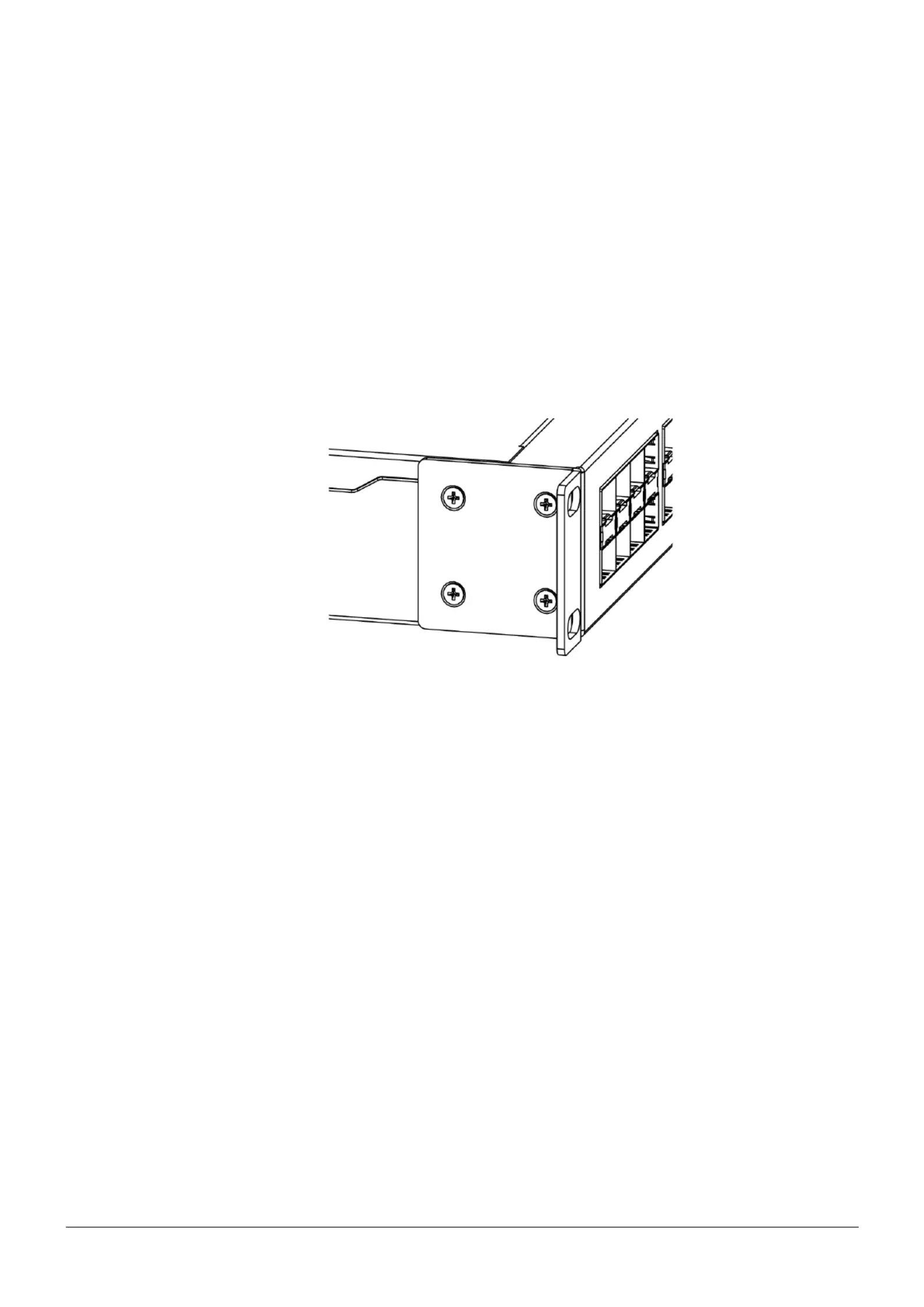

•Mount unit in a rackmount cabinet or place on the flat surface (see “ ”).Mounting

•Connect two powering units to the AC source using power cords.

•The Initial connection has to be done via the Ethernet cable, using the MikroTik Winbox utility.

•Use Winbox to connect to the default IP address of 192.168.88.1 from any port, with the username admin

and no password.

•We recommend clicking the “Check for updates” button and updating your RouterOS software to the latest

version to ensure the best performance and stability.

•Set up your password to secure the device.

Powering

•The device accepts powering from two IEC connectors. AC input range 100-240 V .⏦

The power consumption under maximum load can reach 43 W.

Booting process

The device supports booting RouterOS (for routing and switching configuration) or SwOS (for only using as a

switch). By default, the device will boot RouterOS, but you can reboot into the other operating system in the

following ways:

•From SwOS: In the System menu, click the “Boot RouterOS” button on the bottom of the page.

•From RouterOS: in the System, RouterBOARD menu, click “Settings” and there select “Boot OS”.

It is also possible to select the OS and configure other boot settings via the serial console menu.

Configuration

Full RouterOS and SwOS documentation is located here: http://mt.lv/help

This device is not preconfigured other than an IP address on the bridge interface. You can connect from any port,

as all ports are switched together by default. Another configuration has to be applied according to the

documentation manual linked above.

The Initial connection has to be done via the Ethernet cable, using the MikroTik WinBox utility. WinBox should be

used to connect to the default IP address of 192.168.88.1 from any port, with the username admin and no

password.

For recovery purposes, it is possible to boot the device for reinstallation, see Buttons and jumpers.

In case the IP connection is not available, the WinBox utility can also be used to connect to the MAC address of the

the device. Applies only when device has booted RouterOS.

The device is equipped with an RJ45 serial port, set by default to 115200 bit/s, 8 data bits, 1 stop bit, no parity.

Standard RJ45 to COM cable can be used, pinout can be found here: http://mt.lv/console

Extension slots and ports

•20 SFP ports.

•4 SFP+ ports, which accept both 1.25 Gb SFP and 10 Gb SFP+ modules.

•4 combo ports, consisting of four twisted pair (T) sockets and four SFP sockets (F).

•RJ45 serial port.

Please visit wiki pages for MikroTik SFP module compatibility table:

https://wiki.mikrotik.com/wiki/MikroTik_SFP_module_compatibility_table

See mikrotik.com/products for the latest version of this document. Page 1, Document #52503 Modified on: 07.OKT.2019

Produktspecifikationer

Varumärke:	Mikrotik
Kategori:	brytare
Modell:	CRS328-4C-20S-4S
Bredd:	443 mm
Djup:	44 mm
Höjd:	200 mm
LED-indikatorer:	Ja
Processorfrekvens:	800 MHz
Strömförbrukning (max):	43 W
Internminne:	512 MB
Rackmontering:	Ja
Flashminne:	16 MB
Strömförsörjning ingår:	Ja
Konsolport:	RJ-45
Portspegling:	Ja
Antal Combo SFP-portar:	4
Produktens färg:	Vit
Formfaktor:	1U
Inbyggd processor:	Ja
Strömförsörjning via Ethernet (PoE) stöd:	Nej
Temperatur vid drift:	-20 - 60 ° C
VLAN-stöd:	Ja
AC-inspänning:	100 - 240 V
Kabel inkluderad:	AC
Rackmonteringssats:	Ja
Kommunikationsstandarder:	IEEE 802.1Q, IEEE 802.3ad
IGMP-snooping:	Ja
Åtkomstkontrollista (ACL):	Ja
Adresstabellstorlek:	16000 poster
Jumboramar:	10218
Jumbo Frames stöd:	Ja
Switch kapacitet:	128 Gbit/s
Hastighet vid vidarebefordran:	95.2 Mpps
Broadcast Storm-kontroll:	Ja
10G stöd:	Ja
Antal SFP+-modulplatser:	4
Switch typ:	hanterad
Switch-lager:	L2/L3
Länkaggregering:	Ja
Antal SFP-modulplatser:	20
Antal strömförsörjningsaggregat:	1
