Sida 1/10

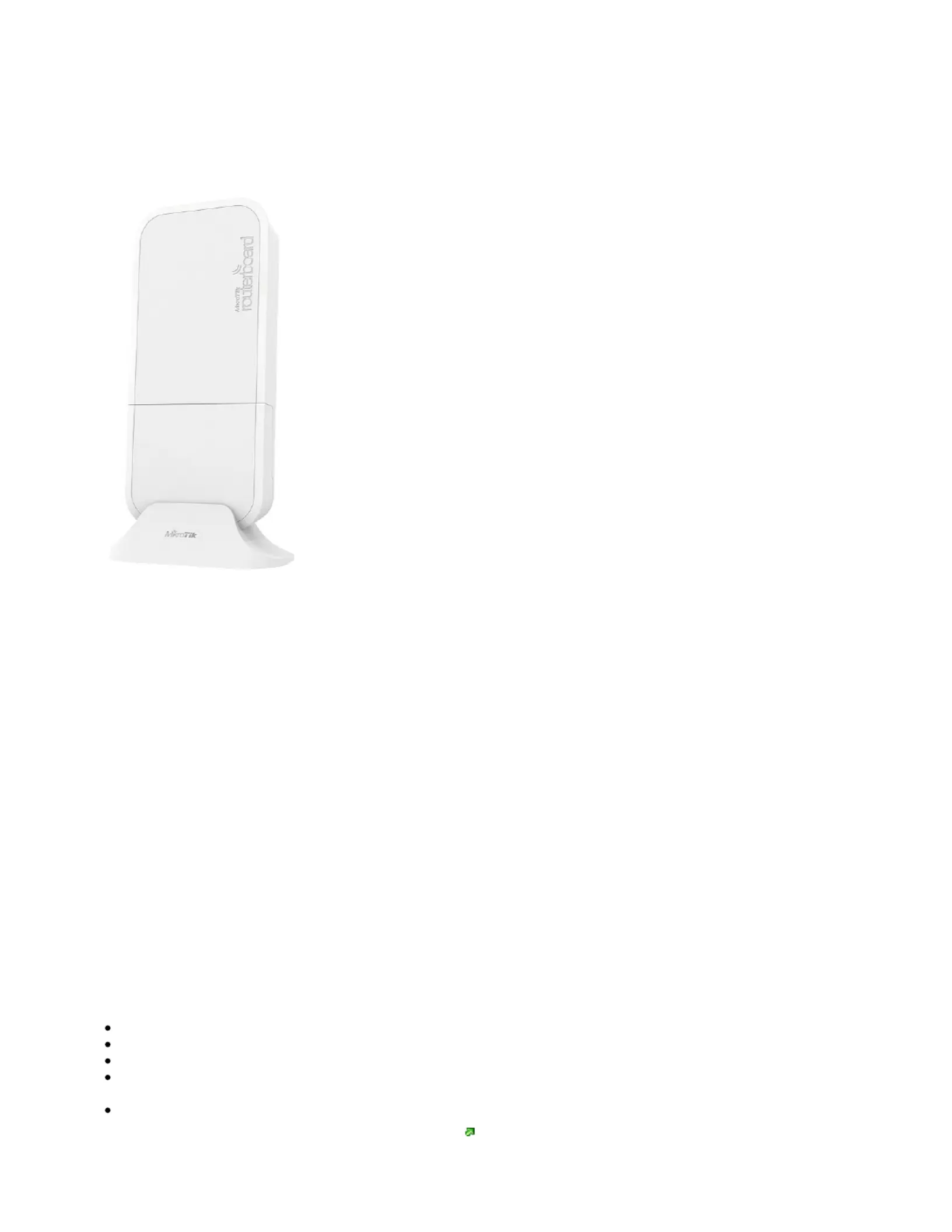

wAP R

wAP RwAP R

wAP R

Safety Warnings

Before you work on any equipment, be aware of the hazards involved with electrical circuitry, and be familiar with standard practices for preventing

accidents.

Ultimate disposal of this product should be handled according to all national laws and regulations.

All installation methods for mounting an access point on any wall surface is subject to the acceptance of local jurisdiction.

The Installation of the equipment must comply with local and national electrical codes.

This product is intended to be mounted outdoors on a pole but can also be installed indoors. Please read the mounting instructions carefully before

beginning installation. Failure to use the correct hardware and configuration or to follow the correct procedures could result in a hazardous situation to

people and damage to the system.

Use only the power supply and accessories approved by the manufacturer, and which can be found in the original packaging of this product.

Read the installation instructions before connecting the system to the power source.

We cannot guarantee that no accidents or damage will occur due to the improper use of the device. Please use this product with care and operate at your

own risk!

In the case of device failure, please disconnect it from power. The fastest way to do so is by unplugging the power plug from the power outlet.

It is the customer's responsibility to follow local country regulations, including operation within legal frequency channels, output power, cabling

requirements, and Dynamic Frequency Selection (DFS) requirements. All Mikrotik radio devices must be professionally installed.

Exposure to Radio Frequency Radiation:

Exposure to Radio Frequency Radiation:Exposure to Radio Frequency Radiation:This MikroTik equipment complies with the FCC, IC, and European Union radiation exposure limits set forth for an

uncontrolled environment.This MikroTik device should be installed and operated no closer than 20 centimeters from your body, occupational user, or the

general public.

Quickstart

Use a Phillips head screwdriver to loosen the screw, which secures the bottom lid.

Install your modem (optional).

Choose your powering solution, please see the section for possibilities.

Powering

Plug the included PoE injector into the ISP outlet and attach an Ethernet cable to it. Connect the other end of the Ethernet cable to this MikroTik

router. Plug the provided power supply into the PoE injector.

Wireless AP mode is enabled by default, you can connect from your computer to the SSID that begins with "MikroTik". The configuration interface

is available via a web browser. The address is .https://192.168.88.1

Once connected to the wireless network, open in your web browser to start the configuration.

https://192.168.88.1

User name: a and there is no password by default you will be logged in automatically to the Quick Set screen,

dmin

(or, for some models, check

user and wireless passwords on the sticker).

We recommend clicking the "Check for updates" button on the right side and updating your RouterOS software to the latest version to ensure the

best performance and stability.

To personalize your wireless network, SSID can be changed in the fields "Network Name";

Choose your country on the left side of the screen in the field "Country", to apply country regulation settings.

Set up your wireless network password in the field "WiFi Password" the password must be at least eight symbols.

Set up your router password in the bottom field "Password" to the right and repeat it in the field "Confirm Password", it will be used to login next

time.

Click on the "Apply Configuration" to save changes.

MikroTik mobile app

Use the MikroTik smartphone app to configure your router in the field, or to apply the most basic initial settings for your MikroTik home access point.

Scan QR code and choose your preferred OS.

Install and open application.

By default, the IP address and user name will be already entered.

Click Connect to establish a connection to your device through a wireless network.

Choose Quick setup and application will guide you through all basic configuration settings in a couple of easy steps.

An advanced menu is available to fully configure all necessary settings.

Mounting

The device can be mounted in several ways: wall, ceiling, pole or it can be placed in specially designed Mikrotik holder which comes with the package. The

package includes a drill hole template with instructions, to help you with the Ethernet cable installation and attachment to a ceiling or a wall. The package

also includes a steel bracket to put on the other side of a dropdown ceiling tile and two screws and wall anchors. The Unit can be attached to the pole

using zip ties or steel clamp.

To prevent the bottom lid for opening the different screw can be used. One Torx T20 security screw is included for optional use. Use it with the included L-

shaped wrench to fix it into the bottom lid. Detailed instructions of replacing screw are in the package.

The IP rating scale for this device is IP54.

When mounting outdoors, please ensure that any cable openings are directed downwards. Use POE injector and proper grounding. Recommended using

Cat5/6 cable.

When using and installing this device please pay attention to Maximum Permissible Exposure (MPE) safety distance with a minimum of 35 cm between the

radiator and your body.

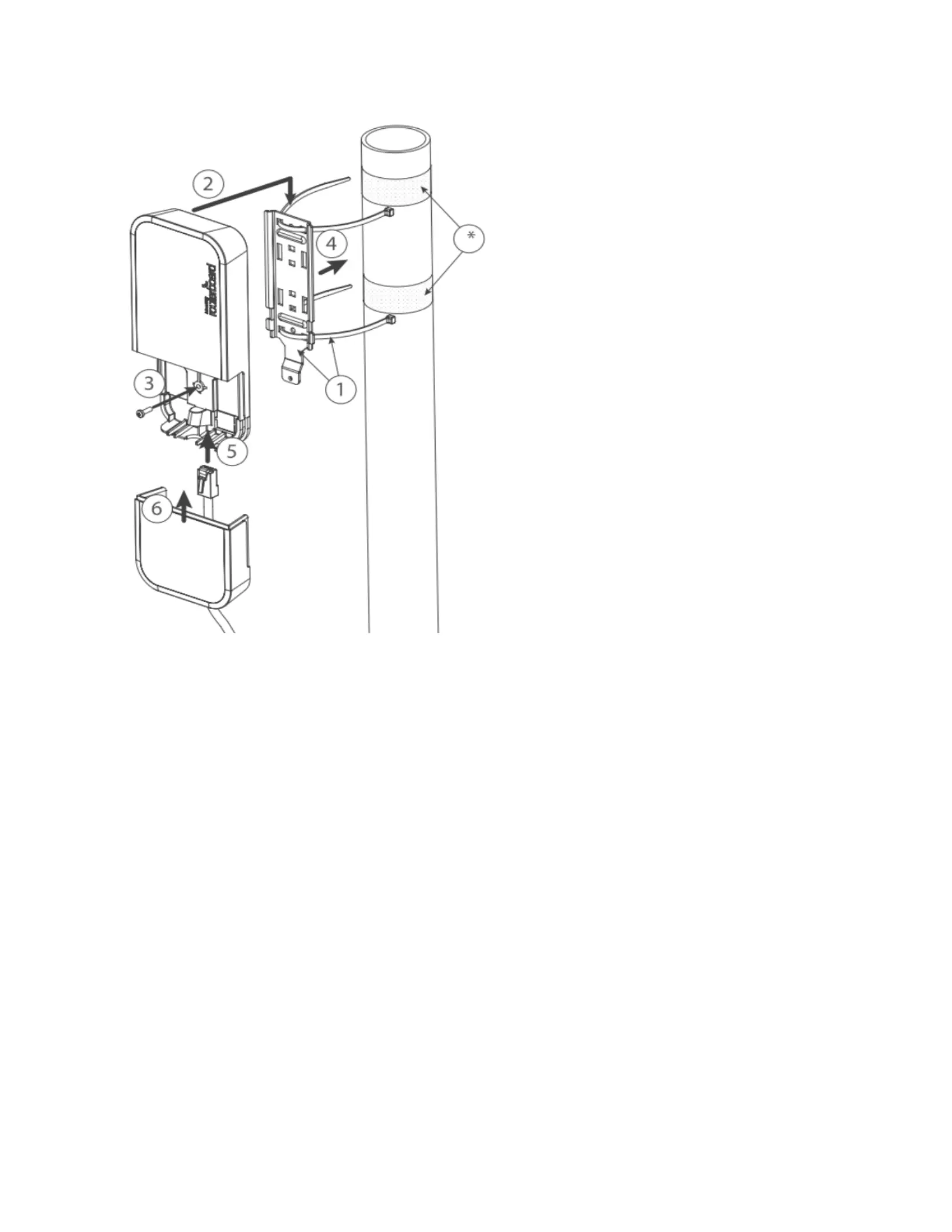

Mounting on the mast or pole:

Mounting on the mast or pole:Mounting on the mast or pole:

* It's recommended to use electrical tape to increase friction between materials.

Mount plastic tie straps to steel brackets guiding them through holes.

Mount bracket to the device.

Secure them with a screw.

Mount and align the device on the pole or mast.

Guide Ethernet cable through the opening and connect to the Ethernet port.

Close bottom latch and secure with a screw.

It's recommended to secure Ethernet cable to the pole using zip ties. With the distance from the device approximately 30 cm.

Mounting unit on the wall:

Mounting unit on the wall:Mounting unit on the wall:

Use included a template to mark spots for drilling holes. And if needed for Ethernet cable. Align accordingly, it will depend on how the device will

be mounted finally.

Insert dowels if needed, depends on wall structure and material.

Place included a steel bracket on the wall.

Use screws to secure it in the place.

Extend your Ethernet cable through the opening and connect to the Ethernet port.

Mount the device on the steel bracket

Secure it in place with the screw.

Close bottom latch.

Avoid mounting the device on the low ground spot, as you won't be able to attach and close the bottom latch.

Mounting on the ceiling:

Mounting on the ceiling:Mounting on the ceiling:

A Special bracket is included in the package to mount on the drop ceiling. As it consists of two parts, to be attached on both sides of the ceiling tile.

Use the template to mark spots for holes.

Place both mounting brackets on the spot.

Secure them together using screws.

Continue assembling in the same manner if mounting on the wall.

Extend your Ethernet cable through the opening and connect to the Ethernet port.

Mount the device on the steel bracket.

Secure it in place with the screw.

Close bottom latch.

Bottom Lid

The bottom lid is secured in place with the captive screw.

Use the Philips PH2 screwdriver to unscrew it, but do not remove the screw completely.

Pull the cover in the opposite direction from the device to remove it.

Reassemble.

Powering

The device accepts power from the power jack or from the Ethernet port:

Direct-input power jack (5.5 mm outside and 2 mm inside, female, pin positive plug) accepts 9-30 V DC;

Ethernet port accepts 802.3af/at PoE 9-30 V DC.

The power consumption under maximum load can reach 6 W. Please attach ground (earth) wire to the screw under the bottom lid.

Connecting to a PoE Adapter:

Connect the Ethernet cable from the device to the PoE+DATA port of the PoE adapter;

Connect an Ethernet cable from your local network (LAN) to the PoE adapter;

Connect the power cord to the adapter, and then plug the power cord into a power outlet.

Expansion slots and ports

Wireless module 2.4 GHz 802.11b/g/n.

One 10/100 Ethernet ports, supporting automatic cross/straight cable correction (Auto MDI/X). Either straight or crossover cable can be used for

connecting to other network devices.

miniPCI-e slot for your desired modem.

Configuration

We recommend clicking the "Check for updates" button and updating your RouterOS software to the latest version to ensure the best performance and

stability. RouterOS includes many configuration options in addition to what is described in this document. We suggest visiting the RouterOS documentation

page to get yourself accustomed to the possibilities: .

https://mt.lv/help

In case IP connection is not available, the Winbox tool ( ) can be used to connect to the MAC address of the device from the LAN side https://mt.lv/winbox

(all access is blocked from the internet port by default).

It is possible to boot the device from a network, for reinstalling RouterOS for recovery purposes. This can be done from the first Ethernet port. See above

how to do this.

Buttons and jumpers

The reset button has three functions:
