ZGP486NDNSS (NATURAL GAS)
ZGP486LDNSS (LIQUID PROPANE)
MONOGRAM 48" ALL-GAS PROFESSIONAL
RANGE WITH 6 BURNERS AND GRIDDLE
DIMENSIONS AND INSTALLATION INFORMATION
(IN INCHES)
Product Specification Created 8/19
Professional ranges oer a number of choices in size and
cooktop configurations.
All Professional Ranges are factory set for natural or liquid
propane gas. The correct model should be ordered for
the installation situation.
NOTE
Conversion kits are included with the range if the wrong
gas type was ordered. High Altitude kit, WB28K10553
for operation above 6,000 feet (for Natural and LP gas
models), is also available. The kits must be installed by
a qualified service technician at additional cost.
INSTALLATION INFORMATION
Before installing, consult installation instructions packed
with product or online at Monogram.com for current
dimensional data.
A suitable overhead vent hood is required for imodels with
a grill and is recommended for all other models.
ADVANCE PLANNING
Refer to dimensional drawings for appropriate placement
and necessary clearances when planning the installation.
• Working areas adjacent to the range should have
18" minimum clearance between countertop and
cabinet bottom.
• Clearance between range and side wall or combustible
material must be at least 12" on each side.
• Installation must conform with local codes. In the
absence of local codes, the range must comply
with the National Fuel Gas Code, ANSI Z223.1-1990.

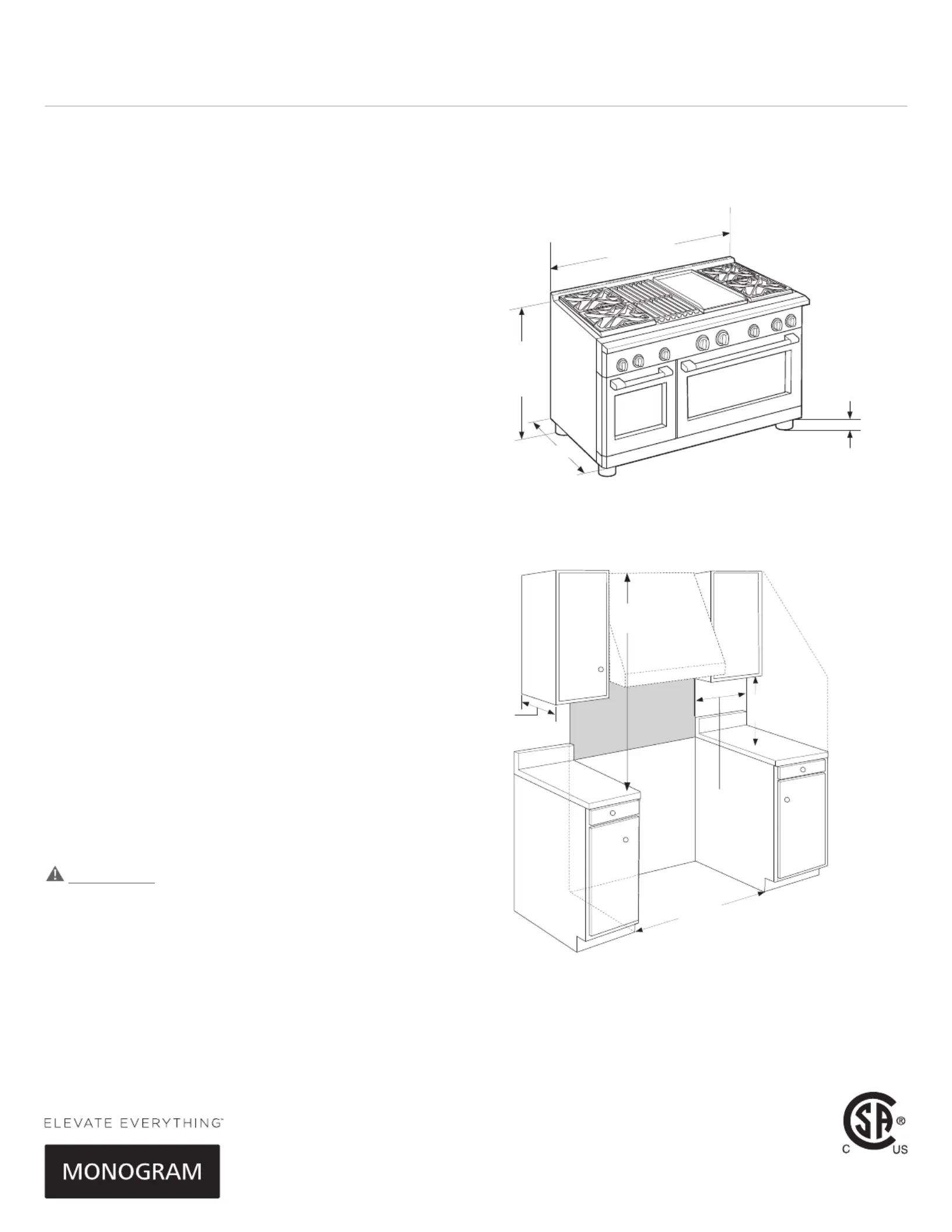

47 7/8" width
28 1/4"
35 1/4"
to
36 3/4"
height
3 1/4"
to 4 3/4"
Toekick/leg
height
Depth
to front
of door
ADDITIONAL CLEARANCES:
Allow 12" minimum clearance to an adjacent wall
on each side.
Wo
rking areas adjacent to the rangetop should have
18" minimum clearance between countertop and
the bottom of the wall cabinet.
Non-Combustible
Material
13"
max.
18"
min.
36" min.
48" minimum
to combustibles
12" minimum
each side
12" minimum
to adjacent wall
WARNING
Installations without a hood require 48" minimum
to combustibles. A custom hood installation with
exposed horizontal combustible surfaces must
have an Auto-On feature. Refer to hood installation
instructions for specific hood clearances.
The surface of the entire back wall above the range
and below the hood must be covered with a non-
combustible material such as metal, ceramic tile,
brick, marble or other stone.
ZGP486NDNSS (NATURAL GAS)
ZGP486LDNSS (LIQUID PROPANE)
MONOGRAM 48" ALL-GAS PROFESSIONAL
RANGE WITH 6 BURNERS AND GRIDDLE
DIMENSIONS AND INSTALLATION INFORMATION
(IN INCHES)
Product Specification Created 8/19
ELECTRICAL REQUIREMENTS
Ranges must be hooked up to a 120V, 60Hz properly
grounded dedicated circuit protected by a 15-amp circuit
breaker or time-delay fuse.
OPTIONAL BACKSPLASH ACCESSORIES
The range requires a 12" minimum clearance to a vertical
combustible surface at the rear. A backsplash is required
for installations with less than 12" clearance. The following
backsplash accessories are available, or a custom, non-
combustible backsplash can be used.
ORDER ONE WITH A 48"-WIDE RANGE BACKSPLASH
UX12B48PSS–12" backsplash
UXADJB48PSS– 30"-36" adjustable-height
backsplash with warming shelf

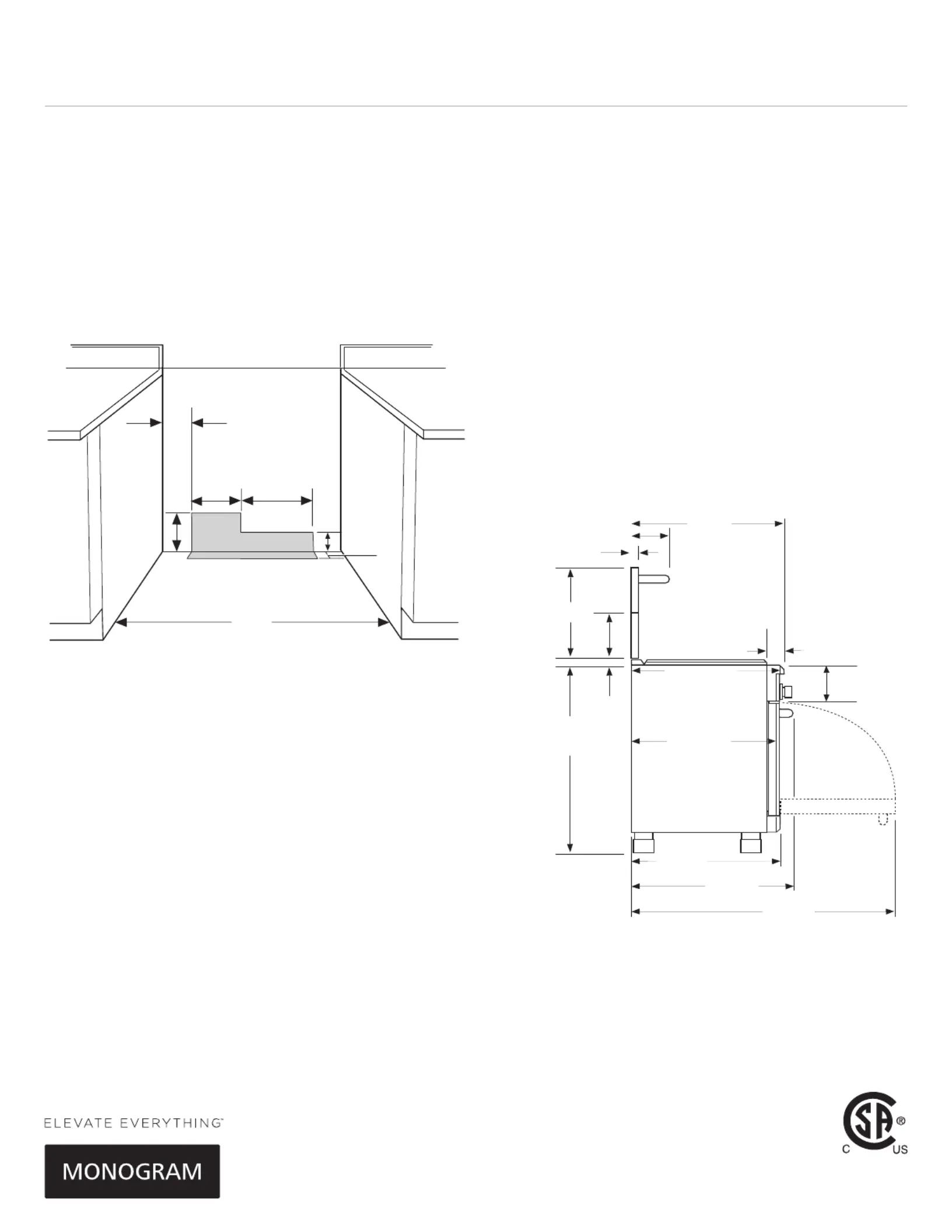

SIDE VIEW WITH A BACKSPLASH
Locate gas and electric as shown
48"
2"
6 1/2"
8"
11" 21"
Gas/
Electric
3"
10-1/2"
1-1/2"
12"
28-1/4" to
Beveled
Edge of Control
Panel Bullnose
27-1/2" to
Beveled Edge
- Maximum
Adjacent
Cabinet Depth
for
Flush
Installation
13/16"
30-36"
3-3/16"
Control Panel
Depth
28-1/4"
to Front of
Door
48-1/4"
with Oven Door
Open
30-7/8"
to Front of
Handle
35-1/4"
to
36-3/4"
7" Control
Panel Height
28-7/8"
to Front
Edge
Optional
Backsplash
Accessories
GAS SUPPLY
• The natural gas models are designed to operate at
5" water column pressure. For proper operation, the
pressure of the natural gas supplied to the regulator
must be between 7" and 13" water column.
• The LP models are designed to operate at 10" water
column pressure. For proper operation, the pressure
of the LP gas supplied to the regulator must be
between 11" and 13" water column.
UTILITY LOCATIONS
MONOGRAM 48" ALL-GAS PROFESSIONAL
RANGE WITH 6 BURNERS AND GRIDDLE
ZGP486NDNSS (NATURAL GAS)
ZGP486LDNSS (LIQUID PROPANE)
Product Specification Created 8/19
FEATURES AND BENEFITS
*Natural Gas Model
THE MONOGRAM STATEMENT COLLECTION
Edge-to-edge handles, polished stainless steel, smoothly
finished edges and large electronic control knobs oer an
authentic professional appearance.
SEALED, DUAL-FLAME STACKED BURNERS
Deliver a full spectrum of heat settings, from an ultra-low
140° F simmer to an intense 18,000 BTU
MONOGRAM PROFESSIONAL OVEN SYSTEM
Combines European, reverse-air convection technology
and six heating elements in each oven to provide superb
baking results
HEAVY-DUTY, FULL-EXTENSION RACKS
Glide smoothly in and out on stainless steel ball bearings
for easy access, and are designed to remain in the oven
during the self-clean cycle
LED TASK LIGHTS
Below the bullnose, provide a functional and theatrical
touch
STAINLESS STEEL AND ALUMINUM-CLAD GRIDDLE
Oers 18,000 BTUs* of cooking power, allowing fast and
consistent heating across the entire cooking surface
STAR-K CERTIFICATION
Allows Monogram ranges to operate in Sabbath mode
A BAMBOO CUTTING BOARD
Is included
OPTIONAL FULL-WIDTH STAINLESS STEEL TOEKICK
Is included with the range
STAINLESS STEEL GRILL/GRIDDLE COVERS
Are included with the range
LARGE TEMPERATURE AND TIME DISPLAYS
Make it easy to monitor cooking progress
HALOGEN LIGHT COLUMNS
Provide a clear view, regardless of rack position
EVERYDAY OVEN
Is just the right size for 9" x 13" casserole dishes
MODEL ZGP486NDNSS – Natural Gas
MODEL ZGP486LDNSS – Liquid Propane
