Sida 1/7

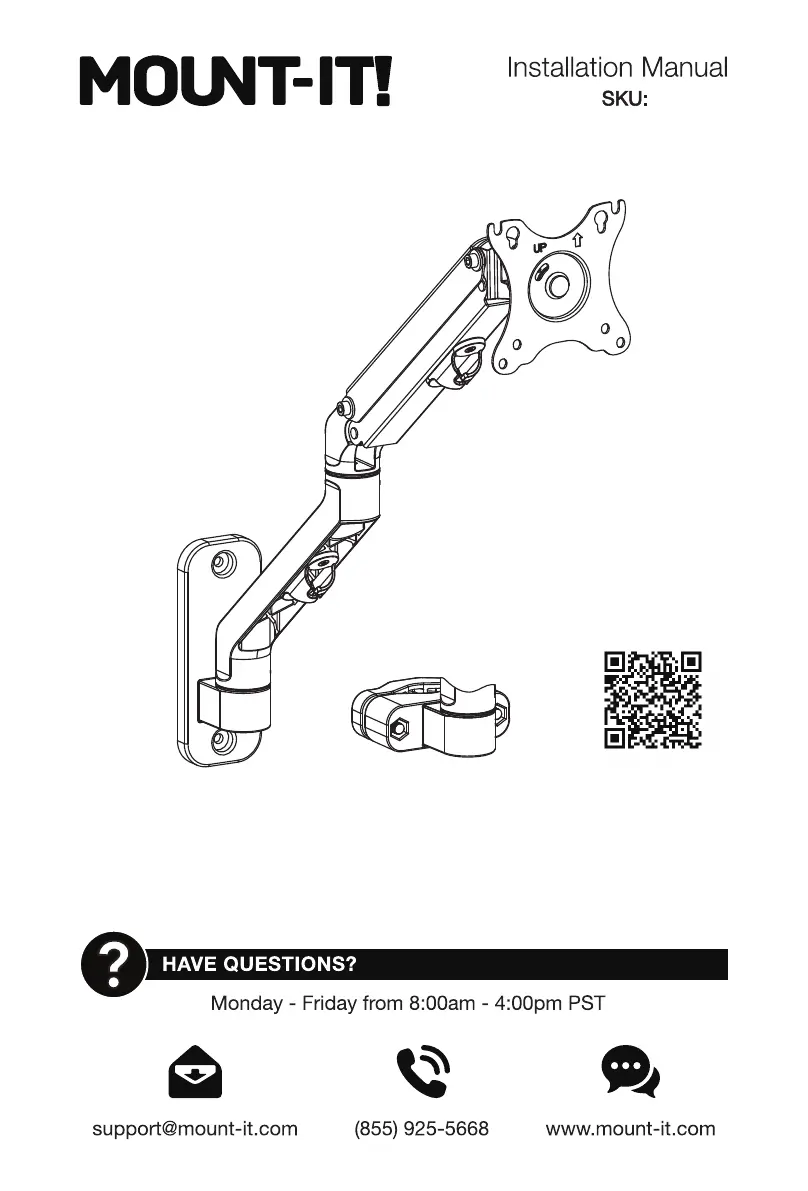

MONITOR MOUNT WITH WALL
MOUNT PLATE AND CLAMP
MI-1765
Please scan this QR code
to visit the product page.
Thank you for choosing Mount-It
2
3
Mount-It!
Mount-It!
Mount and Accessories
Spring Arm
Pole Clamp
Alternate Bolt
Wall Mount
Plate
Decorative
Cover
Hex Wrench Hex Wrench
Missing Parts? Call us at (855) 925-5668 and we will ship replacement parts free of charge.
CHOKING HAZARD. Package includes small parts.
Not for children under 3 years. Adult supervision is required.
Check carefully to make sure there are no missing or defective parts. Some hardware provided may not
be used. Use the correct mounting hardware suitable for your installation.
DIMENSIONS & WEIGHT CAPACITY
Rated weight capacity is 4.4lbs~15.4lbs for the mount.
Caution:
Ensure all mounting surfaces are capable of holding the weight of your mount.
DO NOT EXCEED MAXIMUM LISTED WEIGHT CAPACITY.
SERIOUS INJURY OR PROPERTY DAMAGE MAY OCCUR!
2~7kg
(4.4~15.4lbs)
1.4”
6.7”
3”
max12.2”
3.9”
4.6”
3”
3.9”
4.6”
Ø1.1”~Ø2.4”
4.1”
2.6”
1.6” 6.3” 9.7”~11.9” 2”
5
4
Step 1
• With a stud finder locate the stud and center the Wall Mount Plate (#B) on the stud at the desired height.
Using a bubble level to ensure straightness mark the center of the mounting holes with a pencil.
• Use a 3/16” drill bit and drill on the marked locations to a depth of 2.2”. Secure the Wall Mount Plate (#B)
to the wall using Lag Screws (#W-A) and Washers (#W-C). Tighten the screws until secure.
A. Wood Stud Mounting Option
Step 1a-1
B. Concrete/Brick Mounting Option
• Using a bubble level to ensure straightness hold the Wall Mount Plate (#B) to the desired location on
the wall and mark the center of the mounting holes with a pencil.
• Use a 3/8” drill bit and drill on the marked locations to a depth of 2.4”. Clear any dust and debris from
the holes and insert the Concrete Anchors (#W-B). Secure the Wall Mount Plate (#B) to the wall using
Lag Screws (#W-A) and Washers (#W-C). Tighten the screws until secure.
