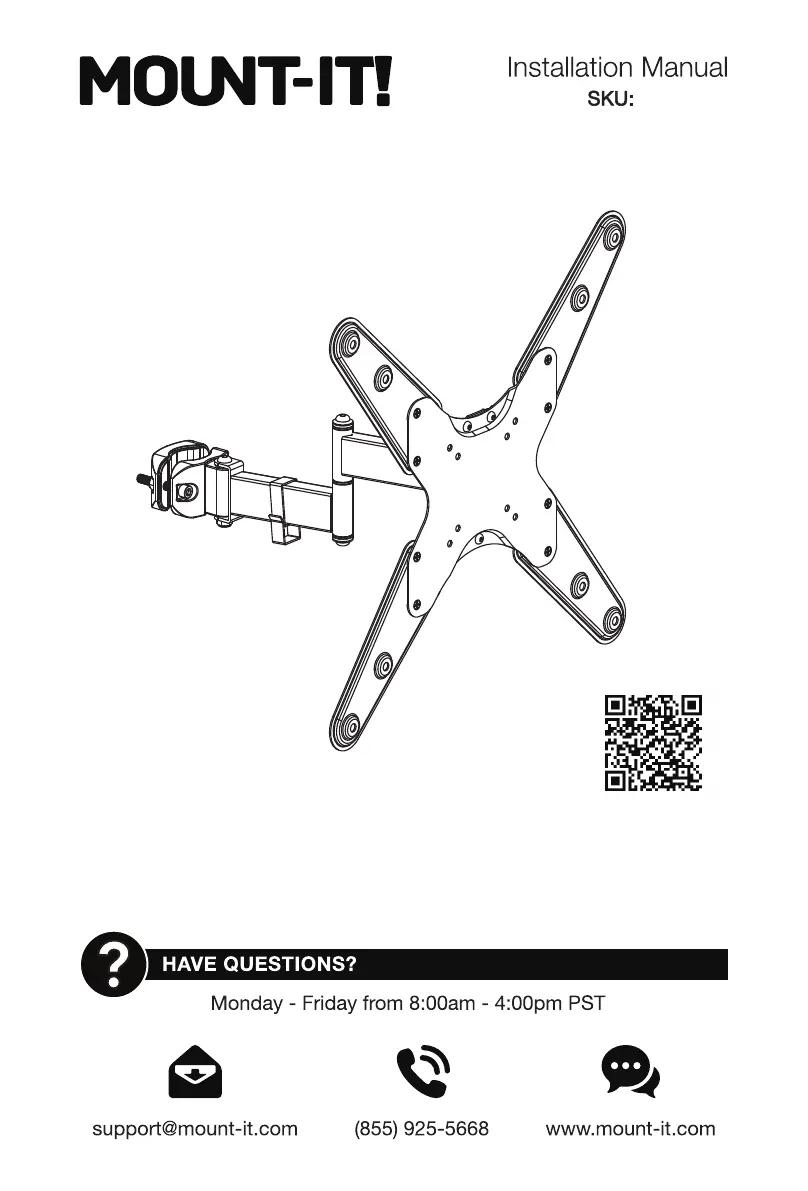

FULL MOTION TV POLE MOUNT
MI-391XL
Please scan this QR code
to visit the product page.
Thank you for choosing Mount-It
2
3
Mount-It!
Mount-It!
Mount and Accessories
TV Mounting Hardware
Mount
Pole Clamp
M8x55
Clamp Bolt
Clamp Nut Cable Clip
VESA
Arms
VESA
Arms
Bolts Hex
Wrench
Hex
Wrench
Wrench
Spacers Spacers
Missing Parts? Call us at (855) 925-5668 and we will ship replacement parts free of charge.
CHOKING HAZARD. Package includes small parts.
Not for children under 3 years. Adult supervision is required.
Check carefully to make sure there are no missing or defective parts. Some hardware provided may not
be used. Use the correct mounting hardware suitable for your installation.
DIMENSIONS & WEIGHT CAPACITY
Rated weight capacity is 55lbs for
the mount.
Caution:
Ensure all mounting surfaces are
capable of holding the weight of
your mount.
DO NOT EXCEED MAXIMUM
LISTED WEIGHT CAPACITY.
SERIOUS INJURY OR PROPERTY
DAMAGE MAY OCCUR!
minØ1.1”~maxØ2”
min3”~max12.7”
3.1”
2.2”
3”
3.9”
7.9”
11.8”
15.7”
3”
3.9”
7.9”
11.8”
15.7”
5
4
• Hold the Mount (#A) to one side of the pole, and the Pole Clamp (#D) to the other. Secure the two parts
together with Clamp Bolts (#E) and Clamp Nuts (#F), tighten until secure using 6mm Hex Wrench.
• Attach the Cable Clip (#G) to the arm as shown.
Attach to the Pole
Step 2
• For VESA Patterns 75x75, 100x100, 200x100, and 200x200 use the VESA Plate only. Arms (#B) and
(#C) will not be used, and you may proceed to the next step.
• For displays with VESA patterns greater than 200x200, attach the VESA Arms (#B, #C) in the
configurations shown here that match the VESA pattern on your device. Secure the VESA Arms in place
using Bolts (#H).
Step 3
• Remove the 3 nuts indicated here, to remove the VESA plate from the Mount (#A).
Remove the VESA Plate
Step 1
Attaching the VESA Plate
Step 4
• Select the appropriate size mounting bolt (#M-A, M-B, M-C, M-D) and washer (#M-E) for your display’s
mounting holes and verify the length of the VESA bolt is not too long. If you are unsure of the correct bolt
size for your display refer to your user manual or contact the device manufacturer for sizing information.
If necessary, use the included spacers (#M-F, M-G) between the mount and the display as shown above
to adjust the length of the mounting bolt. Multiple spacers can be used in combination to achieve the
desired bolt depth. Attach the VESA Plate using the selected bolts and tighten until secure. Do not over
tighten.
