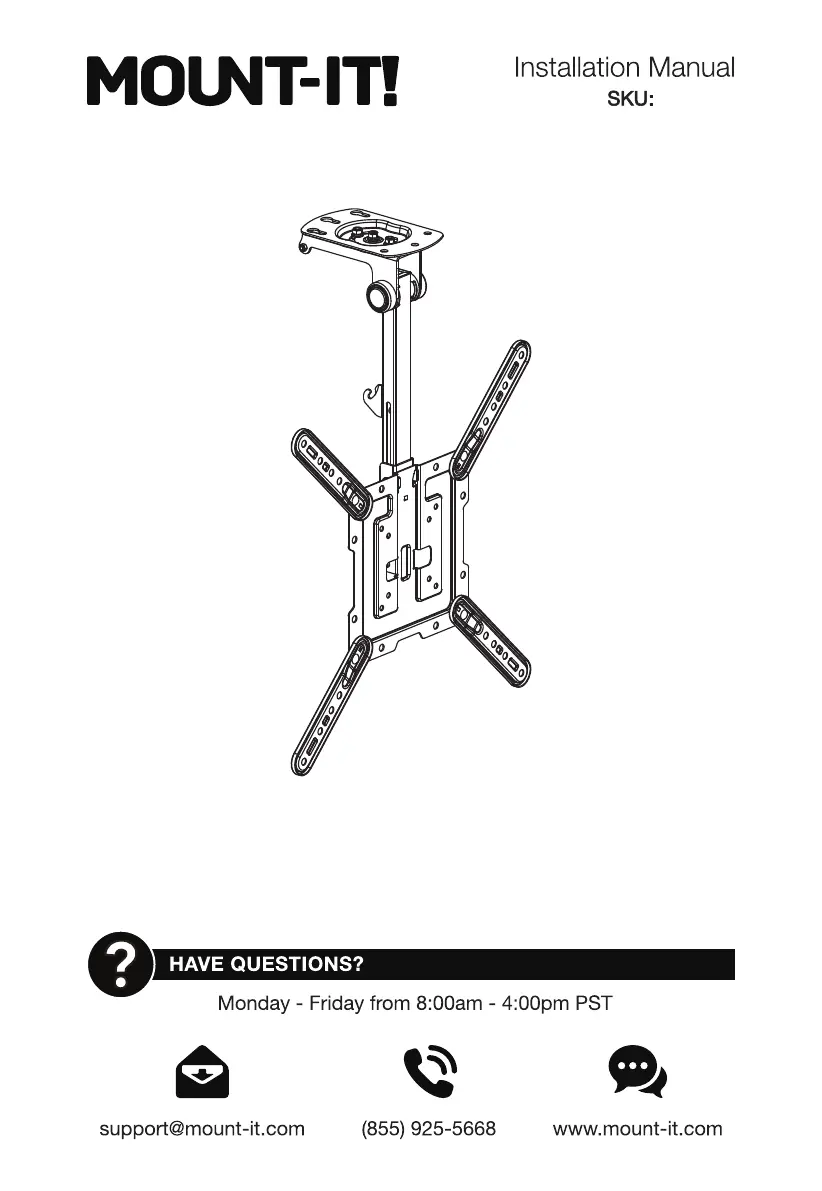

FOLDABLE CEILING
TV MOUNT
MI-4225
Thank you for choosing Mount-It
2
3
Mount-It!
Mount-It!
COMPATIBLE VESA SIZES
COMPATIBLE WITH
TVs UP TO
PACKAGE CONTENTS
VESA MOUNTING HARDWARE
Missing Parts? Call us at (855) 925-5668 and we will ship replacement parts free of charge.
20kg
(44lbs)
RATED
WALL MOUNTING HARDWARE
Ceiling Mount
Extension Bolt Extension Nut Wrench Hex Wrench
VESA Extension Arms
5
4

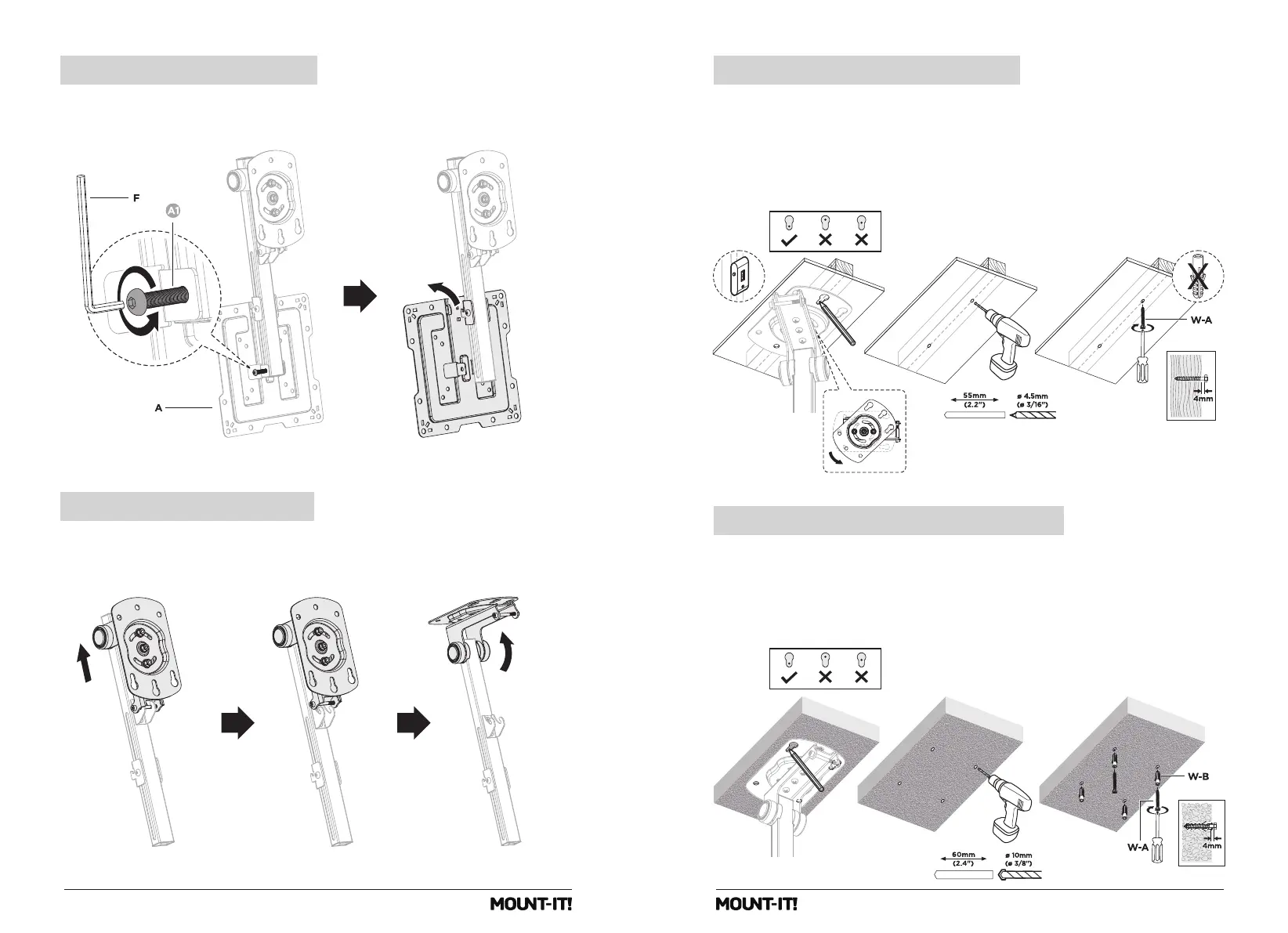

• Detach the folding arm from the VESA Plate by removing the bolt (shown in the magnification bubble)
using Hex Wrench (#F). Keep this bolt, it will be reinstalled in Step 8.
Detach the Folding Arm
Step 1
• With a stud finder locate the ceiling joist and hold the Ceiling Mount (#A) on the stud at the desired
location. Mark the center of the mounting holes with a pencil, ensuring that you mark the middle of the
smaller side of the teardrop shaped hole as shown here. Note: You may need to rotate the arm to
access the bolt holes.
• Use a 3/16” drill bit and drill on the marked locations to a depth of 2.2”
• Install 1 Lag Screw (#W-A) onlyon the side that was marked for the teardrop shaped hole, and do not
tighten fully. Leave a gap of approximately .17” (4mm) between the bottom of the bolt head and the
ceiling.
Wood Stud Mounting Option
Step 3a
• Hold the Ceiling Mount (#A) at the desired location. Mark the center of the mounting holes with a pencil,
ensuring that you mark the middle of the smaller side of the teardrop shaped holes, shown here.
• Use a 3/8” drill bit and drill on the marked locations to a depth of 2.4”. Clear any dust and debris from
the holes and insert the Concrete Anchors (#W-B). Note: Do not drill mounting holes into mortar (such as
between bricks or stones) only drill and install into solid stone or concrete surfaces.
• Install 2 Lag Screw (#W-A) only on the side that was marked for the teardrop shaped holes, and do not
tighten fully. Leave a gap of approximately .17” (4mm) between the bottom of the bolt head and the ceiling.
Concrete/Brick Mounting Option
Step 3b
• Unfold the ceiling bracket from the arm by pressing them together which will release the latch, then
unfold the bracket so that it is turned away from the arm.
Preparing for Mounting
Step 2
