Sida 1/5

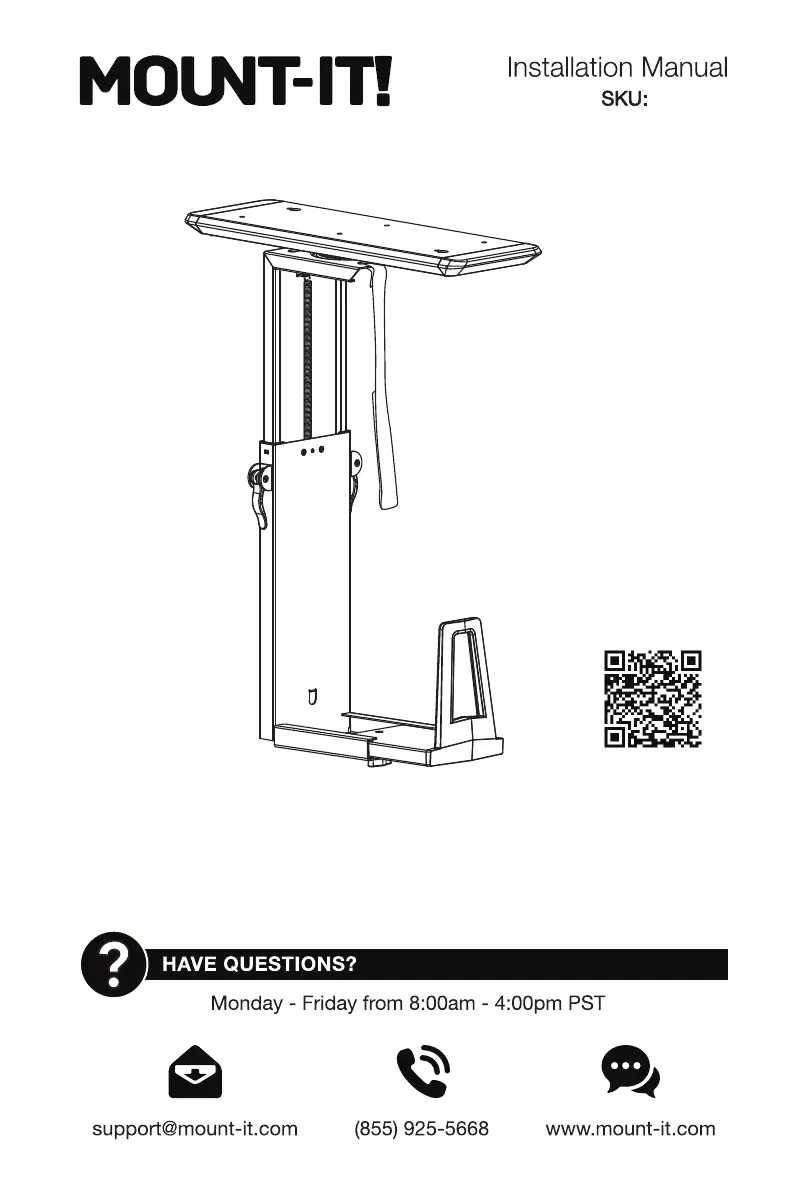

DELUXE GAMING CPU MOUNT
WITH SLIDING TRACK
MI-7172
Please scan this QR code
to visit the product page.
Thank you for choosing Mount-It
2
3
Mount-It!
Mount-It!
Mount and Accessories
CPU Holder
Under Desk Mount End Caps Sliders
Screw
Screw Washer
Protective Pads
Missing Parts? Call us at (855) 925-5668 and we will ship replacement parts free of charge.
CHOKING HAZARD. Package includes small parts.
Not for children under 3 years. Adult supervision is required.
Check carefully to make sure there are no missing or defective parts. Some hardware provided may not
be used. Use the correct mounting hardware suitable for your installation.
DIMENSIONS & WEIGHT CAPACITY
Rated weight capacity is 33lbs for the mount.
Caution:
Ensure all mounting surfaces are capable of
holding the weight of your mount.
DO NOT EXCEED MAXIMUM LISTED
WEIGHT CAPACITY.
SERIOUS INJURY OR PROPERTY
DAMAGE MAY OCCUR!
min17.3”~max25.6”
0.9”
min6”~max9.7”
18.3”
6.2”
5.1”
min13.4”~max21.7”
6.2”
3.1”
2.7”6.5”6.5”
18.3”
Top Mounting Bracket
5
4
• Partially install 2 Screws (#F) into the drilled locations, leaving a gap of approximately 1/10” (3mm)
between the desk and the bottom of the screw head. Place the Under Desk Mount (#B) over the two
screws and slide the mount so that the screws are resting in the smaller end of the keyhole slots.
Attach the Mount
Step 2
• Install the remaining 4 Screws (#F) and Washers into the desk. Tighten all 6 screws until secure.
Secure the Desk Mount
Step 3
• Apply the Protective Pads (#H) as shown on the CPU Holder (#A) by peeling off the adhesive cover
and sticking them to the CPU Holder.
Install the Protective Pads
Step 4
• Hold the Under Desk Mount (#B) underneath the desk in the desired location. Ensure adequate depth
from the edges of the desk to accommodate the dimensions of your PC case. Using a pencil mark the
center of the smaller end of the 2 keyhole shaped screw slots as shown here. Remove the desk mount
and drill a hole in the marked location using a 1/8” (3mm) drill bit to a depth of 0.6” (16mm).
Prepare the Mounting Surface
Step 1
