Sida 1/7
TABLET WALL MOUNT
WITH SWING ARM
MI-3774B_G10
MI-3774W_G10
Please scan this QR code
to visit the product page.
Thank you for choosing Mount-It
2
3
Mount-It!
Mount-It!

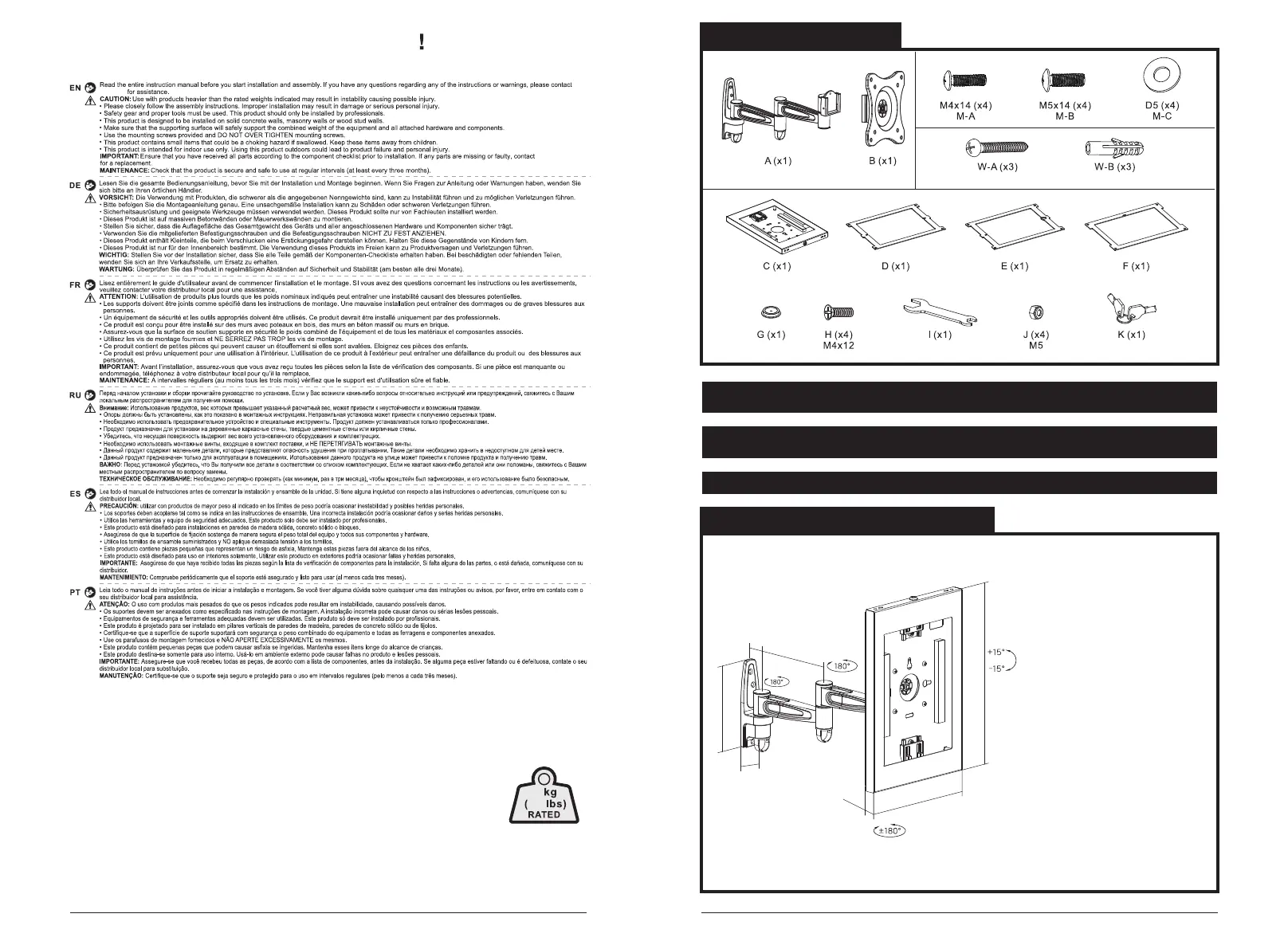

Mount and Accessories
Mount Arm
Anti-Theft Tablet Case
Button Cover Wrench
Tablet Adapter 1 Tablet Adapter 2 Tablet Adapter 3
VESA Plate
Lag Screw Concrete Anchor
Missing Parts? Call us at (855) 925-5668 and we will ship replacement parts free of charge.
CHOKING HAZARD. Package includes small parts.
Not for children under 3 years. Adult supervision is required.
Check carefully to make sure there are no missing or defective parts. Some hardware provided may not
be used. Use the correct mounting hardware suitable for your installation.
DIMENSIONS & WEIGHT CAPACITY
Rated weight capacity is 33lbs for
the mount.
Caution:
Ensure all mounting surfaces are
capable of holding the weight of
your mount.
DO NOT EXCEED MAXIMUM
LISTED WEIGHT CAPACITY.
SERIOUS INJURY OR PROPERTY
DAMAGE MAY OCCUR!
15
33
6.2”
13.3”
1.6”
8.9”
6.3”
0.9”
1.2”
Key
5
4
• To open the Tablet Case (#C) insert the Key (#K) and turn counterclockwise to unlock (clockwise to lock.)
Open the Tablet Case
Step 2
• With a stud finder locate the stud, hold the Mount Arm (#A) against the wall and centered on the stud at
the desired height. Using a bubble level to ensure straightness mark the center of the mounting holes with
a pencil.
• Use a 5/32” drill bit and drill on the marked locations to a depth of 2”. Secure the Mount Arm (#A) to the
wall using Lag Screws (#W-A). Tighten the screws until secure.
Wood Stud Mounting Option
Step 1
Step 1a
Concrete/Brick Mounting Option
Step 1b
• Using a bubble level to ensure straightness hold the Mount Arm (#A) to the desired location on the wall
and mark the center of the mounting holes with a pencil.
• Use a 3/8” drill bit and drill on the marked locations to a depth of 2.4”. Clear any dust and debris from
the holes and insert the Concrete Anchors (#W-B). Secure the Spring Arm (#A) to the wall using Lag
Screw (#W-A). Tighten the screws until secure.
Note: Do not drill mounting holes into mortar (such as between bricks or stones) only drill and
install into solid stone or concrete surfaces.
