Sida 1/5

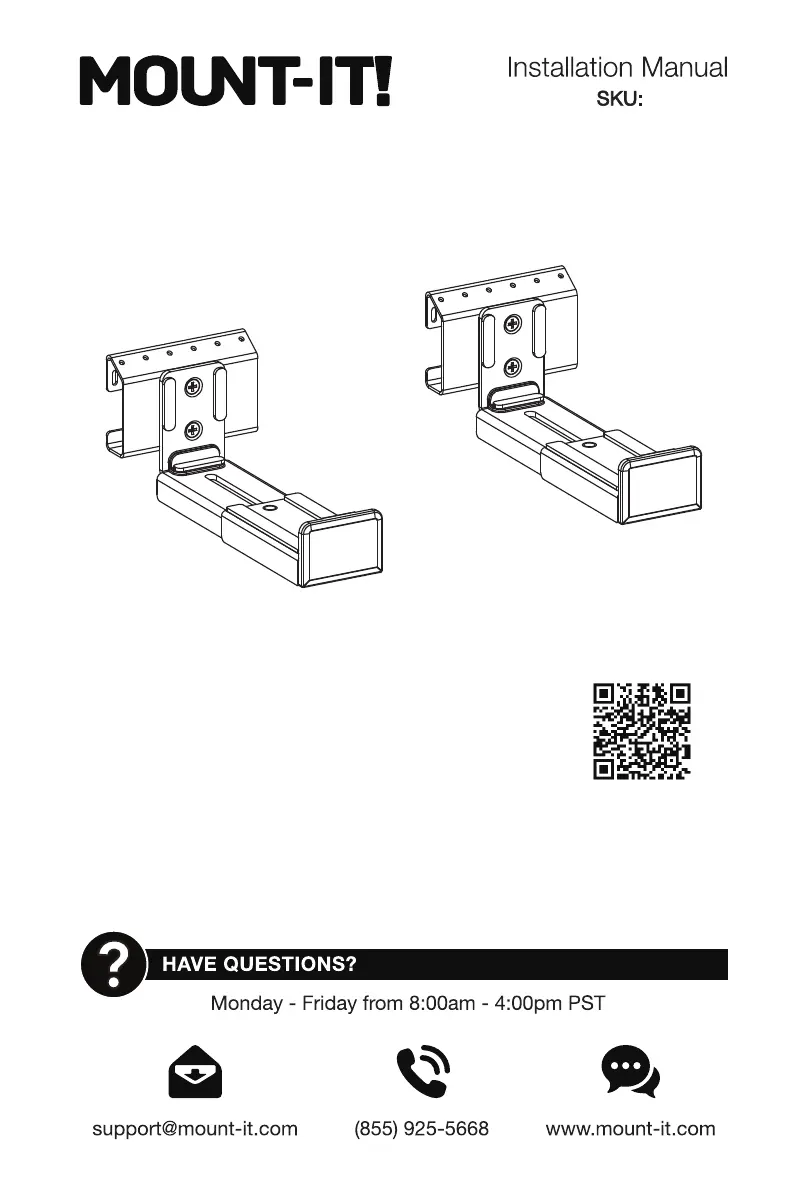

SOUNDBAR BRACKET
MI-SB60
Scan this QR code for
product information, videos,
and assembly assistance.
Thank you for choosing Mount-It
2
3
Mount-It!
Mount-It!
Mount and Accessories
Soundbar Clamps Large Adhesive Pads Wall Brackets Drywall Nails
Decorative
Covers
Small Adhesive
Pads
Bolts
Missing Parts? Call us at (855) 925-5668 and we will ship replacement parts free of charge.
CHOKING HAZARD. Package includes small parts.
Not for children under 3 years. Adult supervision is required.
Check carefully to make sure there are no missing or defective parts. Some hardware provided may not
be used. Use the correct mounting hardware suitable for your installation.
DIMENSIONS & WEIGHT CAPACITY
Rated weight capacity is 13.2lbs. Drywall thickness must be ≥0.4"(10mm).
Caution:
Ensure all mounting surfaces are capable of holding the weight of your mount.
DO NOT EXCEED MAXIMUM LISTED WEIGHT CAPACITY.
SERIOUS INJURY OR PROPERTY DAMAGE MAY OCCUR!
4.8"~7.3"
3.5"~6.1"
3.4"
3.3"
6
13.2
5
4
• Peel the backing off the Adhesive Pads (#D and #C) and apply them on to the Soundbar Clamps (#A)
in the locations shown here.
Apply the Adhesive Pads
Step 1
• Hold the assembled brackets to the wall in the desired location and use the Drywall Nails (#G) through
the holes as shown in the diagram to attach them to the wall. Suitable only for installation on drywall with
a thickness of 0.4"(10mm) or greater.
Note: Some nails may require more force when hammering into the predrilled holes, as some
may be a tight fit.
Mount the Brackets
Step 3
• Loosen the hand knobs on the underside of the brackets and pull the end of the arms away from the
wall to open them to a size greater than the width of the soundbar.
Open the Clamping Bracket
Step 4
• Attach the Soundbar Clamps (#A) to the Wall Brackets (#E) using the Bolts (#F).
Attach the Brackets
Step 2
Tools Required
(Not Included)
