Sida 1/2
© MuxLab Inc. 2020 94-000932-A SE-000932-A
2321 Cohen St, Saint-Laurent, QC Canada H4R 2N7
Tel: (514) 905-0588 Fax: (514) 905-0589
Toll Free (North America): (877) 689-5228
E-mail: info@muxlab.com URL: www.muxlab.com

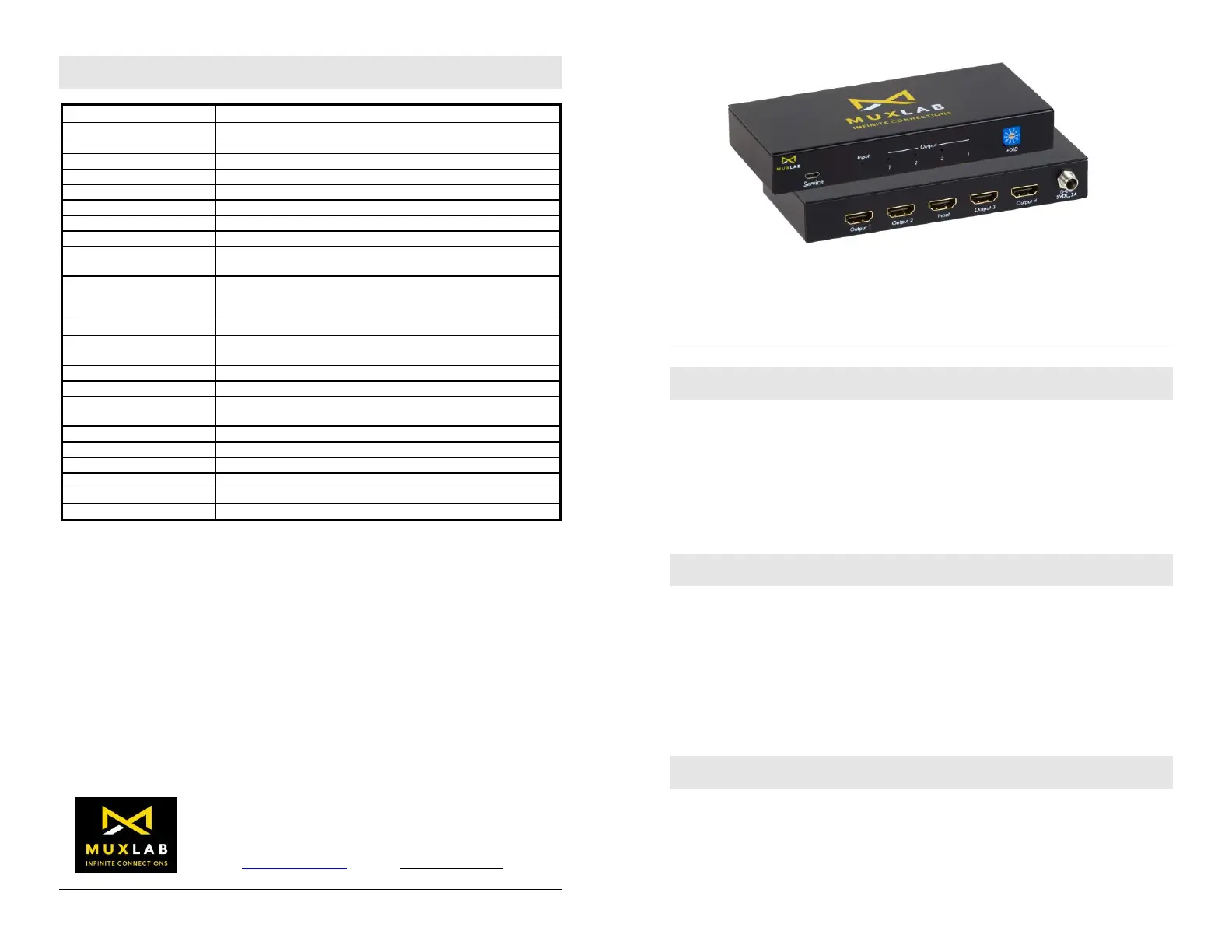

Specifications
Environment
HDMI 2.0a
Devices
Ultra HD Blu-Ray, projectors, monitors, TV, PC, laptops.
Transmission
Transparent to the user.
Video Bandwidth
18 Gbps
Frequency Range
25 to 600 MHz
Signals
HDMI 2.0a protocol.
HDCP
Revision 1.4 & 2.2 compliant.
Connectors
HDMI receptacle.
Rotary Switch
For setting the EDID to be sent to the source
LEDs
Power: Blue
Input & Output Link: Blue
Resolution
480i to 1080p @ 50/60 FPS
1080p @ 24/50/60 FPS
3840 X 2160 @ 24/25/30/60 FPS
Color
8, 10 & 12 bit
Audio
LPCM 7.1CH, Dolby TrueHD, Dolby Atmos, DTS-HD Master
Audio and DTS:X
Cable
HDMI cable of appropriate length for video resolution selected.
Power Supply
One (1) 110-240V/5VDC , 1A power supply
Temperature
Operating: 0° to 40°C Storage: -20° to 60°C
Humidity: up to 90% non-condensing
Enclosure
Metal enclosure
Dimensions
6.06” x 2.72” x 0.91” (155 mm x 68 mm x 24 mm)
Weight
1.1 lbs (0.5 Kg)
Compliance
Regulatory: FCC, CE, RoHS
Warranty
1 year
Order Information
100506 1X4 HDMI Splitter, 4K/60
1X4 HDMI Splitter, 4K/60 (100506)
Quick Installation Guide
Overview
The HDMI 1x4 Splitter (100506) allows one (1) HDMI source to be distributed to
up to four (4) HDMI displays. The splitter supports up to 4K (3840 X 2160) video
and HD audio. The splitter is HDCP 1.4 & 2.2 compliant, supports EDID
management and features LED diagnostics. Additionally, all connectors are on the
rear panel for neater cabling. Applications include; commercial and residential AV
systems, classroom projector systems, digital signage, boardroom systems,
collaborative PC systems, medical information systems.
Pre-Installation Check
Identify the connectors as indicated on the product diagram above. LEDs are
located on the front and the connectors and mode switch on the rear.
Installation

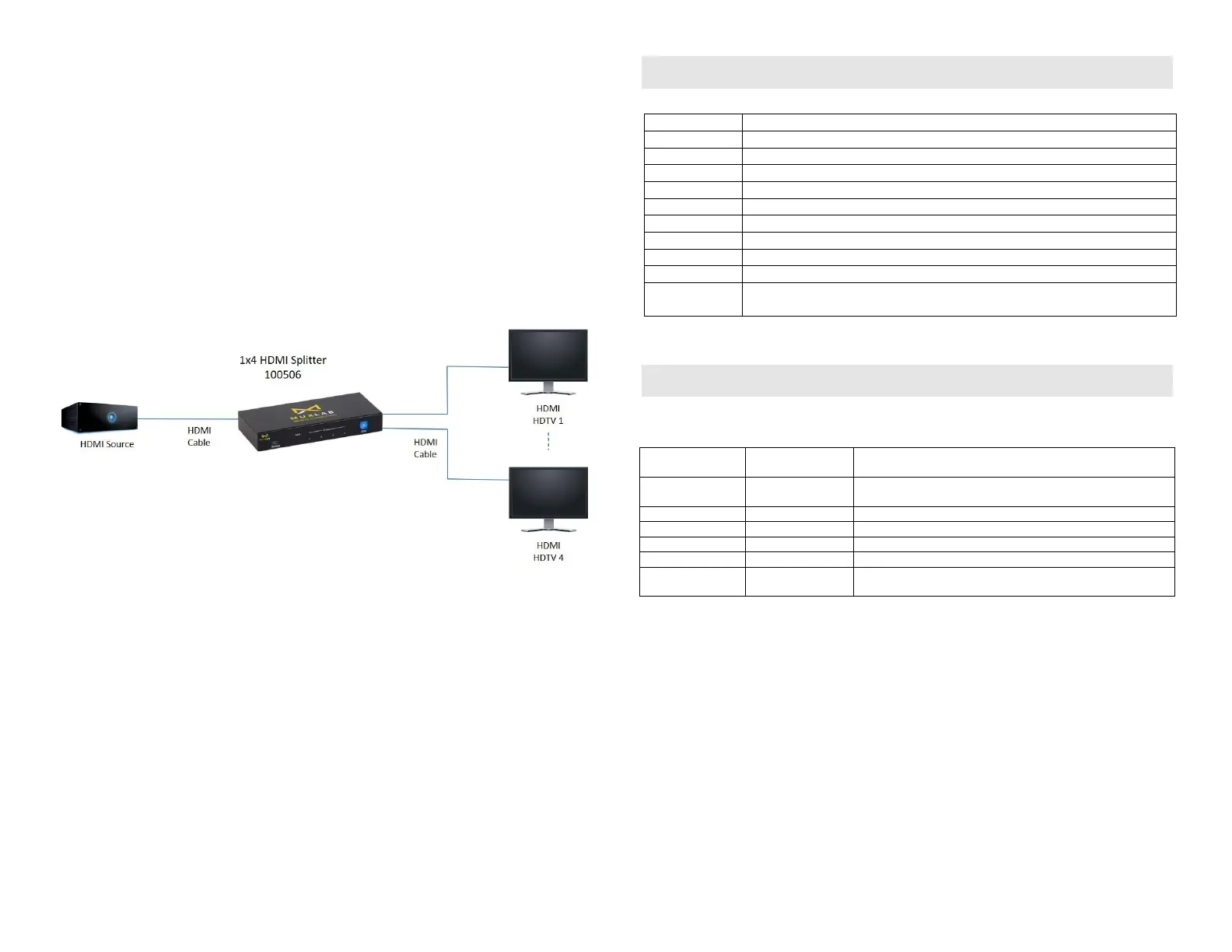

In order to install the 1X4 HDMI Splitter, please follow the steps below:
1. Connect the HDMI video source to the input HDMI connector of the splitter
with an appropriate HDMI cable.
