Sida 1/2
© MuxLab Inc. 94-000841-A SE-000841-A
8495 Dalton Road, Mount Royal, Quebec, Canada. H4T 1V5
Tel: (514) 905-0588 Fax: (514) 905-0589
Toll Free (North America): (877) 689-5228
E-mail: videoease@muxlab.com URL: www.muxlab.com

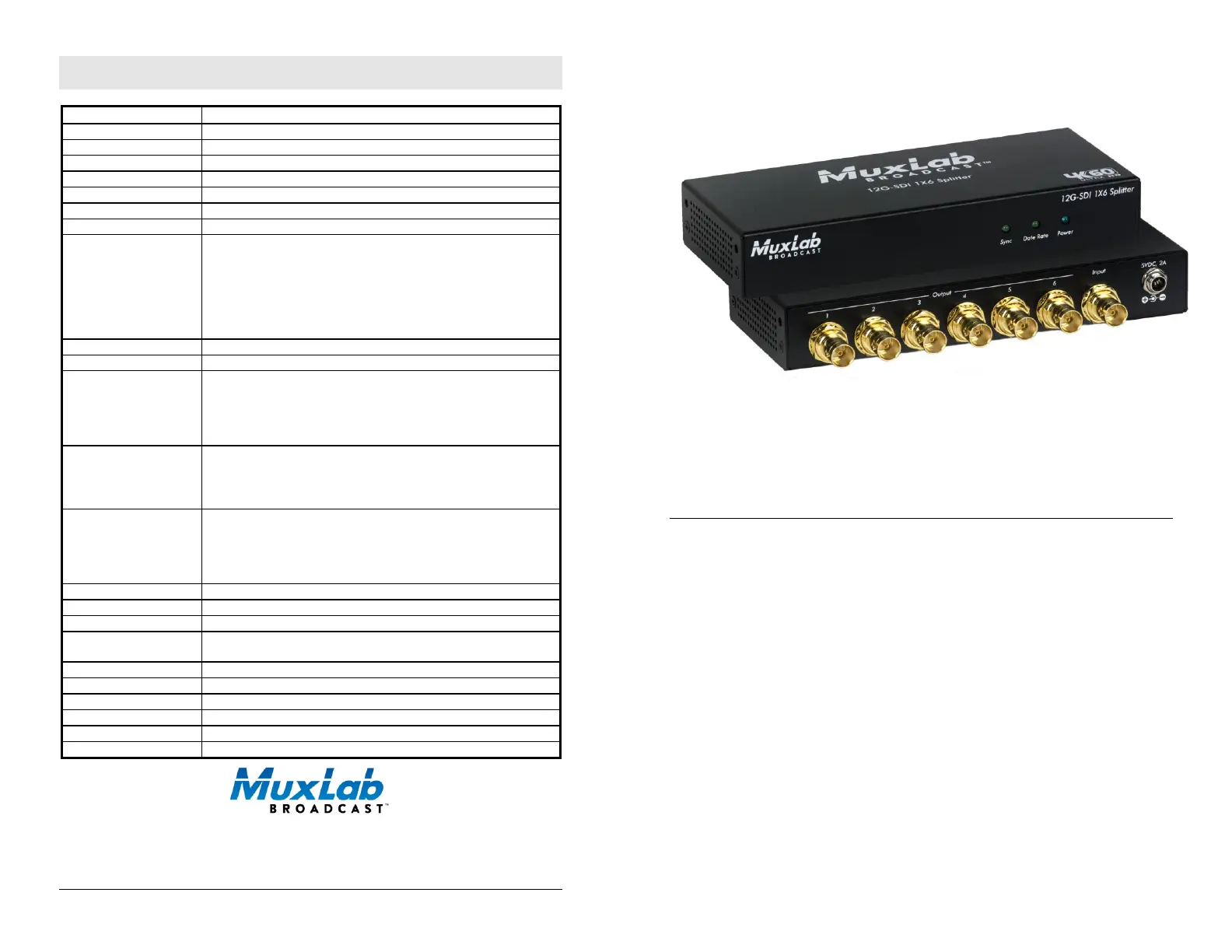

Specifications
Environment
12G-SDI, 6G-SDI, 3G-SDI, HD-SDI & SD-SDI.
Devices
Camera, projectors, monitors, TV.
Transmission
Transparent to the user.
Detection
Auto Detection of the 12G/6G/3G/HD/SD-SDI Signal.
Bandwidth
11.88bps & 11.88/1.001Gbps
Data Rates
1.485, 2.97, 5.96 & 11.88 Gbps
Output Impedance
75Ω
Signals
SDI protocol.
Supported Resolution
12G-SDI: 2160p50/59.94/60Hz (4:2:2)
6G-SDI: 2160p23.98/24/25/29.97/30Hz (4:2:2)
3G-SDI: 1080p50/59.94/60Hz (4:2:2)
HD-SDI: 1080p/23.98/24/25/29.97/30Hz
720p/50/59.94/60Hz
1080i/50/59.94/60Hz
SD-SDI: NTSC (59.94Hz), PAL (50Hz)
Audio
Up to 8 Audio Channels.
Ancillary Data
Supported
Input Signal
12G-SDI : SMPTE ST2082
6G-SDI : SMPTE ST2081
3G-SDI: SMPTE 424M, 425M
HD-SDI: SMPTE 292M, 296M
SD-SDI : SMPTE 259M, 344M
Connectors
One (1) BNC Female 75 Ohms, Gold Plated for input.
Six (6) BNC Female 75 Ohms, Gold Plated for outputs.
One (1) Locking Barrel Jack 2.1mm Power Connector.
Note: RG59 coaxial cables not included.
Cable Equalization
12G-SDI up to 150ft (45m)
6G-SDI up to 300ft (90m)
3G-SDI up to 300ft (90m)
HD-SDI up to 500ft (150m)
SD-SDI up to 1000ft (300m)
Cable
RG-59 or better cable required.
Power Supply
One (1) 110-240V/5VDC power supply with interchangeable blades.
Power Consumption
5.0 Watt (Max)
Temperature
Operating: 0° to 40°C Storage: -20° to 60°C
Humidity: Up to 90% non-condensing
Enclosure
Metal
Dimensions
3.1” x 3.3” x 1.2” (79mm x 84mm x 27mm)
Weight
1.7lbs (0.78kg)
Compliance
Regulatory: FCC, CE, RoHS Flammability: 94V0
Warranty
2 years
Order Information
500718 12G-SDI 1x6 Splitter, 4K/60
12G-SDI 1X6 Splitter, 4K/60
500718
Quick Installation Guide
Overview

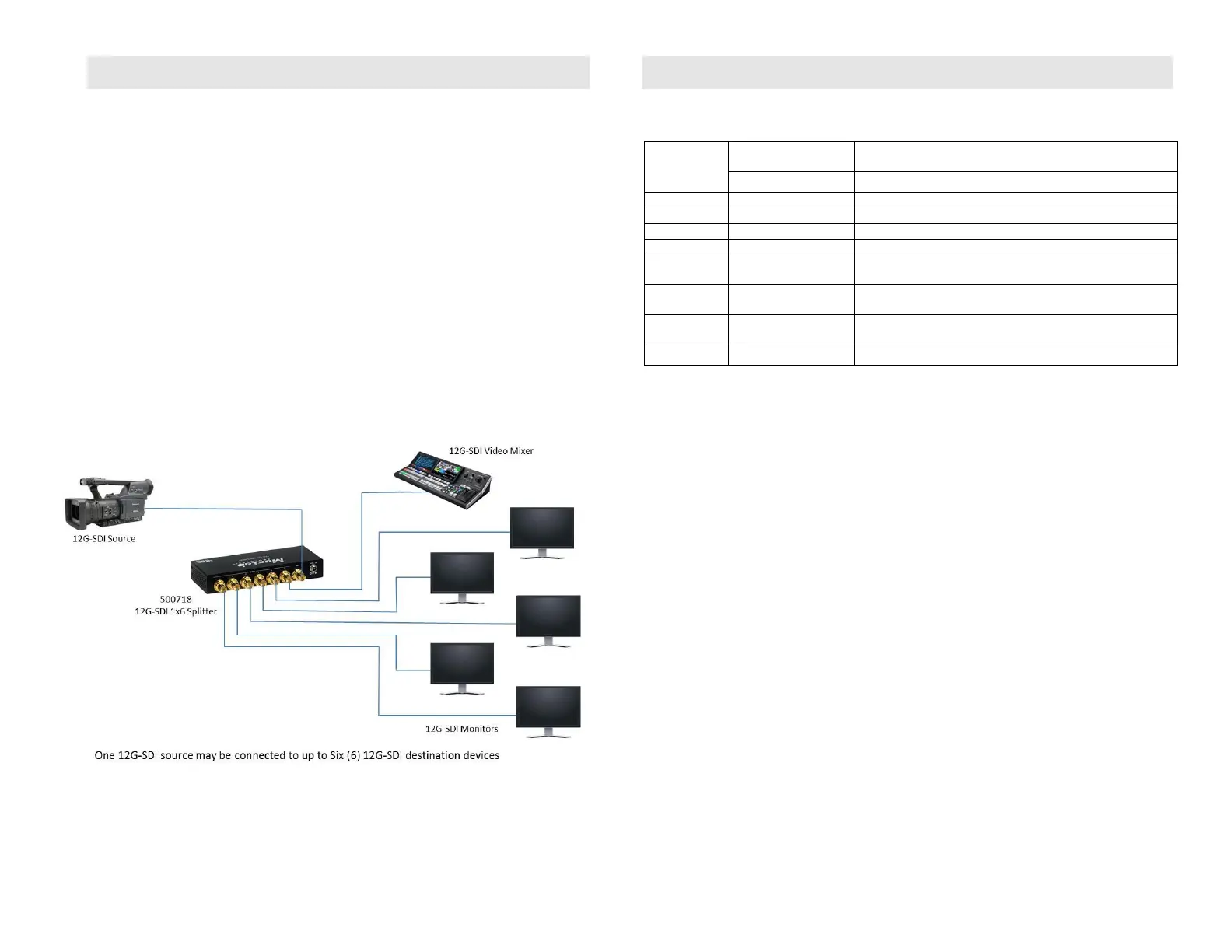

The 12G-SDI 1x6 Splitter, 4K/60 (500718) allows one (1) 12G/6G/3G/HD/SD-SDI
source to be distributed and amplified to up to six (6) 12G/6G/3G/HD/SD-SDI displays.
The splitter supports up to 4K (3840 X 2160) video and HD audio, including 480i (SD-
SDI), 720p/1080i (HD-SDI), 1080p (3G-SDI), 4K/30 (6G-SDI) and 4K/60 (12G-SDI).
The device automatically detects the 12G/6G/3G/HD/SD-SDI signal and re-clocks and
regenerates the signal at the output for extending distances between source and displays.
Additionally, all connectors are on the rear panel for neater cabling.
Applications
Applications include video production, broadcasting, outside broadcasting vehicle, SDI
camcorder, studio-to-studio, post production, live events, medical imaging display,
mobile video.
