Sida 1/41

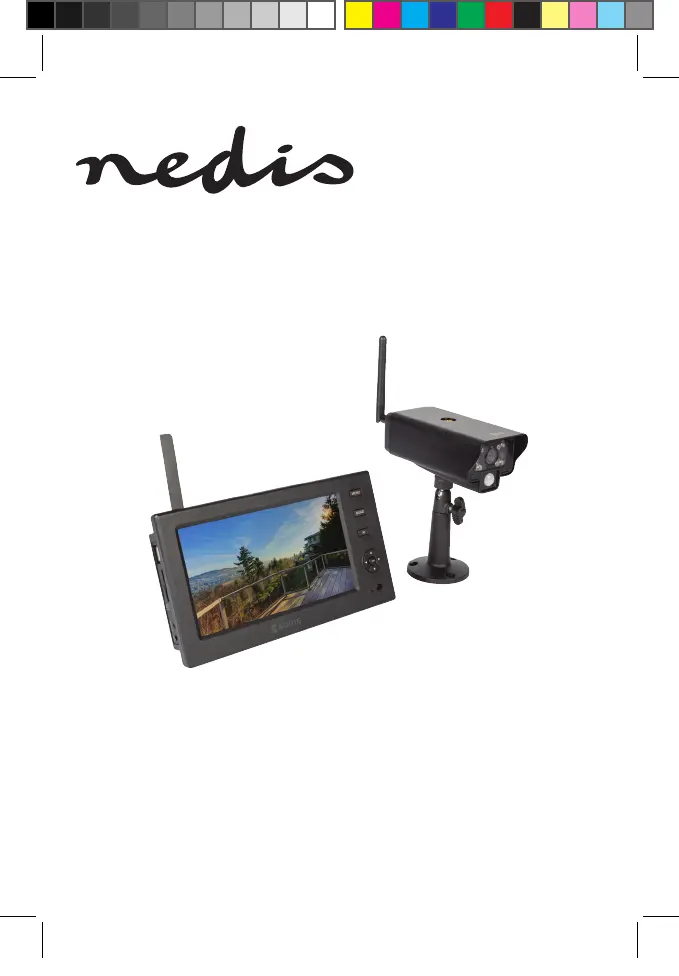

CSWL140CBK

Wireless Security

User manual

CSWL140CBK_MAN_ COMP_1218.indd 1 13-12-2018 11:36:54

Camera

Antenna

Infrared LEDs

Lens

PIR infrared sensor

Microphone

Bracket

Antenna Socket

Power Indicator

Pair Button

Link Indicator

Power Input

Receiver

Power Indicator

Power on/o

Loop Display Mode

Record/stop Video

Playback Video

Reset Button

Menu / Back

Change display layout

Switch to external display

Delete recording/Mute alarm

Up/Down for volume

Left/Right to switch camera

OK Button

Link Indicator

7”TFT-LCD

Antenna

USB Port

SD Card Slot

Bracket

AV Output Port

Power Port

Installation

1. Insert a formatted SD card or connect an external hard disk to the display.

Note: external USB Hard Disk is not supported while on battery mode.

2. Attach the antenna to the camera.

3. Connect the camera using the power supply.

4. Connect the receiver using the power supply to fully charge the battery.

5. Switch on the receiver pressing the power button for 2 seconds.

6. Press the menu button to access settings menu shown on the right:

English

CSWL140CBK_MAN_ COMP_1218.indd 2 13-12-2018 11:36:58

Date / Time Sets the system time and date.

Language Sets the system language.

Record Mode Sets to stop recording or overwrite the earliest video record when the

storage medium is full.

Format SD/USB Sets whether to format the storage medium.

Storage for Recording Selects the storage medium.

Display Items Sets whether to display RSSI, SD/USB Status and Camera on the screen

and the recorded video.

TV System Select a TV system for the external AV connection: NTSC / PAL

System Information Shows the system information

System Update For software upgrade.

Scan Mode Period Sets the cyclic display interval of monitoring picture on the camera.

Mute Turns on/o the speaker on the receiver.

Load Default Sets whether to restore default settings.

Brightness Adjusts brightness of the LCD screen.

Volume Adjusts the camera’s sound volume

Alarm Volume Adjusts the alarm volume (if triggered recording and alarm are set)

Power Saving Mode Sets how quickly the receiver’s display is switched o to save battery and gives the option to have the receiver

wake up on motion (independent on recording or alarm settings)

System

Record

Playback

Recordings are stored in a separate folder for each date

In each folder the dierent cameras and timeslots are divided in subfolders

Quick previews of all recordings are shown which can be played or deleted.

Camera

Alarm

Timer Recording Set the recording start/stop time.

Motion Detection

Recording will be triggered when a camera’s image sensor detects movement.

Sensitivity and the target area can both be set.Useful when recording through a window or if only movement

in a specic area needs to trigger recording.

PIR Recording Recording will be triggered when a camera’s PIR motion sensor detects movement.

Pairing To pair additional cameras (SAS-TRCAMxx) to the receiver select one of 4 channels and press OK.

Next press and hold the pair button on the camera.

Activation Each camera can be switched on/o separately.

Image Setting For each camera, the resolution and quality can be set.

Motion Detection / PIR

Detection

To switch on the audio signal triggered by visual movement make sure motion detection /

PIR recording is activated in the recording menu and the alarm volume is set in the system settings.

Mute the alarm by using the AV button.

CSWL140CBK_MAN_ COMP_1218.indd 3 13-12-2018 11:36:58
