Take the fans off the cooler. Install the NM-XFB8 brackets to the

heatsink using the NM-SCC2 short screws.

Dear customer,

Thank you very much for choosing the Noctua NH-D9 DX-4189 4U.

Our DX line of coolers has become a default choice in high

performance quiet cooling solutions for Intel Xeon processors,

and I’m confident that you will be able to sense some of the

research, attention and care we’ve put into making this product.

Enjoy your NH-D9 DX-4189 4U!

Yours sincerely,

Roland Mossig, Noctua CEO

This manual will guide you through the installation process of the

SecuFirm2™ mounting system step by step.

Prior to installing the cooler, please consult the compatibility

centre on our website ( ) and verify that the coolerncc.noctua.at

is fully compatible with your motherboard.

Please also make sure that your PC case offers sufficient clearance for

the cooler and that there are no compatibility issues with any other

components (e.g. tall RAM modules).

Double check that the heatsink and fan clips do not make contact with

the VGA card, other PCIe cards, motherboard heatsinks or any other

components. Noctua cannot be held responsible for any damage

or losses caused by compatibility issues.

Should you encounter any difficulties, please check the FAQs on our

website (www.noctua.at/faqs) and don’t hesitate to contact our

support team at support@noctua.at.

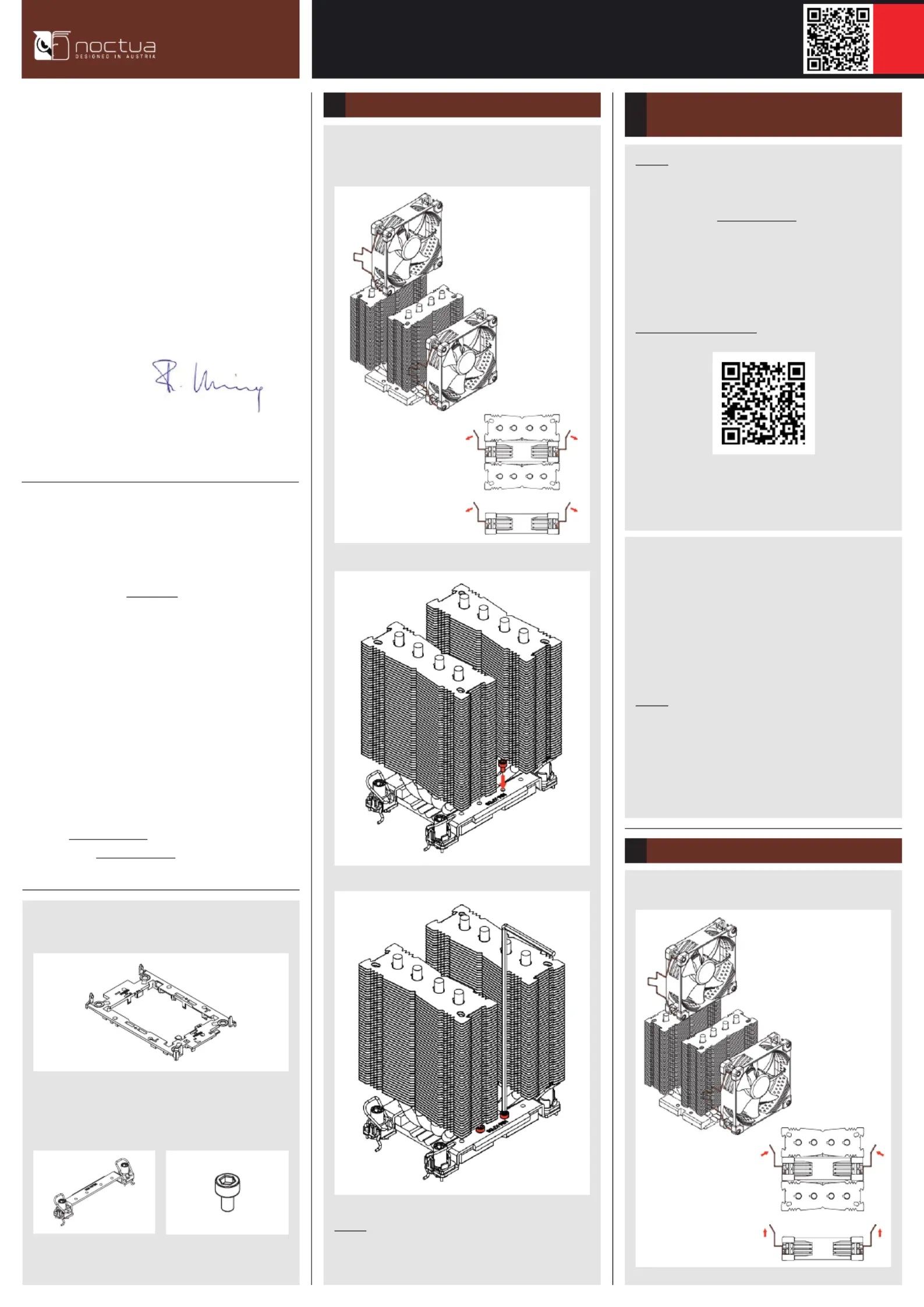

NOCTUA NH-D9 DX-4189 4U

INSTALLATION MANUAL

Required mounting parts:

1x NM-XRF6

plastic CPU carrier frame for

LGA4189-4 (P4)

Installing the brackets1

When attaching the CPU carrier frame to the base of the heatsink,

turn the heatsink upside down so that the base is facing upwards.

Carefully put it down onto the tips of the heatpipes and secure

it with your hand so that it cannot tilt and that the fins cannot

get bent. Remove the plastic protection cover from the base of the

heatsink and be careful not to damage the layer of pre-applied

thermal compound.

Caution: If you are not using the heatsink for the first time and

it therefore doesn’t have a fresh layer of pre-applied thermal

compound anymore, you need to apply a thin layer of thermal

compound to the CPU yourself before clipping it to the heatsink.

If there are residual traces of previous thermal paste or thermal

pads on your CPU or on the heatsink, please clean them off first.

Assembly of carrier frame, CPU and heatsink &

installation to the socket

Caution: The supplied plastic CPU carrier frame is for LGA4189-4

(P4) only. LGA4189-5 (P5) systems use the same mounting

mechanism system but require a different CPU carrier frame.

Please contact us at if you would like to use support@noctua.at

the cooler on a LGA4189-5 (P5) type system.

Please follow the official Intel installation manual for how to

attach the CPU carrier frame to the heatsink, insert the CPU to the

carrier frame and install the CPU/heatsink assembly to the socket:

www.intel.com/processorinstall

Note that while the Intel illustrations show a 2U heatsink, the

Noctua NM-XFB8 brackets use the same mounting parts, so the

procedure is identical for Noctua heatsinks.

NOCTUA MOBILE-TAG

Reattach the fans to the heatsink using the supplied steel clips:

Installing the fans3

4x NM-SSC2

short screws

2x NM-XFB8

brackets

Caution: Gently tighten the screws until they stop, but do not use

excessive force (max. torque 0.6 Nm).
