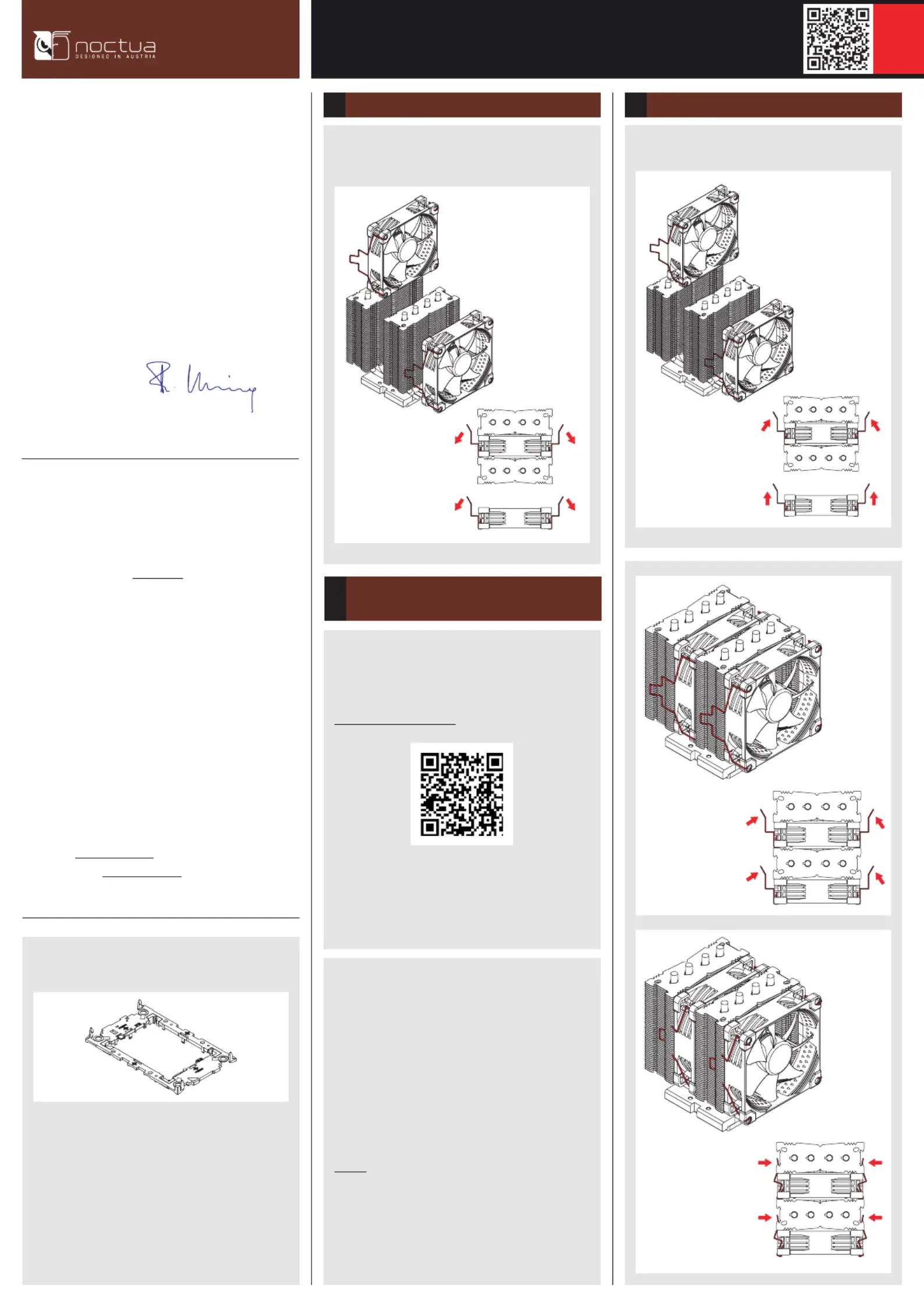

Take the fans off the cooler. Install the NM-XFB9 brackets to the
heatsink using the NM-SSC2 short screws.
Dear customer,
Thank you very much for choosing the Noctua NH-D9 DX-4677 4U.
Our DX line of coolers has become a default choice in high
performance quiet cooling solutions for Intel Xeon processors,
and I’m confident that you will be able to sense some of the
research, attention and care we’ve put into making this product.
Enjoy your NH-D9 DX-4677 4U!
Roland Mossig, Noctua CEO
NOCTUA NH-D9 DX-4677 4U
INSTALLATION MANUAL
Required mounting parts:
Removing the fans1
When attaching the CPU carrier frame to the base of the heatsink,
turn the heatsink upside down so that the base is facing upwards.
Carefully put it down onto the tips of the heatpipes and secure it
with your hand so that it cannot tilt and that the fins cannot get
bent.
Remove the plastic protection cover from the base of the heatsink
and be careful not to damage the layer of pre-applied thermal
compound.
Caution: If you are not using the heatsink for the first time and
it therefore doesn’t have a fresh layer of pre-applied thermal
compound anymore, you need to apply a thin layer of thermal
compound to the CPU yourself before clipping it to the heatsink.
If there are residual traces of previous thermal paste or thermal
pads on your CPU or on the heatsink, please clean them off first.
Assembly of carrier frame, CPU and heatsink &
installation to the socket
2
Please follow the official Intel installation manual for how to
attach the CPU carrier frame to the heatsink, insert the CPU to the
carrier frame and install the CPU/heatsink assembly to the socket:
www.intel.com/processorinstall
Note that while the Intel illustrations show a 2U heatsink, the
Noctua NM-XFB9 brackets use the same mounting parts, so the
procedure is identical for Noctua heatsinks.
NOCTUA MOBILE-TAG
Reattach the fans to the heatsink using the supplied fan clips:
Installing the fans3
Plastic CPU carrier frame
Please note that installing an LGA4677 processor and heatsink
requires a plastic CPU carrier frame such as the one shown
above. These carrier frames are included with boxed retail CPUs
and available separately via Intel sales partners for tray type
CPUs. As different CPUs require different carrier frame types
(E1A, E1B or E1C), please make sure to purchase the correct
carrier frame for tray type CPUs.
This manual will guide you through the installation process of the
SecuFirm2™ mounting system step by step.
Prior to installing the cooler, please consult the compatibility
centre on our website ( ) and verify that the coolerncc.noctua.at
is fully compatible with your motherboard.
Please also make sure that your PC case offers sufficient clearance
for the cooler and that there are no compatibility issues with any
other components (e.g. tall RAM modules).
Double check that the heatsink and fan clips do not make
contact with the VGA card, other PCIe cards, motherboard heatsinks
or any other components.
Noctua cannot be held responsible for any damage or losses
caused by compatibility issues.
Should you encounter any difficulties, please check the FAQs on our
website (www.noctua.at/faqs) and don’t hesitate to contact our
support team at support@noctua.at.
NOCTUA MOBILE-TAG
NOCTUA NH-D9 DX-4677 4U
INSTALLATION MANUAL
!
Even with high-grade products and strict quality control, the
possibility of defects cannot be eliminated entirely. Therefore,
we aim at providing the highest possible level of reliability and
convenience by offering a warranty period of 6 years and direct,
fast and straightforward RMA service.
Should you encounter any problems with your NH-D9
DX-4677 4U, please don’t hesitate to contact our support team at
support@noctua.at.
Please also consult the FAQ section on our website:
www.noctua.at/faqs
Warranty, support and FAQs
As it is not possible to reliably calculate or control the forces
that act upon a system during transport (e.g. in shipping), we
generally recommend, for safety reasons, taking the cooler off.
Noctua cannot be held responsible for any damage that may
arise due to excessive stress during transport if you keep the
heatsink installed.
Transporting your system!
Removing the heatsink from the socket and
the CPU from the heatsink
!
Please follow the official Intel guidelines for how to remove
the heatsink and how to take off the CPU and carrier frame:
www.intel.com/processorinstall
Connect the fans to the motherboard’s CPU fan header(s). If
necessary, use the supplied NA-YC1 y-cable to connect both
fans to one fan header.

Produktspecifikationer

Varumärke: Noctua
Kategori: Hårdvarakylning
Modell: NH-D9 DX-4677 4U
Vikt: 769 g
Bredd: 95 mm
Djup: 120 mm
Höjd: 134 mm
Ljudnivå (låg hastighet): 16.3 dB
Material: Aluminium, Copper, Nickel
Modell: Luftkylare
Maximalt luftflöde: 96.3 cfm
Rotationshastighet (max): 2500 RPM
Medeltid mellan fel (MTBF): 150000 h
Rotationshastighet (min): 400 RPM
Spänning: 12 V
Kompatibla processorer: Intel® Xeon®
Garantiperiod: 6 År
Lagertyp: Self-Stabilising Oil-pressure Bearing (SSO)
Produktens färg: Aluminium, Beige, Brown
Strömförbrukning (vanlig): 1.68 W
Fläktdiameter: 92 mm
Antal fläktar: 2 fläkt/-ar
Ljudnivå (hög hastighet): 30.6 dB
Lämplig placering: Processor
Stödd processor uttag: LGA 4677 (Socket E)
Mått, fläkt (B x D x H): 92 x 92 x 25 mm
Kylarbredd: 95 mm
Kylardjup: 95 mm
Kylarhöjd: 95 mm
Kylarmaterial: Aluminium
Fläkt 2, mått (B x D x H): 92 x 92 x 25 mm
Fläktvikt: 92.5 g
Fläkt 2, vikt: 92.5 g
