Sida 1/2

Scan this code to display

multilingual manuals on

your phone.

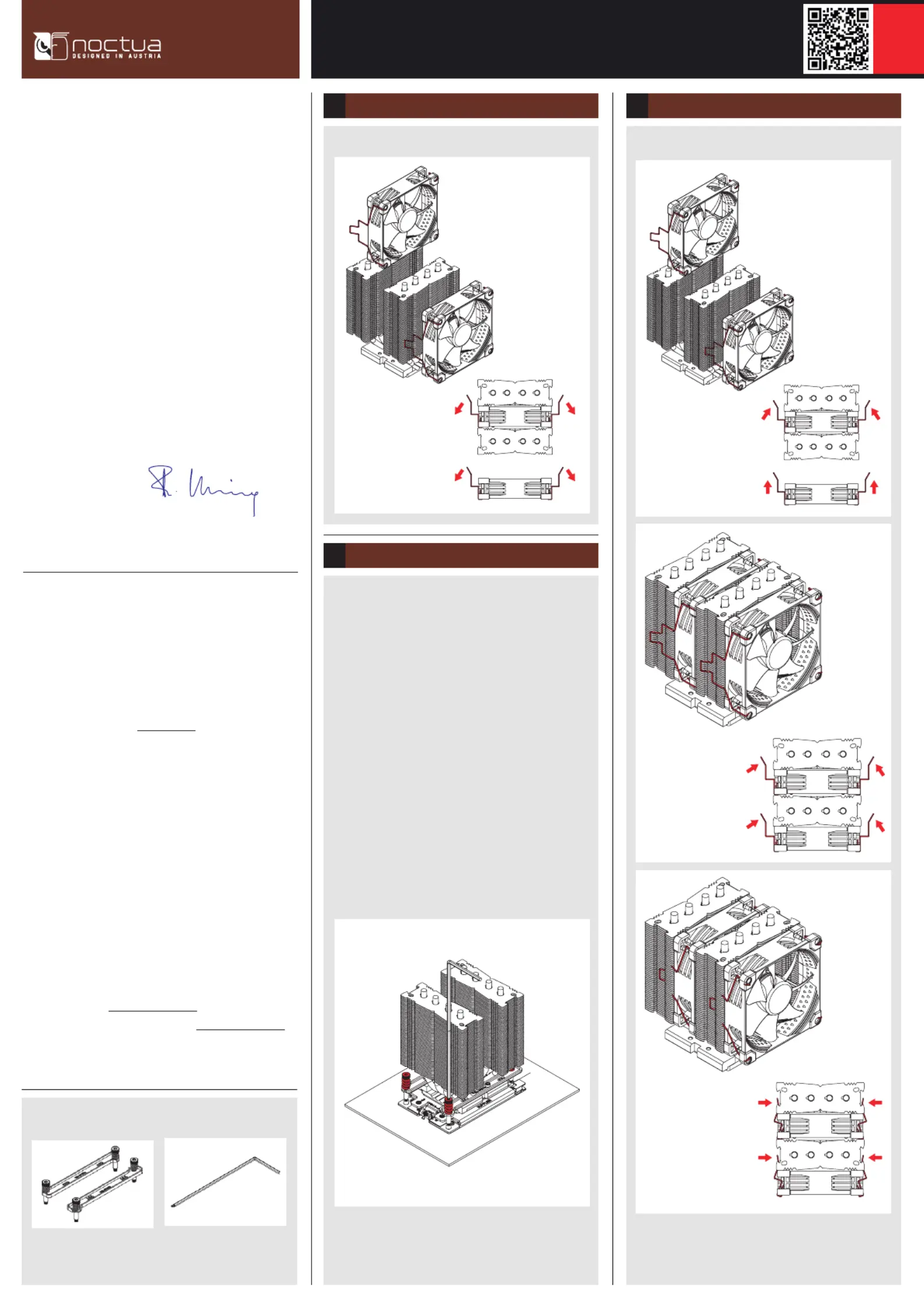

NOCTUA NH-D9 TR5-SP6 4U

INSTALLATION MANUAL

Take the fans off the cooler.

Removing the fans

Fastening the heatsink to the CPU

Remove the plastic protection cover from the base of

the heatsink and be careful not to damage the layer of

pre-applied thermal compound.

Caution: If you are not using the heatsink for the first

time and it therefore doesn’t have a fresh layer of

pre-applied thermal compound anymore, you need to

apply a thin layer of thermal compound to the CPU yourself

before clipping it to the heatsink. If there are residual

traces of previous thermal paste or thermal pads on

your CPU or on the heatsink, please clean them off first.

Then put the heatsink onto the CPU so that the four spring-

loaded screws align with the threads of the CPU socket.

Use the supplied mounting tool to tighten the screws.

Perform 3 turns on each screw, then repeat until all are

fully tightened.

This manual will guide you through the installation process

of the SecuFirm2™ mounting system step by step.

Prior to installing the cooler, please consult the compatibility

centre on our website (ncc.noctua.at) and verify that the

cooler is fully compatible with your motherboard.

Please also make sure that your PC case offers sufficient

clearance for the cooler and that there are no compatibility

issues with any other components (e.g. tall RAM modules).

Double check that the heatsink and fan clips do not make

contact with the VGA card, other PCIe cards, motherboard

heatsinks or any other components.

Noctua cannot be held responsible for any damage or

losses caused by compatibility issues.

Should you encounter any difficulties, please check the FAQs

on our website (www.noctua.at/faqs) and don’t hesitate

to contact our support team at support@noctua.at.

Dear customer,

Thank you very much for choosing the Noctua NH-D9

TR5-SP6 4U.

Our Threadripper and Epyc coolers have become a standard

choice when it comes to quiet, premium grade air cooling

solutions for AMD-based workstations and servers, and

we’re excited to continue this legacy with the new TR5-SP6

models. I’m confident that you will be able to sense some

of the research, attention and care we’ve put into making

this product.

Enjoy your Noctua NH-D9 TR5-SP6 4U!

Yours sincerely,

Roland Mossig, Noctua CEO

Required mounting parts:

NM-AFB11 fastening brackets

(pre-installed on the cooler)

NM-SMT3 mounting tool

Caution: Gently tighten the screws until they stop, but don’t

use excessive force (max. torque 0.6 Nm).

Installing the fans

Reattach the fans to the heatsink using the supplied fan clips:

Connect the fans to the motherboard’s CPU fan header(s). If

necessary, use the supplied NA-YC1 splitter cable to connect

both fans to one fan header.

Scan this code to display

multilingual manuals on

your phone.

NOCTUA NH-D9 TR5-SP6 4U

INSTALLATION MANUAL

Transporting your system

As it is not possible to reliably calculate or control the forces

that act upon a system during transport (e.g. in shipping),

we generally recommend, for safety reasons, taking the

cooler off.

Noctua cannot be held responsible for any damage that

may arise due to excessive stress during transport if you

keep the heatsink installed.

Warranty, support and FAQs!

Even with high-grade products and strict quality control,

the possibility of defects cannot be eliminated entirely.

Therefore, we aim at providing the highest possible level

of reliability and convenience by offering a warranty period

of 6 years and direct, fast and straightforward RMA service.

Should you encounter any problems with your NH-D9 TR5-

SP6 4U, please don’t hesitate to contact our support team

at support@noctua.at.

Please also consult the FAQ section on our website:

www.noctua.at/faqs

Produktspecifikationer

Varumärke:	Noctua
Kategori:	Hårdvarakylning
Modell:	NH-D9 TR5-SP6 4U
Vikt:	769 g
Bredd:	95 mm
Djup:	120 mm
Höjd:	134 mm
Förpackningens bredd:	161 mm
Modell:	Luftkylare
Luftflöde:	96.3 m³/h
Rotationshastighet (max):	2500 RPM
Rotationshastighet (min):	400 RPM
Antal fläktblad:	7
Fläkt 2 rotationshastighet (min):	400 RPM
Fläkt 2 rotationshastighet (max):	2500 RPM
Produktens färg:	Ljusbrunt
Låddjup:	159 mm
Vikt inkl. förpackning:	1200 g
Fläktdiameter:	92 mm
Antal fläktar:	2 fläkt/-ar
Lämplig placering:	Processor
Stödd processor uttag:	SP6, sTRX5, sWRX9
Fläktbladens material:	Gjuten aluminium
Bottenplatta material:	Koppar
Fläkdiameter 2:	92 mm
Kylarbredd:	95 mm
Kylardjup:	95 mm
Kylarhöjd:	95 mm
Fläktbrusnivå (max):	30.6 dB
Fan spänning:	12 V
Fläktens strömförbrukning:	1.68 W
