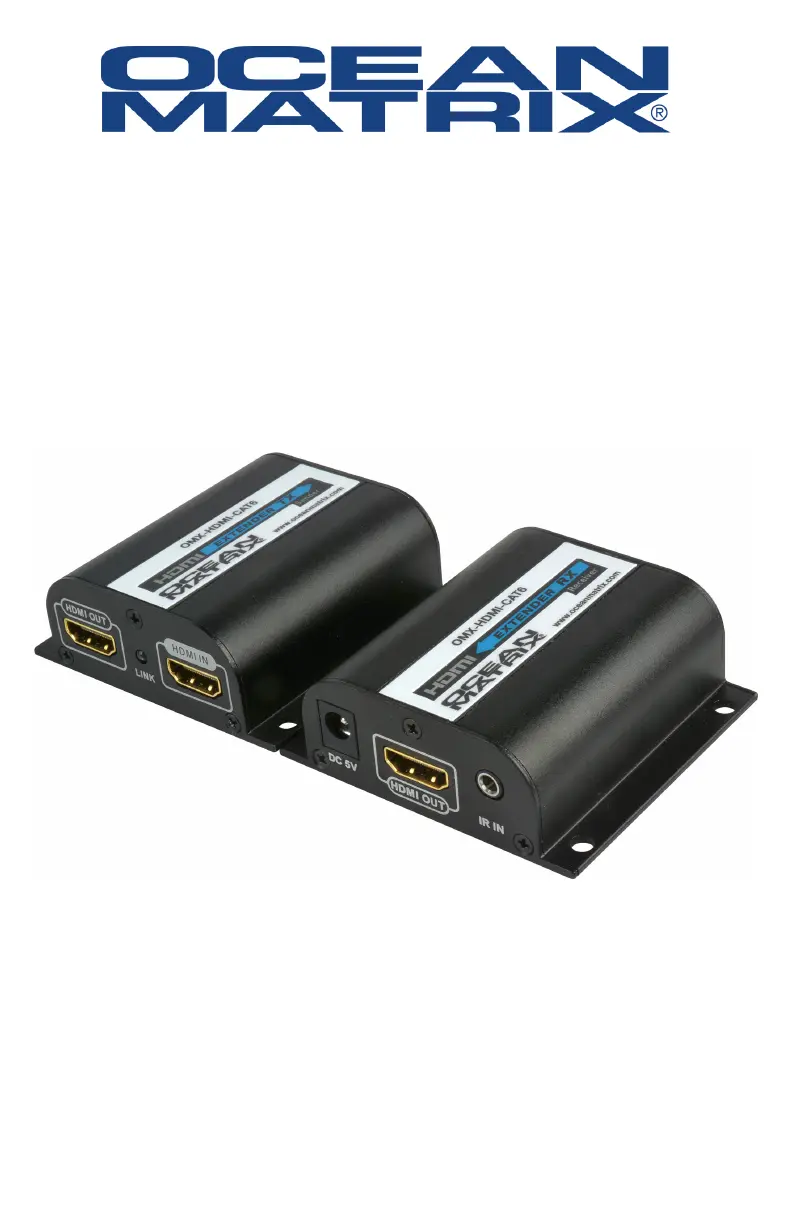

USER MANUAL
OMX-HDMI-CAT6
HDMI over Single Cat6 Transmission System with Looping Input
Ocean Matrix
812 Kings Highway · Saugerties, NY 12477
www.oceanmatrix.com
OMX-HDMI-CAT6
HDMI Extender
The Ocean Matrix OMX-HDMI-CAT6 extends high definition audio/
video transmission beyond the standard distances of HDMI cable and
its inherent limitations. Consisting of a transmitter and a receiver, this
system delivers a full 1080P HDMI signal up to 197 feet over a single
CAT6 network cable.
The transmitter features a built-in looping HDMI output for local display
and monitoring. IR signal transmission allows for remote control of the
source at a secondary location via included IR extension cables.
Includes
One transmitter
One receiver
Two 5VDC power adapters
One IR blaster extension cable- 3.28 ft (1m)
One IR receiver extension cable - 3.28 ft (1m)
Specifications
Supported Resolutions 480i@60Hz, 480p@60Hz, 576i@50Hz,
576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz,
1080p@50/60Hz
Network Cable Low resistance and consumption oxygen-free
copper core UTP or STP
Transmission Range 1080p resolution up to 197 feet (60m)
IR Remote Control Supports 20~60KHz standard IR remote controls
Power Supply 5VDC/1A
Power Consumption Transmitter 3W, Receiver 2W
Working Temperature 32°F - 140°F (0℃- 60℃)
Dimensions (LxWxH) 2.82x2.62x0.97in (71.6x66.6x24.8mm) per unit
Weight Transmitter 2.93 lb., Receiver 2.84 lb. (83g/80.6g)
Ocean Matrix OMX-HDMI-CAT6 Page 2
OMX-HDMI-CAT6
Installation Requirements
1. HDMI source device such as a video camera, media player,
monitoring equipment or computer.
2. HDMI display device such as an SDTV, HDTV, or projector with
HDMI port.
3. UTP/STP Cat6/6A/7 cable, in accordance with the IEEE-568B
wiring standard.
OMX-HDMI-CAT6 Installation Safety
1. Identify the receiver and the transmitter in order to make proper
connections during installation.
2. Do not hot plug/swap when in operation.
3. Use 5VDC power supply only.
Ocean Matrix OMX-HDMI-CAT6 Page 3
