USER MANUAL

OMX-HDMI-HDBIT

HDMI over Single Cat5/5e/Cat6 Transmission System with HDbitT Technology

Ocean Matrix

812 Kings Highway · Saugerties, NY 12477

www.oceanmatrix.com

OMX-HDMI-HDBIT

HDMI Extender

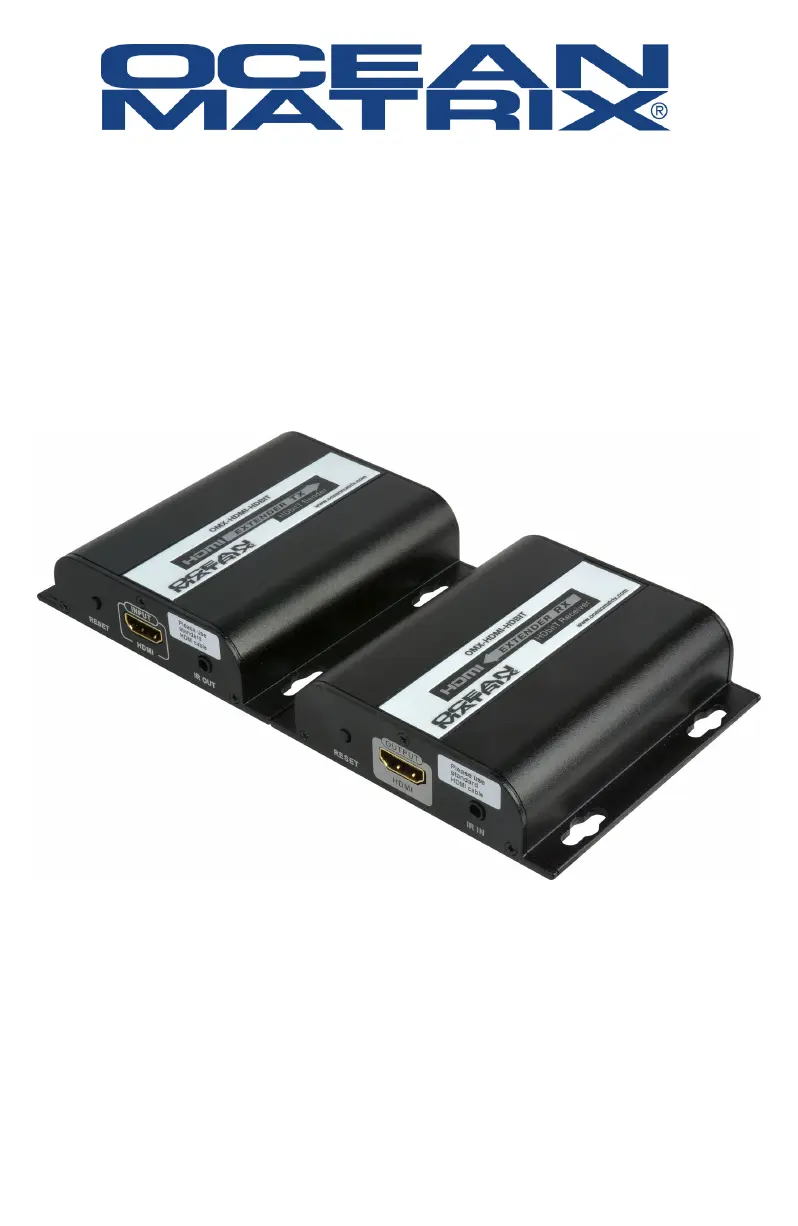

The Ocean Matrix OMX-HDMI-HDBIT extends high definition audio/

video transmission beyond the standard distances for HDMI cable

limitations via HDbitT technology. This system delivers a full 1080P

HDMI signal up to 394 feet over a single Cat5/5E/Cat6 network cable

with or without network switches, and network routers.

The system incorporates HDbitT (High Definition Digital bit Transmis-

sion Technology) protocol for better image clarity and high performance

over long distances without a converter. This technology allows signal

distribution through network switches and routers to multiple receivers

and displays without loss in image quality. Works perfectly when imple-

mented over an IP network, allowing simple function of 1 to 1 or 1 to

multiple cascade setups.

Includes

 One HDMI transmitter

 One HDMI receiver

 Two 5VDC power adapters

 One IR blaster extension cable- 3.28 ft (1m)

 One IR receiver extension cable - 3.28 ft (1m)

Specifications

Supported Resolutions 480i@60Hz, 480p@60Hz, 576i@50Hz,

576p@50Hz,720p@50/60Hz, 1080i@50/60Hz,

1080p@50/60Hz

Network Cable UTP/STP Cat5/5e/6

Transmission Range 1080p resolution up to 393 ft (120m)

IR Remote Control Supports 20-60kHz standard IR remote controls

Power Supply 5VDC/1A

Power Consumption Transmitter 3.5W, Receiver 3W

Working Temperature 32°F - 140°F (0℃- 60℃)

Dimensions (LxWxH) 3.81x3.70x0.93in (96.8x94x 23.7mm) per unit

Weight Transmitter 0.32 lb., Receiver 0.31 lb. (145g /142g)

Ocean Matrix OMX-HDMI-HDBIT Page 2

OMX-HDMI-HDBIT

Installation Requirements

1. HDMI source device such as a video camera, media player,

monitoring equipment or computer.

2. HDMI display device such as an SDTV, HDTV, or projector with

HDMI port.

3. UTP/STP Cat5e/6 network cable in accordance with the IEEE-568B

wiring standard.

4. Transmission length: Cat5-80m, Cat5e-100m, Cat6-120m.

Installation Safety

1. Identify the receiver and the transmitter in order to make proper

connections during installation.

2. Do not hot plug/swap when in operation.

3. Use 5VDC power supply only.

IR User Guide

1. Plug the IR blaster extension cable into the IR-out port of the Trans-

mitter TX.

2. Plug the the IR receiver extension cable into the IR-IN port of the

Receiver RX.

3. Place the emitter of the IR blaster as close as possible to the IR

receiver of the signal source device.

4. Direct the IR remote controller of the signal source device towards

the IR receiver (connected to the RX of HDMI extender), to remote

control source media playback.

Ocean Matrix OMX-HDMI-HDBIT Page 3
