INSTRUCTIONS
nBefore using your camera, read this manual carefully to ensure correct
use.
nWe recommend that you take test shots to get accustomed to your
camera before taking important photographs.
DIGITAL CAMERA
2
Thank you for purchasing an Olympus digital camera. Before you start to use
your new camera, please read these instructions carefully to enjoy optimum
performance and a longer service life. Keep this manual in a safe place for
future reference.
Legal and other notices
All contents of this publication are subject to change without notice.
•Although the contents of this publication have been carefully checked to
avoid errors, some may still occur. If you have a question about any points,
or nd mistakes or omissions, please contact us.
No part of this publication may be reproduced or reprinted except for
personal use without prior written permission from Olympus.
Olympus makes no representations or warranties regarding any damages, or
benefit expected by using this unit lawfully, or any request from a third
person, which are caused by the inappropriate use of this product.
Olympus makes no representations or warranties regarding any damages or
any benet expected by using this unit lawfully which are caused by erasing
picture data.
Olympus reserves all rights to this manual.
Radio and Television Interference
Change or modifications not expressly approved by the manufacturer may
void the user’s authority to operate this equipment. This equipment has been
tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation.
This equipment generates, uses, and can radiate radio frequency energy and,
if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
Adjust or relocate the receiving antenna.
Increase the distance between the camera and receiver.
Connect the equipment to an outlet on a circuit dierent from that to which
the receiver is connected.
Only the RS-232C serial cable or USB cable should be used to connect the
camera to a personal computer (PC).
3
Declaration of Conformity
Model Number: E-100RS
Trade Name: OLYMPUS
Responsible Party: Olympus America Inc.
Address: 2 Corporate Center Drive, Melville, New York 11747-3157
U.S.A.
Telephone Number: 631-844-5000
This device complies with Part 15 of the FCC rules. Operation is subject to
the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including
interference that may cause undesired operation.
This Class B digital apparatus meets all requirements of the Canadian
Interference-Causing Equipment Regulations.
Trademarks
Windows®is a registered trademark of Microsoft Corporation.
Macintoshis a trademark of Apple Computer Inc.
All other brand names and product names are trademarks of their respective
owners.
The standards for camera file systems referred to in this manual are the
Design Rule for Camera File System/DCF standards stipulated by the
Japan Electronics Industry Development Association (JEIDA).
4
Contents
Legal and other notices 2
Radio and television interference 2
Trademarks 3
Contents 4
Important safety instructions 11
Handling batteries 14
Handling the camera 17
Camera care and storage 18
Selecting batteries for your camera 19
LCD display and backlight 20
Main features 21
Package contents 23
Names of parts 25
Camera 25
Control panel indications 27
Viewfinder/Monitor indications (Picture information) 29
1
GETTING STARTED 31
Attaching the strap 32
Loading the batteries 33
Service life of NiMH battery 36
Using the AC power adapter (Optional) 37
Using the card 39
Card basics 39

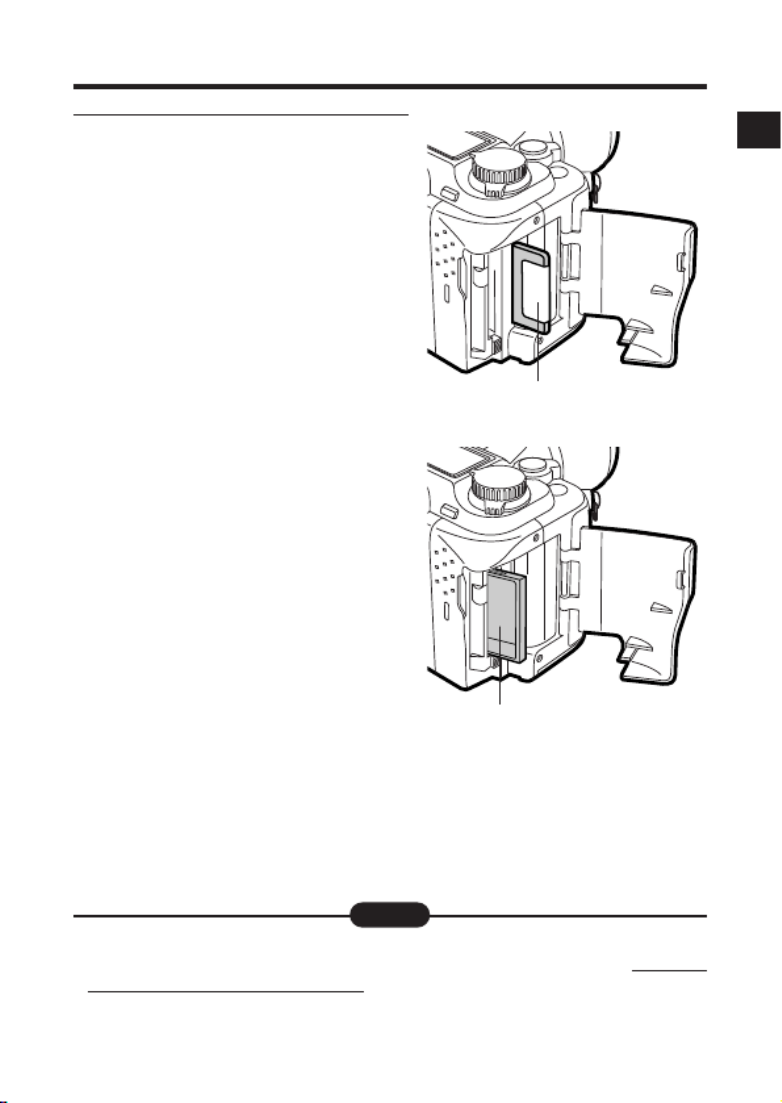

Inserting the card 40
Ejecting the card 41
Selecting the card 42
Setting the date and time 43
Setting the mode dial 45
How to use the menu 46
Record mode menu list 49
Still picture record menu 49
Movie picture record menu 51
5
Display mode menu list 53
Still picture display menu
—Shown when a still picture is displayed 53
Movie picture display menu
—Shown when a movie is displayed 54
How to use this instruction manual 55
2
RECORD AND DISPLAY BASICS 56
Turn the power on 58
How to use the viewfinder/monitor 59
Pre-recording check 60
Checking the batteries 60
Checking the card—Card check 61
Checking the remaining number of storable pictures
and remaining time 62
Number of storable pictur 63es
Adjusting the diopter 64
Holding the camera 64
Using the shutter release correctly
—Pressing fully/halfway 65
How to press the shutter button and focus 65
Recording and display 66
Taking still pictures and displaying them 66
Taking still pictur 66es
Quick view 68
Recording movies and displaying them 69
Recording movies 69
Displaying movies 70
Protection 72
Erasing images 73
Single frame erasure 73
All-frame erasure 74
Telephoto/Wide-angle shooting—Zoom 75
Using the flash—Auto flash 76
Tur 77ning off the power
6
Contents (Cont.)
3
SHOOTING PICTURES CONSECUTIVELY ..........79
Shooting pictures consecutively at high speed
—Sequential mode 80
Selecting the sequential mode 81
Sequential shooting/AF sequential shooting 82
Selecting the sequential shooting speed 80
Recording pictures just before shutter release
—Pre-capture 83
Displaying sequential shots 161
4
DIFFERENT SHOOTING OPTIONS TO SUIT EVERY
APPLICATION ............................................000
Taking pictures under different conditions 86
Taking portrait pictur 86es
Taking pictures of moving subjects 86
Taking pictures focusing on both subject
and the background 87
Taking night scenes 88
Using the scene program (S- Prg) mode 89
Setting the aperture—Aperture priority mode 91
Setting the shutter speed—Shutter priority mode 92
Setting the aperture and shutter speed
—Manual recording 93
Taking close-up pictures—Macro mode 94
Taking pictures using the self-timer 95
Taking pictures using the remote control 96
5
RECORD MODE SELECTION ............................99
Selecting the record mode/picture size 100
Setting picture size for TIFF recording—TIFF 102
Setting the picture size/record mode for SQ
recording—SQ 103
8
Contents (Cont.)
Changing the tint 132
Selecting the tint—PRE-SET 132
Customizing the tint 134
Other recording 136
Recording with special effects—FUNCTION 136
Recording sound when taking a picture
—Sound record 137
Recording pictures sequentially with different exposures/
white balance—Auto bracket 139
8
DISPLAY FUNCTIONS ..................................143
Displaying a single image—Single image display 144
Enlarging pictures—Close-up display 145
Rotating and checking vertically oriented pictur 146 es
Displaying multiple pictures at one time
—Index display 147
Setting the number of pictures displayed
on the screen—4/9/16 frames 148
Displaying multiple pictures automatically in
sequence—Slide-show 149
Displaying picture information 150
Still picture information 150
Movie picture information 151
Displaying on TV 152
Adjusting the sound volume 153
Adding a sound memo to recorded still pictures 154
Initializing a card—CARD SETUP 159
Image copy between cards 162
9
PRINT SETTINGS ........................................164
About print settings 166
Print all frames stored in a card
—All-frame print reserve 168
Print selected frames
—Single-frame print reserve 170
Resetting print reserve 176
9
10
FUNCTION SETTINGS FOR EASIER
OPERATION................................................177
Mode setting menu 178
How to use the mode setting menu screen 179
Resetting the camera’s settings when turning
it off—ALL RESET 182
Resetting the camera’s settings when turning
it on—ALL RESET—CUSTOM 184
Setting image sharpness 186
Changing the shutter sound effect 187
Changing the camera warning
sound volume 188
Setting the assist lamp for focusing
—AF ILLUMINATOR 189
Displaying the image during recording
—REC VIEW 190
Setting the times for power saving mode
—SLEEP 191
Selecting the file numbering system
—FILE NAME 192
About the file No. and folder No. 192
The file No. and folder No. in each mode 192
Canceling image writing to the card
—SHOT CANCEL 195
Adjusting the brightness of the monitor 196
Selecting meters or feet as a measurement unit
—m/ft 197
Changing the number of movie frames
per second— RATE 198
10
Contents (Cont.)
11
TRANSFERRING PICTURES TO A
COMPUTER ................................................199
Transferring your pictures to a
personal computer 000
Connecting directly to a computer by cable 000
Saving directly from a card 000
Connecting to a computer using the exclusive
USB cable 000
Connecting to a computer 000
Removing the card 000
12
MISCELLANEOUS ........................................211
Troubleshooting 212
Operating problems 212
Problems with images 216
User maintenance 219
After use 219
Cleaning the camera 219
Connectable devices—System chart 220
Error codes 221
Optional items 223
Compatibility of the picture data 223
Specifications 224
Index 227
11
CAUTION: TO REDUCE THE RISK OF ELECTRICAL SHOCK, DO NOT
REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED OLYMPUS SERVICE PERSONNEL.
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION
A lightning ash with an arrowhead, enclosed in a triangle, alerts
you to the presence of uninsulated voltage points inside the
product which could cause a serious electrical shock.
An exclamation point enclosed in a triangle alerts you to important
operating and maintenance instructions in the documentation
provided with the product.
WARNING!
TO AVOID THE RISK OF FIRE OR ELECTRICAL SHOCK, NEVER EXPOSE
THIS PRODUCT TO WATER OR OPERATE IN A HIGH HUMIDITY
ENVIRONMENT.
Important safety instructions
12
Important safety instructions (cont.)
1 Read All Instructions Before you use the product, read all
operating instructions.
2 Save These Instructions — Save all safety and operating
instructions for future reference.
3 Heed Warnings — Read carefully and follow all warning labels on
the product and all warnings described in the instructions.
4 Follow Instructions — Follow all instructions provided with this
product.
5 Cleaning — Always unplug this product from the wall outlet before
cleaning. Use only a damp cloth for cleaning. Never use any type of
liquid or aerosol cleaner, or any type of organic solvent to clean this
product.
6 Attachments — For your safety, and to avoid damaging the product,
use only accessories recommended by Olympus.
7 Water and Moisture — Never use this product around water (near a
bathtub, kitchen sink, laundry tub, wet basement, or swimming pool).
8 Location — To avoid damage to the product and to avoid personal
injury, never place this product on an unstable stand, tripod, bracket,
table or cart. Mount only on a stable tripod, stand, or bracket. Follow
the instructions which describe how to safely mount the product, and
use only the mounting devices recommended by the manufacturer.
9 Power Sources — Connect this product only to the power source
described on the product label. If you are not sure about the type of
power supply in your home, consult your local power company.
Refer to your operating instructions for information on using the
product with batteries.
10 Grounding, Polarization If this product can be used with an
optional AC adapter, the adapter may be equipped with a polarized
alternating current line plug, a plug with one blade wider than the
other. This safety feature allows the plug to t into the power outlet
only one way. If you cannot insert the plug into the wall outlet, pull it
out, reverse it, and then insert it again. If the plug still fails to t,
contact an electrician and have the receptacle replaced.
11 Protecting the Power Cord The power supply cord should be
routed so it will not be walked on. Never place a heavy object on
the power cord and never wrap the power cord around the leg of a
table or chair. Keep the areas around the power cord connection
points, at the power outlet and at the product connection, free of all
obstacles.
13
12 Lightning If a lightning storm occurs while using the optional AC
adapter, unplug the adapter power cord from the wall outlet
immediately. To avoid damage from unexpected power surges,
always unplug the AC adapter from the power outlet and disconnect
it from the camera when the camera is not in use.
13 Overloading — Never overload wall outlets, extension cords, power
strips, or other power connection points with too many plugs.
14 Foreign Objects, Spillage — To avoid personal injury from re or
electrical shock from contact with internal high voltage points, never
insert a metal object into the product. Avoid using the product
where there is a danger of spillage.
15 Servicing — Refer all servicing to qualied personnel. Attempting to
remove the covers or disassemble the product, could expose you to
dangerous high voltage points.
16 Damage Requiring Service — While using the optional AC adapter,
if you notice any of the conditions described below, unplug the AC
adapter from the wall outlet and refer servicing to qualied service
personnel:
a) If liquid has been spilled, or any object has fallen into the
product.
b) If the product has been exposed to water.
c) If the product does not operate normally while following
operating instructions. Adjust only the controls described in the
operating instructions as improper adjustment of other controls
could damage the product, requiring extensive repair work by a
qualied technician to restore the product to normal operation.
d) If the product has been dropped or damaged in any way.
e) If the product exhibits a distinct change in performance, this
indicates a need for servicing.
17 Replacement Parts When replacement parts are required, make
sure that the service center uses only parts recommended by the
manufacturer to ensure that the replacement parts have the same
characteristics as the originals. Unauthorized substitution of parts
could cause a re, electrical shock, or create other hazards.
18 Safety Check — Upon completion of servicing or repairs, ask the
service technician to perform safety checks to determine that the
product is in good working condition.
19 Heat Never use or store this product near a heat source such as
a radiator, heat register, stove, or any type of equipment or
appliance which generates heat, including stereo ampliers.
15
WARNING
1 Keep batteries dry at all times. Never allow them to come into
contact with fresh water or salt water.
2 To prevent batteries from leaking, overheating, or causing a re or
explosion:
Use only batteries recommended for use with this product.
Never heat batteries, incinerate them, or attempt to disassemble
them.
Never mix batteries (old and new batteries, charged and
uncharged batteries, batteries of dierent manufacture or capacity,
etc.).
Never attempt to charge alkaline or lithium batteries.
Load batteries carefully as described in the operating instructions.
Never reverse their polarity when loading.
Do not use batteries if their body is not covered by the insulating
sheet or if the sheet is torn as it may cause uid leak, re, or
injury. Do not use these batteries even if they are sold in stores.
3 If NiMH batteries are not charged within the specied time, stop
charging them and do not use them.
4 Before loading, always inspect batteries carefully for leaks,
discoloration, warping, or any other abnormality.
5 Always store batteries out of the reach of small children. If a child
accidentally swallows a battery, seek medical attention immediately.
6 If a battery leaks uid onto your clothing or skin, remove the clothing
andush the aected area with clean, running cold water
immediately. If the uid burns your skin, seek medical attention
immediately.
7 Never attempt to modify the battery compartment on the camera,
never insert anything (other than the recommended battery) into the
battery compartment.
5 Never heat batteries or incinerate them.
6 Never attempt to connect a battery directly to a power outlet, or to a
cigarette lighter in a vehicle.
7 If battery uid gets into your eyes, ush your eyes immediately with
clear, cold running water and seek medical attention immediately.
16
Important safety instructions (cont.)
CAUTION
1 Olympus NiMH batteries are intended for use only with Olympus
digital cameras. Never use these batteries with any other device.
2 Never subject batteries to strong shocks or continuous vibration.
3 Never mix batteries (old and new batteries, charged and uncharged
batteries, batteries of dierent manufacture or capacity, etc.).
4 Always charge sets of batteries (2 or 4) together.
5 Always charge NiMH batteries before using them for the rst time, or
if they have not been used for a long period.
6 While the camera is not in use, always remove the batteries to
prevent accidental leakage which could damage the battery
compartment.
7 If a battery leaks, becomes discolored or deformed, or in any other
way becomes abnormal during operation, stop using the camera
and consult your dealer or an authorized Olympus service center.
Continued use may result in re or electric shock.
8 Never store batteries where they will be exposed to direct sunlight,
or subjected to high temperatures in a hot vehicle, near a heat
source, etc.
9 Batteries may become hot during prolonged use. To avoid minor
burns, never remove them immediately after using the camera.
17
Handling the Camera
WARNING
1 Use caution when taking ash pictures at close range. When you
re the ash, you must be at least 3ft. away from the faces of your
subjects, especially when taking pictures of infants and small
children. Firing the ash too close to the subject's eyes could cause
a momentary loss of vision.
2 To avoid damaging your eyes, never aim the camera directly into the
sun, or any other extremely bright light source.
3 To avoid causing a re or explosion, never use the camera near
ammable or explosive gases.
4 Always use and store the camera out of the reach of young children
and infants to prevent the following dangerous situations which
could cause serious injury:
Becoming entangled in the camera strap, causing strangulation.
Accidentally swallowing a battery or small part.
Accidentally ring the ash into their own eyes or into the eyes of
another child.
5 To avoid the hazards of re or electrical shock, store the camera in a
cool, dry location where it will not be subjected to high humidity or
dust.
6 To avoid minor burns, never cover the ash with your hand when it
is red. Never touch the ash unit after continuous use. The ash
unit becomes very hot during continuous operation.
7 If the camera is accidentally dropped in water, or if liquid is spilled
into the camera, stop using the camera, allow the camera to dry,
and then remove the batteries. Contact the nearest Olympus
authorized service center.
18
Important safety instructions (cont.)
CAUTION
1 During operation of the camera, if you notice any unusual odors,
noise, or smoke around the camera, immediately switch the camera
off, disconnect the optional AC adapter (if it is connected), and allow
the camera to sit idle for a few minutes to allow it time to cool. Take
the camera outdoors, away from ammable objects, and carefully
remove the batteries to avoid burning your hands. Contact the
nearest Olympus service center immediately.
2 Never attempt to disassemble the camera. The internal circuits
contain high voltage points which could cause serious burns or
electrical shock.
3 To avoid dangerous electrical shock, never hold or operate the
camera with wet hands.
4 To avoid damaging the camera or causing a re, never expose the
camera to excessive heat.
CAUTION
Camera Care and Storage
Never store or use the camera for long periods in locations subject to
direct sunlight, high humidity, extreme variation in temperature, or
strong shocks and constant vibration. Protect the camera at all times
from dust and sand.
Never store the camera near any type of appliance or equipment
which generates high temperatures, low temperatures, high or low
humidity, or a strong magnetic eld. Never use the camera in a factory
or laboratory where ammable gases are present.
Never shake the camera or subject it to shock or strong vibration.
To avoid damaging its precision lens, never leave the camera pointing
directly into the sun.
Before storing the camera for a long period, remove the batteries.
Select a cool, dry location for storage to prevent condensation or mold
from forming inside the camera. After storage, test the camera by
pressing the shutter release button to make sure that it is operating
normally.
When the camera is mounted on a tripod, adjust the tripod head to re-
position the camera; do not twist the camera.
Never touch the ash after it has been red. Avoid using the ash for
extended periods. Allow it to cool occasionally between shots.
To avoid injury from electrical shock, never attempt to disassemble or
modify the camera in any way.
19
CAUTION
Selecting Batteries for Your Camera
This camera can use four AA NiMH batteries, four AA Alkaline
batteries, four AA lithium batteries, four AA NiCd batteries, or two CR-
V3 lithium battery packs. Use of Olympus brand batteries is strongly
recommended.
Alkaline battery performance is limited, especially at low
temperatures. Using NiMH batteries is recommended.
manganese batteries cannot be used with this camera.AA
Always follow the battery recommendations and loading instructions.
Incorrectly loading the batteries could cause the batteries to leak or
overheating.
When using the camera on battery power at low temperatures, try to
keep the camera and extra batteries as warm as possible. Batteries
which run down at low temperatures may be restored after they are
warmed at ambient temperature.
Perspiration or oil from your hands on the battery contacts could
prevent them from operating. Before loading batteries, wipe the
terminals with a dry, clean cloth.
Before going on a long trip, especially before traveling abroad,
purchase an ample supply of extra batteries. The recommended
batteries may be dicult to obtain while traveling.
Always recharge NiMH or NiCd batteries with a charger
recommended for use with these batteries.
Before using NiMH or NiCd batteries, always read the instructions
provided with purchase of these batteries.
To avoid personal injury or damage to the camera, always inspect
batteries before loading. If you notice leaking, damage to the battery
cover or insulation, discoloration, warping or any other abnormality do
not use the batteries.
Recommended temperature ranges for NiMH batteries:
Operation..................................... 32° ~ 104°F
Charge......................................... 32° ~ 10F
Storage........................................ –4° ~ 86°F
Using, charging, or storing the batteries outside these ranges could
shorten battery life or aect battery performance. Always unload the
batteries from the camera before storing the camera and batteries for
a long period.
20
NOTES
LCD Display and Backlight
Do not point the viewnder towards strong light like the sun, as this may
damage interior of the viewnder.
The backlight built into the monitor and control panel has a limited service
life. When the monitor gets dark and jittery, consult your nearest Olympus
dealer.
In places subject to low temperatures, the backlight may take a long time to
turn on or its color may change temporarily. When using the camera in
extremely cold places, it is a good idea to occasionally place it in warm
place. A backlight exhibiting poor performance due to low temperatures will
recover in normal temperatures.
Do not push the monitor forcibly; otherwise the image may become vague,
resulting in a Display mode failure or damage to the monitor.
When a subject is viewed diagonally in the camera, the edges may appear
zigzagged on the monitor. This is not a malfunction; It will be less
noticeable in Display mode.
A strip of light may appear on the top/bottom of the monitor, but this is not a
malfunction.
The LCD display is made with high-precision technology. However,
black spots or bright spots of light may appear constantly on the LCD
display. Due to its characteristics or the angle at which you are
viewing the monitor, the spot may not be uniform in color and
brightness. This is not a malfunction.
Important safety instructions (cont.)
21
Main features
nSequential shooting at high shutter speeds (max. 15
frames/second) in all modes except TIFF. Shutter speed
can be selected from 10, 7.5 and 5 frames/second.
nPre-capture allows images to be recorded just before
the Shutter button is pressed. (P. 00)
n10X optical zoom lens with a stabilization system plus
2.7X Super-telephoto allows you to shoot pictures
equivalent to 27X zoom. (P. 00)
nCan use either SmartMedia (SSFDC) memory card or
CompactFlash. Images can be copied between
SmartMedia and CompactFlash.
nAdvanced shooting features
1,510,000-pixel CCD.
Wide-angle TFT LCD monitor.
Electronic viewnder.
Remote cable jack.
Various exposure modes (program, aperture priority,
shutter priority, manual and scene program) are
available, allowing you to adapt to different shooting
conditions.
Multi-metering function to calculate the appropriate
exposure based on brightness metering at up to 8
dierent points in the frame.
Movie recording function.
Sound recording with both still pictures and movies.
Built-in speaker for audio monitoring. (P. 00)
A/V OUT jack provided for viewing pictures on TV*.
nSupport for AA NiMH batteries in addition to lithium
battery packs.
* You may not be able to view pictures on TVs in some areas,
depending on the type of TV signal used in your region.
Check the TV signal type.
22
Camera Strap A/V cable
USB cable Remote control Lens cap
Warranty card/ Instructions/ Remote control
Registration card Quick Start Guide instructions
Software CD’s
Package contents
23
SmartMedia Static-free case Index labels
(SSFDC-8MB) (2 pieces)
Write-protect adhesive Instructions
seals (4 pieces)
Battery charger AA NiMH batteries Power plug
(4 pieces)
Instructions
24
Names of parts
Camera
1
9
8
0
!
#
@
9
%
^
&
*
(
$
2 3 4 5 6 7
1Zoom lever (T/W) (P. 71)/
Index-display lever ( / )
(P. 125)
2Shutter button (P. 67)
3Mode dial (P. 44)
4Self-timer lamp/AF assist lamp
(P. 68/119/121/157)
5Control panel (P. 27)
6Diopter adjustment dial (P. 64)
75-pin external ash socket ( )
(P. 112)
8Microphone (P. 123)
9Strap eyelet (P. 32)
0Remote control receiver (P. 121)
!Lens
@Flash (built-in) (P. 72/106–116)
#Flash switch ( ) (P. 72/108/113)
$Connector cover (P. 76/123/187)
%Remote cable jack ( )
(P. 182–187)
^USB connector (P. 182–187)
&DC-IN jack (P. 37)
*External microphone jack (MIC)
(P. 123)
(A/V OUT jack (MONO) (P. 76)
25
)Viewnder (P. 28/29/65)
qINFO button (P. 28)
wFlash mode button ( )
(P. 106/108)/Erase button ( )
(P. 77/78)
eDRIVE button (P. 102/117/118/ 138)
Displays sequential shots during
display mode.
rMetering mode button ( )
(P. 132/138)
Rotates the vertically-oriented
pictures 90° counterclockwise
during display mode.
tMacro button ( ) (P. 90/138)
Rotates the vertically-oriented
pictures 90° clockwise during
display mode.
yAE lock button (AEL)(P.130)/
Multi-metering button (P.133)/
Print button( )(P.168–178)
uArrow pad (P. 45–47)
iMonitor (P. 28/29/65)
oOK button (P. 47)/Manual focus
button (MF) (P. 94)/Protect button
( ) (P. 79)
pMonitor button ( ) (P. 65)
QMenu button ( ) (P. 45)
WPower switch (POWER OFF/ON/
RESET) (P. 58)
ECard cover (P. 40)
RCard access lamp (P. 67)
TBattery compartment cover
(P. 33/34)
YBattery compartment lock
(P. 32/34)
UTripod socket (P. 112)
ISpeaker (P. 00)
TY IU
R
W
E
) q we r t y
i
u
o
p
Q
26
Names of parts (cont.)
Control panel indications
: Flash mode (P. 106)
: Red-eye reduction ash, : O (ash override), : Fill-in ash
(forced activation), No indication: Auto ash
: Slow shutter synchronization ash (P. 110)
Displayed when is set on the menu.
: Flash intensity control (P. 109)
Displayed when is set on the menu.
: Card writing (P. 67)
Displayed when recorded pictures are being written to a card.
: Sound record (P. 112)
Displayed when is set on the menu.
: Card error (P. 61/203)
When the power is turned on, the camera checks the card. If there is a
problem with the card, this indication appears. If the card functions properly,
this indication does not appear.
: Battery check (P. 60)
Displayed when the power is turned on.
: Auto bracket (P. 103)
To engage the Auto Bracket mode, press the button repeatedly until
this indication appears.
: Macro mode (P. 90)
Displayed when the button is pressed to engage the Macro mode.
: Full-time AF (P. 95)
Displayed when FULL TIME AF is set.
: White balance (P. 134)
Displayed when the White Balance is set to any mode except AUTO.
27
: ISO (P. 101)
Displayed when the ISO is set to any mode except AUTO. When the ISO is
increased automatically in the AUTO mode, this indication blinks.
: Self-timer/Remote control (P. 119/120)
To use the Self-timer/remote control, press the button repeatedly until
this indication appears.
: Sequential shooting (P. 118)
Press the button repeatedly until the indication for the desired mode
appears.
: Exposure compensation (P. 99)
Displayed during exposure compensation.
: Pre-capture (P. 00)
Displayed when Pre-capture is set on the menu.
: AF system (P. 96)
Displayed when AF MODE is set. If SPOT is selected, this indication does
not appear.
: Manual focus (P. 94)
Displayed when the focus is adjusted manually.
: Stabilization system (P. 97)
Displayed when is set.
: Metering mode (P. 100)
Press the button repeatedly until the indication for the desired mode
appears.
: AE memory (P. 130)
Displayed when the memorized exposure (AE lock) is maintained after
recording.
: Record mode (P. 104)
Displayed when is set.
: Number of storable still pictures (P. 63)
Displays the number of still pictures you can record.
: Card (P. 00)
Displays the card type in use.
: Seconds remaining in Movie mode (P. 63)
Displays the longest continuous recording time per movie frame.
28
Names of parts (cont.)
Press the Monitor button ( ) to select whether images appear on the
Monitor or in the viewfinder. (P. 00) Press the INFO button to select how
much information is displayed (P. 26). The following 3 types of display are
available. Picture information is also displayed in the Display mode.
Picture information display (P. 00)
Viewnder/Monitor indications (Picture information)
[
SM
]
F2.8 1/800 +2.0 P
2
9
3
4
1
5 6 7
0
@
!
[
SM
]
8
F2.8 1/800 +2.0
ISO100
SQ
P
SLOW1
#
$
%
^
&
*
(
)
[
SM
]
Full information:
These indications are displayed
constantly in the Record mode.
Partial information:
When using the camera, these
indications are displayed for
approx. 2 seconds.
Only the AF target mark and card:
Warnings (AF confirmation mark
and battery check) appear when
required. Settings that are changed
are displayed for approx. 2
seconds.
INFO
INFOINFO
30
1
GETTING STARTED
This chapter outlines all of the things you
need to do before you start using your
camera such as loading batteries and
inserting cards. It also explains how to use
the Mode dial and the Menus.
1
32
Attaching the strap
11Thread the strap through the strap
eyelet.
2Thread the strap through the
stopper as the arrows in the
illustration show, then pull on it to
make sure it is securely fastened
to the stopper.
3Attach the strap to the strap eyelet
on the other side of camera,
followin g steps 1 and 2 as
explained above.
Be careful with the strap when you carry the camera, as it can easily catch
on stray objects, causing serious damage.
Attach the strap correctly as shown so that the camera does not fall o. If
the strap is attached incorrectly and the camera falls o, Olympus is not
responsible for any damages.
Note:
1
2
Stopper
Camera strap eyelet
33
1
This camera uses 2 CR-V3 lithium battery packs or 4 AA NiMH batteries,
NiCd batteries, alkaline batteries or lithium batteries.
Important:
Do not peel the label on a CR-V3 lithium battery pack. If an insulating sheet
covers the terminals, peel it o ONLY from the terminals.
1Make sure that the camera power
switch is in the o position.
2Slide the battery compartment
lock on the battery compartment
cover in the direction of .
3Slide the battery compartment
cover in the direction of the arrow
printed on it (the direction of the
lens) with your ngertip.
Attempting to slide the cover using
a ngernail could result in injury.
4Open the battery compartment
cover.
1
Loading the batteries
3, 4
2
34
Loading the batteries (Cont.)
15Insert the batteries.
When using AA batteries
Insert the batteries with their poles
oriented in the direction shown in
the illustration.
When using lithium battery
packs
Insert the batteries in the direction
shown in the illustration. Do not
insert them in any other direction.
6Close the battery compartment
cover, then press it down and
slide it in the opposite direction of
the arrow printed on it.
When pressing the battery
compartment cover shut, be sure to
press the center of the cover, as it
may be dicult to close properly by
pressing the edge.
Make sure the cover is completely
closed.
7Slide the battery compartment
lock on the battery compartment
cover in the direction of .
When using lithium battery packs
5
When using AA batteries
6
7
35
1
CR-V3 lithium battery packs cannot be charged.
Alkaline batteries have a lot of variation in their performance and deteriorate
particularly at low temperatures. It is recommended that lithium battery
packs or NiMH batteries be used.
Manganese batteries cannot be used. Please read the cautions concerning
batteries. (See page 19.)
If the terminals inside the battery compartment are dirty, it will noticeably
shorten the life of the batteries. Do not touch the inside of the battery
compartment.
If the camera is left for 1 week with the batteries removed, all the internal
settings will revert to the default settings.
Note:
Caution:
Do not use batteries whose bodies are not completely covered by an
insulating sheet. If such batteries are used, they may cause leakage,
excessive heat, or explosion. Some batteries are sold with a partial
insulating sheet, or without any insulating sheet at all. Do not use these
batteries under any circumstances.
The following AA batteries cannot be used.
Batteries whose bodies are only partially covered,
or not covered at all, by an insulating sheet.
Batteries whose terminals are raised, but not covered
by an insulating sheet.
Batteries whose terminals are flat and not
completely covered by an insulating sheet. (Such
batteries cannot be used even if the terminals
are partially covered.)
36
Loading the batteries (Cont.)
1Service life of NiMH battery
The table below shows the approximate number of photographs that can be
taken and the display time available with the NiMH batteries. Note that the
lives of battery packs may vary according to the type of battery, manufacture,
camera shooting conditions, etc.
Service life of NiMH battery
Shooting conditions
1• Repeat the same function in sequential 2fps shooting conditions
for no more than 10 minutes than take a break
• Sequential 2fps shooting no more than 10 minutes then break
• Flash use no more than 50%
• One zoom adjustment on each shot
• Full-time AF turned off
• Digital Zoom off
• No displaying on or connecting to a PC
• Temperature 25°C
2Repeated sequential display in the slide show mode with periodic
breaks
Note:
When connecting the camera to a PC, it is recommended that you
use the optional AC adapter.
Power is consumed continuously during the conditions below. This
could reduce the number of pictures that can be taken.
• Repeated auto-focus by depressing the shutter button halfway.
• Repeated power zoom adjustments.
• When the full-time AF mode is turned on.
• When the LCD monitor is in the display mode for an extended
period of time.
• When communicating with a PC.
Shooting/Displaying Condition Battery life
Number of photos 1Approx. 100 frames
Display time 2Approx. 160 minutes
* These figures are for reference only and are not guaranteed.
37
1
An optional Olympus AC adapter allows you to power your digital camera
from a common AC wall outlet.
Use an AC adapter designed for the area camera is used.
Consult your nearest Olympus dealer or Service center for details.
1Make sure that the camera power
switch is in the o position.
2Plug the AC adapter into a power
outlet.
3Open the jack cover and plug the
connection cord into the DC-In
jack.
4To disconnect, turn the camera
switch off, and unplug the AC
adapter rst from the camera then
from the outlet.
Using the AC power adapter (Optional)
Power
plug
Connection cord plug
AC adapter
AC wall outlet
DC-IN jack (Black)
2
1
3
Open the jack cover as shown.
When in use for long periods, the AC adapter may get warm. This is
normal.
Note:
38
Loading the batteries (Cont.)
1Warning:
Incorrect use of the batteries may cause re or electric
shock.
Be sure to use an Olympus AC adapter. Using a non-Olympus adapter
could be hazardous and may damage the camera. Olympus is not
responsible for any damage caused by the use of AC adapters not
designed for this camera.
Never plug or unplug the AC adapter if you have wet hands. When
unplugging the adapter, hold the body of the unit, not the cord. Never pull,
bend, twist or modify the cord.
If you experience any of the following problems, contact your local dealer or
the nearest authorized Olympus service center.
• If the AC adapter is hot, smells like smoke, or is emitting smoke.
If there is any damage to the cord, or if there is a contact failure with the
plug.
1
Using the card
39
1Contact area
The area where the card comes into contact with the
camera
2Write-protect area
Attach the provided write-protect seal when you want to
protect your data from accidental erasure or overwriting.
3Index area
Use the provided index label to indicate the card’s
contents.
1
2
3
Note:
● Operating temperature: 0°C to 55°C; Storing temperature: 20°C to
65° C; Humidity: up to 95 %
● Put the card into its anti-electrostatic case for storage or transportation.
● Do not bend, drop, or apply any physical shock to the card.
● Read the provided SmartMedia instruction manual carefully.
● Do not touch the contact area of the card.
● Do not use 5V cards. Use Olympus cards or other 3V (3.3V) cards.
● Non-Olympus 3V (3.3V) cards must be formatted by the camera (see
p.42).
This camera uses SmartMedia or CompactFlash to record images. This
instruction manual uses the term “card” when referring to both. It is possible
to load both types in the camera at the same time.
What is SmartMedia?
SmartMedia is a recording medium for the Olympus CAMEDIA digital
camera. Images recorded and stored on SmartMedia can easily be deleted,
overwritten, and/or edited on a PC.
Compatible SmartMedia cards
● Provided 8 MB standard card.
● Optional Olympus 4 MB/8 MB/16 MB/ 32 MB/64 MB cards
● Market-available 3V card 4 MB/8 MB/16 MB/32 MB/64 MB
Card basics
41
1
Inserting the card
1Make sure that the camera power
switch is in the off position.
2Open the Card cover.
3
When using the SmartMedia card:
Insert the card in the direction
shown in the illustration.
When using the CompactFlash
card:
Insert the end of the card and
push in the card. When the tab
pops out, place it on its side.
● Note the orientation of the card. If it
is inserted incorrectly, it may
become jammed.
4Close the cover tightly.
1
2
3
Insert the card fully until you feel it lock
into place.
To use CompactFlash, select it on the menu. “Selecting the card” (P. 00)[
Insert the card fully until
you feel it lock into place.
When using the SmartMedia card
When using the CompactFlash card
Tab
Tab
42
Using the card (Cont.)
1Ejecting the card
1Make sure that the camera power
switch is in the off position.
2Open the Card cover.
3
When using the SmartMedia card:
Push the card in slightly.
When using the CompactFlash
card:
Raise the tab and push it in.
1
2
3
Tab
When using the SmartMedia card
When using the CompactFlash card
Tab
43
1
4The card pops out so that it can be
withdrawn easily. Remove the
card.
The card is ejected
The card is ejected
When using the SmartMedia card
When using the CompactFlash card
● NEVER open the Card cover, eject the card, remove the batteries, or
disconnect the optional AC adapter while the camera is in use. Doing so
could destroy all data on the card.
● Destroyed data cannot be restored.
Note:
44
1
Selecting the card
Select the card you are using on the menu.
1Set the Power switch to ON.
2Press (Menu button).
● The menu is displayed in the
viewfinder when the Mode dial is
set to the Record mode. The menu
can be displayed on the monitor by
pressing (Monitor button).
3Press on the Arrow pad to
select SM/CF, then press .
4To use SmartMedia, select SM. To
use CompactFlash, select CF.
Press the OK button.
● Press the OK button again to save
the setting and restore the normal
screen.
..
Changing the card type without
going through the menu:
While pressing down the INFO button,
press the button. The card type is
changed.
SM
CF
[
1 / 5
]
F2.8 1/800 0.0
P
SM/CF
WB
[
SM
]
PRE-CAPTURE
3, 4
2
41
Still picture record menu
Control panel
Card
button
INFO button
45
1
Setting the date and time
You can adjust and include the date and time, and put them on recorded
pictures.
1Press (Menu button). (P.45)
Menu will be displayed on the
monitor.
2Press on the Arrow pad to
select MODE SETUP, then press
to select SETUP. Finally, press
the OK button.
Mode setting screen will be
displayed on the monitor.
3Press to select , then
press . When SETUP appears
on the monitor, press the OK
button.
Date/time setup screen will be
displayed on the monitor.
4Press to set the date format
when is selected.
You can choose any one of the
following formats:
DMY (Day/Month/Year)
MDY (Month/Day/Year)
YMD (Year/Month/Day)
2, 3, 4
2, 3 1
SETUP
[
5 / 5
]
F2.8 1/800 0.0
P
ISO
[
SM
]
S-Prg
MODE SETUP
m / f t m
OFF
SHOT CANCEL
’ 0 0 . 1 2 . 2 3
1 2 : 3 4
[
3 / 3
][
SM
]
Mode setting screen
SETUP
m / f t
SHOT CANCEL
[
3 / 3
][
SM
]
Still picture record menu
47
1
Setting the mode dial
You can change modes by turning the mode dial on the top righthand side of
the camera.
P (Program mode):
In program mode, you can take a properly exposed photograph by simply
aiming the camera and pressing the shutter button. Aperture and shutter
speed are set automatically by the camera.
A (Aperture priority mode):
Aperture can be set manually in the aperture priority mode. This is useful
when you want to have more control over image exposure. Shutter speed is
set automatically by the camera.
S (Shutter priority mode):
Shutter speed can be set manually in the shutter priority mode. Set it to a
high speed for a still picture of a moving object. Set it to a low speed to show
motion. Aperture is set automatically by the camera.
M (Manual mode):
You can set both aperture and shutter speed independently in the manual
mode.
S-Prg (Scene program mode):
The camera will automatically optimize the combination of aperture and
shutter speed according to the type of subject. You can select from Portrait,
Sports, Landscape and Night Scene. Selections are displayed in the menu.
Also read “Takng pictures under dierent conditions” (P.81 - 86).
(Movie mode):
You can shoot motion pictures in the movie mode. Aperture and shutter
speed are set automatically by the camera.
(Display mode):
Allows you to view a display of your photographs.
M
O
D
E
D
I
A
L
S
M
S-Prg
A
P
48
1
How to use the menu
Most functions can be easily displayed and set with the menu on the Monitor.
Adjustments to the mode dial will determine available menu selections.
Modes not available on the menu can be set with the corresponding buttons
on the camera.
1Press (Menu button).
● The menu is super-imposed over
the image already displayed on the
viewfinder or monitor.
2Press on the Arrow pad to
select the item you want to adjust.
● The green frame will move from
item to item.
● To select the following items, read
these pages;
BKT: P. 00 to 00, MODE SETUP:
P. 00 to 00, WB: P. 00 to 00
3Press to display further
selections.
● The green frame will move to the
right. Additional options for that
item will be displayed.
Refer to the menu index (P.48 - 53) and select the function you need.
Functions that can be set by the mode dial are listed below.
Still picture record menu: P, A, S, M, S-Prg
Motion picture record menu:
Still picture display menu:
Motion picture display menu:
1
2, 3
Monitor
Scroll
Scroll
Current settings
1/5 page
50
How to use the menu (Cont.)
15Press to view additional menu
options (for each selection), then
press to select the desired
option.
6When finished, press the OK
button or .
The green frame moves to the left
and adjusted items are displayed
on the right.
When in the record mode (any
mode except ) pictures can be
taken.
7Press the OK button.
The setting will be saved and the
normal display will be restored.
5
6, 7
[
5 / 5
]
F2.8 1/800 0.0
P
ISO
[
SM
]
S-Prg
100
AUTO
200
400
MODE SETUP
ISO setting
When you want to go back to previous menu pages (or forward to the next
pages)
[ When the green frame is at the bottom of the displayed menu options,
press (or ). The display will go to the next page. When the
monitor displays the last page, press to go back to the first page.
You can move to the last page by pressing on the first page.
When you want to cancel the menu
[ Press (Menu button). Adjustment settings are canceled and the
normal display is restored.
When you want to save an adjustment
[ Set ALL RESET OFF. The adjustment settings are then
automatically saved when the camera is turned off (P.148).
When the adjusted item does not function
[ The OK button was not pressed after the adjustment. Reset the
adjustment, then press the OK button.
Note:
51
1
Record mode menu list
The following items can be adjusted. This can be done any time. Please refer
to How to use the menu (P.45), and/or the pages for each function, in order to
set the following items (P.48 – 53).
Still picture record menu
Displays by the Still picture record mode (P, A, S, M, S-Prg).
Menu
page
1/5
2/5
Display
SM/CF
PRE-
CAPTURE
BKT
MULTI
METERING
Function
Allows you to select the
card you are going to
use. (P. 00)
Sets the sequential
shooting speed. (P. 00)
Able to record pictures by
pressing the Shutter
button halfway.
Adjusts the white
balance according to the
light source. (P.134)
Controls the flash
intensity. (P.109)
Allows you to take
pictures of night scenes.
(P.110)
Sets the conditions for the
Auto bracket mode.
(P. 00)
Obtains the right
exposure by metering
multiple objects. (P.132)
Initial setting
SM
1.5fps
OFF
AUTO
±0
OFF
AE: ±1.0/x3,
WB: OFF
OFF
52
Record mode menu list (Cont.)
1Menu
page
3/5
4/5
5/5
Display
AF MODE
FULL-TIME
AF
SUPER TELE
FUNCTION
CARD SETUP
MODE SETUP
S-Prg
Function
Activates the Stabilization
system. (P.97)
Adjusts the focusing
range when using
autofocus. (P.96)
The camera automatically
focuses without pressing
the shutter button
halfway. (P.95)
2.7x digital zoom is
available.
Changes the picture color
to monochrome. (P. 00)
Formats the card. (P.42)
Able to record sound after
taking pictures. (P.122)
Change the camera to
your desired setting.[
Mode setting menu
(P. 144)
Adjusts the ISO
sensitivity. (P.101)
Adjusts the S-Prg mode
for each occasion. (P. 86)
Sets the record mode
(TIFF/SHQ/HQ/SQ).
(P.104)
Initial setting
ON
NORMAL
OFF
OFF
OFF
OFF
AUTO
HQ
53
1
Movie picture record menu
Menu
page
1/3
2/3
Display
SM/CF
SUPER TELE
MULTI
METERING
AF MODE
FULL-TIME
AF
Function
Allows you to select the
card you are going to
use. (P. 00)
Activates the Stabilization
system. (P.97)
2.7x digital zoom is
available. (P.98)
Adjusts the white
balance according to the
light source. (P.134)
Adjusts the ISO
sensitivity. (P.101)
Obtains the appropriate
exposure by metering
multiple objects. (P.132)
Adjusts the focal point
range with autofocus.
(P.96)
The camera will always
focus automatically.
There is no need to
press the shutter button
halfway. (P.95)
Allows sound record
during movie recording.
(P.122)
Initial setting
SM
ON
OFF
AUTO
AUTO
OFF
NORMAL
OFF
ON
Options when the movie picture record mode is activated.
55
1
Display mode menu list
Still picture display menu
—Shown when a still picture is displayed
Options available when a still picture is displayed.
Menu
page
1/2
2/2
Display
SM/CF
COPY
CARD SETUP
MODE SETUP
Function
Allows you to select the
card you are going to
use. (P. 00)
Runs through all stored
pictures automatically.
(P.127)
Copies all pictures or
selected pictures
between SmartMedia
and CompactFlash.
Dubs sound onto
recorded pictures.
(P.139)
Adjusts sound volume of
pictures. (P. 00)
Erases all frames
(P. 78) and formats the
card (P. 42).
Change the camera to
your desired setting.
[ Mode setting menu
(P. 144)
Initial setting
SM
2
56
1
Display mode menu list (Cont.)
Options available when a movie picture is displayed.
Menu
page
1/2
2/2
Display
SM/CF
MOVIE PLAY
COPY
CARD SETUP
MODE SETUP
Function
Allows you to select the
card you are going to
use. (P. 00)
Plays back movie
pictures. (P.74)
Copies all pictures or
selected pictures
between SmartMedia
and CompactFlash.
Adjusts sound volume of
pictures. (P. 00)
Erases all frames
(P. 78) and formats the
card (P. 42).
Change the camera to
your desired setting.
[ Mode setting menu
(P. 144)
Initial setting
SM
2
Movie picture display menu—Shown when a movie is
displayed
57
1
How to use this instruction manual
This manual uses various signs and symbols to indicate different types of
information. Please read the following explanation carefully before operating
your digital camera.
Taking photographs at close range - macro mode
This indicates the button, control panel
or viewfinder/monitor indications that
correspond to the function you will use.
You can get as close as 8" to your subject. An approx. 2.4" x 3" subject
can be photographed almost fully within the frame.
1Press several times
until appears on the
control panel.
● To cancel the Macro
mode, press several
times until disappears.
2Take a picture.
2
1
Control panel
Macro
mode
This number shows the order of operation.
Before operation, switch the mode dial until the following signs appear.
If the mode dial's setting signs are not displayed, you can use functions
without setting the mode dial.
58
1
2
RECORD AND DISPLAY
BASICS
This chapter demonstrates how to use your
camera’s basic functions, such as taking
pictures, displaying stored pictures, and
erasing stored pictures. Please read this
section carefully.
2
61
2
● NEVER open the card cover, eject the card, remove the batteries, or pull
the plug when the card access lamp is blinking. Doing so could destroy
stored pictures and prevent storage of pictures you have just taken.
● The camera will enter sleep mode if no operations are performed during a
1-minute period. The camera will activate again as soon as you touch any
switch or button. You can adjust the sleep mode time.(P.159) Please turn
the camera off when you are not planning to use it.
Note:
How to use the viewfinder/monitor
1Press to switch the display to
the monitor.
● When the power is turned on in the
Display mode , the monitor
turns on.
● Is the power on?
● Has the lens cap been removed?
● Is the camera in the sleep mode?
● Is the monitor turned on with the mode?
If nothing appears on the viewfinder:
(Monitor button)
62
Pre-recording check
2
Checking the batteries
When the power is turned on, the
remaining battery power will be
displayed on the control panel. If it is
low, please replace the batteries. If your
batteries are either NiMH or NiCd,
please charge them when their power is
low.
● The timing of each battery level indicator varies depending on the type of
batteries used.
● When the camera is being operated on batteries that are running low, the
camera may emit several short beeps and blink the number of storable
pictures on the control panel after you take a shot or when you turn on the
power. If this happens, the picture you have just taken will not turn out
properly. Replace the batteries and take the picture again.
Note:
Battery check
Control panel
lights and turns off automatically.
The batteries are OK. You are ready to take pictures.
blinks and other indicators on the control panel are displayed
normally.
The battery power is low and the batteries should be replaced. You can
shoot with the remaining power, but the batteries may die soon.
blinks and then turns off after 12 seconds. Other indicators on
the control also go out.
The batteries are dead and should be replaced immediately.
2
Control panel Corrective actions and
indications monitor indications
When there is no card in the camera: The card
error indicator on the monitor blinks and NO CARD
appears on the viewfinder.
[Insert the card.
When there is a problem with the card: An error
sign appears with the blinking card error indicator
and CARD ERROR appears on the monitor.
[Format the card or use a new card.
When the card needs to be formatted: The card
error indicator turns on in the monitor and the card
format confirmation screen appears on the
viewfinder.
[Format the card (P.42).
Select with the Arrow pad
and press the OK button to
enter the card format menu
(P.42).
When formatting is complete,
the monitor will switch
screens and display the
subject that you are shooting.
OK
ENTER
CARD SETUP
[
SM
]
OFF
63
Checking the card—Card check
When the power is turned on, the camera checks the card.
Card error
65
2
Number of storable pictures
The number of storable pictures and recording time remaining will vary
depending on the selected recording mode or remaining card storage. Preset
print or sound recording will also aect memory capacity.
Number of still pictures that can be taken
Record mode
Number of
pixels
Memory capacity
(Image only/Image with sound)
File
8MB 16MB 32MB 64MB
1360x1024
1280x960
1024x768
640x480
1360x1024
1360x1024
1280x960
1/–
2/–
3/–
8/–
7/5
21/15
8/8
24/22
13/12
38/32
32/29
82/61
3/–
4/–
6/–
17/–
15/11
43/30
17/16
49/45
26/25
76/66
66/58
165/123
7/–
8/–
13/–
34/–
30/22
86/60
34/33
99/90
53/51
153/132
132/117
331/248
15/–
17/–
27/–
68/–
61/44
173/120
69/67
199/181
107/102
306/265
265/234
664/498
TIFF*
SHQ
HQ
SQ
TIFF
JPEG
HIGH (quality)
NORMAL
HIGH (quality)
NORMAL
HIGH (quality)
NORMAL
1024x768
640x480
* If the recording mode is set to TIFF, sound will not be recorded with a
picture when the Mode dial is set to P, A, S, or M, but it can be added later
during playback. (p. 139)
The number of seconds that you can record movie pictures:
Longest continuous recording time per movie frame (Image only/Image with sound)
Record mode
Number of pixels
Memory capacity
4MB 8MB 16MB over
320x240
160x120
11/11
52/10
23/23
105/20
36/35
145/24
SQ
HQ
Please refer to P.104 for the recording mode.
Because the amount of data used varies depending on the subject,
more/fewer pictures than the number shown may be photographed.
Even when the memory capacity of SmartMedia and Compact Flash are the
same, the number of pictures that each can store may dier.
The number of storable pictures may not be reduced every time a picture is
taken, or increased when a picture is erased.
Numerical values are approximate.
Note:
Holding the camera
Hold the camera firmly with both hands while keeping your elbows at your
sides to prevent the camera from moving.
Improper
Keep your ngers away
from the lens.
Keep your ngers away
from the ash.
Keep your finger and the strap away from the lens, flash, and AF assist
lamp.
Note:
66
Adjusting the diopter
2
1Turn the Diopter adjustment dial
to see the AF target mark clearly.
Viewnder
P F2.8 1/30 0.0
[
SM
]
AF target mark
1
Proper
Proper
67
2
Using the shutter release correctly
—Pressing fully/halfway
How to press the shutter button and focus
There are 2 steps when releasing the Shutter.
Practice well before actually taking photos.
1Press the shutter button halfway.
● The AF confirmation mark lights and
the camera emits a beep when the
focus and exposure are locked. If the
focus or exposure is not locked, the
AF confirmation mark blinks.
To focus the camera when the
subject of the picture is outside the
AF target mark, use the focus lock.
(P.93)
2Press the shutter button fully to
release the shutter and take a
picture.
● The camera emits a shutter sound
when the shutter is released.
● The card access lamp blinks while
the picture is being recorded.
● You can change the volume of the
beep sound emitted when operating
the camera or cancel the beep. [
Changing the camera warning
sound volume (P. 156)
Press halfway
Shutter button
Press fully
Shutter button
P F2.8 1/30 0.0
[SM]
AF confirmation mark
AF target mark
● Press the shutter button gently using the ball of your finger. If it is pressed
hard, the camera may move and pictures may come out blurred.
Note:
..
When the AF confirmation mark
blinks
Set the camera to the macro mode when
photographing the subject closer than
23.6" (P.90).
Depending on the condition of the
subject, the focus and exposure may be
locked. (See
Subjects that are difficult to
focus on” P.92)
68
2
Recording and display
Taking still pictures and displaying them
1Compose the picture by turning
the camera towards the subject.
● The picture is slightly larger than
scene you viewed through the
viewfinder/monitor.
2Press the shutter button halfway
to lock the focus and exposure.
● The AF confirmation mark will light
up and the camera will beep once.
● If the focus and exposure are not
locked, the AF confirmation mark
blinks. [ Subjects that are
difficult to focus on” (P. 00), “Focus
lock” (P. 00)
● If a subject is not well lit and is
difficult to focus on, the AF assist
lamp will light automatically. You
can also turn off the AF assist lamp
manually if desired. AF[
ILLUMINATOR” (P. 00)
● The easy way to keep your images
in focus all the time. FULL-[
TIME AF” (P. 00)
● When the flash stand-by blinks,
slide (flash switch) to set the
flash. [ “Using the flash Auto
flash” (P. 00)
2, 3
P F2.8 1/30 0.0
[
SM
]
AF confirmation mark
AF target mark
n Taking still pictures
69
2
3Press the shutter button fully to
take a picture.
● A shutter sound means that the
picture was taken successfully.
● The lower image memory gauge
will light up and the camera will
begin storing the image onto the
card.
● Pressing (flash mode button)
while holding down the INFO
button will cancel the writing of
recorded pictures to the card. [
Canceling image writing to the card
– SHOT CANCEL (P. 00)
● Soon after displaying the picture
just taken, the viewfinder will again
show the area it is being aimed at.
[ REC VIEW (P. 00)
● Continuous shooting is available if the memory gauge shows there is
space in the card.
● When more than two images are recorded, the center block will light up.
● When the buffer memory is full, the upper block will light up and no
more pictures can be taken.
P F2.8 1/30 0.0
[
SM
]
Number of storable pictures
Memory gauge
..
If you take pictures continuously
The memory gauge will gradually increase as you take pictures. If the
memory becomes full and the memory gauge lights up completely, you
cannot take any more pictures.
One picture taken No recordable space More than one taken
● Recorded pictures will be saved regardless of whether the camera is turned
off or the batteries are replaced.
● NEVER open the card cover, eject the card, remove the batteries, or pull
the plug when the card access lamp is blinking. Doing so could destroy
stored pictures and prevent storage of pictures you have just taken.
Note:
70
Recording and display (Cont.)
2
You can quickly shift from the record mode to the display mode by pressing
. This allows you to check the movie you have just recorded.
1Press twice quickly.
● The monitor will turn on and the
last recorded picture will be
displayed.
● Setting the Mode dial to will
also display recorded pictures.
2All stored pictures in the card can
be displayed by pressing the
Arrow pad.
: Displays the next picture.
: Displays the previous picture.
: Jumps to the picture 10 frames
ahead.
: Jumps to the picture 10 frames
behind.
3Press the shutter button halfway
to return to the record mode.
● The viewfinder will turn on and the
subject will appear on it.
2 1 3
1
n Quick view
72
2
Recording and display (Cont.)
1Use the Quick view to display a
recorded movie (P.73).
2Select images with the mark
using the Arrow pad.
3Press (Menu button).
● The menu screen will appear.
4Select MOVIE PLAY, then press
to select START.
● Press the menu button to cancel.
2, 4
3
[
1 / 2
]
SM/CF
COPY
[
SM
]
MOVIE PLAY
START
m Displaying movies
74
2
Protection
You can prevent accidental erasure of pictures you want to keep.
1Set the mode dial to .
● The card access lamp will blink and
a list of stored images will be read
out. After that, the last recorded
picture will be displayed.
2Display the picture you want to
protect. (Single image display (P.124),
Close-up display (P.126), and Index-
display (P.125).)
3Press the OK button. The
displayed picture will then be
protected.
will appear on the monitor.
To cancel protection:
Press the OK button a second time
while the picture is displayed.
will disappear and the protection will
be cancelled.
● The protected picture will not be deleted with All-Frame erase, but will be
deleted with Card format.
● Protection is not available when the write-protect adhesive seal is placed on
the card.
● The setting will remain until it is readjusted.
Note:
2 1
3
10
75
2
Erasing images
Unwanted images can be erased using the same process for both still images
and movies. Before erasing, make sure that the protection seal has been
removed from the card and other image protection settings on the camera
have been cancelled.
1Set the mode dial to .
● The card access lamp will blink and
a list of stored images will be read
out. After that, the last recorded
picture will be displayed.
2Select the images you want to
erase using the Arrow pad.
3Press (Erase button) .
● A message asking you to confirm
the erasure will appear.
4Make sure that YES is selected,
then press the OK button.
● The selected images will be
erased.
To cancel:
Press on the Arrow pad to select
NO, then press the OK button or
(Erase button).
● NEVER perform the following acts while erasing pictures. They may destroy
data stored in the card.
Open the card cover
Eject the card
Remove the batteries
Pull the plug
Be aware of the following!
Single frame erasure
2 1
4
3
OK
YES NO
NO
YES
[
SM
]
Confirmation screen
76
Erasing images (Cont.)
2
All-frame erasure
1Set the mode dial to .
● The card access lamp will blink and
a list of stored images will be read
out. After that, the last recorded
picture will be displayed.
2Press (Menu button).
● The menu screen will be displayed.
3Select CARD SETUP, then .
4Press the OK button.
● A message asking you to confirm
the erasure will appear.
To cancel:
Press on the Arrow pad to select
NO, then press the OK button or
(Erase button).
5Make sure that YES is selected
and press the OK button.
● All of the images stored in the card
will be erased.
3 1
4, 5 2
[
2 / 2
][
SM
]
CARD SETUP
MODE SETUP
Still image erasure menu screen
OK
YES NO
NO
YES
[
SM
]
Confirmation screen
77
2
Telephoto/Wide-angle shooting—Zoom
You can select telephoto or wide-angle with the 10x zoom. When SUPER
TELE in the menu is turned ON (P.98), 27x zoom is available with the 2.7x
digital zoom.
When you take a picture from a
distance (telephoto):
Press the zoom lever toward T to zoom
in.
When you take a picture at close
range (wide-angle):
Press the zoom lever toward W to zoom
out.
m The speed of the zoom-in/out can be
adjusted by changing the angle of the
zoom lever.
P F2.8 1/1000
P F2.8 1/1000
[
SM
]
[
SM
]
Wide
Tele
Slow
Quick
● When recording movies while zooming, images may become jittery.
Note:
80
2
3
SHOOTING PICTURES
CONSECUTIVELY
3
82
Shooting pictures consecutively at high speed
—Sequential mode
3
Selecting the Sequential mode
Use this mode to take pictures in sequence. When the shutter release button
is held down, the camera will take pictures in sequence. Picture-taking will
stop when you release your finger from the button. The Sequential mode is
not available if the record mode is set to TIFF. Press to change the
function of this mode. The sequential mode includes:
Single-picture Shooting : Takes only one picture when you press the
shutter button. (Initial setting) There is no display on the control panel.
Sequential Shooting : Takes pictures in sequence. Focus, brightness
(exposure), and white balance are locked at the first frame. The number
of still pictures that can be stored depends on the selected speed. The
approximate number is shown below.
AF sequential Shooting : Takes pictures in sequence. Focus,
brightness (exposure), and white balance are metered and adjusted in
each frame. The number of still pictures that can be stored depends on
the selected speed. The approximate number is shown below.
Self-timer/remote-control : Takes pictures with the self-timer/remote-
control. See P.119 to 121 for further information.
Auto bracket :Takes pictures in sequence. The number of pictures
can be selected. Brightness (exposure) and/or white balance is metered
in each frame. Focus is locked at the first frame. See P. 000 for further
information.
Record mode Number of still pictures that can be stored
TIFF Not available.
SHQ 00
HQ 00
SQ (640 X 480) 00
84
3
Shooting pictures in sequence at high speed
—Sequential mode (Cont.)
Sequential shooting speed is the number of frames per second. 4 speeds are
available.
1Press (Menu button).
● The menu is displayed.
2Press on the Arrow pad to
select , then press .
3Press to select the desired
setting (see below), then press the
OK button.
● Setting: 3, 5, 7.5, 15
● Pressing the OK button again
saves the setting and restores the
normal screen.
● The selected speed is displayed in
the viewfinder/monitor (however,
the speed is displayed on the
control panel only when 15 is
selected). When a speed other
than 15 is selected, is
displayed on the control panel.
4Take pictures.
● It is possible to cancel recording of
pictures remaining in the camera
onto the card.[ SHOT CANCEL
(P. 00)
Selecting the sequential shooting speed
Control panel
Sequential shooting speed
Unless OFF is selected in ALL RESET, the setting will be canceled when the
power is turned off. (P. 00)
Note:
2, 3
31
[
1 / 5
]
F2.8 1/800 0.0
P
SM/CF
WB
[
SM
]
3
5
7.5
15
PRE-CAPTURE
85
3
Normally, when you press the Shutter button all the way down, a picture will
be taken. However, the picture cannot be recorded at the same time as the
Shutter button is pressed down. With Pre-capture, pressing the Shutter button
halfway starts picture capture, and pressing it all the way records pictures. In
other words, it is possible to capture pictures just before pressing the Shutter
button all the way. It is also possible to set the number of pictures to be
captured in Pre-capture mode.
1Press (Menu button).
● The menu is displayed.
2Press on the Arrow pad to
select PRE-CAPTURE, then press
.
3Press to select ON, then
press .
4Press to select the number of
pictures you wish to capture (see
below), then press the OK button.
Set the number of pictures you
want to pre-capture under the
number of storable still pictures.
Setting: x1, x2, x3, x4, x5
5Press the OK button repeatedly
until the menu disappears.
Control panel
Pre-capture
Recording pictures just before shutter release
—Pre-capture
● Pre-capture is not available during Auto bracketing .
● Unless OFF is selected in ALL RESET, the setting will be canceled when
the power is turned off. (P. 00)
Number of storable still pictures
2, 3, 4
4, 5 1
[
1 / 5
]
F2.8 1/800 0.0
P
SM/CF
WB
[
SM
]
X1
X2
X3
X4
X5
OFF
ON
PRE-CAPTURE
[
1 / 5
]
F2.8 1/800 0.0
P
SM/CF
WB
[
SM
]
PRE-CAPTURE
X1
X2
X3
X4
X5
OFF
ON
Note:
With sequential shot display (P. 00), an indication appears to show that the
frame currently displayed represents the sequence. You can move from this
frame to subsequent frames.
Sequential shots are pictures recorded in the following modes:
– Sequential mode
Auto bracketing
– Pre-capture shooting
1Display sequential shots (pictures
with ) in the single image
display mode (P. 00) or in the
index display mode (P. 00).
An indication appears to show
that you are moving to
subsequent frames.
● A representative frame is displayed.
When sequential shots are
displayed in the index display
mode, the indication is the same as
in the single image display mode.
2Press to display other
frames following the representative
frame.
3Press . The screen returns
to the shot displayed in step 1.
● To display non-sequential shots,
select them on this screen.
86
Displaying sequential shots
3
2, 3
Single image display
[
SM
]
EXTEND DRIVE
[
SM
]
1236
1243
1242
1244
EXTEND DRIVE
[
SM
]
1236
1238
1237
1239
BACK DRIVE
Representative frame
Frames following the representative frameIndex display
4
DIFFERENT SHOOTING
OPTIONS TO SUIT
EVERY APPLICATION
4
88
Taking pictures under different conditions
4
Taking portrait pictures
A portrait-style photograph features an in-focus subject against a blurred
background. Your camera oers two dierent ways of achieving this eect.
mWith the mode dial set to S-Prg,
select S-Prg in the Menu (P.
86).
Focus on the subject. Exposure is
adjusted automatically according to the
conditions.
mSet the mode dial to “A”, then manually
set the aperture to a lower value. (P. 87)
By decreasing the aperture value, you will
force the camera to focus within a smaller
range, producing a picture with a blurred
background.
Taking pictures of moving subjects
If the subject of your photograph is moving quickly such as athletes in a
sports scene or fast-moving vehicles, you can adjust the shutter speed to
capture the action without blurring or to heighten the sense of movement by
blurring the action. To capture fast-moving action precisely without blurring,
set the shutter speed to higher value. On the other hand, if you want your
photograph to have a sense of motion, set the shutter speed to a lower value.
This will blur the main subject, while the background remains clear.
Your camera oers two dierent ways of achieving these eects.
mWith the mode dial set to S-Prg,
select S-Prg in the Menu
(p.86).
Focus on the subject. Exposure is
adjusted automatically according to the
conditions.
mSet the mode dial to “S”, then select the
shutter speed manually (p.88).
89
4
Taking pictures focusing on both
subject and the background
For example, if you want to take a picture with a beautiful background when
you are on travel, you will want to have both your subject and the background
in focus.
Your camera oers two dierent ways of achieving this eect.
mWith the mode dial set to S-Prg,
select S-Prg in the Menu
(p.86).
Focus on the subject. Exposure is
adjusted automatically according to the
conditions.
mSet the mode dial to “A”, then set the
aperture manually to a higher value.
(p.87)
Increasing the value forces your camera to
focus over a wider range to the
forward/backward directions, resulting in a
picture in which both the subject and the
background are in focus.
91
4
Using the scene program (S-Prg) mode
1Press to display the Menu.
You can display the menu
regardless of the mode selected by
the mode dial (P, A, S, M, S-Prg).
2Press on the Arrow pad to
select “S-Prg”, then press .
3Select the desired S-Prg mode
from , , , , then
press the OK button. (p.82-84)
4Press the OK button again.
The settings will be stored in
memory, and the Menu will
disappear.
5Take a picture.
You cannot set the aperture or shutter speed manually in S-Prg mode.
Note:
2, 3 5
3, 4 1
[
5 / 5
]
F2.8 1/800 0.0
P
ISO
[
SM
]
S-Prg
MODE SETUP
92
4
Setting the aperture—Aperture priority mode
1Set the Mode dial to “A”.
Aperture setting is displayed in
green.
2Select on the Arrow pad to
select the aperture.
: Increases the value.
: Decreases the value.
If you set the Mode dial to A” when the ISO speed is set to AUTO, ISO
speed is automatically set to 100.
When the built-in ash is activated, you cannot set the shutter speed to 1/30
sec. or slower when the zoom lever is set to the maximum position of W”,
and 1/200 sec. or slower when the zoom lever is set to the maximum
position of “T”.
Unless OFF is selected in “ALL RESET”, the setting will be canceled and
reset to o when the power is turned o. (p.148)
Note:
You can set the aperture manually in the Aperture priority mode. This is
especially useful for taking portrait pictures with blurred backgrounds.
Zoom position Range of the value
Wide (W) F2.8 – F8.0
Tele (T) F3.5 – F8.0
. .
When the aperture indication
appears in red on the display
The aperture indication appears in red
when the aperture setting is unsuitable
for the conditions. Ä appears beneath
the aperture indication when the
aperture is too large, and appears
when the aperture is too small (see
illustration on the right). Adjust the
aperture to the optimum setting
according toÄ ¶/ ” on the display.
2 1
A F2.8 1/800
1/800
1/800
1/800
1/800 0.0
[
SM
]
A F8.0 1/800
1/800
1/800
1/800
1/800 0.0
[
SM
]
Aperture
Down exposure
93
4
Setting the shutter speed—Shutter priority mode
1Set the Mode dial to “S”.
Shutter speed appears on the
display.
2Press on the Arrow pad to
select the shutter speed.
: To increase shutter speed.
: To lower shutter speed.
Shutter speed range:
2 to 1/10000 (sec)
If you set the Mode dial to S” when the ISO speed is set to AUTO, ISO
speed is automatically set to 100.
When the exposure setting is unsuitable, the aperture display will blink and
” (overexposure) or “Ä” (underexposure) will appear on the display.
Unless OFF is selected in “All Reset”, the setting will be canceled and reset
to o when the power is turned o. (p.148)
Note:
You can set the shutter speed manually in the Shutter priority mode. Set the
shutter to a fast speed to capture a moving object. Set it to a slow speed to
express motion.
..
When the shutter speed indication
appears in red on the display
The shutter speed appears in red when
the shutter speed is not suitable for the
conditions. Ä appears beneath the
shutter speed indication when the
shutter speed is too high, and
appears when the shutter speed is too
low. Adjust the shutter speed to the
optimum setting according to Ä ¶/ on
the display.
Shutter speed
2 1
S F2.8
F2.8
F2.8
F2.8
F2.8 1/800 0.0
[
SM
]
94
4
Setting the aperture and shutter speed
—Manual recording
1Set the mode dial to “M”.
The aperture and the shutter speed
appear on the display.
2Press on the Arrow
pad to select the aperture and the
shutter speed.
: Increases the aperture
: Decreases the aperture
: Makes faster the shutter speed
: Makes slower the shutter speed
If you set the Mode dial to M” when the ISO speed is set to AUTO, ISO
speed is set to 100 automatically.
Unless OFF is selected in “All Reset”, the setting will be canceled and reset
to o when the power is turned o. (p.148)
Note:
You can set the aperture and the shutter speed manually in the Manual
mode. To check the exposure, refer to the exposure differential on the
display.
..
Aperture dierential
The difference (ranging from 3.0 to
+3.0) between the exposure determined
by the currently selected aperture and
shutter speed compared to the exposure
level considered optimal by the camera
appears in the upper right-hand corner
on the screen.
When is pressed, the aperture
differential appears at the bottom of the
screen indicated with the bar. Pressing
the Shutter button halfway allows you to
stop the indicator on the bar when the
exposure differential is determined by
the camera.
When the exposure is set to less than
–3.0 or more than +3.0, the aperture
differntial appears in red on the display.
Aperture
Shutter speed
Aperture
dierential
2 1
M F2.8 1/800 3.0
[
SM
]
M F2.8 1/800
[
SM
]
When the bar is displayed
95
4
1Press to display on the
control panel.
To cancel the Macro mode, press
the Macro button repeatedly until
the goes off on the control
panel.
2Take a picture.
Taking close-up pictures—Macro mode
When you use the flash in the Macro mode, the flash may not have the
proper eect. Conrm the result on the display.
Unless OFF is selected in “All Reset”, the setting will be canceled and reset
to o when the power is turned o. (p.148)
Note:
Use the Macro mode to shoot subjects at close range. You can get as close
as 4 inches to your subject (when the zoom lever is set to W to the
maximum position), allowing you to ll the entire frame with your subject.
Each time you press , “ ” goes on and o.
Control panel
Macro mode
Mode/Control panel Shooting range
No Macro (No indication) Approx. 23.6" to (factory preset)
Macro ( ) Approx. 3.9" to 23.6"
Macro mode shooting range when using the Zoom lever
WIDE (W) TELE (T)
Macro mode: 3.9" to 23.6" Macro mode: 3.25 ft to 6.5 ft
No Macro mode: 23.6" to No macro mode: 6.5 ft to ∞ ∞
21
96
4
Use a tripod to x the camera securely.
1Press until (self-
timer/remote control) is displayed
on the control panel.
2Press the shutter button.
The self-timer lamp on the front of
the camera will light up for approx.
10 seconds. Then, the lamp will
blink for approx. 2 seconds and the
shutter will be released.
In the mode, movie recording
starts. To stop recording, wait until
the camera stops recording (i.e.
until maximum continuous
recording time passes), or press
the Shutter button.
To stop the self-timer:
Press .
Taking pictures using the self-timer
12
Control panel
Self-timer/remote control
Self-timer lamp
The self-timer/remote control mode will be cancelled once self-timer
shooting is complete.
Note:
97
4
You can shoot and display pictures using the remote control. (P. 76) Before
use, attach the camera to a tripod securely.
1Press until (self-
timer/remote control) appears.
1
Control panel
Self-timer/Remote Control
Taking pictures using the remote control
98
Taking pictures using the remote control (Cont.)
4
2Compose the p icture, aim the
remote control at th e remote
control receiver on the camera,
then press the shutter button on
the remote control to take the
picture.
The self-timer lamp will blink.
3
When the mode dial is set to P, A,
S, M, or S-Prg...
Press the shutter button on the
remote control.
The self-timer lamp will blink and
the shutter will be released in
approx. 3 seconds.
When the mode dial is set to
(movie),
press the shutter button
on the remote control.
The self-timer lamp will blink and
the shutter will be released in
approx. 2 seconds. Recording will
then start. To stop recording, press
the shutter button. The card will
then begin storing the picture data
taken so far.
..
When the remote control does not
work
If the self-timer lamp does not blink
when the shutter button on the remote
control is pressed, get closer to the
camera and try it again.
If the self-timer lamp does not blink,
there may be frequency interference.
Change the remote control's frequency
according to its instruction manual.
9.8ft
9.8ft
16.4ft
15°15°
Self-timer lamp
Remote control receiver
Working distance may be reduced in brightly lit areas, such as direct
sunlight.
Do not expose the remote control receiver to bright light.
The self-timer/remote control mode will not be cancelled when shooting is
nished.
Note:
5
RECORD MODE
SELECTION
5
5
100
Selecting the record mode/picture size
Select the desired record mode.
With the mode dial set to P, A, S, M or S-Prg (for still pictures)
You can select from TIFF, SHQ, HQ and SQ. Image quality increases in the
order of SQ[HQ SHQ[ [TIFF. These modes are suitable for telephoto
pictures. Pictures shot in the SHQ or TIFF mode take longer to record and
play back than picture shot in SQ and HQ.
With the mode dial set to (for motion picture recording)
You can select from HQ and SQ. The image quality increases in the order of
SQ[HQ.
1Press to display Menu.
2Press on the Arrow pad to
select , then press .
3Press to select the image
quality, then press the OK button.
File size and compression rate
values can be selected for TIFF
and SQ. (P. 153-155)
Pressing the OK button again
stores the setting and restores the
normal screen.
2, 3
1
[
5 / 5
]
F2.8 1/800 0.0
P
ISO
[
SM
]
S-Prg
MODE SETUP
TIFF
SHQ
HQ
SQ
Menu (still picture recording mode)
Control panel
Record
mode
101
5
..
Default resolution and compression rate settings
Refer to the table below for image quality factory presets.
For TIFF mode, you can select the resolution. For SQ mode, you can select
the resolution and compression rate (p.154).
[Setting picture size for TIFF recording —TIFF (p.96), Setting the picture
size/record mode for SQ recording — SQ (p.97)
In the mode, you can select how many frames to capture (frame rate).
[RATE (P. 00)
Still picture recording
Record mode TIFF SHQ HQ SQ
[NORMAL]
Resolution 1360 x 1024 640 x 480
pixels pixels
Uncom- Low- Standard Standard
Compression pressed Compression JPEG JPEG
JPEG
Record mode Frame rate (frame/sec.)
Resolution
HQ 640 x 480 pixels30
SQ 30 320 x 240 pixels
The number of pictures that can be stored or the number of seconds of
motion recording varies according to the recording mode. (P. 63)
Unless OFF is selected in All Reset, the setting will be canceled when the
power is turned o (p. 148).
Note:
Movie recording
5
102
Setting picture size for TIFF recording—TIFF
The setting remains in eect until it is changed again.
Note that the higher the quality of image, the longer it takes to record and
display, and the fewer the number of images that can be taken.
Note:
When setting a picture size for TIFF recording, we recommend that you select
a large size if you plan to enlarge the picture for display or printing. The
picture size you select is applied when shooting in TIFF. (P. 104)
1Display the Mode setting screen.
[See How to use the Mod e
Setting Menu Screen 1 – 3” (P.145).
2Press to select “TIFF”, then
press . SETUP will be
displayed. Press the OK button.
The picture size setting screen
appears.
3Press and select your
preferred picture size, then press
the OK button.
Select a picture size from 1360 x
1024, 1280 x 960, 1024 x 768 or
640 x 480.
4Press the OK button and the mode
setting screen disappears.
The Menu screen appears.
5Set the recording mode to “TIFF
on the Menu screen.
[Steps 2 and 3 of “Selecting the
record mode/picture size
(P. 00)
2, 3
2, 3, 4
[
1 / 3
]
SETUP
ALL RESET
TIFF
SQ
[
SM
]
TIFF
1280x 960
1024x 768
640 x 480
1360x1024
[
SM
]
Still Picture Record Menu
103
5
1Display the Mode setting screen.
[See How to use the Mod e
Setting Menu Screen 1 3
(P.145).
2Press to select SQ” , then
press . SETUP will be
displayed. Press the OK button.
The picture size setting screen
appears.
3Press and select a picture
size, then press to go to the SQ
mode.
See the table below for selectable
picture sizes.
SQ Mode
Picture Quality Picture Size File Format
HIGH
1280 x 960
NORMAL
SQ
HIGH
1024 x 768 JPEG
NORMAL
HIGH
640 x 480
NORMAL
2
[
1 / 3
]
SETUP
ALL RESET
TIFF
SQ
[
SM
]
Still Picture Record Menu
You can set both picture quality and size in SQ mode. With “NORMAL”, more
pictures can be stored, while with HIGH, noise generated in JPEG
compression can be reduced.
2, 3
Setting the picture size/record mode for SQ recording
—SQ
5
104
4Press and select “HIGH” or
NORMAL, then press the OK
button to conrm the setting.
5Press the OK button and the mode
setting screen disappears.
The Menu screen appears.
6Set the picture quality to “SQ” on
the Menu screen.
[Steps 2 and 3 of “Selecting the
record mode/picture size
(P. 00)
SQ
1024x 768
640 x 480
1280x 960
NORMAL
HIGH
[
SM
]
SQ
1024x 768
640 x 480
1280x 960
NORMAL
HIGH
[
SM
]
4
4, 5
The setting remains in eect until it is changed again.
Note that the greater the number of pixels, the longer it takes to record and
display, and the fewer the number of pictures that can be taken. (P.63)
Note:
Setting the picture size/record mode for SQ recording
—SQ (Cont.)
6
SHOOTING WITH FLASH
6
107
6
The flash fires regardless of
available light. This mode is useful
for eliminating shadows on the
subjects face or for correcting the
color shift produced by artificial
lighting (especially fluorescent light).
This mode significantly reduces the
phenomenon of “red-eyeby emitting
about 10 pre-flashes before firing the
regular flash. This mode works the
same way as the auto-flash except
for the pre-flashes.
The flash does not fire even in low-
light conditions. Use this mode in
situations where flash photography
is not desired or prohibited, or when
you want to shoot a natural-looking
twilight or night scene. To use this
mode, push the flash back into the
camera.
● Since a slow shutter speed is automatically selected in low-light situations
when in the OFF mode, the use of a tripod is recommended to prevent
blurred pictures caused by camera shake.
Note:
● It takes about 1 sec. before the Shutter is released.
● Effectiveness may be limited if the subject is not looking directly at the
preflashes, or if the shooting range is too far. Individual physical
characteristics may also limit effectiveness.
● The mode is not available when the Mode dial is set to M and S-Prg–Sports.
Note:
● It may not have the desired effect under excessively bright light.
Note:
Red-eye reduction flash
Fill-in Flash (forced activation)
Off (flash override)
1Press (Menu button).
● The Menu screen appears.
2Press on the Arrow pad and
select , then press .
3Point the microphone in the
direction of the sound you want to
record.
● For clear sound, the microphone
should be no further than 1m from
the subject.
4Press the OK button and start
recording.
● Recording time is approx. 4
seconds.
● During recording, a progress bar
appears.
8
154
Adding a sound memo to recorded still pictures
You can add sound to still pictures or change the audio that has already been
recorded,
How to use an external microphone...
Sound can be recorded with an external microphone (optional). Use only
microphones exclusively made for digital cameras.
2
4
31
STRAT
[
1 / 2
]
SM/CF
COPY
[
SM
]
[
SM
]
● Sound recording is not possible with protected images.
● Sound recording is not possible on write-protected cards.
● Sound recording is not possible on a card with inadequate memory.
● When new sound is recorded, the previously recorded sound is erased.
Note:
