Basic Manual

Hookup

Step1: Choose your Speaker Layout .......................................3

Step2: Connect the Speakers ..................................................9

Step3: Connect the TV ..........................................................11

Step4: Connect the AV Components .....................................13

Step5: Multi-zone Connection ...............................................16

Step6: Connect Other Cables ................................................19

Setup

Step7: Power On & Initial Setup ............................................20

HDMI Setup ...........................................................................21

Playback

Basic Playback ......................................................................22

Network Functions .................................................................23

Others ....................................................................................25

Part Names

Front Panel ............................................................................27

Display ...................................................................................28

Rear Panel ............................................................................29

Remote Controller .................................................................30

The Basic Manual includes information needed when starting up and

also instructions for frequently used operations. The Advanced Manual

has more detailed information and advanced settings.

AV RECEIVER

TX-RZ810

> Before start > Hookup > Setup > Playback > Part Names > Advanced Manual

Troubleshooting | Appendix

> Before start > Hookup > Setup > Playback > Part Names > Advanced Manual

Troubleshooting | Appendix

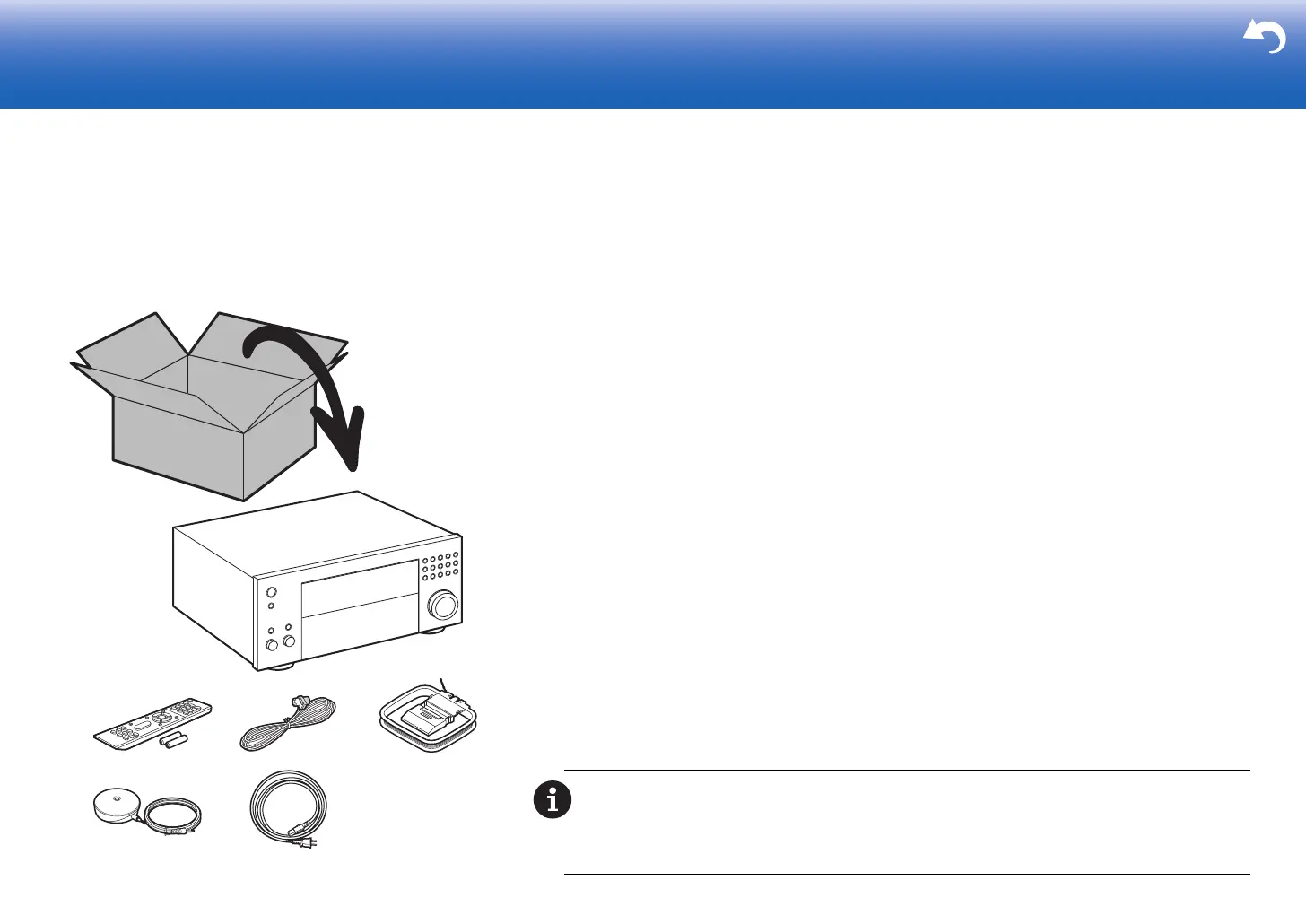

What's in the box

1. Main unit 2. Remote controller (RC-911R)

×1, Batteries (AAA/R03) ×2

3. Indoor FM antenna ×1 4. AM loop antenna ×1 5. Speaker setup microphone ×1

6. Power cord ×1

Main features

This unit is connected between your TV and your AV components. To play, select the source with the input

selector. You can connect 7.1ch of speakers to this unit, with 7ch at 200 W (6 ohms, 1 kHz, 0.9%THD) (North

American models) / 180 W (6 ohms, 1 kHz, 1%THD) (European, Australian and Asian models) per channel plus

pre out jack for powered subwoofer.

$ Conforms to the THX Select2 Plus specification: THX is a series of specifications for the accurate reproduction

of movies propounded by the film director George Lucas. This unit is equipped with a variety of THX technology

to faithfully reproduce according to the sound design envisaged by the movie producer, including surround

modes that take account of factors such as the size and number of speakers, and the differences in

environments between home theaters and movie theaters.

$ Supports playback in Dolby Atmos format which provides 360e sound placement

$ The HDMI jack supports 4K video input and output. Jacks IN1 to 3 and OUT MAIN/SUB support HDCP2.2

$ HDMI CEC functionality: Control features such as linking input switching with the input selector and players

conforming to the CEC standard, switching audio output and volume using the remote controller of a CEC-

compliant TV, and automatically switching this unit to standby when the TV is turned off

HDMI Standby Through: Video and audio signals from AV components can be transmitted to the TV even if this unit is in standby

$ ARC: Connection with an ARC-compatible TV is complete with one HDMI cable

$ Easy Initial Setup using onscreen guidance and On-Screen Display (OSD) showing operations on the TV

$ Internet radio and AirPlay via wired LAN or Wi-Fi (wireless LAN) and network features such as Music Server

that enables PC music file playback, USB playback, plus other playback features such as AM/FM radio and

BLUETOOTH

play

$ Playback formats supported by Music Server and USB include WAV, FLAC and DSD high-res source

Multi-zone Connection which allows you to play in the main room and listen in a separate room (ZONE 2/ZONE 3)

$ Equipped with RS232 port, IR IN jack, and 12V TRIGGER OUT jack

$ We plan to provide support for the DTS:X audio format through a firmware update for this unit. Refer to our

website for more information.

CAUTION:

Connect speakers with 6 Ω to 16 Ω impedance. When connecting speakers to both ZONE 2A and

ZONE 2B (North American models) (



P18), both sets of speakers connected in ZONE 2 should have 8 Ω to

16 Ω impedance. The power cord must be connected only after all other cable connections are completed.

0 We will not accept responsibility for damage arising from the connection of equipment manufactured by

other companies.

Before start

Produktspecifikationer

Varumärke:	Onkyo
Kategori:	mottagare
Modell:	TX-RZ810
Vikt:	14000 g
Bredd:	435 mm
Djup:	395 mm
Höjd:	201.5 mm
Förpackningens bredd:	574 mm
Wi-Fi:	Ja
Ljudformat som stöds:	AAC, FLAC, MP3, WAV, WMA
Frekvensband:	AM, FM
Ljudutgångskanaler:	7.2 kanaler
Internetradio:	Ja
FM-antenn:	Ja
Total harmonisk distorsion (THD):	10 %
Antal HDMI-utgångar:	2
Fjärrkontroll ingår:	Ja
Ingångskänslighet:	200 mV
AirPlay:	Ja
Utgångsimpedans:	2300 Ω
Pre-out anslutning:	Ja
THX-certifierad:	THX Select2
Phono (MM):	1
Produktens färg:	Svart
Antal USB-portar:	1
bruksanvisning:	Ja
Låddjup:	490 mm
Vikt inkl. förpackning:	17000 g
Strömförbrukning (vanlig):	710 W
AC-inspänning:	220-240 V
Frekvensområde:	5 - 1000 hz
Strömingång:	Ja
Effekt per kanal (20-20KHz @ 8 ohm):	- W
Optisk enhet ingår:	Nej
Apple-kompatibel dockningsmöjlighet:	iPad, iPhone, iPod
Växelström Frekvens:	50 - 60 hz
Batterier medföljer:	Ja
Strömförbrukning i vänteläge:	0.15 W
Bluetooth:	Ja
Antal:	1
Ingående kompositvideo:	2
Komponentvideo in (YPbPr / YCbCr):	2
Skärmgränssnitt (OSD):	Ja
DLNA-certifierad (Digital Living Network Alliance):	Ja
Inbyggd ljuddekoder:	DTS-HD Master Audio, Dolby Surround, Dolby TrueHD
Ljudreturkanal (ARC):	Ja
Signal/brusförhållande (SNR):	106 dB
Antalet förinställda stationer:	80
Digital audio optisk, ingående:	2
Digital koaxialingång för ljud:	1
Ljud D/A-omvandlare (DAC):	32-bit/384kHz
FM band:	87.5 - 107.9 MHz
AM band:	522 - 1710 kHz
HDMI-in:	8
Fjärrstyrd (IR) ingång:	1
Analog ljudingång:	7
12V-utlösare:	Ja
Dynamisk effekt per kanal (8 ohm):	150 W
Dynamisk effekt per kanal (4 Ohm):	250 W
Synkroniserad ingångsimpedans:	4700 Ω
Pre-out kanaler:	7.2
Antal 12V trigger-portar:	1
Effekt per kanal (1KHz @ 6 ohm):	180 W
AM-antenn:	Ja
Centrumhögtalarimpedans:	16 Ω
PCM digital audio:	24-bit/192 kHz
Utnivå:	200 mV
Dynamisk effekt per kanal (3 ohm):	300 W
