CONTENTS

AM/FM Radio Receiving Function 2

Choosing the Radio Station 2

Registering Radio Station 2

Using RDS (European, Australian and Asian models) 3

Playing Content from a USB Storage Device 4

Using Remote Controller for Playing Music Files 5

Summary of Operation on Remote Controller 5

Functions of the Buttons of the Remote Controller 5

Icons Displayed During Playback 5

Using the Listening Modes 6

Selecting the Listening Mode 6

Contents of the Listening Modes 7

Checking the Input Source 8

Advanced Settings 9

Setup Procedure 9

1. HDMI Input 10

2. Component (Component Video Input) 10

3. Composite (Composite Video Input) 11

4. Digital Audio (Digital Audio Input) 11

5. Sp Config (Speaker Configuration) 11

6. Sp Distance (Speaker Distance) 12

7. Level Cal (Level Calibration) 13

8. Audio Adjust 13

9. Source Setup 14

10. Hardware (Hardware Setup) 15

11. HDMI Setup 16

12. Bluetooth (Bluetooth Setup) 18

Operating Other Components Using Remote Controller

Functions of Remote Mode Button 19

Programming Remote Control Codes 19

TV operation 20

Blu-ray Disc player/DVD player/DVD recorder

operation 20

VCR/PVR operation 21

Satellite receiver/Cable receiver operation 21

CD player operation 22

Cassette tape deck operation 22

To operate CEC-compatible components 22

Connecting and Operating Onkyo RI Components 23

Summary of RI function 23

RI connection and settings 23

iPod/iPhone Operation 24

Firmware Update 24

Summary of Firmware Update 24

Updating the Firmware via USB 25

Troubleshooting 26

Reference Information 31

TX-SR333

AV RECEIVER

Advanced Manual

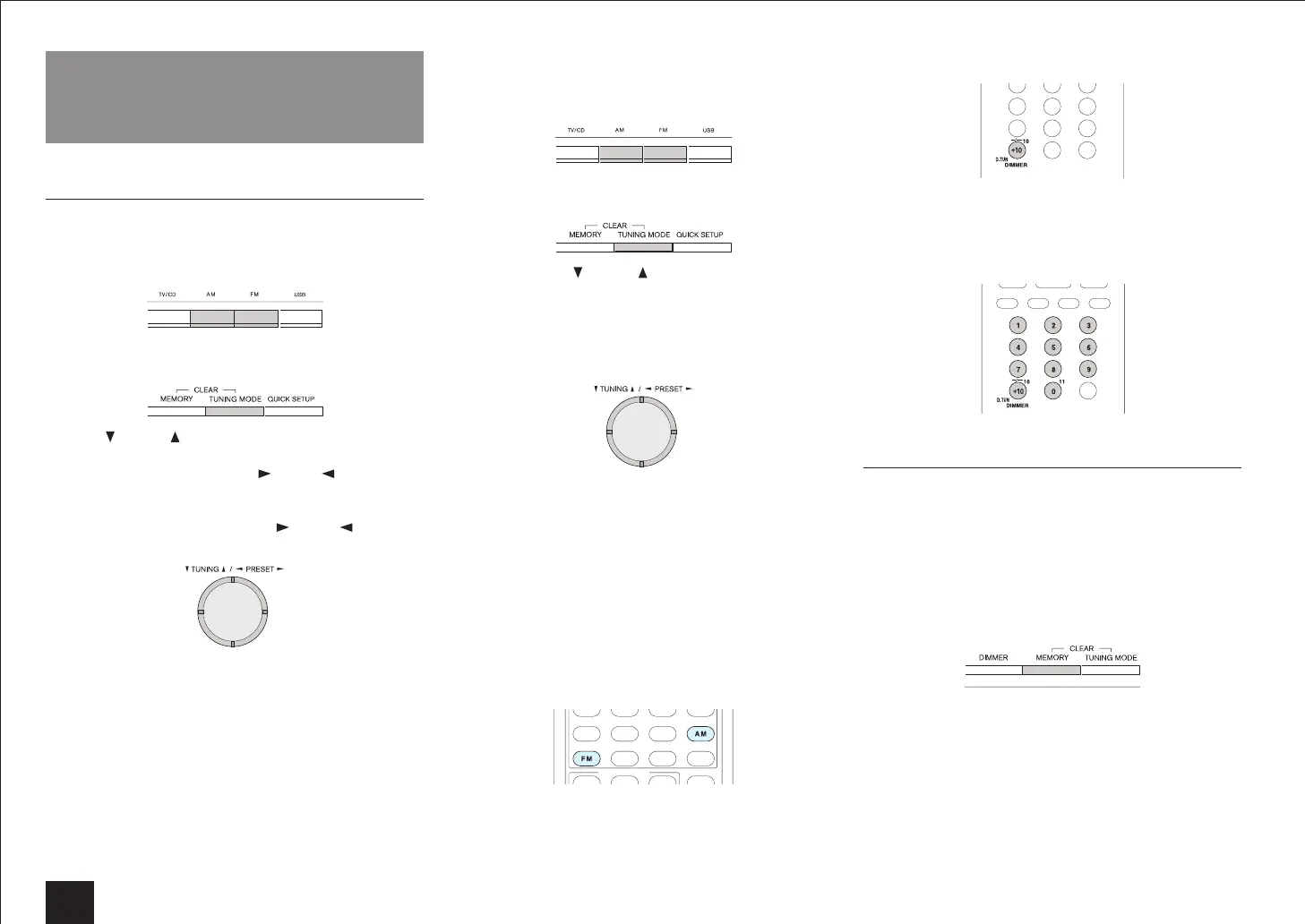

AM/FM Radio Receiving Function

Choosing the Radio Station

■

Tuning into stations automatically

Press AM or FM on the unit to select either "AM" or

"FM".

Press TUNING MODE, so that the "AUTO" indicator on

the display lights.

Press TUNING . The automatic search for a radio

station starts. Searching stops when one is found. When

tuned into a radio station, the " TUNED " lights on

the display lights. If FM stereo broadcasting is tuned, the

"FM STEREO" indicator lights.

⿠

No sound is output while the " TUNED " indicator

is off.

When the signal from an FM radio station is weak:

Depending on the structure of the building and the

surrounding environment, the radio wave condition is

different and it may be impossible to get good reception.

In that case, manually tune into the radio station of your

choice by referring to the next section.

■

Tuning into stations manually

Press AM or FM on the unit to select either "AM" or

"FM".

Press TUNING MODE, so that the "AUTO" indicator on

the display goes off.

Press and hold TUNING to select the desired radio

station.

⿠

The frequency changes by 1 step each time

you press the button. The frequency changes

continuously if the button is held down and stops

when released. Tune by looking at the display.

To return to the method for tuning into stations

automatically: Press TUNING MODE again on the main

unit. FM stereo broadcasting is automatically tuned.

Normally, leave the indicator in "AUTO".

■

Tuning into stations by frequency

It allows you to directly enter the frequency of the radio

station you want to listen to.

Press AM or FM on the remote controller to select either

"AM" or "FM".

Press D.TUN.

Using the number buttons, enter the frequency of the

radio station within 8 seconds.

⿠

For example, to tune to 87.5 (FM), press 8, 7, 5 or 8,

7, 5, 0.

Registering Radio Station

It allows you to register up to 40 of your favorite AM/FM

radio stations. Registering radio stations in advance allows

you to tune into your radio station of choice directly.

■

Registration

Tune into the AM/FM radio station you want to register.

Press MEMORY on the unit, so that the preset number

flashes on the display.

AM/FM Radio Receiving Function

Repeatedly press PRESET to select a number

between 1 and 40 while the preset number is flashing

(about 8 seconds).

Press MEMORY again to register.

⿠

The preset number stops flashing.

⿠

Repeat this procedure for all of your favorite AM/FM

radio stations.

■

Selecting a Preset Radio Station

Press CH +/- on the remote controller to select a preset

number.

⿠

You can also select by pressing PRESET on the

unit. It is also possible to select by directly entering

the preset number with the number buttons on the

remote controller.

■

Deleting a Preset Radio Station

Press CH +/- on the remote controller to select the

preset number to delete.

While holding down MEMORY, press TUNING MODE on

the unit to delete the preset number.

⿠

The number on the display goes off.

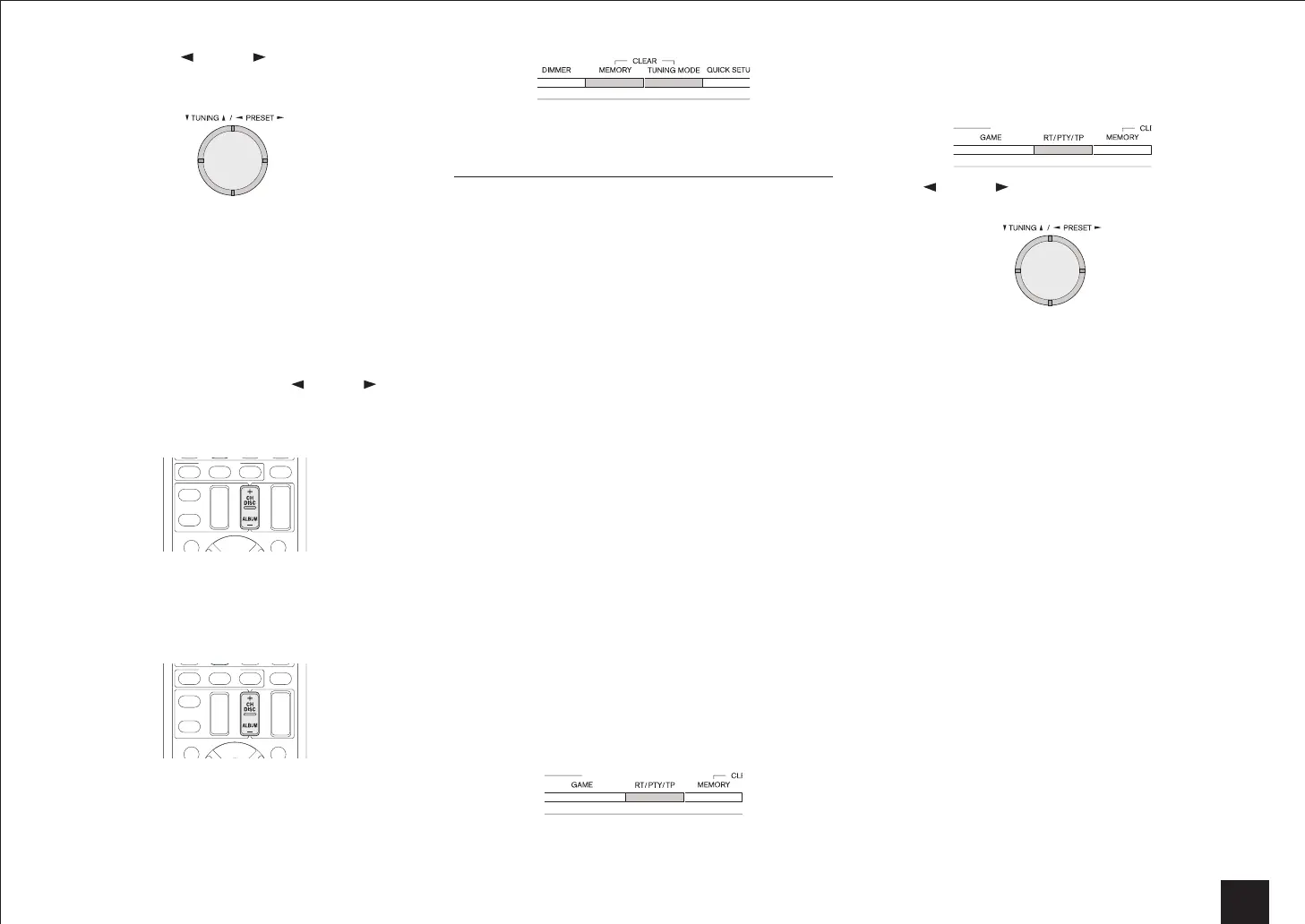

Using RDS (European, Australian and Asian

models)

RDS stands for Radio Data System and is a method of

transmitting data in FM radio signals.

⿠

RDS works only in areas where RDS broadcasts are

available.

⿠

In some cases, the text information appeared on the

display is not identical to the content transmitted by

the RDS station. Furthermore, unexpected characters

may be displayed when the unit receives unsupported

characters. However, this is not a malfunction.

⿠

If the signal from an RDS station is weak, data may be

displayed intermittently or not at all.

PS (Program Service): Tuning into a radio station

transmitting Program Service information displays the

radio station name. Pressing DISPLAY displays the

frequency for 3 seconds.

RT (Radio Text): Tuning into a radio station transmitting

Radio Text information displays text on the display of the

unit.

PTY (Program Type): Allows you to search for RDS

stations by program type.

TP (Traffic Program): Allows you to search for radio

stations transmitting traffic information.

■

Displaying Radio Text (RT)

Press RT/PTY/TP on the unit once.

⿠

RT (Radio Text) is displayed scrolling across the

unit's display. "No Text Data" is displayed when the

radio station is not transmitting text information.

■

Searching by Type (PTY)

Press RT/PTY/TP on the unit twice.

⿠

The current program type appears on the display.

Press PRESET to select the type of program to

search for.

⿠

The following RDS station types are displayed:

None

News (News reports)

Affairs (Current affairs)

Info (Information)

Sport

Educate (Education)

Drama

Culture

Science (Science and technology)

Varied

Pop M (Pop music)

Rock M (Rock music)

Easy M (Middle of the road music)

Light M (Light classics)

Classics (Serious classics)

Other M (Other music)

Weather

Finance

Children (Children’s programmes)

Social (Social affairs)

Religion

Phone In

Trave l

Leisure

Jazz (Jazz music)

Country (Country music)

Nation M (National music)

Oldies (Oldies music)

Folk M (Folk music)

Document (Documentary)

Produktspecifikationer

Varumärke:	Onkyo
Kategori:	AV-Receiver
Modell:	TX-SR333
Vikt:	8100 g
Bredd:	435 mm
Djup:	321 mm
Höjd:	150 mm
Förpackningens bredd:	537 mm
Wi-Fi:	Nej
Bluetooth-version:	2.1+EDR
Bluetooth-profiler:	A2DP, AVRCP
Ljudformat som stöds:	AAC, FLAC, LPCM, MP3, OGG, WAV, WMA
Frekvensband:	AM, FM
Videolägen som stöds:	1080p, 2160p
Ljudutgångskanaler:	5.1 kanaler
Internetradio:	Ja
FM-antenn:	Ja
Total harmonisk distorsion (THD):	0.7 %
Antal HDMI-utgångar:	1
Fjärrkontroll ingår:	Ja
Ingångskänslighet:	200 mV
Diskantjustering:	Ja
Produktens färg:	Silver
Antal USB-portar:	1
bruksanvisning:	Ja
Låddjup:	416 mm
Vikt inkl. förpackning:	10500 g
Inbyggd kortläsare:	Nej
Kompositvideo ut:	1
Strömförbrukning (vanlig):	330 W
AC-inspänning:	220-240 V
Frekvensområde:	5 - 100000 hz
Nätverksansluten (Ethernet):	Nej
Effekt per kanal (20-20KHz @ 8 ohm):	- W
Mottagartyp:	Surround
Högtalare anslutning typ:	RCA
Optisk enhet ingår:	Nej
Växelström Frekvens:	50 - 60 hz
Batterier medföljer:	Ja
Strömförbrukning i vänteläge:	0.3 W
Garantisedel:	Ja
Bluetooth:	Ja
Manual:	Ja
RDS radio ingår:	Ja
Ingående kompositvideo:	4
Komponentvideo in (YPbPr / YCbCr):	1
Komponentvideo (YPbPr / YCbCr) ut:	1
Inbyggd ljuddekoder:	Dolby TrueHD, DTS-HD, DTS-HD Master Audio
Basnivåkontroll:	Ja
Signal/brusförhållande (SNR):	100 dB
Antalet förinställda stationer:	40
Impedans för satellit-högtalare:	6 Ω
Digital audio optisk, ingående:	1
Digital koaxialingång för ljud:	2
FM band:	87.5 - 108 MHz
AM band:	522 - 1611 kHz
HDMI-in:	6
Fjärrstyrd (IR) ingång:	1
Dynamisk effekt per kanal (8 ohm):	85 W
Dynamisk effekt per kanal (4 Ohm):	125 W
Dämpfaktor:	60
x.v. färgstöd:	Ja
Stöd för Deep Color:	Ja
Effekt per kanal (1KHz @ 6 ohm):	100 W
Antal FM-antenn portar:	1
AM-antenn:	Ja
Antal AM-antenn portar:	1
RDS-egenskaper:	PS, PTY, RT, TP
Centrumhögtalarimpedans:	6 Ω
Video D/A-omvandlare (DAC):	24-bit/192kHz
Utnivå:	100 mV
Dynamisk effekt per kanal (3 ohm):	160 W
