For Technical Support: www.panduit.com/resources/install_maintain.asp

Page 1 of 2

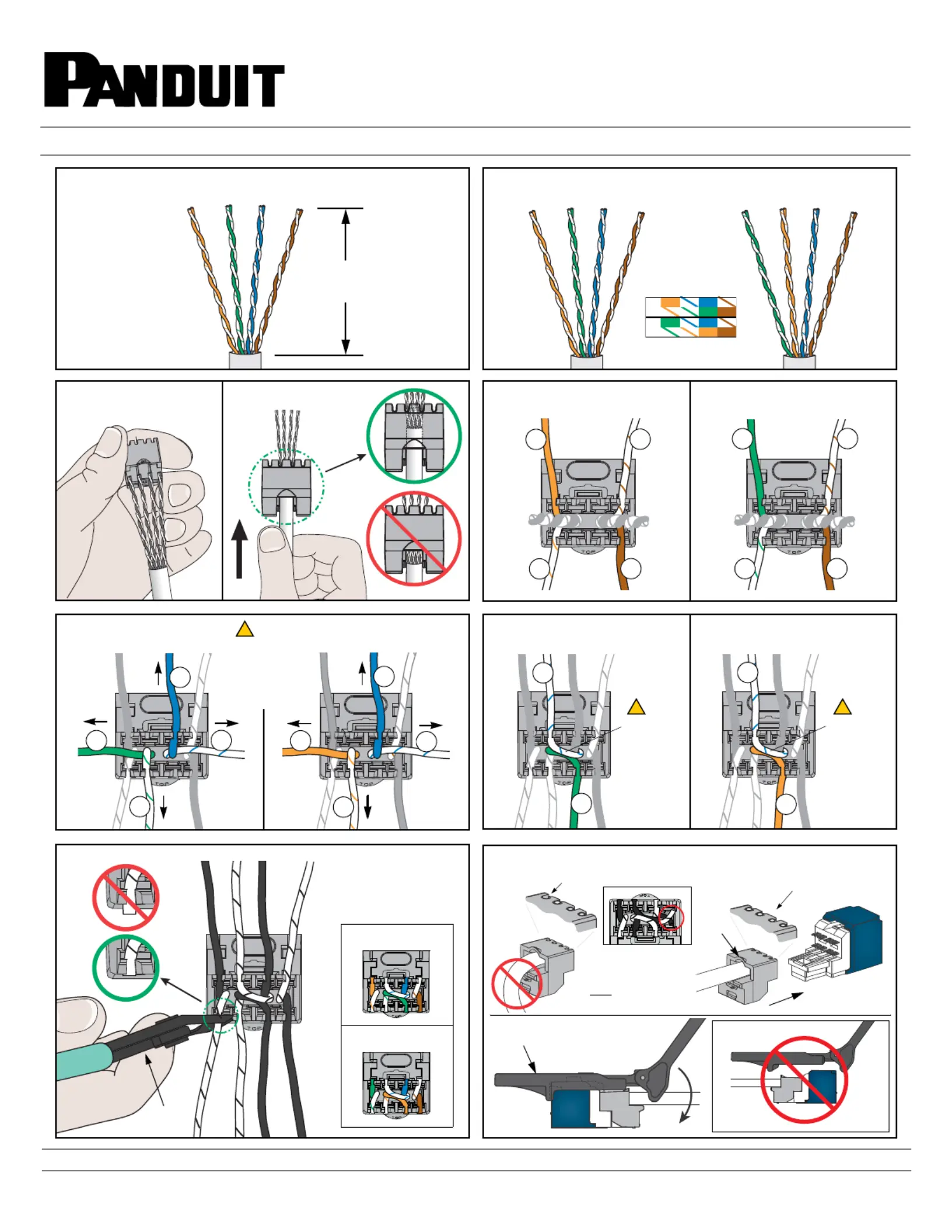

INSTALLATION INSTRUCTIONS

PN307K

** Denotes color.

(25.4mm)

{Not to scale}

DO NOT BEND

CABLE!



“TOP”

CGJT

Note: Bending the cable may cause

conductors to become unsecured

and termination to fail.

Keep cable straight. Verify

conductors are visible and

secured in place.

Mini-Com TX5e and TX6 PLUS

UTP Jack Modules

Part Numbers: CJ5E88T**, CJD5E88T**, CJ688TP**, CJD688TP**, KJ688TP**

T568B T568A

Wiring sequence

T568B T568A

Follow order

carefully so

wires overlap

properly in the

next step.

T568B T568A

Blue/white

wire should

overlap and

be parallel to

green wire

as shown.

Blue/white

wire should

overlap and

be parallel to

orange wire

as shown.

CWST

T568B

T568A

Ensure conductors are

secure in slots before

cutting flush with cap.

E-mail:

techsupport@panduit.com

Phone:

866-405-6654

For Instructions in Local Languages

and Technical Support:

www.panduit.com/resources/install_maintain.asp

Page 2 of 2

INSTALLATION INSTRUCTIONS

PN307K

www.panduit.com

7 8

4 6

5 3

2 1

7 8

4 6

5 3

2 1

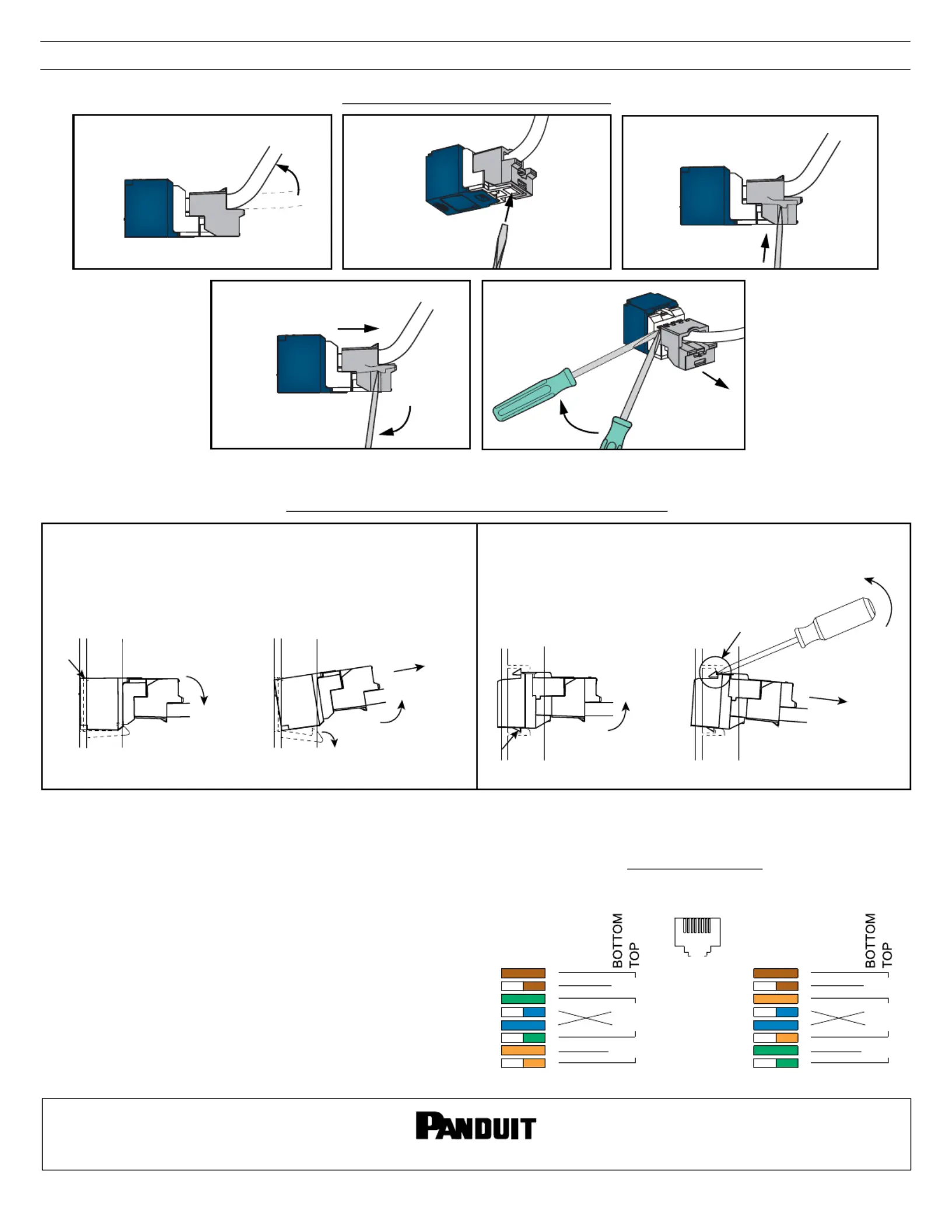

Wiring Sequences

T568A

1 8

Pin #’s

T568B

Notes:

1. For specified performance, follow ANSI/NECA/BICSI-568-2006

installation guidelines.

2. Jack modules can terminate PVC or Plenum rated 22-24 AWG solid or

stranded IWC cable with insulated conductor outside diameter ranging

between 0.035 inch (0.88mm) and 0.048 inch (1.2mm).

3. Jack modules may be re-terminated a minimum of 10 times.

4. For technical and performance information, consult Panduit Technical

Support.

As with all Wiring Accessories, the following statements apply:

1. Never install communications wiring during a lightning storm.

2. Never install communications wiring in wet locations unless the jack is

specifically designed for use in wet locations.

3. Never touch uninsulated communications wiring or terminals unless the

communication line has been disconnected at the network interface.

4. Use caution when installing or modifying communication wiring.

TERMINATION CAP REMOVAL

JACK MODULE INSTALLATION / REMOVAL

Mini-Com style jack modules

Keystone style jack modules

INSTALL REMOVEINSTALL REMOVE

Depress latch

on module

For Technical Support: www.panduit.com/resources/install_maintain.asp

Page 1 of 1

INSTALLATION INSTRUCTIONS

PN580A

(25.4mm)

{Not to scale}

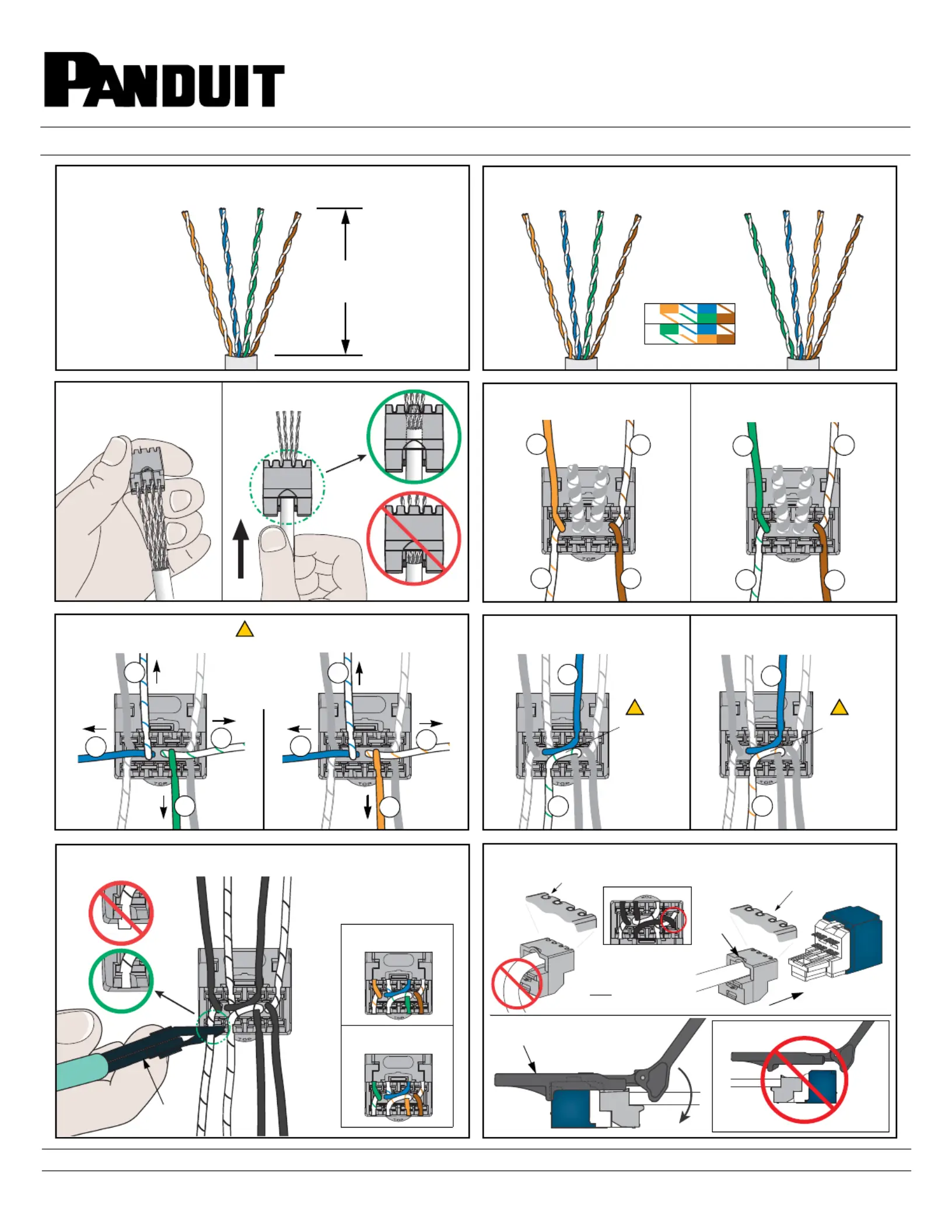

Termination for Right Hand Lay Cable

T568B T568A

Wiring sequence

T568B T568A

Follow order

carefully so

wires overlap

properly in the

next step.

T568B T568A

Green/white

wire should

overlap and

be parallel to

blue wire

as shown.

Orange/white

wire should

overlap and

be parallel to

blue wire

as shown.

DO NOT BEND

CABLE!



“TOP”

CGJT

Note: Bending the cable may cause

conductors to become unsecured

and termination to fail.

Keep cable straight. Verify

conductors are visible and

secured in place.

CWST

T568B

T568A

Ensure conductors are

secure in slots before

cutting flush with cap.
