Sida 1/6
For Technical Support: www.panduit.com
INSTALLATION INSTRUCTIONS
© Panduit Corp. 2024
PN664
Page 1 of 6
MULTIPORT SERVICE TERMINAL
Part Number: P-MST-4D-200, P-MST-4D-500, P-MST-4T-200, P-MST-4T-500,
P-MST-8D-200, P-MST-8D-500, P-MST-8T-200, P-MST-8T-500,
P-MST-12D-200, P-MST-12D-500, P-MST-12T-200, P-MST-12T-500
MST MOUNTING OPTIONS
The Multiport Service Terminal (MST) can be installed using any one of several standard Outside Plant
(OSP) enclosures. However, it doesn’t necessitate an OSP enclosure and can be mounted openly on a
pole or strand. The following describes various mounting options.
HAND-HOLE MOUNTING (below ground)

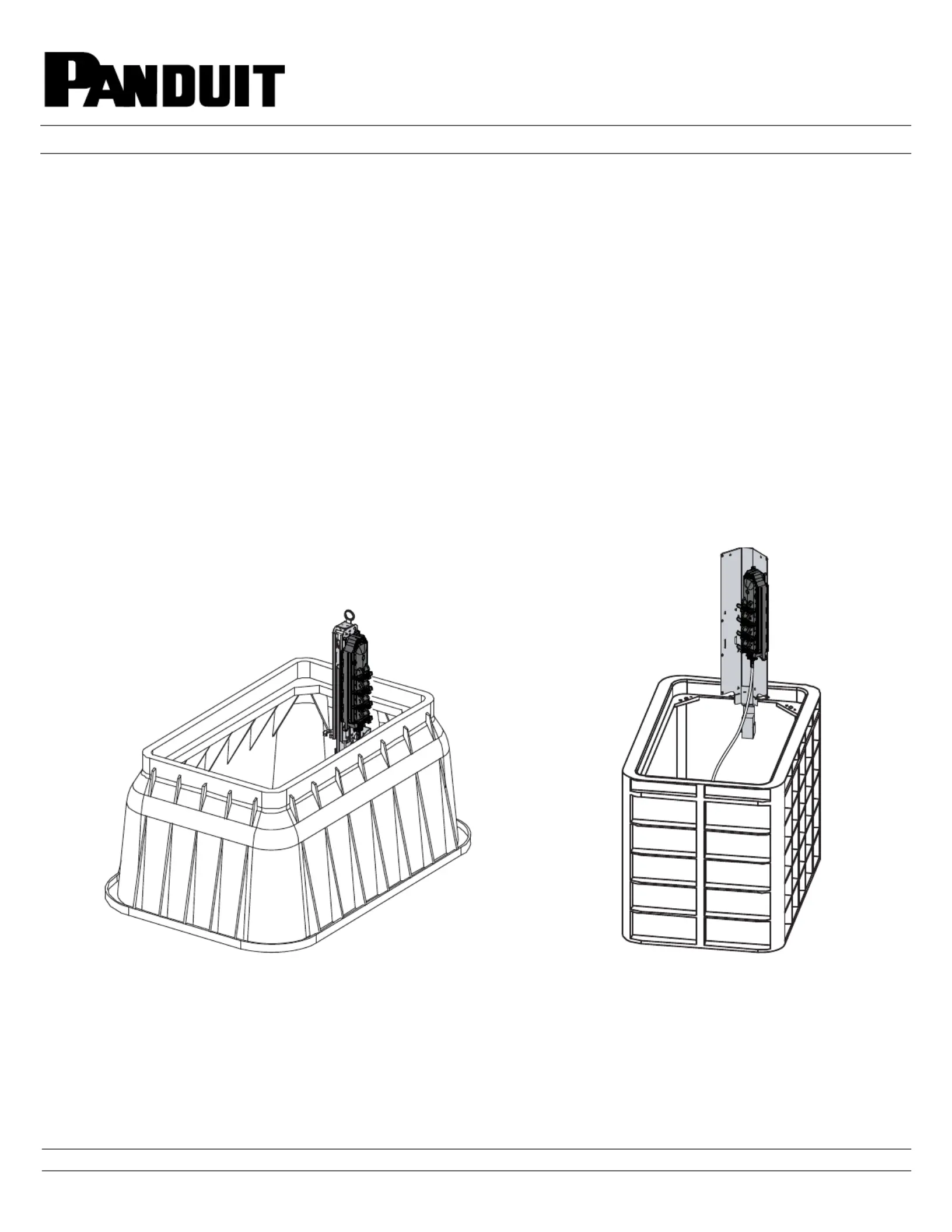

A hand-hole enclosure (Figure 1) an underground muunting option for the MST and similar product,
ensuring a secure installation that aligns flush with the ground surface. The enclosure comprises a base
unit and a top cover. The base unit is securely mounted in the ground, with cables and conduit entering
from the bottom.
Figure 1: Typical Hand-Hole Mounting
For Technical Support: www.panduit.com
INSTALLATION INSTRUCTIONS
© Panduit Corp. 2024
PN664
Page 2 of 6

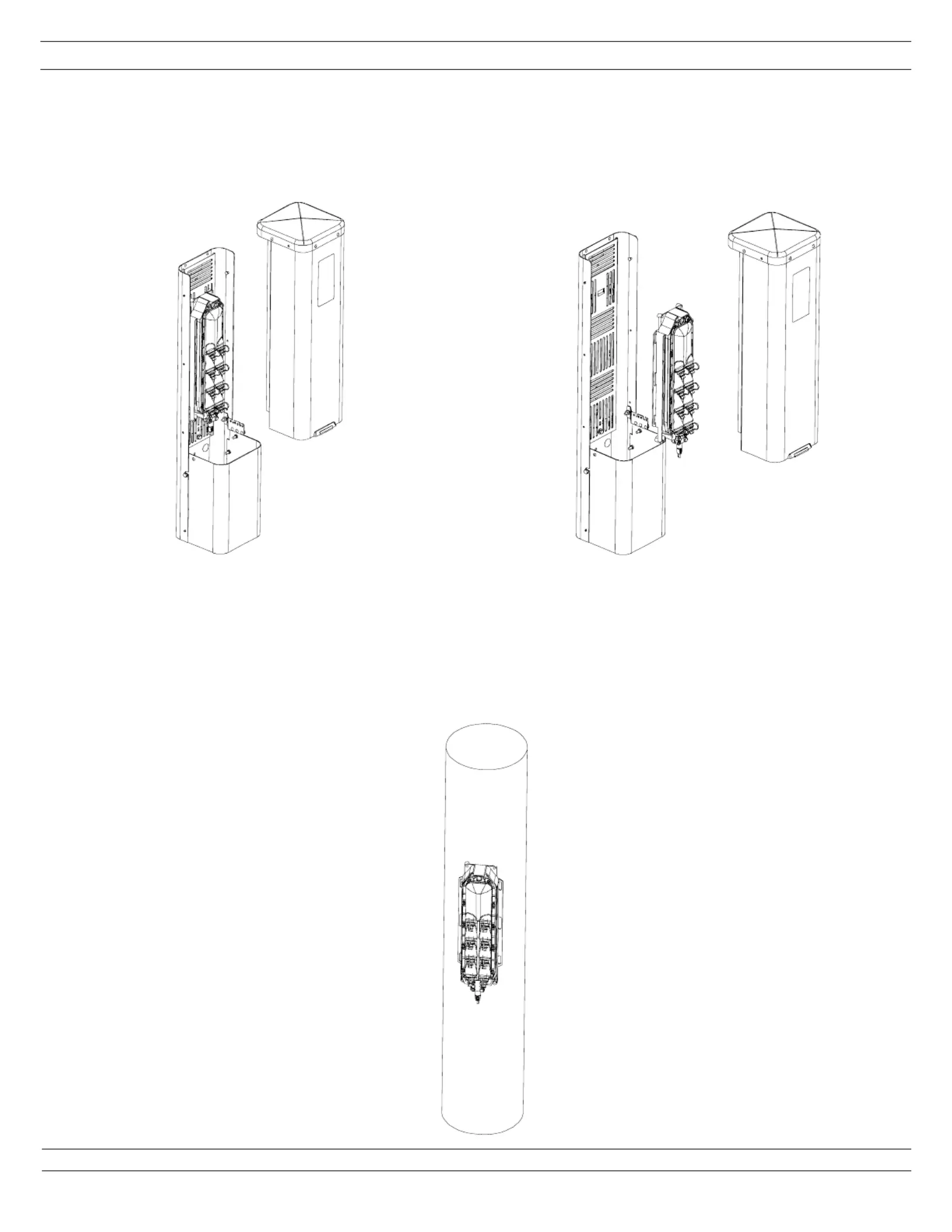

POLE-MOUNTING (aerial)
The MST can be affixed to a utility pole, demonstrated in figure 3. The Multiport Service Terminal Mount-
ing Case (MC) can be secured to the pole using lag screws or construction screws. Apart from these fas-
teners, no additional components are needed for pole-mounting.
Figure 2: Pedestal Mounting
Figure 3: Pole-Mount Installation
Pedestal enclosures, as depicted in Figure 2, offer a solution for installing the MST at ground level. These
enclosures are comprised of a base assembly and a top cover. The base assembly is partially mounted in
the ground, with cables and conduit entering from the bottom.
PEDESTAL MOUNTING (at final grade)
For Technical Support: www.panduit.com
INSTALLATION INSTRUCTIONS
© Panduit Corp. 2024
PN664
Page 3 of 6

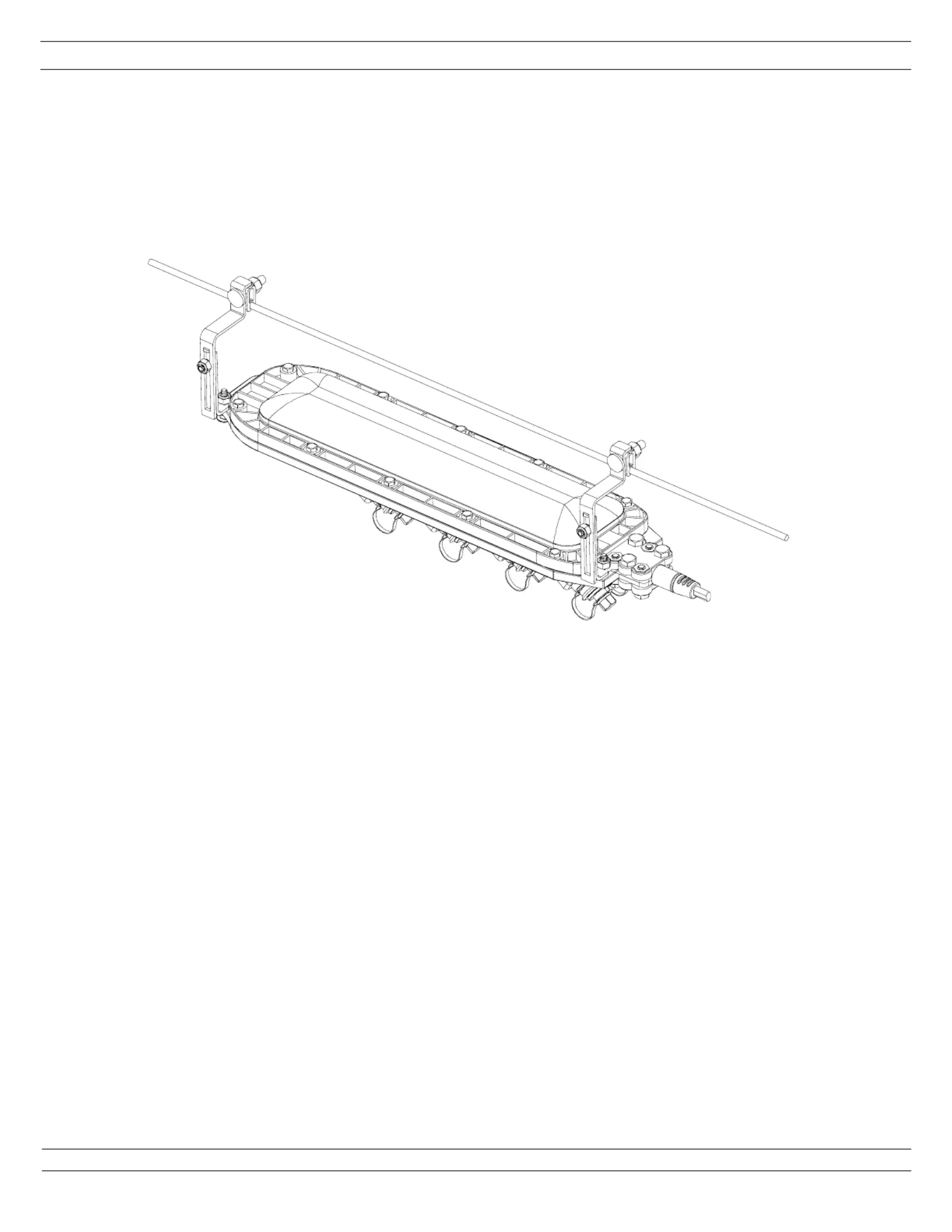

Figure 4: Strand-Mount Installation
A kit comprising a strand-mount bracket (P-MSW-ASB) facilitates aerial mounting of the MST from an
overhead strand, demonstrated in Figure 4. These brackets are installed onto the MC and subsequently
clamped securely onto the strand. The MST conveniently snaps into place within the MC.
STRAND-MOUNTING (aerial)
