8. Depress the green lever a few times and verify that the cleaning tape is advancing properly.
PN433A
Page 1 of 4
For Technical Support: www.panduit.com/resources/install_maintain.asp
OPERATING INSTRUCTIONS
© Panduit Corp. 2009
PN433AOPERATING INSTRUCTIONS
© Panduit Corp. 2009
Page 4 of 4
E-mail:
cs@panduit.com
Fax:
(708) 444-6993
For Instructions in Local Languages
and Technical Support:
www.panduit.com/resources/install_maintain.asp
www.panduit.com

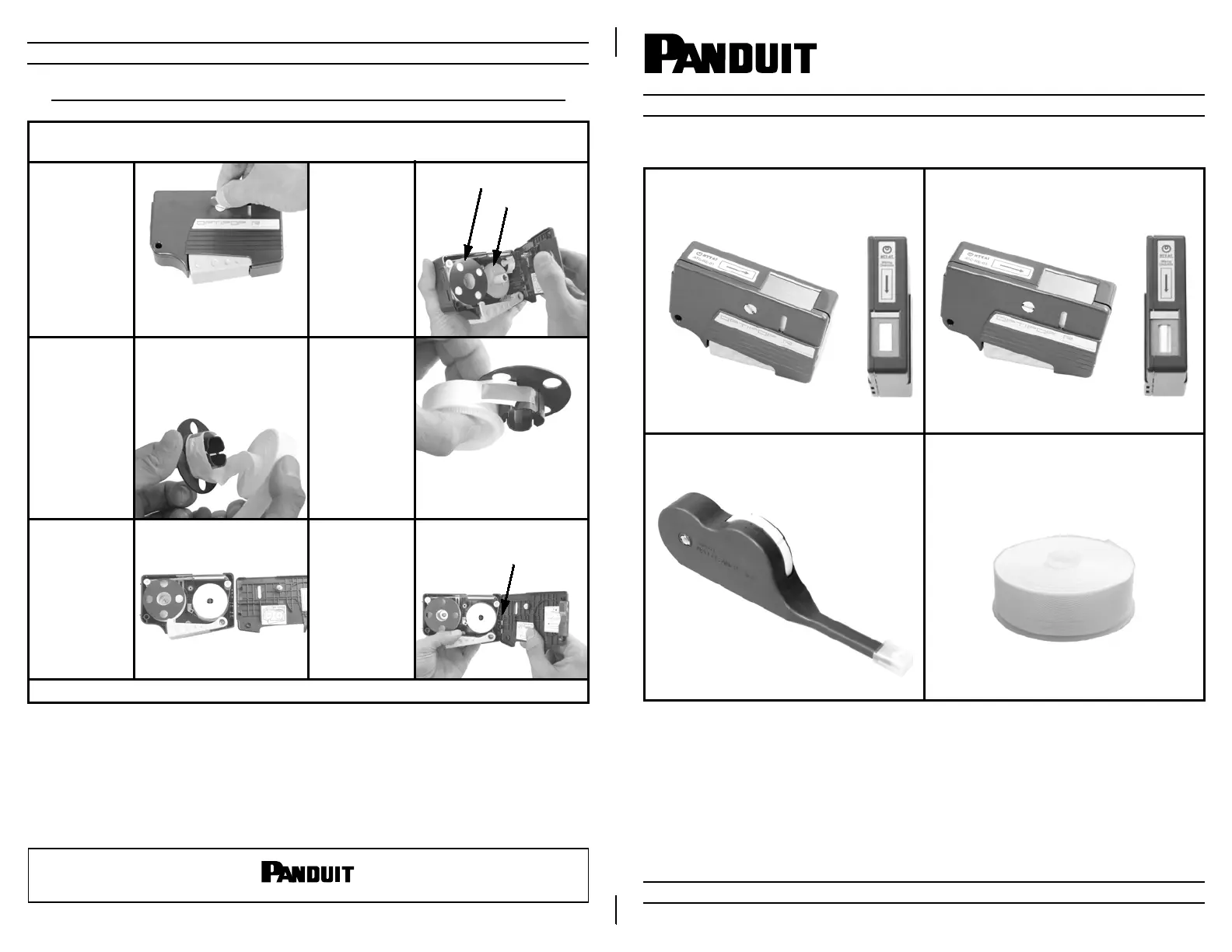

MTP* Cleaning Tools
Part Numbers: FMTPFCT, FMTPMFCT, FIBCCT, FMTPRR6
READ ALL INSTRUCTIONS COMPLETELY BEFORE PROCEEDING
TABLE OF CONTENTS Page(s)
Safety Precautions.................................................................................................... 2
Important Connector Cleaning Information............................................................... 2
FMTPFCT Instructions - Cleaning Female MTP* Connectors.................................. 2
FMTPMFCT Instructions - Cleaning Male MTP* Connectors................................... 3
FIBCCT Instructions - Cleaning Q
UICKNET Cassette MTP* Connectors................... 3
FMTPRR6 Instructions - Replacing FMTPFCT and FMTPMFCT Cleaning Reel.... 4
*MTP is a registered trademark of US Conec Ltd.
FMTPFCT FMTPMFCT
FIBCCT FMTPRR6
(Contains 6 reels)
MTP* Female Fiber Cleaning Tool MTP* Male Fiber Cleaning Tool
Q
UICKNET Cassette MTP* Cleaning Tool Cleaning Reel Refill for FMTPFCT and FMTPMFCT
FMTPRR6 - Replacing FMTPFCT and FMTPMFCT Cleaning Reel
1. The cleaning reel should only be replaced in a clean and dust free environment. A contaminated cleaning
reel may cause damage to fibers.
2. Use a coin or
screwdriver to
loosen the screw
located on the
front of the
FMTPFCT or
FMTPMFCT
Fiber Cleaning
Tools.
3. Open and
remove the
cover using the
finger grip on
the side of the
tool.
4. Remove the
cleaning reel and
winding reel by
lifting them
straight out of the
tool. Remove the
cleaning tape
from the winding
reel. Do not
discard the blue
winding reel.
5. Place the empty
winding reel
next to the new
cleaning reel as
shown. Detach
the adhesive
tape from the
cleaning reel
and attach to the
winding reel.
6. Place the winding
reel and the
cleaning reel into
the tool and route
the cleaning tape
as shown on the
diagram located
on the tool cover.
7. Hook the cover
on the tool body
and swing the
cover closed.
Tighten the
screw.
*MTP is a registered trademark of US Conec Ltd.
Winding Reel
Cleaning Reel
Hooks
3. Insert the cleaning tool tip into the MTP* adapter as
shown.
NOTE: The FIBCCT Q
UICKNET Cassette MTP*
Cleaning Tool is keyed the same as a MTP* connector.
Insert the cleaning tool tip into the Q
UICKNET MTP*
adapter with the key of the cleaning tool tip matching
the keyway of the adapter.
4. Rotate the tape feeder wheel in the direction indicated
on the cleaning tool.
5. Remove the cleaning tool from the Q
UICKNET Cassette
MTP* adapter.
6. Repeat steps 3, 4 and 5 to ensure that any
contamination is removed. Replace the dust cap onto
the cleaning tool.
7. Clean the external connector as described in the
sections above.
8. Reinstall the external connector into the Q
UICKNET
Cassette MTP* adapter.
1. Grip the FMTPFCT, depressing the green lever of the
cleaning tool. The metal shutter on top of the cleaning
tool will open, exposing fresh cleaning material. Fresh
material is exposed each time the green lever is
depressed.
2. Position the female MTP* ferrule endface so that the
fiber tips are in contact with the cleaning material.
Wipe the ferrule endface along the cleaning material in
the direction shown on the cleaning tool.
3. Release the green lever of the cassette to cover the
cleaning material.
4. Repeat steps 1, 2 and 3 to ensure that any
contamination is removed.
PN433A PN433AOPERATING INSTRUCTIONS
© Panduit Corp. 2009
OPERATING INSTRUCTIONS
© Panduit Corp. 2009
Page 3 of 4
For Technical Support: www.panduit.com/resources/install_maintain.asp
Page 2 of 4
For Technical Support: www.panduit.com/resources/install_maintain.asp

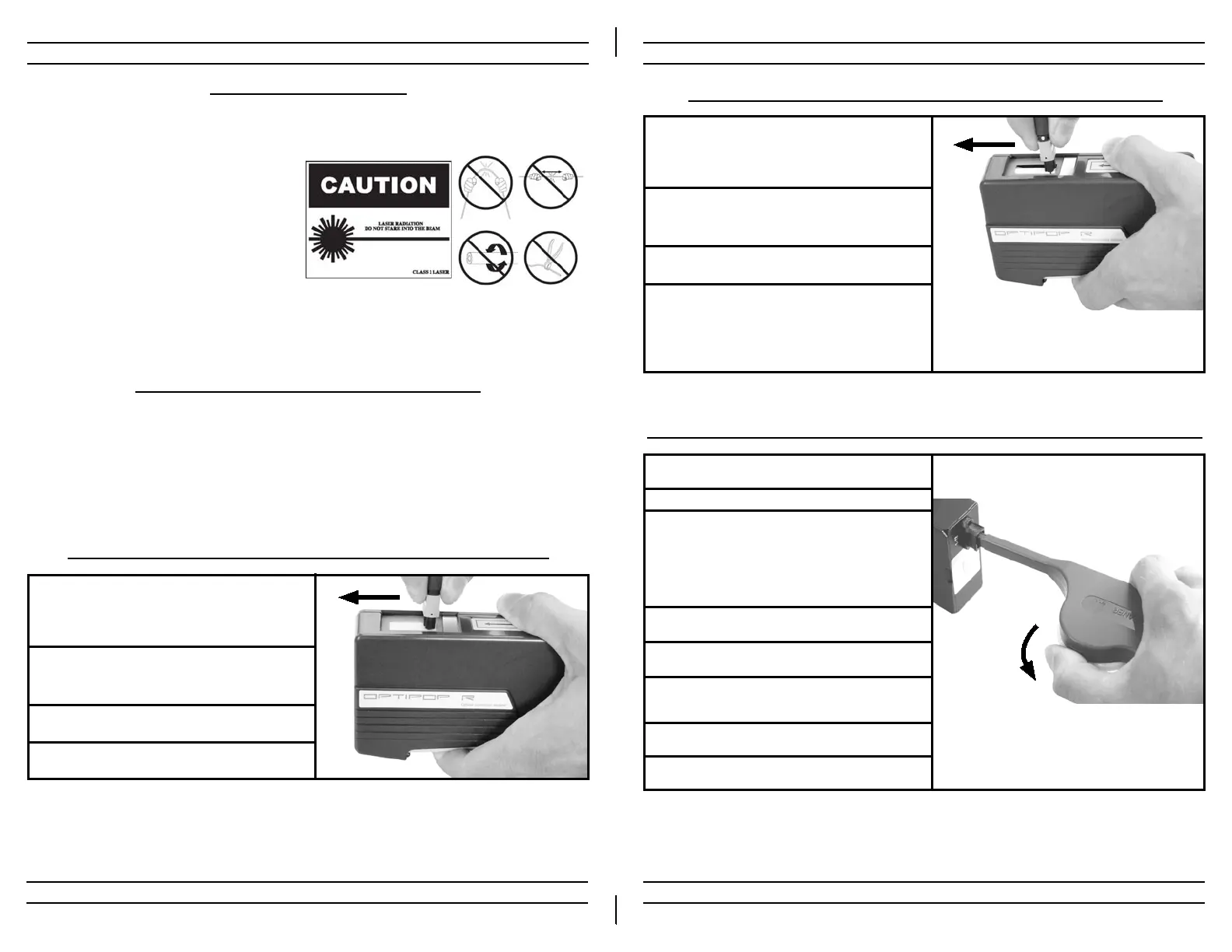

SAFETY PRECAUTIONS
FMTPMFCT Instructions - Cleaning Male MTP* Connectors
1. LASER LIGHT PROTECTION
WARNING: LASER LIGHT IS INVISIBLE. THE INVISIBLE
LIGHT IS POWERFUL ENOUGH TO DAMAGE YOUR
EYES. SERIOUS DAMAGE TO THE RETINA OF THE EYE
IS POSSIBLE. NEVER LOOK INTO THE END OF A FIBER
THAT MAY HAVE A LASER COUPLED INTO IT. SHOULD
ACCIDENTAL EYE EXPOSURE TO LASER LIGHT BE
SUSPECTED, ARRANGE FOR AN EYE EXAMINATION
IMMEDIATELY.
2. CABLE HANDLING
WARNING: FIBER OPTIC CABLE CAN BE DAMAGED
BY EXCESSIVE PULLING, TWISTING, CRUSHING OR
BENDING STRESSES. CONSULT THE APPROPRIATE
SPECIFICATION SHEETS AS PROVIDED BY YOUR
CABLE VENDOR. ANY DAMAGE MAY DECREASE
OPTICAL PERFORMANCE.
Important Connector Cleaning Information
Clean all connectors prior to connection. Just like single fiber connectors, all multi-fiber connectors must be
properly cleaned prior to connection to ensure optimum optical performance is achieved. Although interconnect
cords and cable assemblies are shipped from the factory pre-cleaned and protected with a dust cover, the user
should never assume the ferrule or connector has not been contaminated. A contaminated endface may not meet
system insertion loss and reflectance requirements or may cause permanent damage to the fiber(s) when mated
to another connector. Therefore, it is recommended that each ferrule endface or tip be cleaned using this
procedure prior to connection.
FMTPFCT Instructions - Cleaning Female MTP* Connectors
*MTP is a registered trademark of US Conec Ltd. *MTP is a registered trademark of US Conec Ltd.
1. Grip the FMTPMFCT, depressing the green lever of
the cleaning tool. The metal shutter on top of the
cleaning tool will open, exposing fresh cleaning
material. Fresh material is exposed each time the
green lever is depressed.
2. Position the male MTP* ferrule endface so that the
fiber tips are in contact with the cleaning material.
Wipe the ferrule endface along the cleaning material in
the direction shown on the cleaning tool.
3. Release the green lever of the cassette to cover the
cleaning material.
4. Repeat steps 1, 2 and 3 to ensure that any
contamination is removed.
NOTE: The FMTPMFCT MTP* Male Fiber Cleaning
Tool is designed to provide clearance for the
connector's guide pins allowing the fiber tips to contact
the cleaning material.
FIBCCT Instructions - Cleaning QuickNet Cassette MTP* Connectors
1. Remove the external connector or dust cover from the
Q
UICKNET Cassette MTP* adapter.
2. Remove the dust cap from the FIBCCT.
