PCRT1
PA25513A01
Rev. 04 10-2014
© Panduit Corp. 2014
Page: 1 of 2
• The open arms allow the operator to pass over cabling that
interferes with plug accessibility
• PCRT1 can be used “open” (unlocked) for copper patch
cord plugs
• PCRT1 can be used “closed” (locked) for fiber optic patch
cord connectors
• PCRT1 can be used by either right or left handed operators
PCRT1PCRT1
OPERATION
1.If working with fiber optic patch cord connectors, apply desired
boots to the tool arms.
2.Place the arms on the fiber optic patch cord connector or copper
patch cord plug-latch (see figures below); the tool grip is
squeezed lightly to obtain a firm grip on the connector/plug.
3.Pulling the tool in a backwards direction will remove the
connector/plug from the module.
4.To install connector/plug, place connector/plug in arms, lightly
squeeze grip (tool will hold connector/plug-latch), and push
connector/plug into module with latch on the bottom.

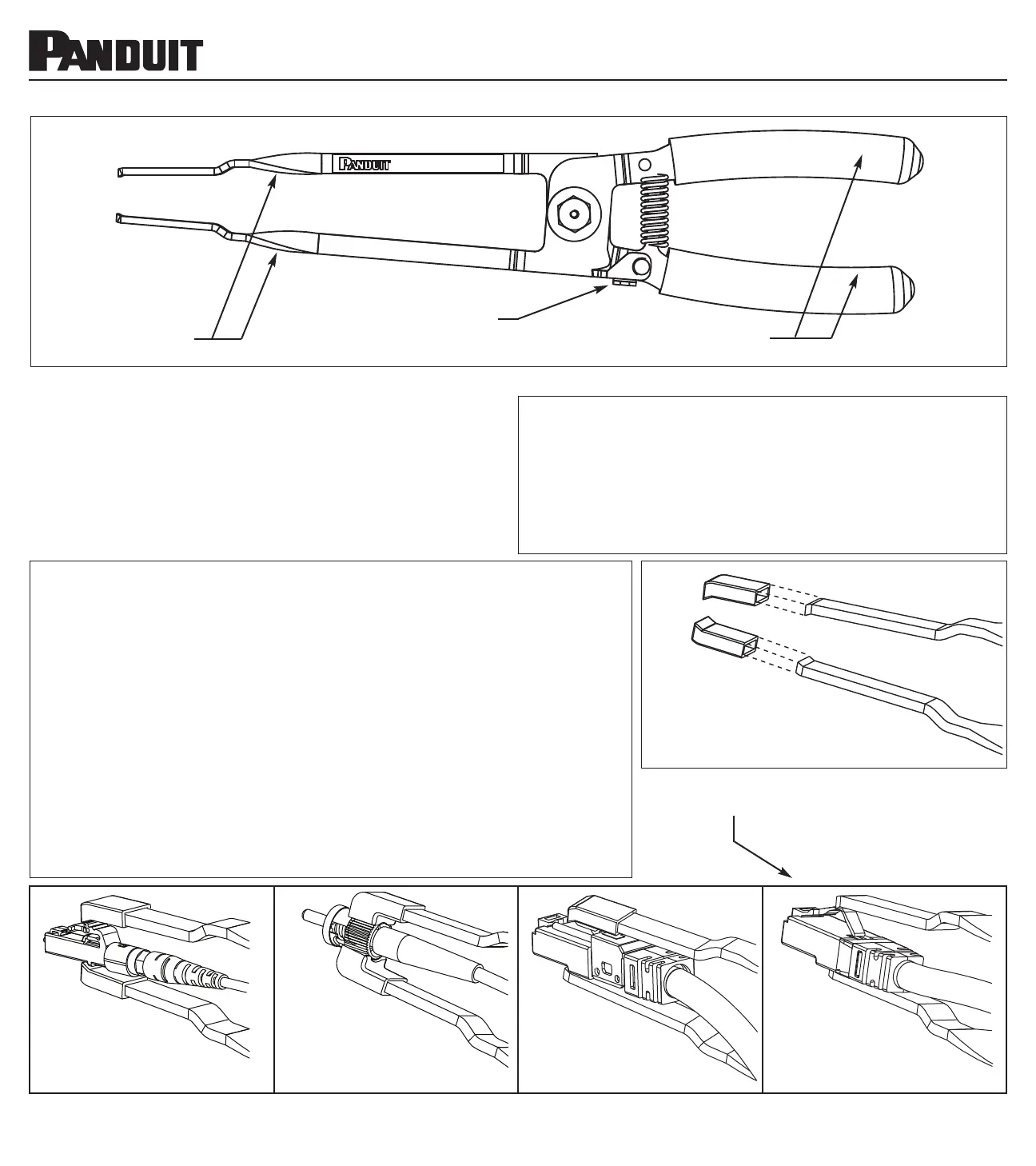

LOCK, TOGGLE
[SHOWN IN THE “CLOSED”
(LOCKED) POSITION]
ERGONOMIC GRIPS
TOOL ARMS
PCRT1 is supplied with three different style
connector boots:
• (2) for LC/SC fiber optic patch cord connectors, color: black
• (2) for ST fiber optic patch cord connectors, color: black
• (1) for PVIQ copper patch cord plugs, color: off-white
Shown with
LC Fiber Optic Connector
Shown with
ST Fiber Optic Connector
Shown with
RJ45 Copper Plug
Shown with
PVIQ Copper Plug
NOTE: No boots are required for
installing or removing
standard RJ45 copper
patch cord plugs.
LC / SC
BOOTS
SHOWN
